GN 843.1

Push-pull type toggle clamps

Steel / Stainless Steel, for push-pull clamping

Enquire Now

Description

Specification

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Information

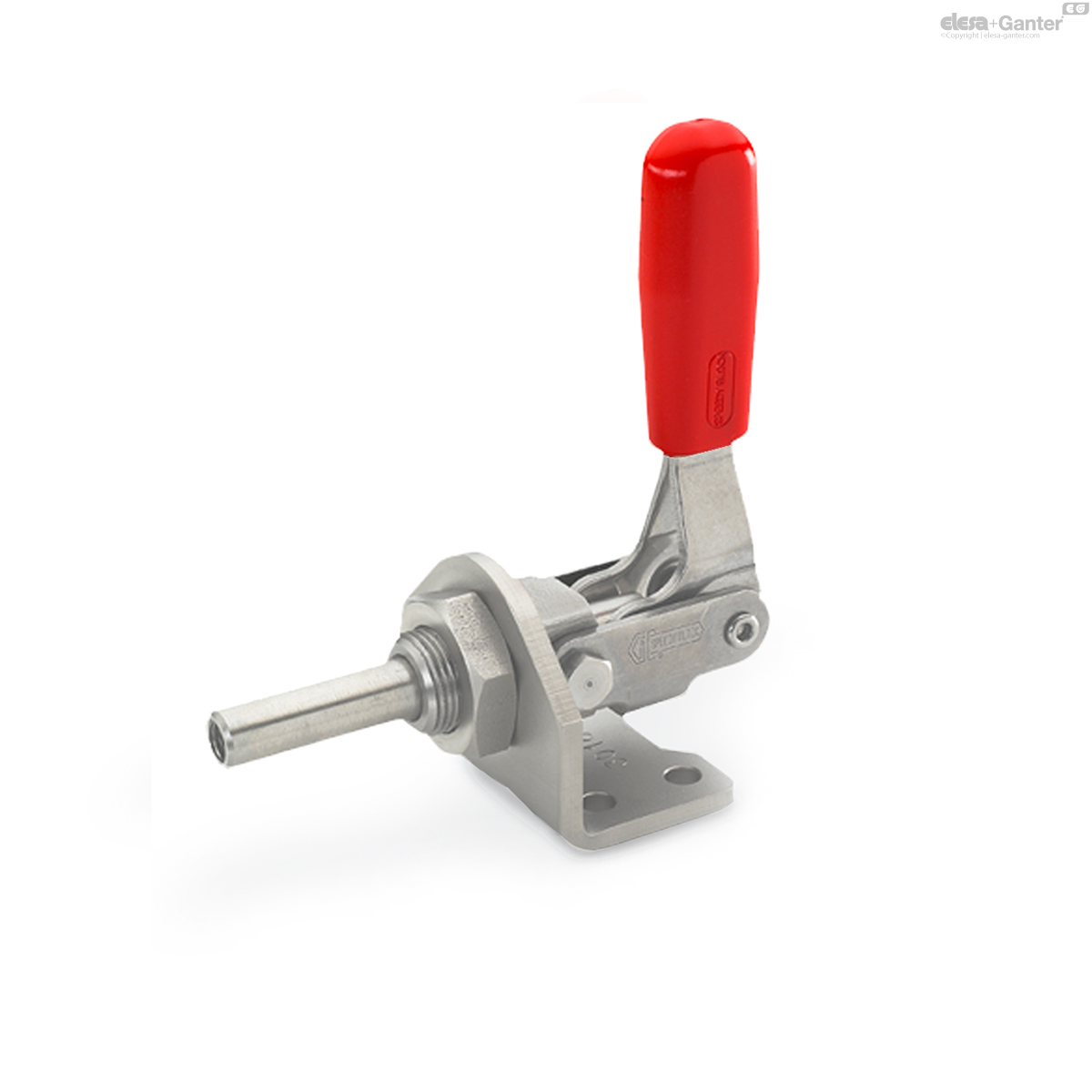

GN 843.1 push-pull type toggle clamps can be mounted on a mounting bracket (Type ASW) or directly on the jig.

The center bushing securing method allows the operating handle to be turned to the most favorable position.

GN 843.1 push-pull type toggle clamps replace series GN 843.

Technical information

Accessory

	Color	F_H in N	Size	F_h in N	a	b₁	b₂	d₁	d₂	d₃	d₄	h₁ ≈	h₂	h₃	l₁ ≈	l₂ ≈	l₃ ≈	l₄ ≈	l₅	m₁	m₂	m₃	s	t	w
Code																											Actions

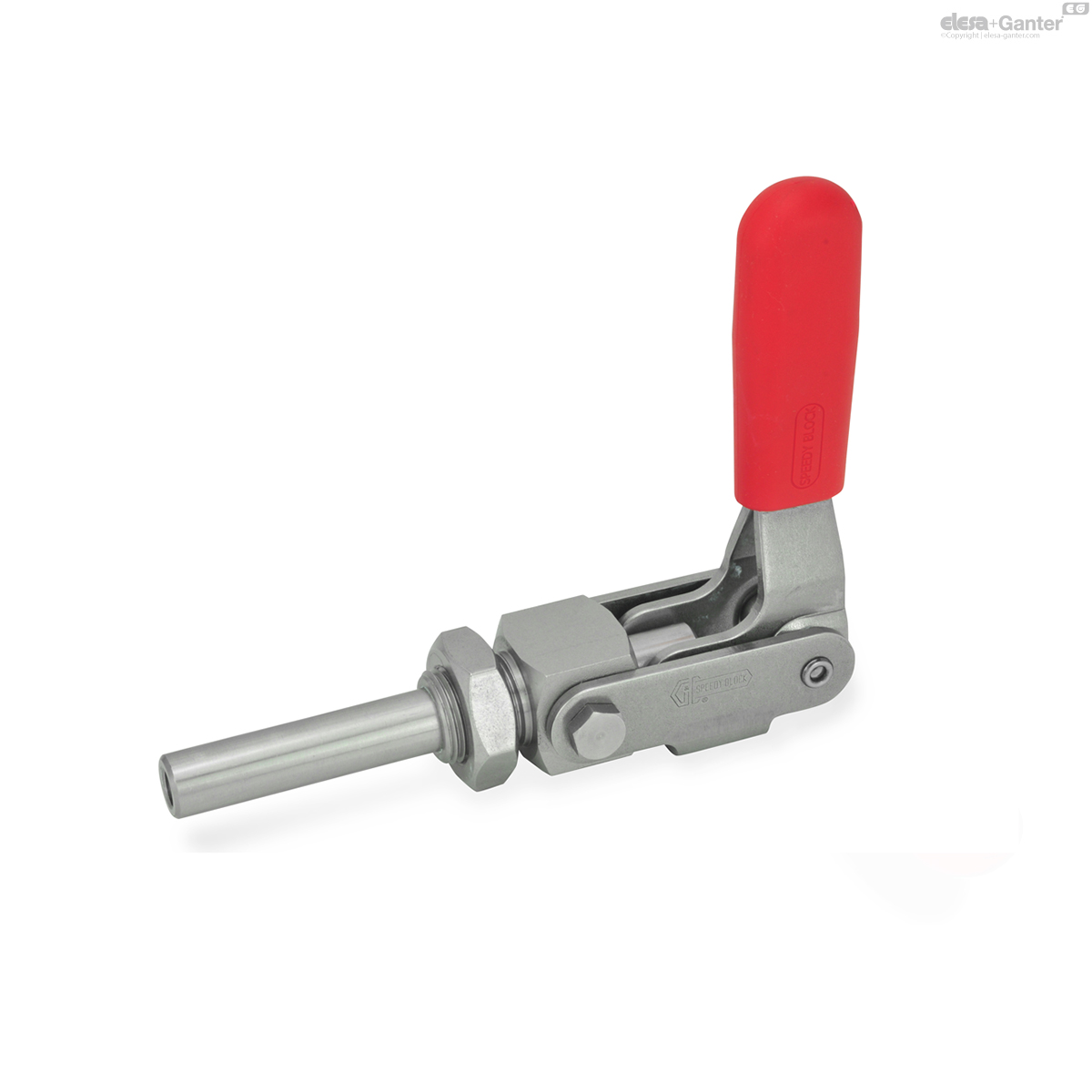

GN 843.1-80-AS-NI	Type AS	-	80	3000	24	35	29	10	M 6	M 16 x 1.5	5.5	70.5	38.5	19	71	65	34	22	22	20	12	-	4	12	21	126
GN 843.1-80-ASW-NI	Type ASW	3000	80	3000	24	35	29	10	M 6	M 16 x 1.5	5.5	70.5	38.5	19	71	65	34	22	22	20	12	-	4	12	21	178
GN 843.1-165-AS-NI	Type AS	-	165	5400	32	60	35	12	M 8	M 20 x 1.5	6.5	110	54	22	112	104	54	39	41	41	13.5	19	5	15	38	320
GN 843.1-165-ASW-NI	Type ASW	5400	165	5400	32	60	35	12	M 8	M 20 x 1.5	6.5	110	54	22	112	104	54	39	41	41	13.5	19	5	15	38	450
GN 843.1-340-AS-NI	Type AS	-	340	7000	48	75	47.6	16	M 10	M 24 x 2	8.5	146	70	30	173	162	85	68	59	55	19	25	5	18	66	750
GN 843.1-340-ASW-NI	Type ASW	7000	340	7000	48	75	47.6	16	M 10	M 24 x 2	8.5	146	70	30	173	162	85	68	59	55	19	25	5	18	66	1200
