GN 841

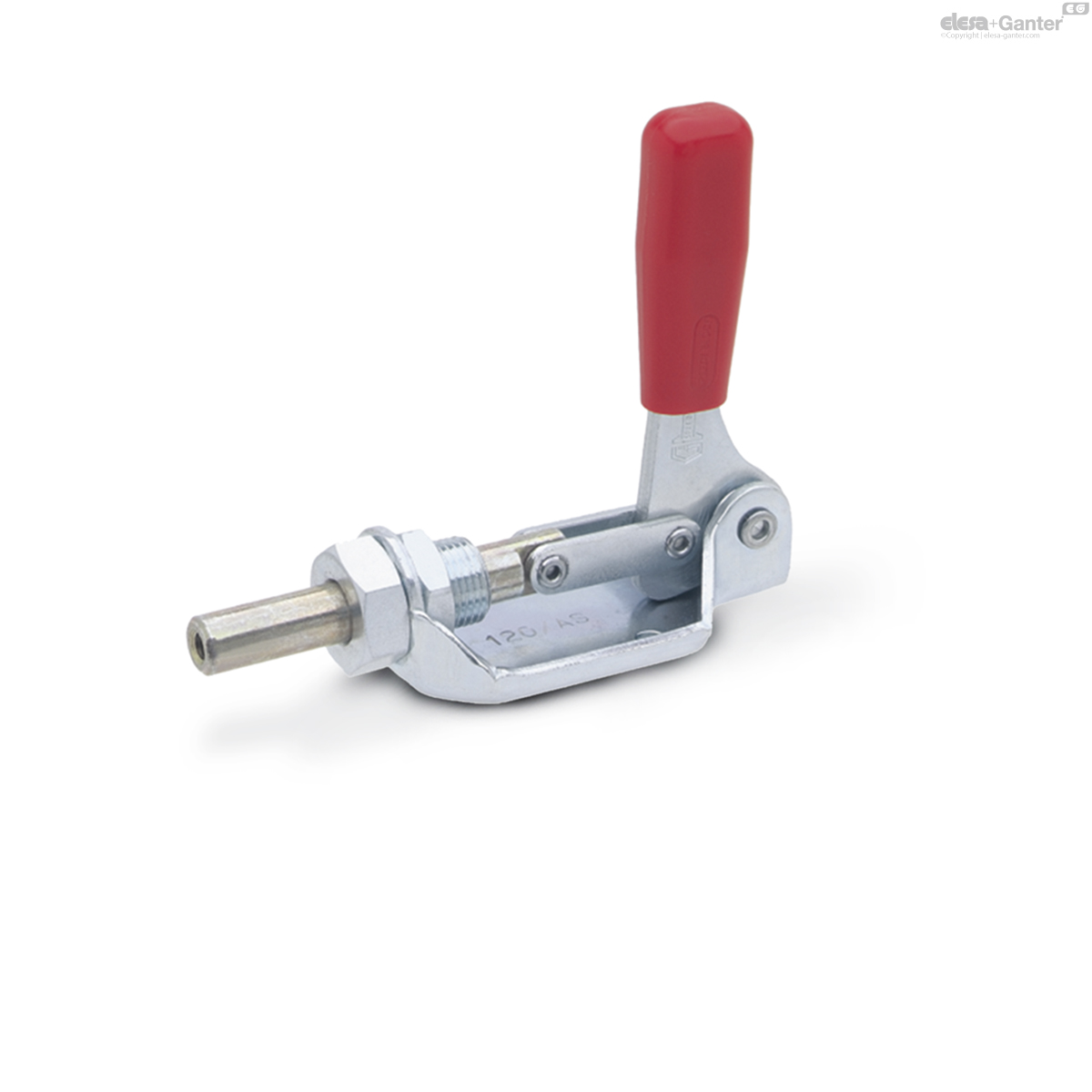

Push-pull type toggle clamps

for push-on clamping

Enquire Now

Description

Specification

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

Plunger

Steel St 37

zinc plated, blue passivated

Plunger guide bushing

Brass

zinc plated, blue passivated

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Information

Accessory

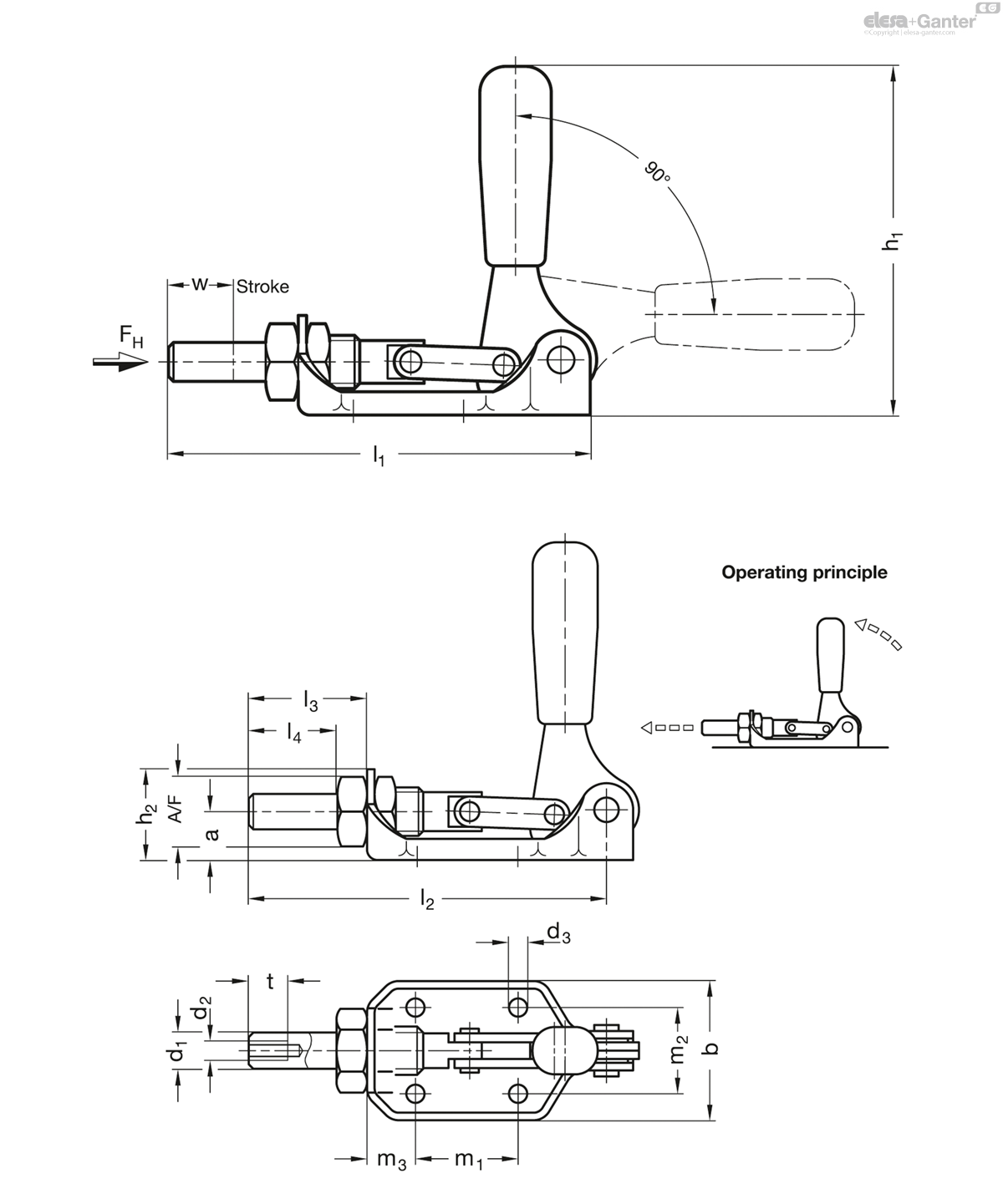

	Size	F_H in N	a	b	d₁	d₂	d₃	h₁ ≈	h₂	l₁ ≈	l₂ ≈	l₃ ≈	l₄ ≈	m₁	m₂	m₃	A/F	t	w
Code																					Actions
GN 841-120-AS	120	3600	17	48	12	M 6	5.5	111	31	130	121	40	30	34	30	17	24	12	20	320
GN 841-300-AS	300	7200	20	58	14	M 8	6.5	140	36	167	155	57	45	50	34	18	27	16	34	550
