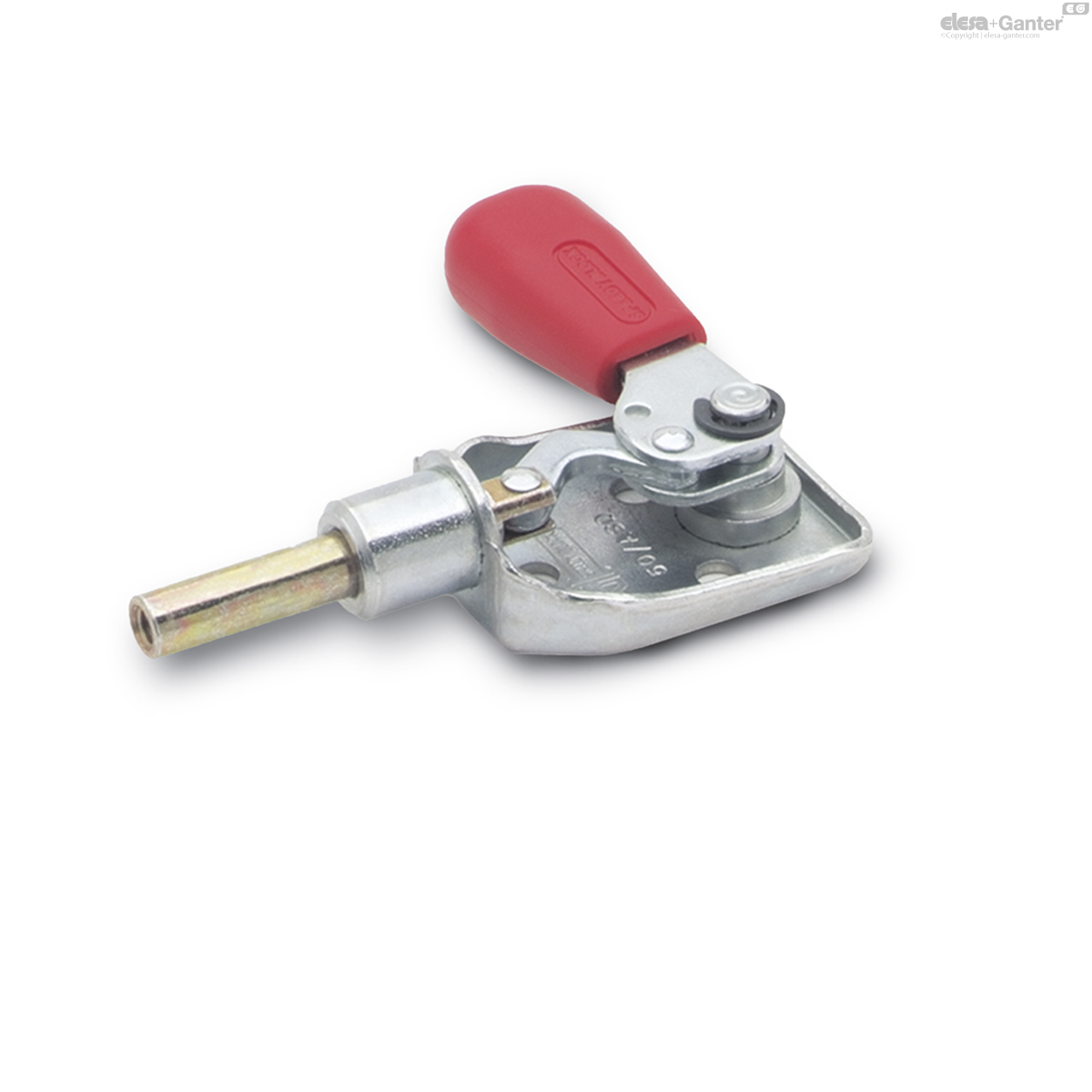

GN 840

Push-pull type toggle clamps

for push-pull clamping

Enquire Now

Description

Specification

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

Plunger

Steel St 37

zinc plated, blue passivated

Plunger guide bushing

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Information

GN 840 push-pull type toggle clamps are known for their extremely low height regardless of the position of the operating handle.

Accessory

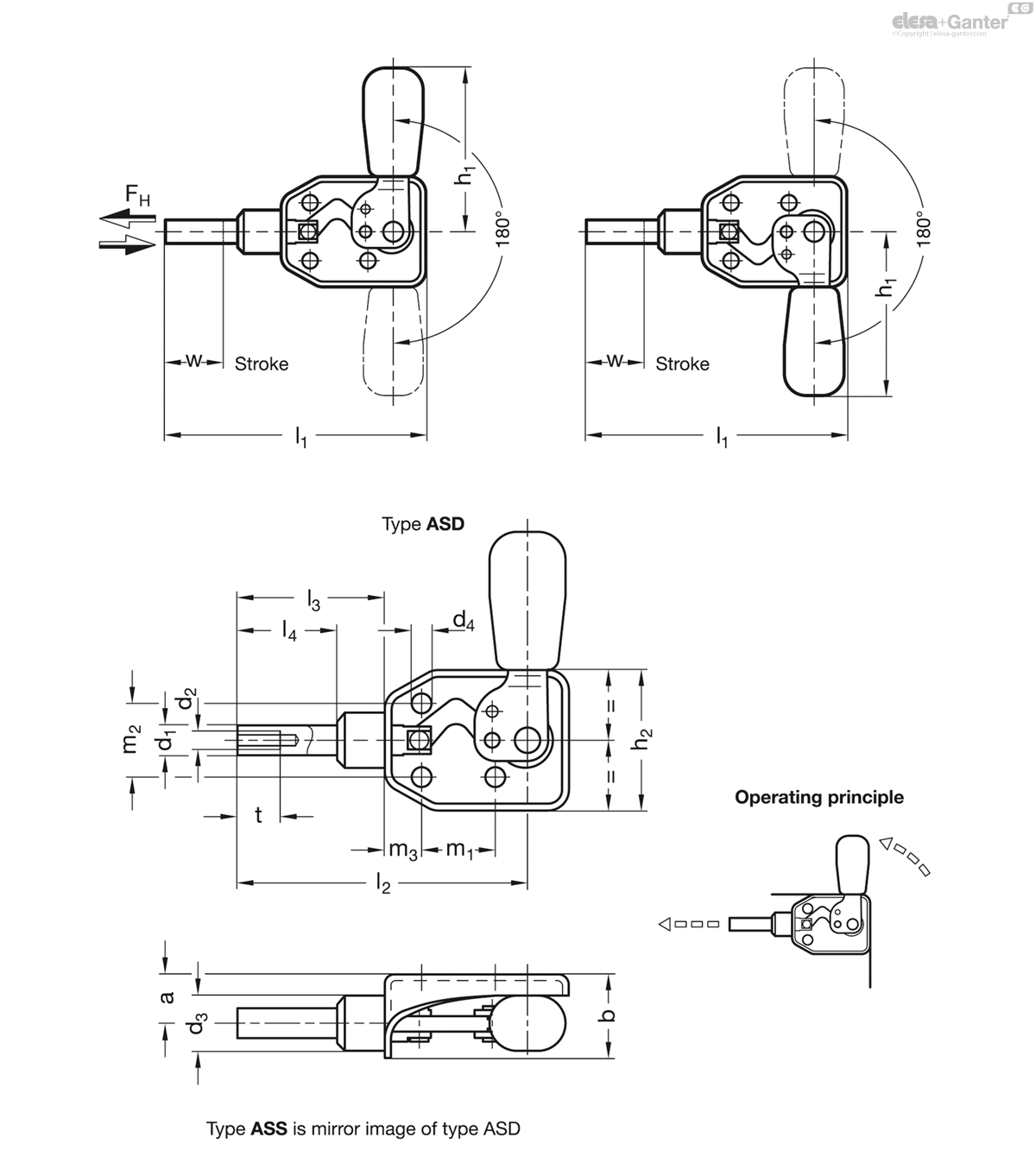

	Size	F_H in N	a	b	d₁	d₂	d₃	d₄	h₁ ≈	h₂	l₁ ≈	l₂ ≈	l₃ ≈	l₄ ≈	m₁	m₂	m₃	t min.	w
Code																					Actions
GN 840-50-ASD	50	800	10	17.5	6.5	M 4	12	4.3	45.2	30.5	73	64.5	33	21	16	16	8	9	16	56
GN 840-50-ASS	50	800	10	17.5	6.5	M 4	12	4.3	45.2	30.5	73	64.5	33	21	16	16	8	9	16	50
