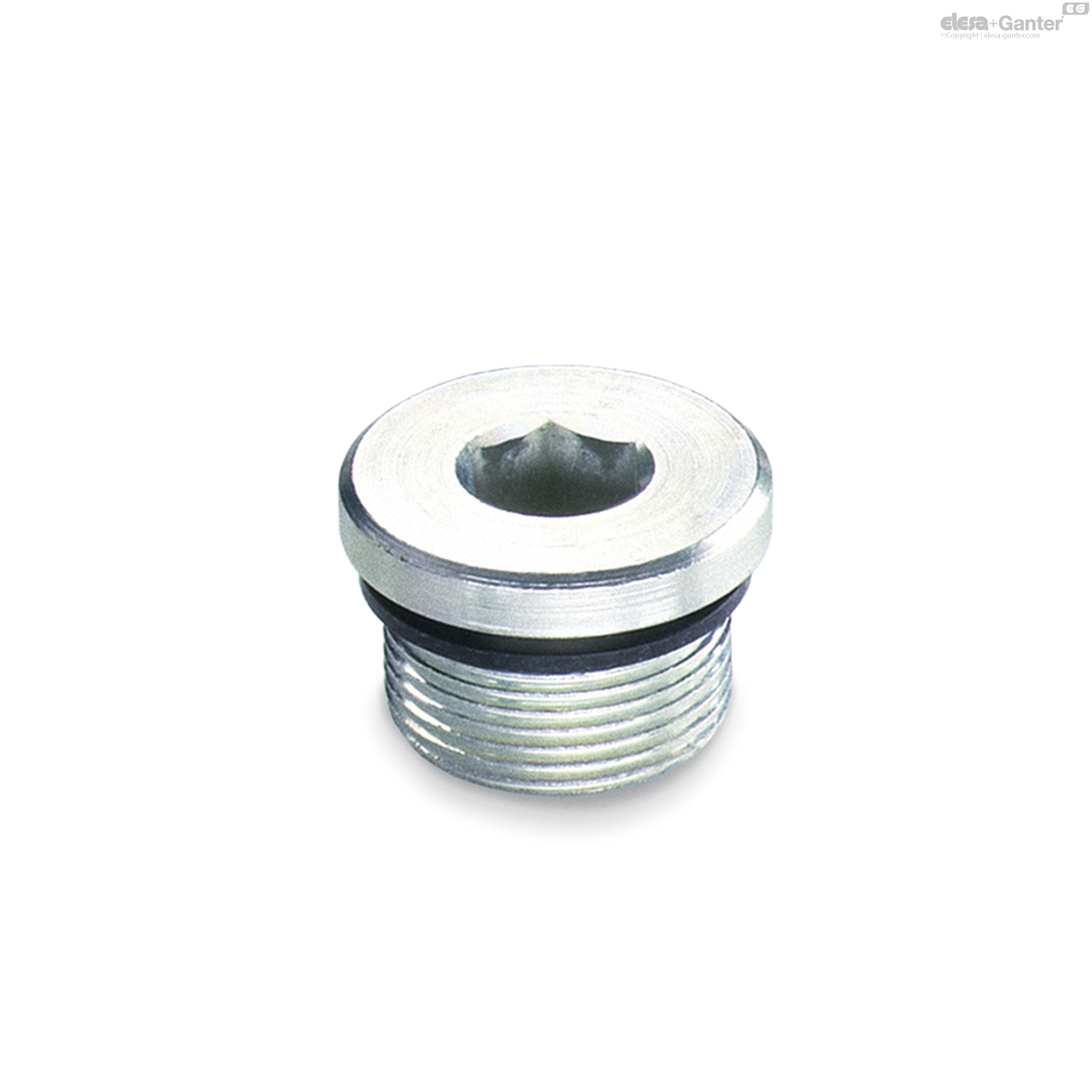

GN 749

Threaded plugs

Steel, zinc plated

Enquire Now

Description

Specification

Types

Type A: Sealing ring rubber NBR (Perbunan)

Type B: Sealing ring rubber FPM (Viton^®)

Steel

Tensile strength class 5.8

ultrasonically and tensile tested

zinc plated, nano-passivated (silver / yellowish)

Type A

temperature resistant up to 100 °C

Sealing ring rubber NBR (Perbunan)

Type B

temperature resistant up tp 180 °C

Sealing ring rubber FPM (Viton^®)

Identification by not black finish of the seal

Information

The dimensions of the threaded plugs GN 749 comply with DIN 908 -, but deviating from the latter is the elastic sealing ring (rubber). This sealling ring is retained in a radial undercut in the mating face which prevents it from dropping out and in particular it does not extrude when the plug is tightened.

The details relating to the permissible operating pressure are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

Technical information

Elastomer characteristics

GN 749

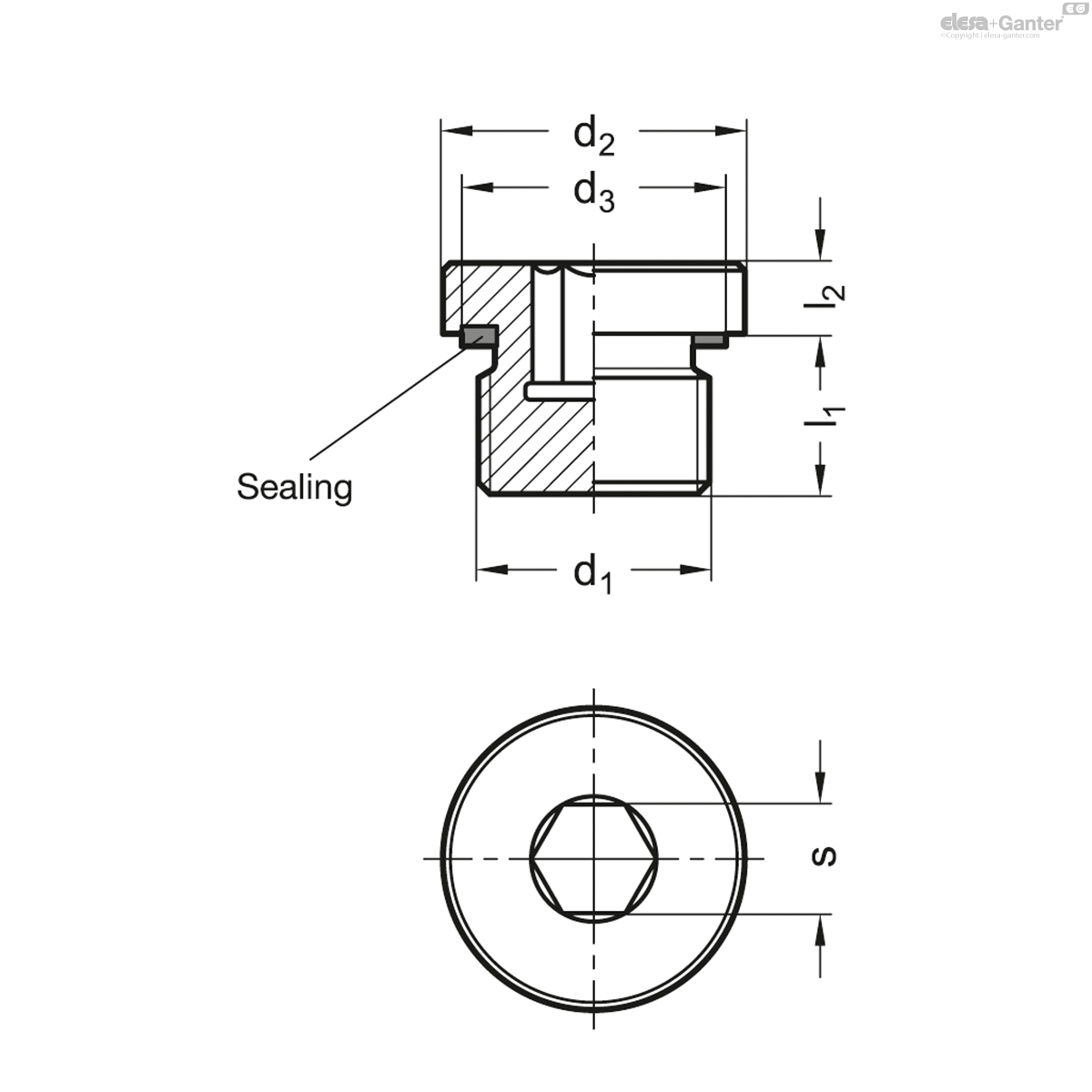

	d₁	d₂ h14	d₃	l₁	l₂	s	Max. permissible operating pressure in PB	Recommended tourque in Nm
Code										Actions
GN 749-G1-A	G 1	40	35.7	16	6.5	17	400	225	115
GN 749-G1-B	G 1	40	35.7	16	6.5	17	400	225	124
GN 749-G1/2-A	G 1/2	27	23.9	14	5	10	400	80	44
GN 749-G1/2-B	G 1/2	27	23.9	14	5	10	400	80	45
GN 749-G1/4-A	G 1/4	19	16.5	12	5	6	400	30	18
GN 749-G1/4-B	G 1/4	19	16.5	12	5	6	400	30	18
GN 749-G1/8-A	G 1/8	14	11.9	8	4	5	400	12	7
GN 749-G1/8-B	G 1/8	14	11.9	8	6.5	5	400	12	7
GN 749-G3/4-A	G 3/4	32	29.2	16	5	12	400	120	70
GN 749-G3/4-B	G 3/4	32	29.2	16	5	12	400	120	75
GN 749-G3/8-A	G 3/8	22	18.9	12	5	8	400	50	26
GN 749-G3/8-B	G 3/8	22	18.9	12	5	8	400	50	26
GN 749-G11/2-A	G 1 1/2	55	50.7	16	6.5	24	315	400	240
GN 749-G11/2-B	G 1 1/2	55	50.7	16	6.5	24	315	400	240
GN 749-G11/4-A	G 1 1/4	50	45.8	16	6.5	22	315	360	195
GN 749-G11/4-B	G 1 1/4	50	45.8	16	6.5	22	315	360	195
GN 749-M8x1-A	M 8 x 1	12	9.9	8	4	4	400	8	5
GN 749-M8x1-B	M 8 x 1	12	9.9	8	4	4	400	8	5
GN 749-M10x1-A	M 10 x 1	14	11.9	8	4	5	400	12	8
GN 749-M10x1-B	M 10 x 1	14	11.9	8	4	5	400	12	7
GN 749-M12x1,5-A	M 12 x 1.5	17	14.4	12	5	6	400	25	14
GN 749-M12x1,5-B	M 12 x 1.5	17	14.4	12	5	6	400	25	15
GN 749-M14x1,5-A	M 14 x 1.5	19	16.5	12	5	6	400	30	19
GN 749-M14x1,5-B	M 14 x 1.5	19	16.5	12	5	6	400	30	10
GN 749-M16x1,5-A	M 16 x 1.5	22	18.9	12	5	8	400	50	24
GN 749-M16x1,5-B	M 16 x 1.5	22	18.9	12	5	8	400	50	25
GN 749-M18x1,5-A	M 18 x 1.5	24	20.9	12	5	8	400	60	31
GN 749-M18x1,5-B	M 18 x 1.5	24	20.9	12	5	8	400	60	31
GN 749-M20x1,5-A	M 20 x 1.5	26	22.9	14	5	10	400	70	40
GN 749-M20x1,5-B	M 20 x 1.5	26	22.9	14	5	10	400	70	41
GN 749-M22x1,5-A	M 22 x 1.5	27	24.3	14	5	10	400	80	49
GN 749-M22x1,5-B	M 22 x 1.5	27	24.3	14	5	10	400	80	48
GN 749-M24x1,5-A	M 24 x 1.5	30	26.9	14	5	12	400	95	57
GN 749-M24x1,5-B	M 24 x 1.5	30	26.9	14	5	12	400	95	57
GN 749-M26x1,5-A	M 26 x 1.5	32	29.2	16	5	12	400	120	75
GN 749-M26x1,5-B	M 26 x 1.5	32	29.2	16	5	12	400	120	80
GN 749-M27x2-A	M 27 x 2	32	29.2	16	5	12	400	120	80
GN 749-M27x2-B	M 27 x 2	32	29.2	16	5	12	400	120	80
GN 749-M30x1,5-A	M 30 x 1.5	37	32.7	16	6.5	17	400	190	103
GN 749-M30x1,5-B	M 30 x 1.5	37	32.7	16	6.5	17	400	190	104
GN 749-M33x2-A	M 33 x 2	40	35.7	16	6.5	17	400	225	126
GN 749-M33x2-B	M 33 x 2	40	35.7	16	6.5	17	400	225	127
GN 749-M42x2-A	M 42 x 2	50	45.8	16	6.5	22	315	360	202
GN 749-M42x2-B	M 42 x 2	50	45.8	16	6.5	22	315	360	196
GN 749-M48x2-A	M 48 x 2	55	50.7	16	6.5	24	315	400	254
GN 749-M48x2-B	M 48 x 2	55	50.7	16	6.5	24	315	400	250
