Home Clamping Knobs Knurled knobs GN 7336.5

GN 7336.5

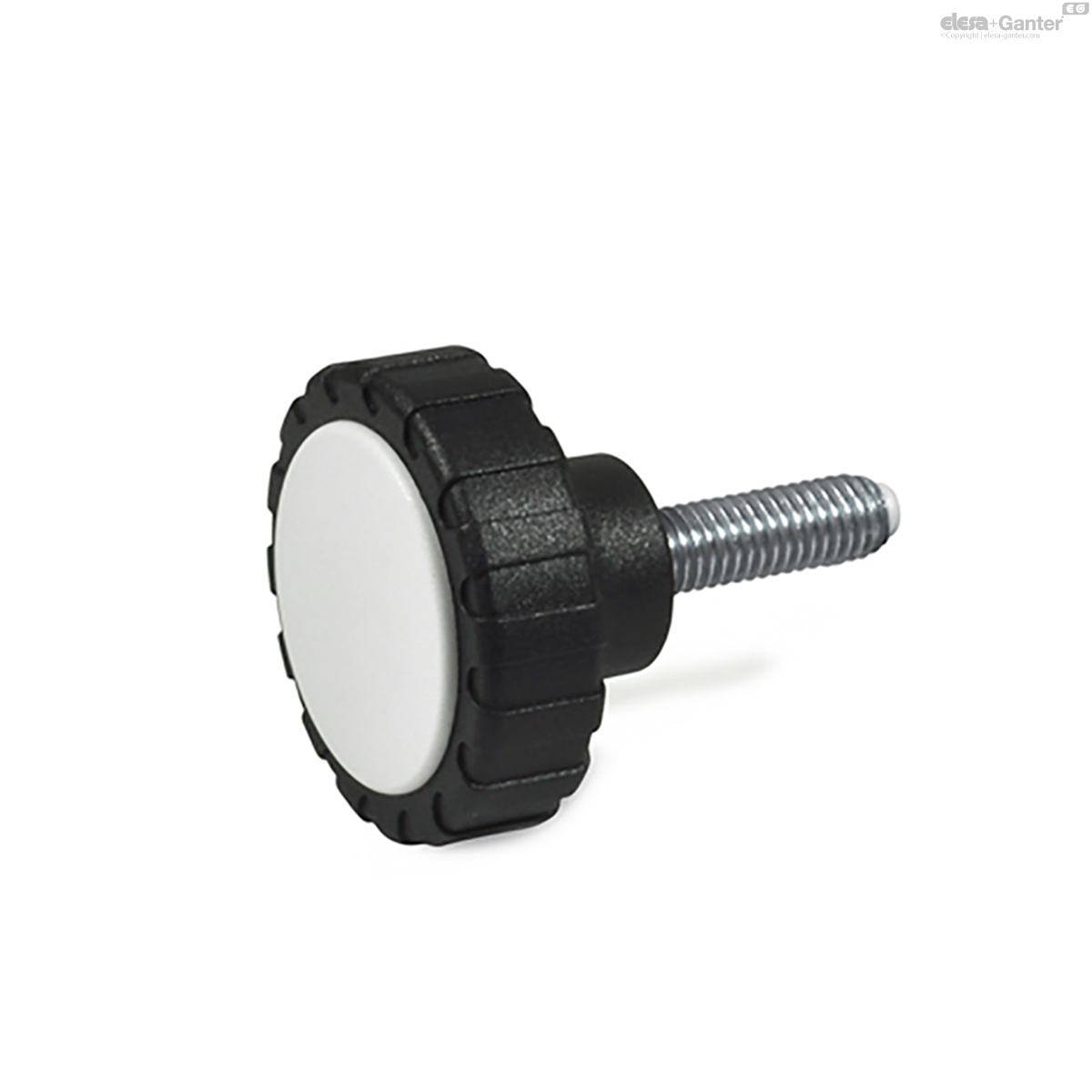

Knurled screws

Brass / Plastic / Spherical pivot

Enquire Now

Description

Specification

Types

Type MS: Brass pivot

Type KU: Plastic pivot (Polyacetal POM)

Type ZK: spherical pivot

Plastic

Technopolymer (Polyamide PA)

glasfibre reinforced

temperature resistant up to 130 °C

black, matt

Threaded stud

Stainless Steel AISI 304

Cover cap plastic

light grey, matt

Information

Knurled screws GN 7336.5, type MS/KU with brass or plastic pivots are used when pressure dents or damage must be avoided.

Knurled screws GN 7336.5, type ZK feature a spherical pivot whose Ø d₆ is smaller than the core Ø of the thread. The version with spherical pivot is suitable for holding GN 631 / GN 631.5 thrust pads, which must be ordered separately.

The knurled screws GN 7336.5 distinguish an attractive design in combination with closed shape (no recess on the underside of the handles).

Technical information

Plastic characteristics -

Stainless Steel characteristics

GN 7336.5

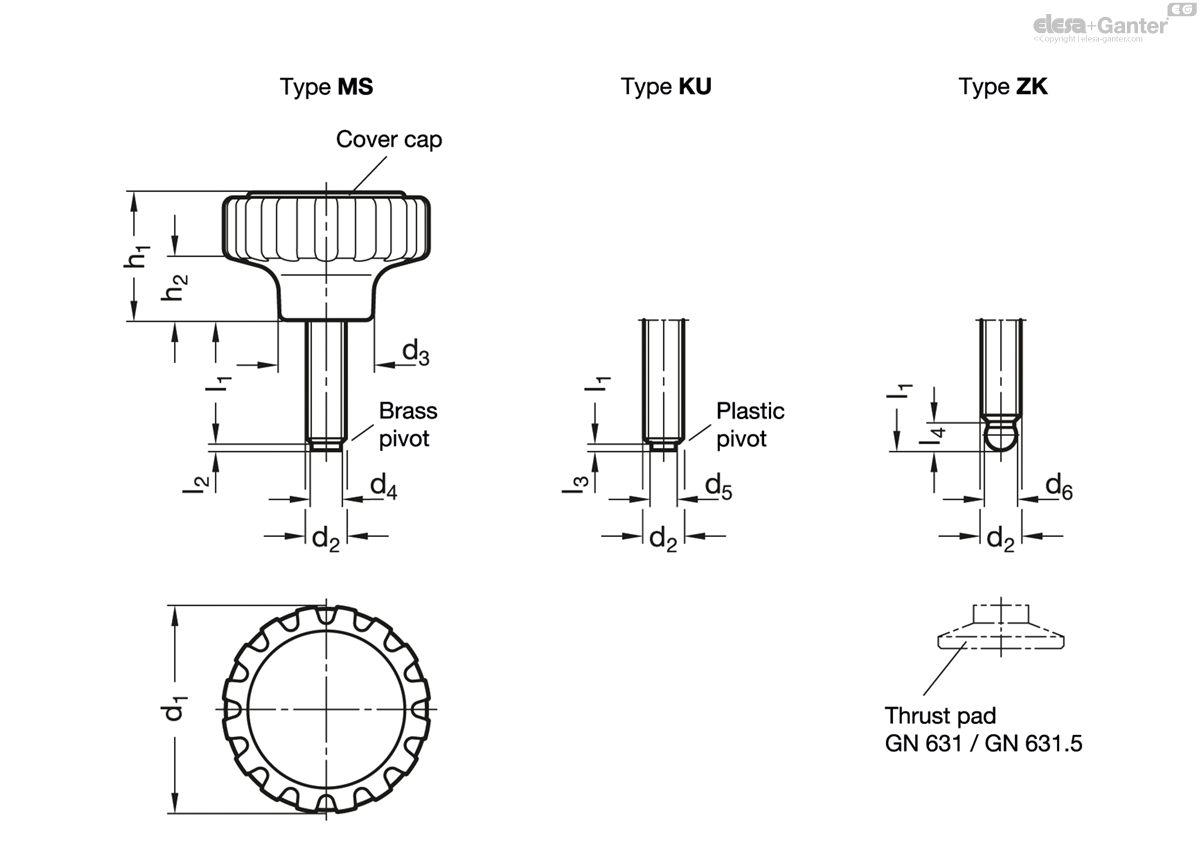

	d₁	d₂	l₁	d₃	d₄	d₅	d₆	d₆ +0.05	h₁	h₂	l₂	l₃	l₄ ≈
Code															Actions
GN 7336.5-34-M6-15-KU	34	M 6	15	16	-	3.5	-	-	21	10.5	-	1.3	-	22
GN 7336.5-34-M6-15-MS	34	M 6	15	16	4	-	-	-	21	10.5	1	-	-	17
GN 7336.5-34-M6-15-ZK	34	M 6	15	16	-	-	4.5 ±0.03	4.5	21	10.5	-	-	5.1	16
GN 7336.5-34-M6-20-KU	34	M 6	20	16	-	3.5	-	-	21	10.5	-	1.3	-	17
GN 7336.5-34-M6-20-MS	34	M 6	20	16	4	-	-	-	21	10.5	1	-	-	18
GN 7336.5-34-M6-20-ZK	34	M 6	20	16	-	-	4.5 ±0.03	4.5	21	10.5	-	-	5.1	17
GN 7336.5-34-M6-25-KU	34	M 6	25	16	-	3.5	-	-	21	10.5	-	1.3	-	18
GN 7336.5-34-M6-25-MS	34	M 6	25	16	4	-	-	-	21	10.5	1	-	-	18
GN 7336.5-34-M6-25-ZK	34	M 6	25	16	-	-	4.5 ±0.03	4.5	21	10.5	-	-	5.1	18
GN 7336.5-34-M6-30-KU	34	M 6	30	16	-	3.5	-	-	21	10.5	-	1.3	-	19
GN 7336.5-34-M6-30-MS	34	M 6	30	16	4	-	-	-	21	10.5	1	-	-	19
GN 7336.5-34-M6-30-ZK	34	M 6	30	16	-	-	4.5 ±0.03	4.5	21	10.5	-	-	5.1	19
GN 7336.5-42-M8-20-KU	42	M 8	20	19	-	5	-	-	26	13	-	1.6	-	30
GN 7336.5-42-M8-20-MS	42	M 8	20	19	6	-	-	-	26	13	1.5	-	-	31
GN 7336.5-42-M8-20-ZK	42	M 8	20	19	-	-	6.1 ±0.05	6.1	26	13	-	-	6.2	30
GN 7336.5-42-M8-25-KU	42	M 8	25	19	-	5	-	-	26	13	-	1.6	-	32
GN 7336.5-42-M8-25-MS	42	M 8	25	19	6	-	-	-	26	13	1.5	-	-	33
GN 7336.5-42-M8-25-ZK	42	M 8	25	19	-	-	6.1 ±0.05	6.1	26	13	-	-	6.2	31
GN 7336.5-42-M8-30-KU	42	M 8	30	19	-	5	-	-	26	13	-	1.6	-	33
GN 7336.5-42-M8-30-MS	42	M 8	30	19	6	-	-	-	26	13	1.5	-	-	34
GN 7336.5-42-M8-30-ZK	42	M 8	30	19	-	-	6.1 ±0.05	6.1	26	13	-	-	6.2	33
GN 7336.5-42-M8-40-KU	42	M 8	40	19	-	5	-	-	26	13	-	1.6	-	37
GN 7336.5-42-M8-40-MS	42	M 8	40	19	6	-	-	-	26	13	1.5	-	-	37
GN 7336.5-42-M8-40-ZK	42	M 8	40	19	-	-	6.1 ±0.05	6.1	26	13	-	-	6.2	36
GN 7336.5-53-M10-25-KU	53	M 10	25	24	-	6.5	-	-	32	16	-	1.9	-	57
GN 7336.5-53-M10-25-MS	53	M 10	25	24	8	-	-	-	32	16	2	-	-	58
GN 7336.5-53-M10-25-ZK	53	M 10	25	24	-	-	7.8 ±0.05	7.8	32	16	-	-	7.3	58
GN 7336.5-53-M10-30-KU	53	M 10	30	24	-	6.5	-	-	32	16	-	1.9	-	59
GN 7336.5-53-M10-30-MS	53	M 10	30	24	8	-	-	-	32	16	2	-	-	62
GN 7336.5-53-M10-30-ZK	53	M 10	30	24	-	-	7.8 ±0.05	7.8	32	16	-	-	7.3	60
GN 7336.5-53-M10-40-KU	53	M 10	40	24	-	6.5	-	-	32	16	-	1.9	-	65
GN 7336.5-53-M10-40-MS	53	M 10	40	24	8	-	-	-	32	16	2	-	-	65
GN 7336.5-53-M10-40-ZK	53	M 10	40	24	-	-	7.8 ±0.05	7.8	32	16	-	-	7.3	66
GN 7336.5-53-M10-50-KU	53	M 10	50	24	-	6.5	-	-	32	16	-	1.9	-	69
GN 7336.5-53-M10-50-MS	53	M 10	50	24	8	-	-	-	32	16	2	-	-	71
GN 7336.5-53-M10-50-ZK	53	M 10	50	24	-	-	7.8 ±0.05	7.8	32	16	-	-	7.3	71
