GN 730.5

Ledge Handles

Stainless Steel

Enquire Now

Description

Specification

Matte shot-blasted finish GS

Information

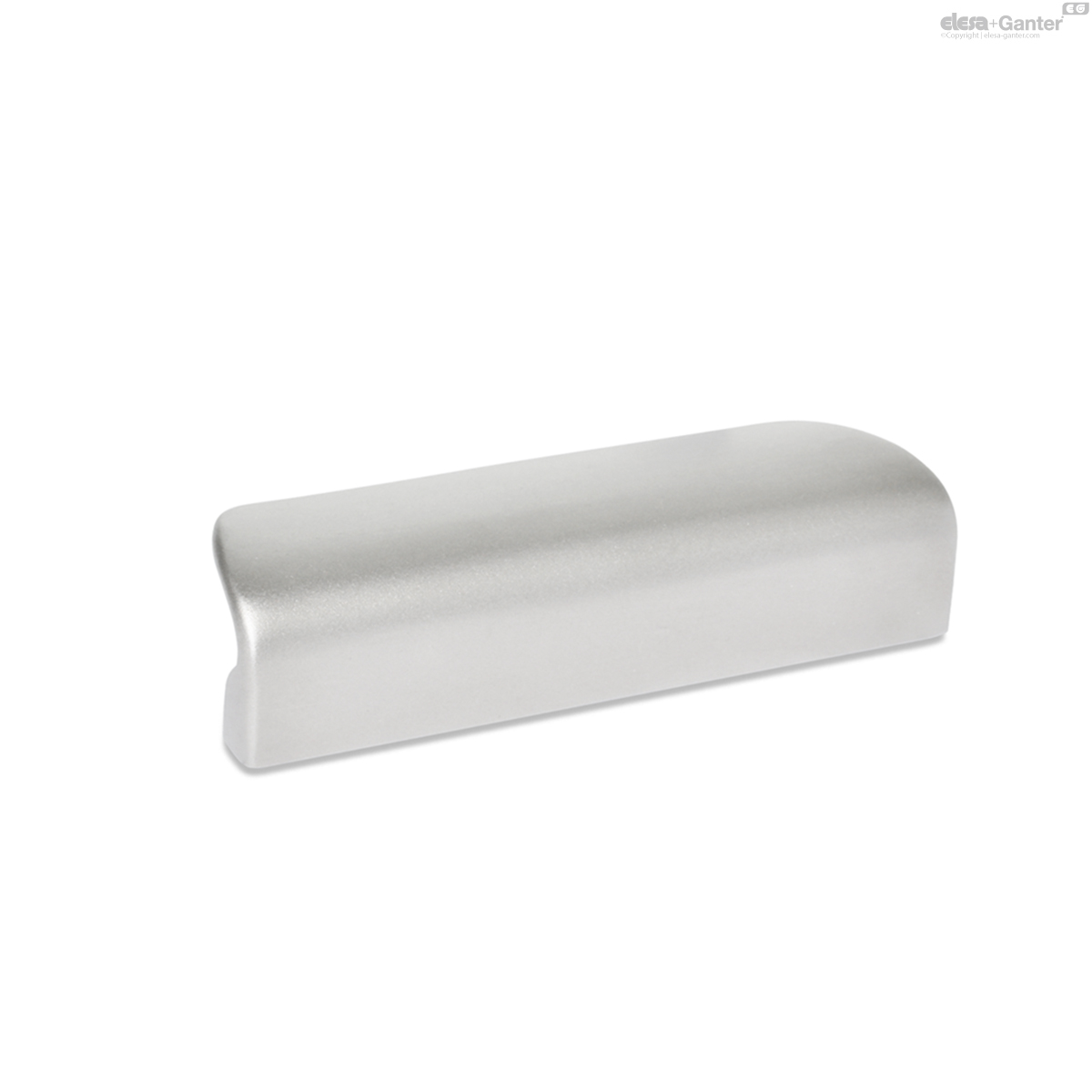

The ledge handle GN 730.5 is used on doors, guards and hatches on machines, as well as on drawers and pull-out units.

Due to the material used, the handle is intended especially for use in corrosive environments with aggressive media.

The ledge handle is made in a way that does not allow pooling of fluids, which makes cleaning easier and prevents build up of residue and bacteria.

It can be attached from the back side via the mounting thread. Alternatively, the handles can be welded from the front.

On request

Technical information

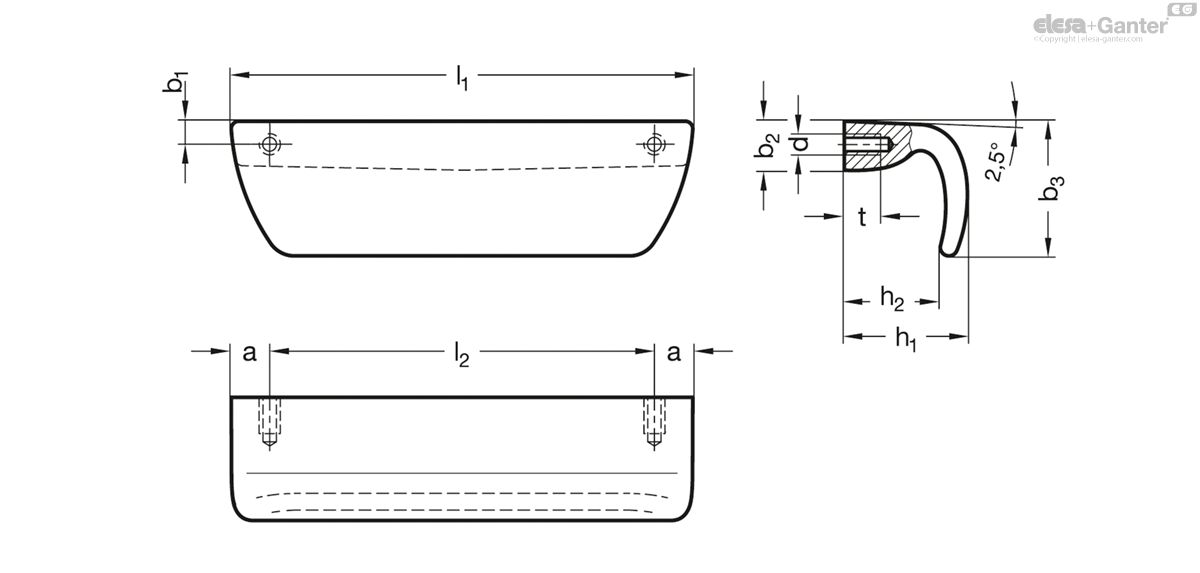

	l₁	a	b₁	b₂	b₃	d	h₁	h₂	l₂	t min.
Code												Actions
GN 730.5-A4-120-GS	120	10	6	12.5	35	M 6	32	25	100	9	347
