GN 723.3

Reference flanges

for control knobs GN 723.4

Enquire Now

Description

Specification

Aluminium

anodized, black

Reference arrow

white, engraved with laser precision

Clamping ring

Rubber

Friction ring

Polyamide

Information

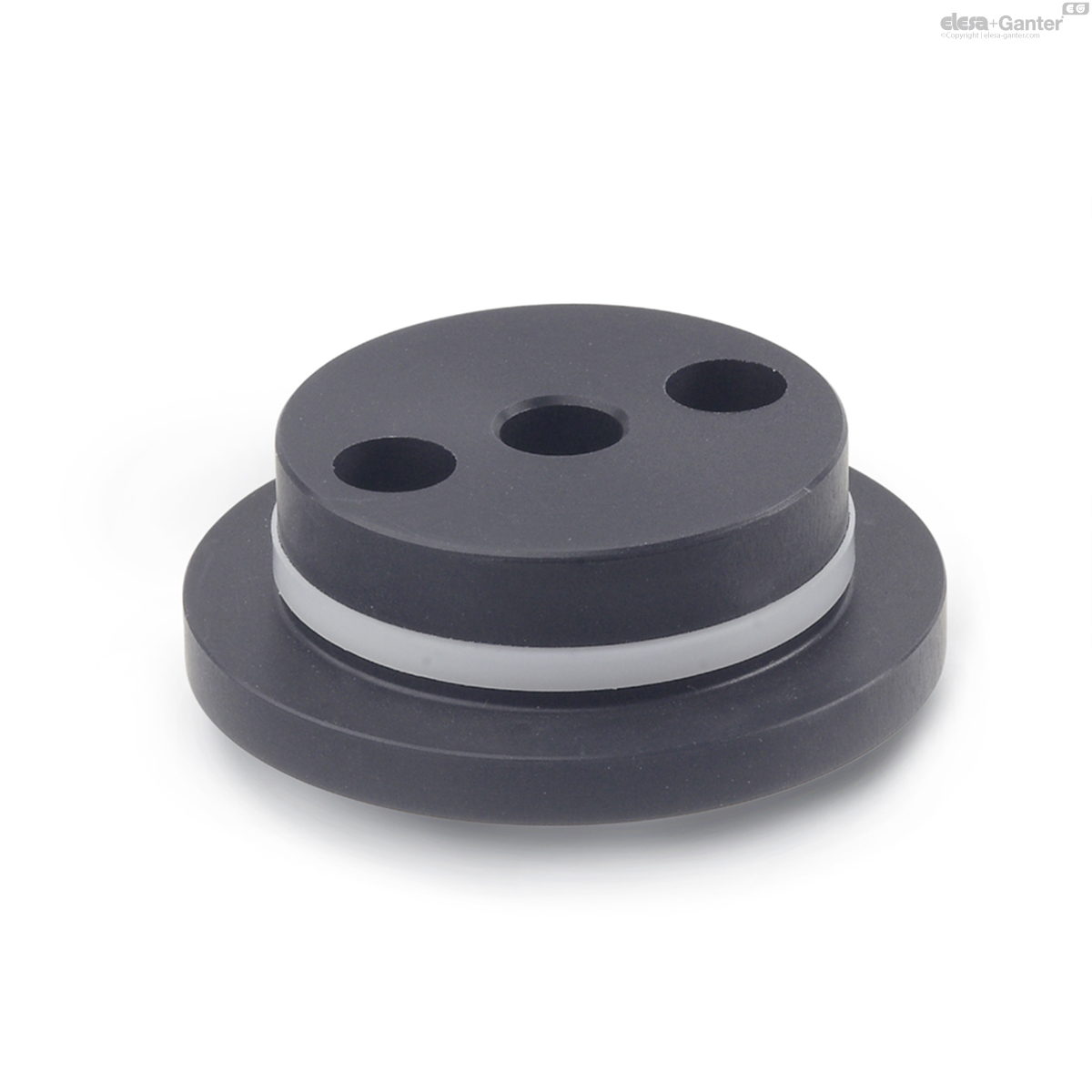

Reference flanges GN 723.3 are used together with control knobs GN 723.4 which offer the following advantages:

- they have a reference mark to line up with the control knob scale,

- they offer additional support for the control shaft.

- the version with friction ring prevents an unexpected movement of the control knob by vibration.

Technical information

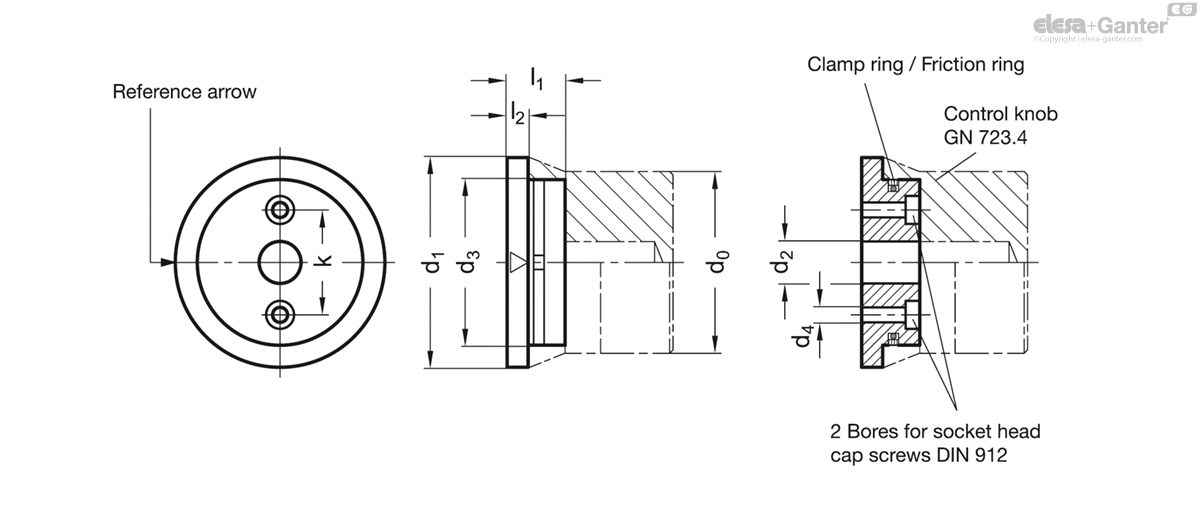

	d₀	d₁	d₂ H8	d₃ -0.1	d₄	k	l₁	l₂
Code										Actions
GN 723.3-33,5-B6-A	27	33.5	B 6	23.3	3.4	13	11.2	4	15
GN 723.3-33,5-B6-B	27	33.5	B 6	23.3	3.4	13	11.2	4	15
GN 723.3-41-B6-A	34	41	B 6	29.3	3.4	18	14.2	5	33
GN 723.3-41-B6-B	34	41	B 6	29.3	3.4	18	14.2	5	31
GN 723.3-41-B8-A	34	41	B 8	29.3	3.4	18	14.2	5	32
GN 723.3-41-B8-B	34	41	B 8	29.3	3.4	18	14.2	5	31
GN 723.3-50-B8-A	42	50	B 8	37.3	4.5	24	16.2	5	63
GN 723.3-50-B8-B	42	50	B 8	37.3	4.5	24	16.2	5	55
GN 723.3-50-B10-A	42	50	B 10	37.3	4.5	24	16.2	5	55
GN 723.3-50-B10-B	42	50	B 10	37.3	4.5	24	16.2	5	51
