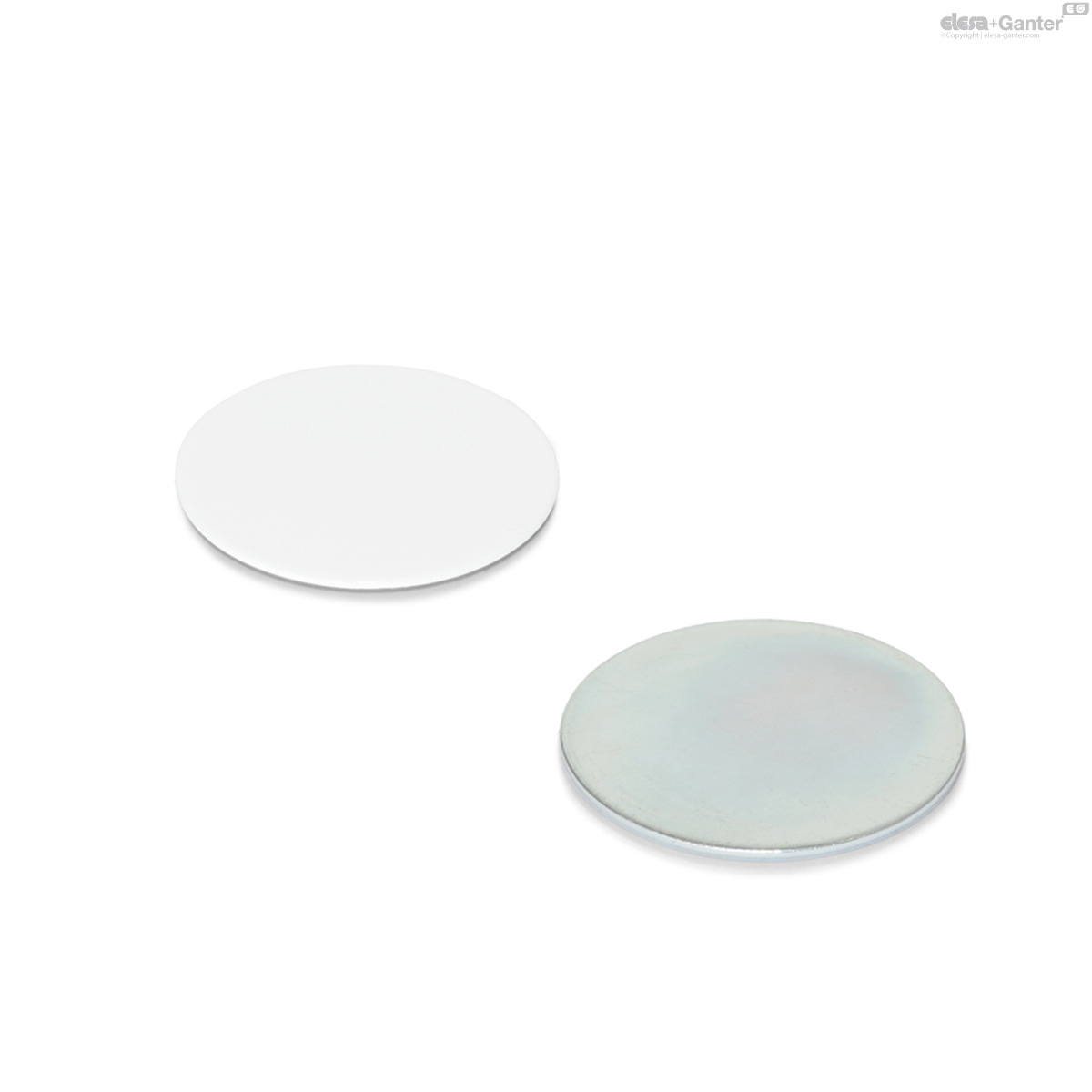

GN 70.1
Adhesive Disks
Self-Adhesive, for Retaining Magnets
Description
Specification
Steel
- Zinc plated, blue passivated ZB
- Zinc plated, blue passivated, white laquered WS
Adhesive pad
Scotch-Mount TM 4032
- Doubled-sided
- With polyurethane foam backing
Information
Adhesive disks GN 70.1 are used as counter piece for retaining magnets if a magnet is to be used on a non-magnetic surface, for instance.
After pulling off the protective film from the adhesive pad at the back, they can be attached to any suitable and clean surfaces.

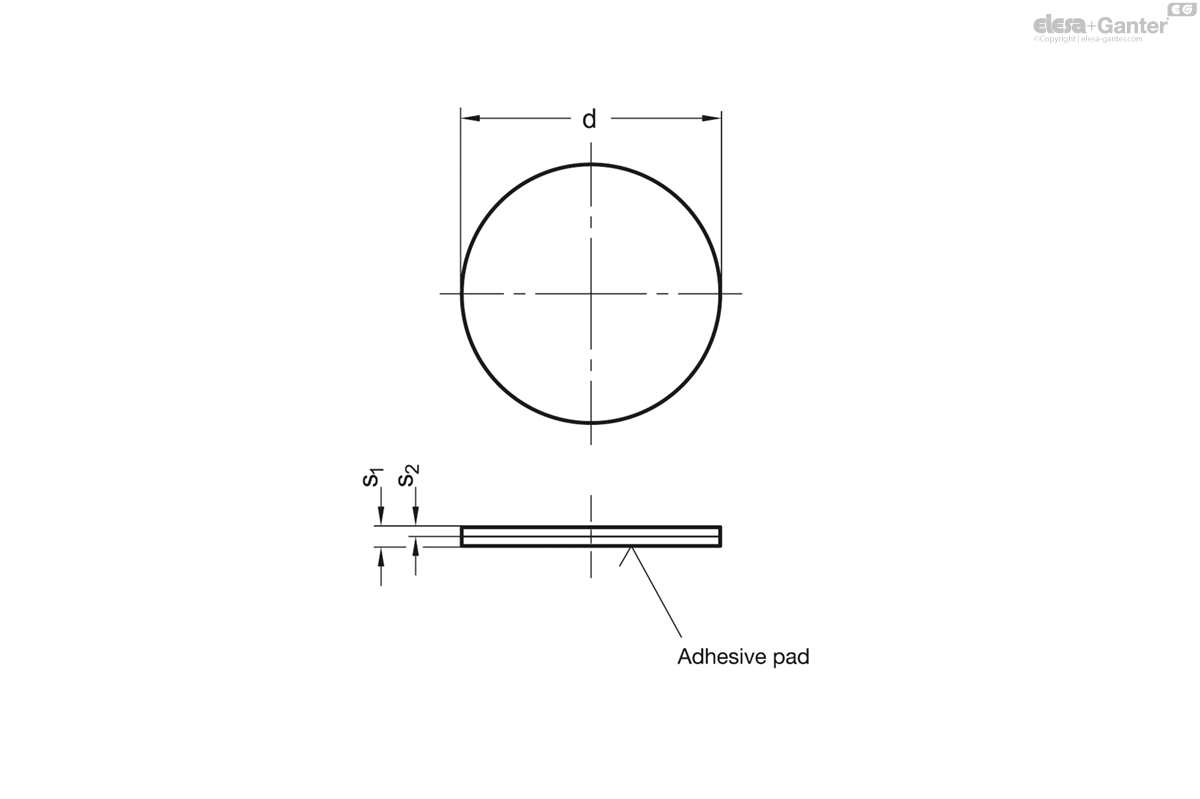

GN 70.1
| d | s1 | s2 |  |
||
|---|---|---|---|---|---|
| Code | Actions | ||||
| GN 70.1-20-WS | 20 | 2 | 1 | 3 |
|
| GN 70.1-20-ZB | 20 | 2 | 1 | 3 |
|
| GN 70.1-30-WS | 30 | 2 | 1 | 6 |
|
| GN 70.1-30-ZB | 30 | 2 | 1 | 6 |
|
| GN 70.1-40-WS | 40 | 2 | 1 | 10 |
|
| GN 70.1-40-ZB | 40 | 2 | 1 | 11 |
|
| GN 70.1-60-WS | 60 | 2.5 | 1.5 | 35 |
|
| GN 70.1-60-ZB | 60 | 2.5 | 1.5 | 35 |
|
