GN 653.2

Knurled screws

Steel / Stainless Steel, with a thin shan for loss-prevention

Enquire Now

GN 653.2

Knurled screws

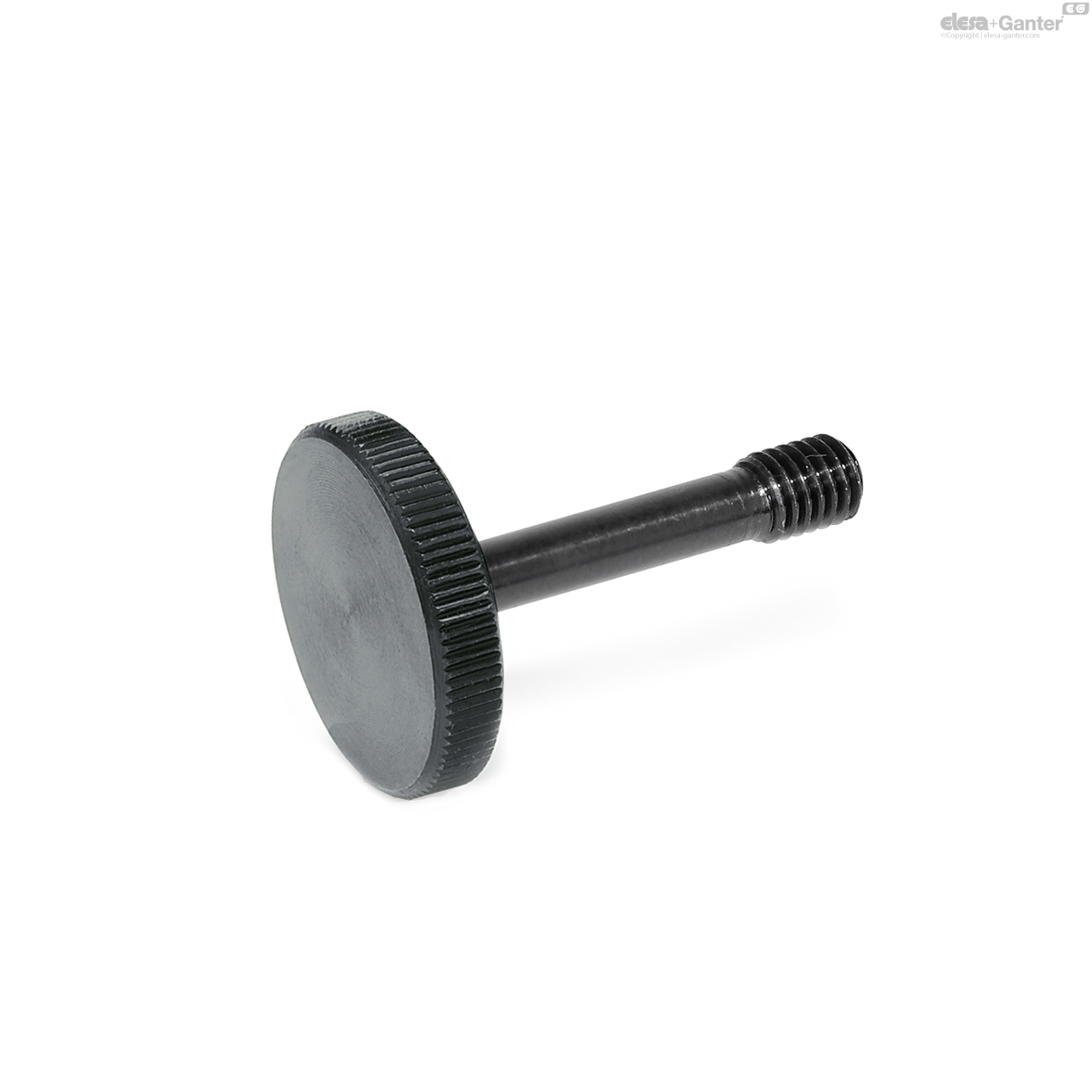

Knurled screws, Steel

GN 653.2-NI

Knurled screws

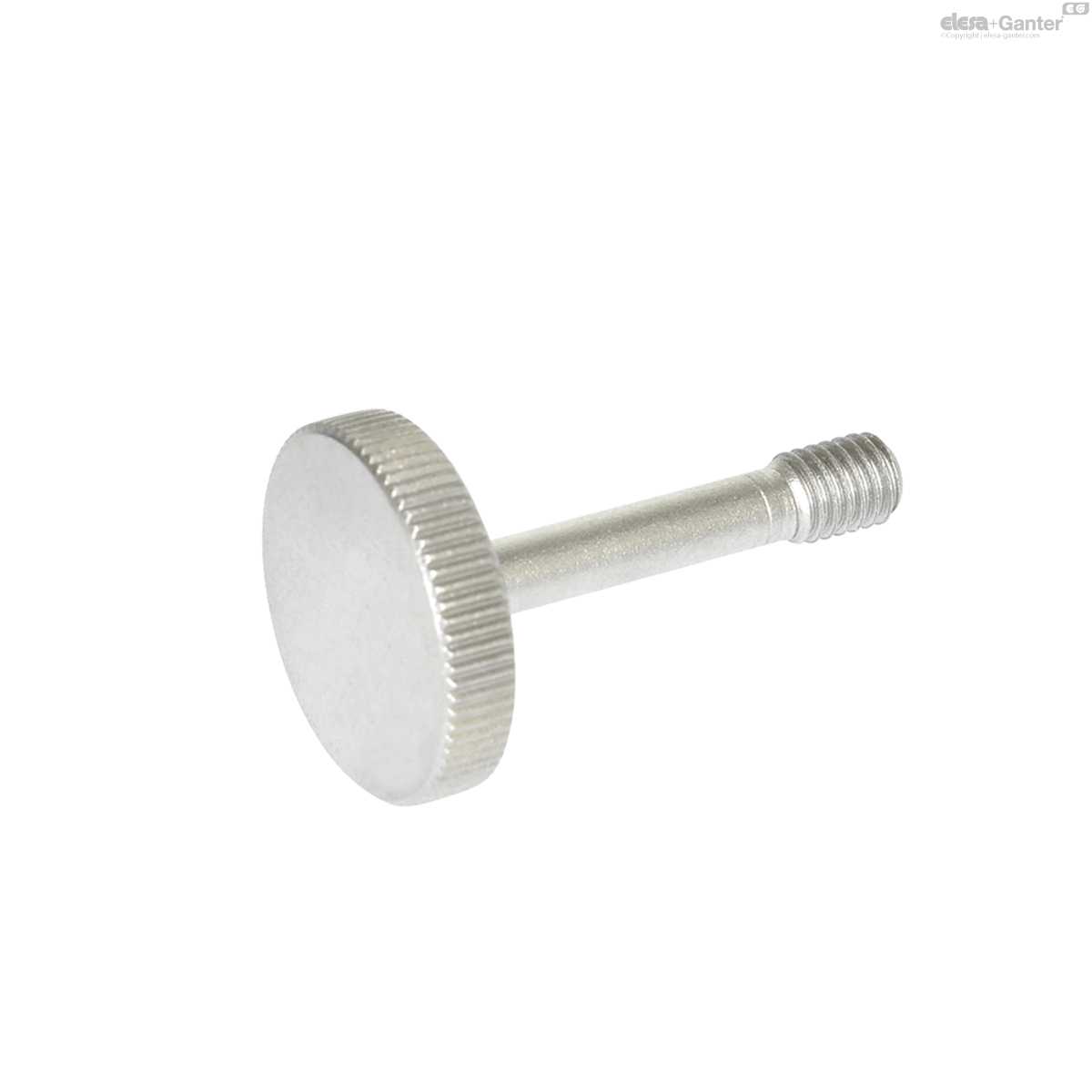

Knurled screws, Stainless Steel

Description

Specification

Version in Steel ST

Tensile strength class 5

visible face fine turned

black oxide finish

Version in Stainless Steel AISI 303 NI

AISI 303

visible face fine turned

matt shot-blasted

Information

Knurled screws GN 653.2 can be used for to prevent loss of the thumb screw, due to the d₄ recessed portion of the stud.

When using, instead of a typical tapped and bore hole, it is necessary to provide tapped bores with a thread d₁ on each of the two elements to be assembled. Additionally, a clearance bore of d₅ on one or both sides must be cut.

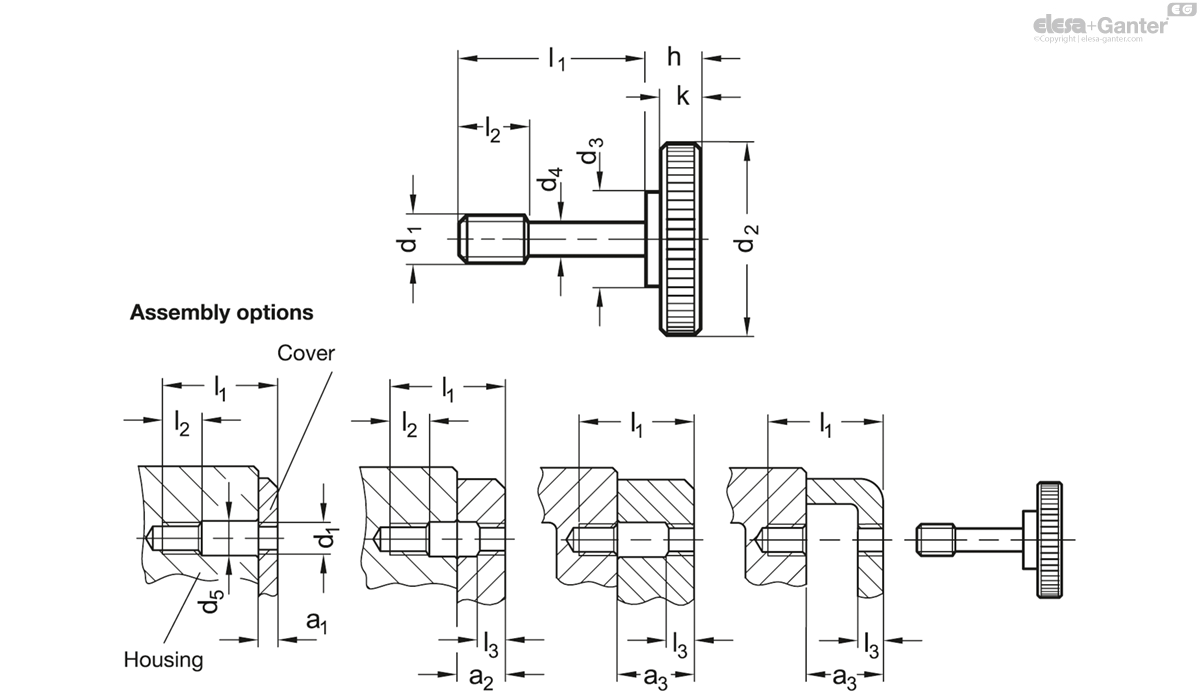

Depending on the design and required clamping length a₁ ... a₃ of the component being attached, there are a number of assembly options as shown.

Technical information

Stainless Steel characteristics
Strength values of screws

GN 653.2

	d₁	l₁	a₁	a₂	a₃	d₂	d₃	d₄ -0.2	d₅	h	k	l₂	l₃
Code															Actions
GN 653.2-M4-15-ST	M4	15	2-4	4-8	8-10	16	8	3.2	4.5	5.5	3.5	5	2	7
GN 653.2-M4-17-ST	M4	17	4-6	6-10	10-12	16	8	3.2	4.5	5.5	3.5	5	2	8
GN 653.2-M4-19-ST	M4	19	6-8	8-12	12-14	16	8	3.2	4.5	5.5	3.5	5	2	20
GN 653.2-M4-21-ST	M4	21	8-10	10-14	14-16	16	8	3.2	4.5	5.5	3.5	5	2	7
GN 653.2-M5-18-ST	M5	18	2.5-4	4-10.5	10.5-12	20	10	4	5.5	6.5	4	6	2.5	11
GN 653.2-M5-20-ST	M5	20	4-6	6-12	12-14	20	10	4	5.5	6.5	4	6	2.5	13
GN 653.2-M5-22-ST	M5	22	6-8	8-14	14-16	20	10	4	5.5	6.5	4	6	2.5	10
GN 653.2-M5-26-ST	M5	26	8-12	12-16	16-18	20	10	4	5.5	6.5	4	6	2.5	14
GN 653.2-M6-24-ST	M6	24	3-6	6-13	13-16	24	12	4.8	6.5	8	5	8	3	23
GN 653.2-M6-26-ST	M6	26	6-8	8-16	16-18	24	12	4.8	6.5	8	5	8	3	23
GN 653.2-M6-30-ST	M6	30	8-12	12-18	18-22	24	12	4.8	6.5	8	5	8	3	30
GN 653.2-M6-34-ST	M6	34	12-16	16-22	22-26	24	12	4.8	6.5	8	5	8	3	24
GN 653.2-M8-30-ST	M8	30	4-8	8-16	16-20	30	16	6.5	8.5	9	6	10	4	45
GN 653.2-M8-34-ST	M8	34	8-12	12-20	20-24	30	16	6.5	8.5	9	6	10	4	45
GN 653.2-M8-38-ST	M8	38	12-16	16-24	24-28	30	16	6.5	8.5	9	6	10	4	50
GN 653.2-M8-42-ST	M8	42	16-20	20-28	28-32	30	16	6.5	8.5	9	6	10	4	48
