GN 6335.4

Hand knobs

Cast iron / Threaded bolt, Steel

__logo__RoHS__

Enquire Now

Description

Specification

Type

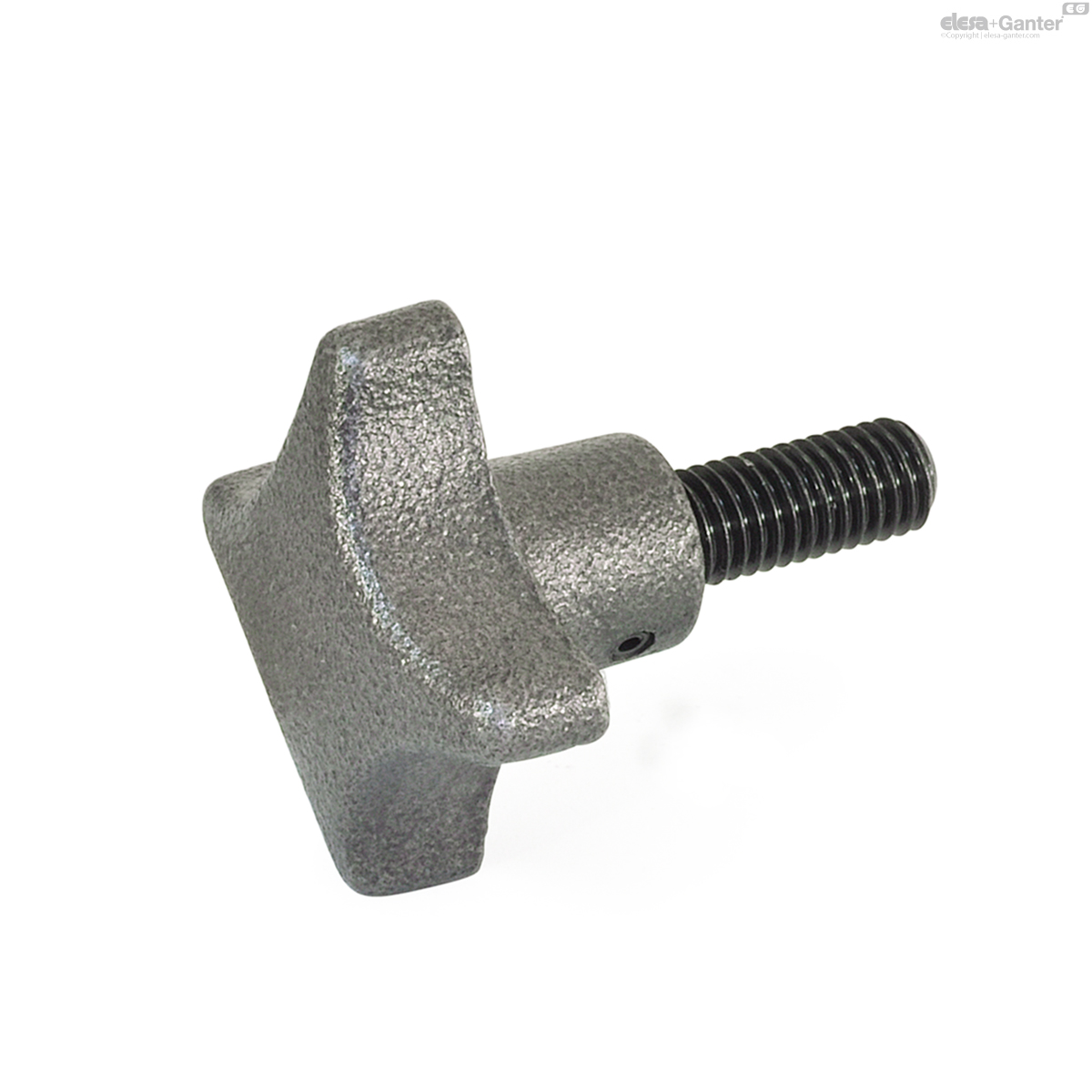

Type SG: Star knob DIN 6335 cast iron (GG)

The threaded bolt is screwed in and secured by a cross-dowel.

Information

Should clamping with the bush face be necessary, then it is recommendable to use this hand knobs.

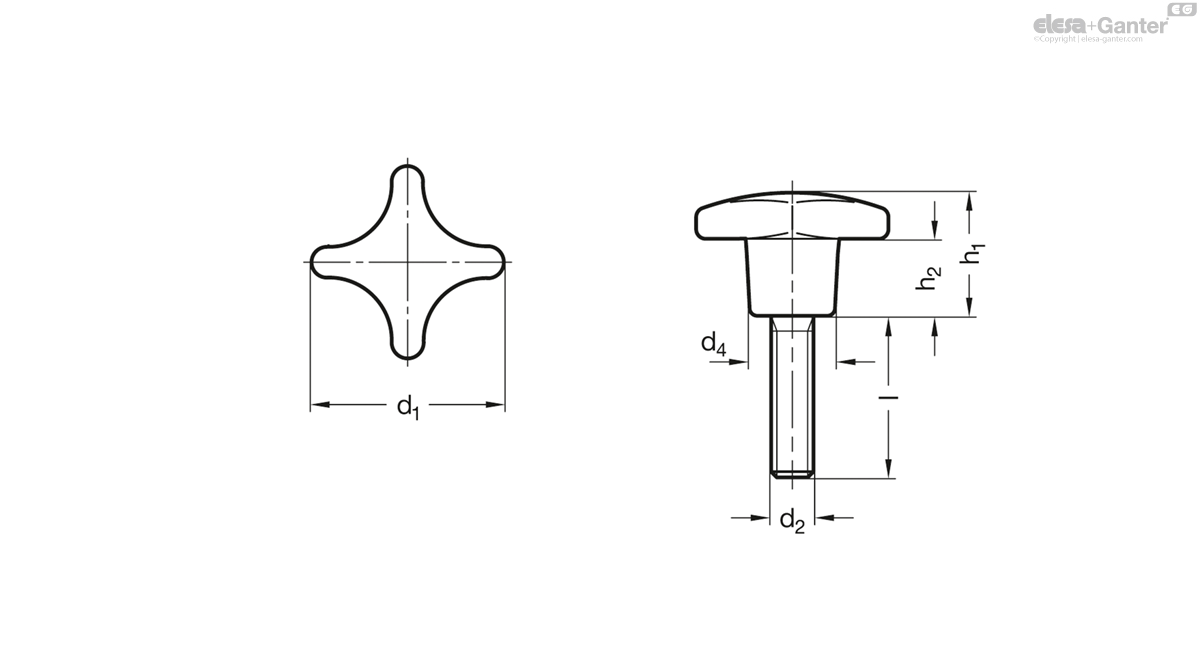

GN 6335.4

	d₁	d₂	l ≈	d₄	h₁	h₂
Code								Actions
GN 6335.4-SG-32-M6-16	32	M 6	16	12	20	9	34
GN 6335.4-SG-32-M6-20	32	M 6	20	12	20	9	35
GN 6335.4-SG-32-M6-25	32	M 6	25	12	20	9	36
GN 6335.4-SG-32-M6-30	32	M 6	30	12	20	9	37
GN 6335.4-SG-32-M6-35	32	M 6	35	12	20	9	38
GN 6335.4-SG-32-M6-45	32	M 6	45	12	20	9	46
GN 6335.4-SG-40-M8-15	40	M 8	15	14	25	13	58
GN 6335.4-SG-40-M8-20	40	M 8	20	14	25	13	60
GN 6335.4-SG-40-M8-25	40	M 8	25	14	25	13	61
GN 6335.4-SG-40-M8-30	40	M 8	30	14	25	13	63
GN 6335.4-SG-40-M8-40	40	M 8	40	14	25	13	66
GN 6335.4-SG-40-M8-55	40	M 8	55	14	25	13	70
GN 6335.4-SG-50-M10-25	50	M 10	25	18	32	18	124
GN 6335.4-SG-50-M10-30	50	M 10	30	18	32	18	130
GN 6335.4-SG-50-M10-35	50	M 10	35	18	32	18	129
GN 6335.4-SG-50-M10-45	50	M 10	45	18	32	18	134
GN 6335.4-SG-50-M10-55	50	M 10	55	18	32	18	139
GN 6335.4-SG-63-M12-30	63	M 12	30	20	40	23	220
GN 6335.4-SG-63-M12-35	63	M 12	35	20	40	23	208
GN 6335.4-SG-63-M12-40	63	M 12	40	20	40	23	211
GN 6335.4-SG-63-M12-50	63	M 12	50	20	40	23	250
GN 6335.4-SG-63-M12-60	63	M 12	60	20	40	23	225
GN 6335.4-SG-80-M16-30	80	M 16	30	25	50	28	410
GN 6335.4-SG-80-M16-40	80	M 16	40	25	50	28	430
GN 6335.4-SG-80-M16-50	80	M 16	50	25	50	28	452
GN 6335.4-SG-80-M16-60	80	M 16	60	25	50	28	452
GN 6335.4-SG-80-M16-70	80	M 16	70	25	50	28	478
