GN 57.1-A

Retaining Magnets

With 1 internal thread

GN 57.1-B

Retaining Magnets

With 2 internal threads

Description

Specification

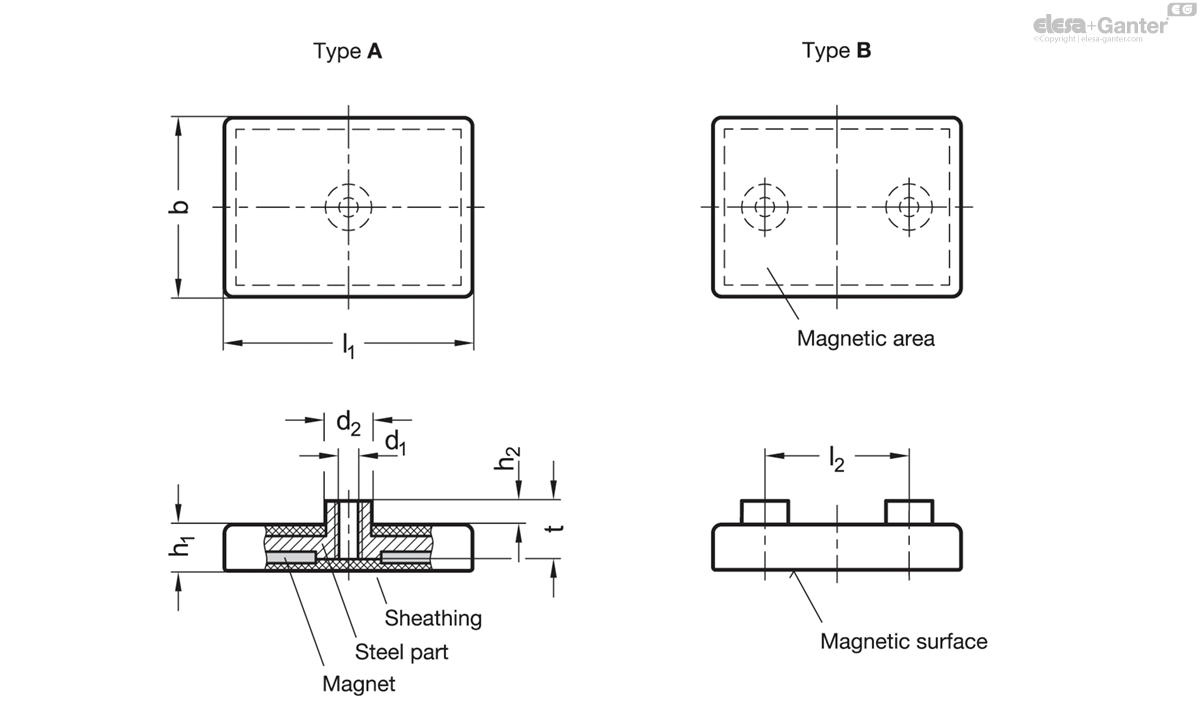

Types

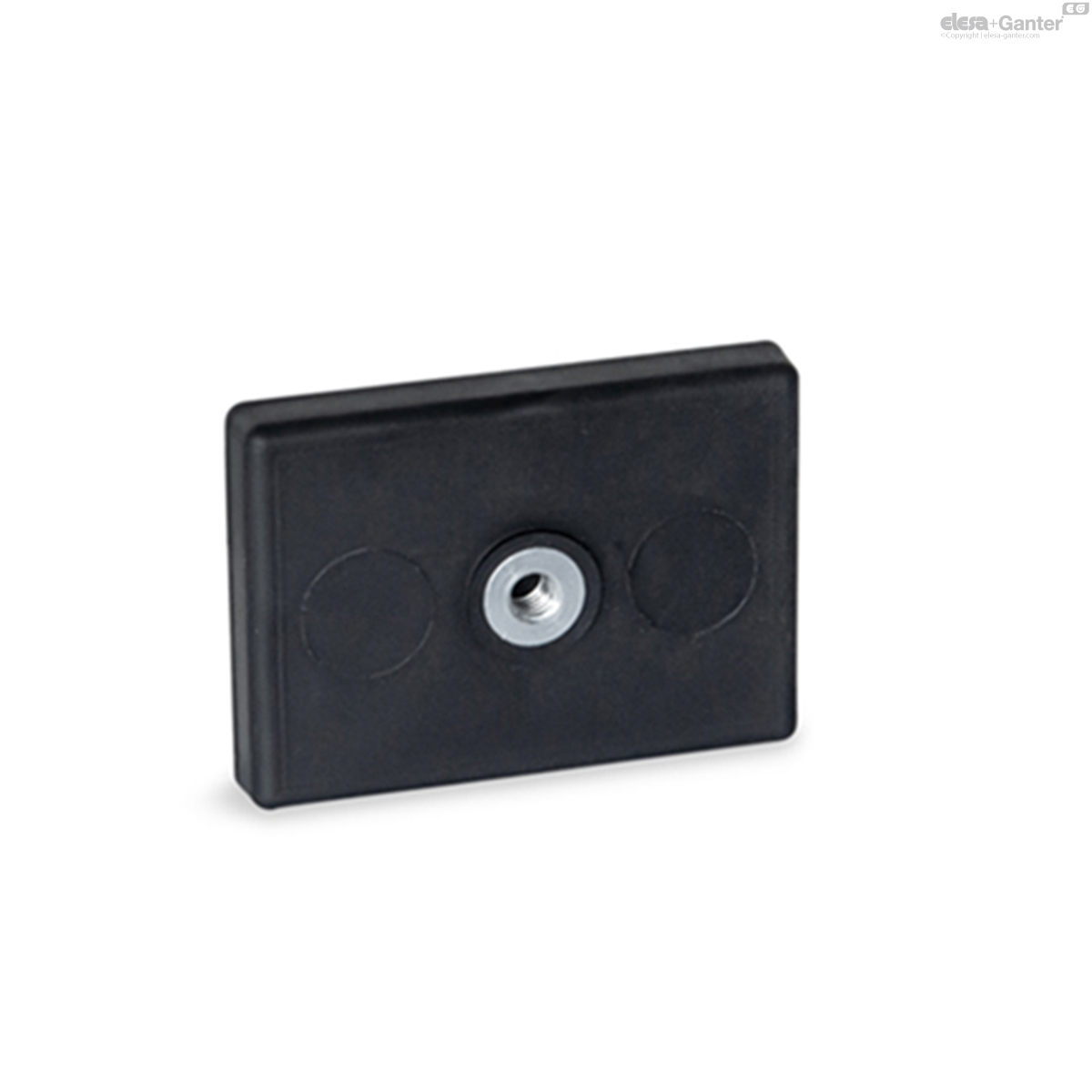

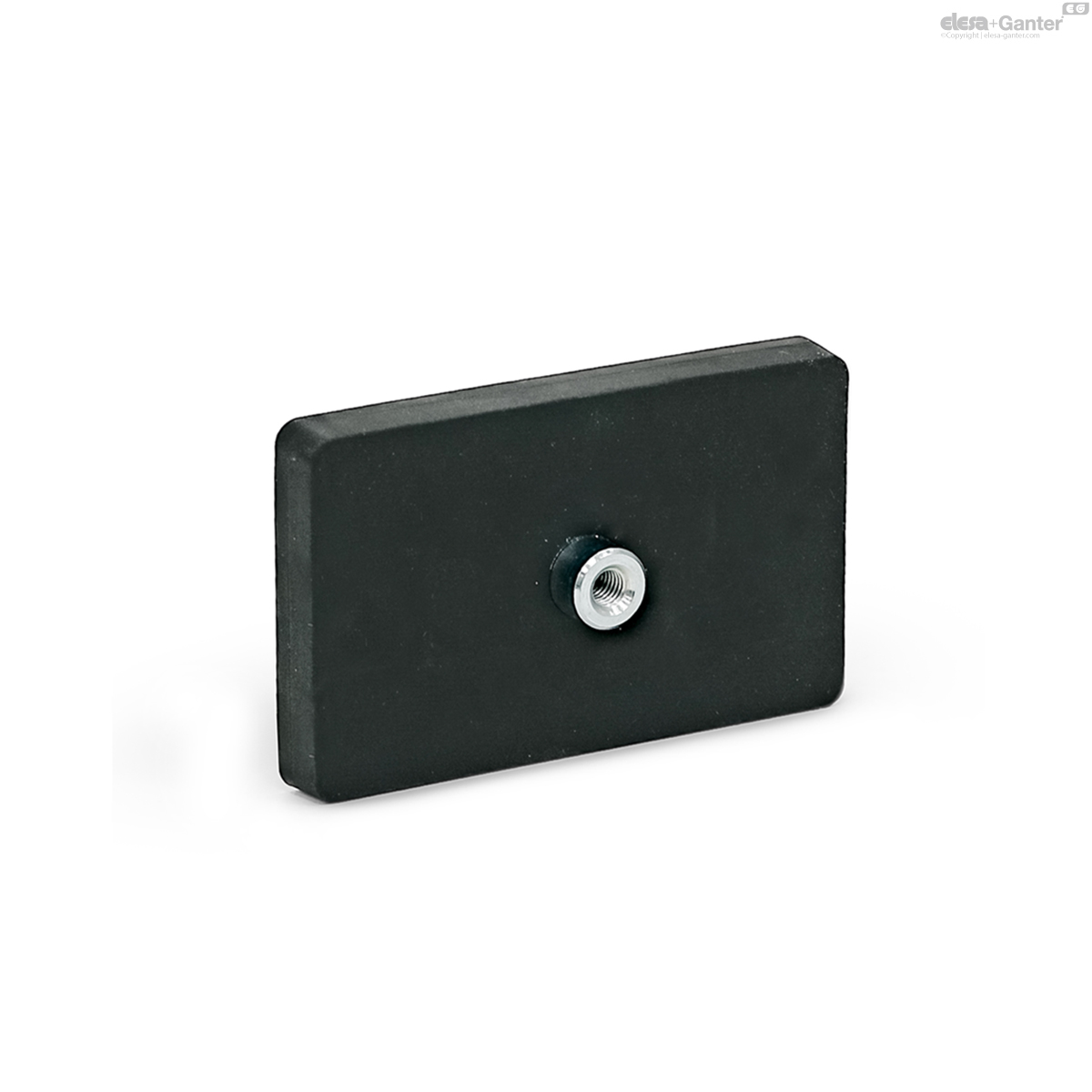

Type A: With 1 internal thread

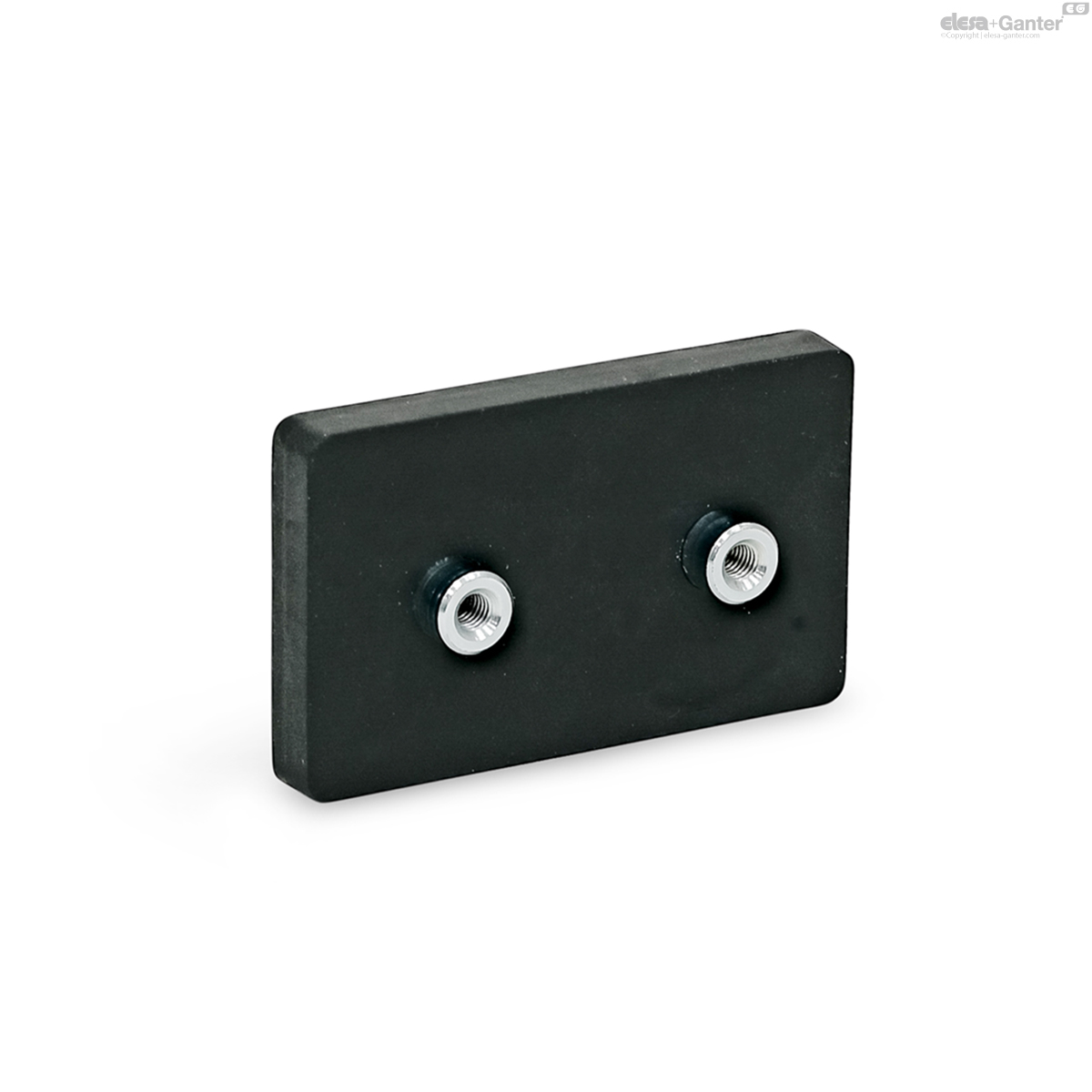

Type B: With 2 internal threads

Magnet

NdFeB

Neodymium, iron, boron

Operating temperature up to 80 °C

Steel part

Zinc plated

Sheathing

Thermoplastic polyurethane (TPE)

Black SW

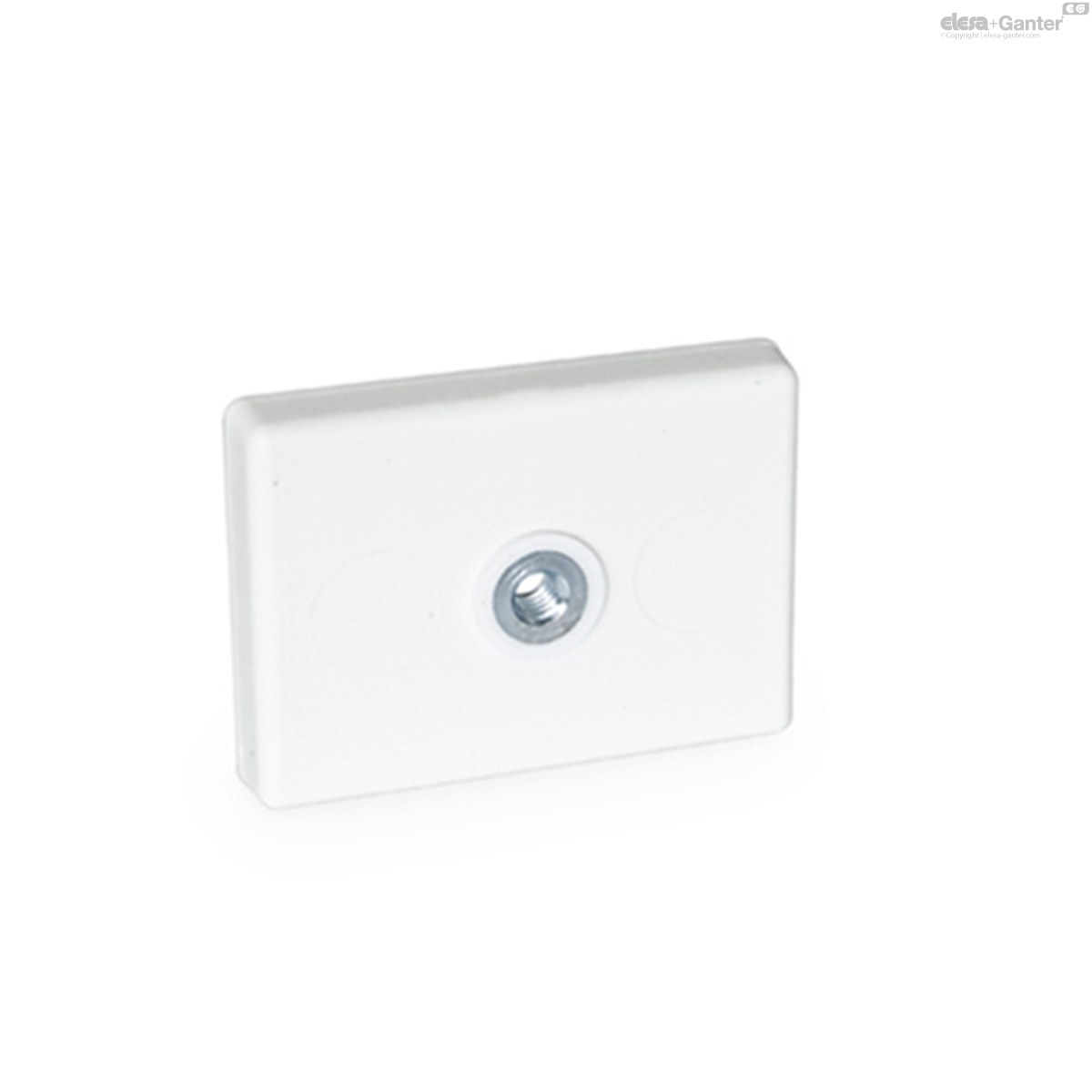

White WS

Hardness ≈ 80 Shore A

Information

The retaining magnets GN 57.1 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.

Accessory

GN 70 Holding Disks
GN 70.1 Adhesive Disks

On request

Other colors
Other Shore hardnesses

Technical information

More Information on Retaining Magnets
Plastic Characteristics

GN 57.1-A

	Color	b	l₁	d₁	d₂	h₁	h₂	l₂	t	Nominal magnetic forces in N
Code												Actions
GN 57.1-22,5-35-M4-A-SW	SW - Black	22.5	35	M 4	8	6	5	17	6	93	22
GN 57.1-22,5-35-M4-A-WS	WS - White	22.5	35	M 4	8	6	5	17	6	93	22
GN 57.1-22,5-55-M4-A-SW	SW - Black	22.5	55	M 4	8	6	5	30	6	140	33
GN 57.1-22,5-55-M4-A-WS	WS - White	22.5	55	M 4	8	6	5	30	6	140	33
GN 57.1-22,5-75-M4-A-SW	SW - Black	22.5	75	M 4	8	6	5	50	6	205	46
GN 57.1-22,5-75-M4-A-WS	WS - White	22.5	75	M 4	8	6	5	50	6	205	46
GN 57.1-31-43-M4-A-SW	SW - Black	31	43	M 4	10	6	1	25	4.5	105	55
GN 57.1-31-43-M4-A-WS	WS - White	31	43	M 4	10	6	1	25	4.5	105	55
GN 57.1-45-59-M5-A-SW	SW - Black	45	59	M 5	10	8.5	6.2	27	9	240	85
GN 57.1-45-59-M5-A-WS	WS - White	45	59	M 5	10	8.5	6.2	27	9	240	85
GN 57.1-45-74-M5-A-SW	SW - Black	45	74	M 5	10	8.5	6.2	36	9	360	108
GN 57.1-45-74-M5-A-WS	WS - White	45	74	M 5	10	8.5	6.2	36	9	360	108
GN 57.1-45-110-M6-A-SW	SW - Black	45	110	M 6	10	8.5	6.2	68	9	530	156
GN 57.1-45-110-M6-A-WS	WS - White	45	110	M 6	10	8.5	6.2	68	9	530	156
