GN 535

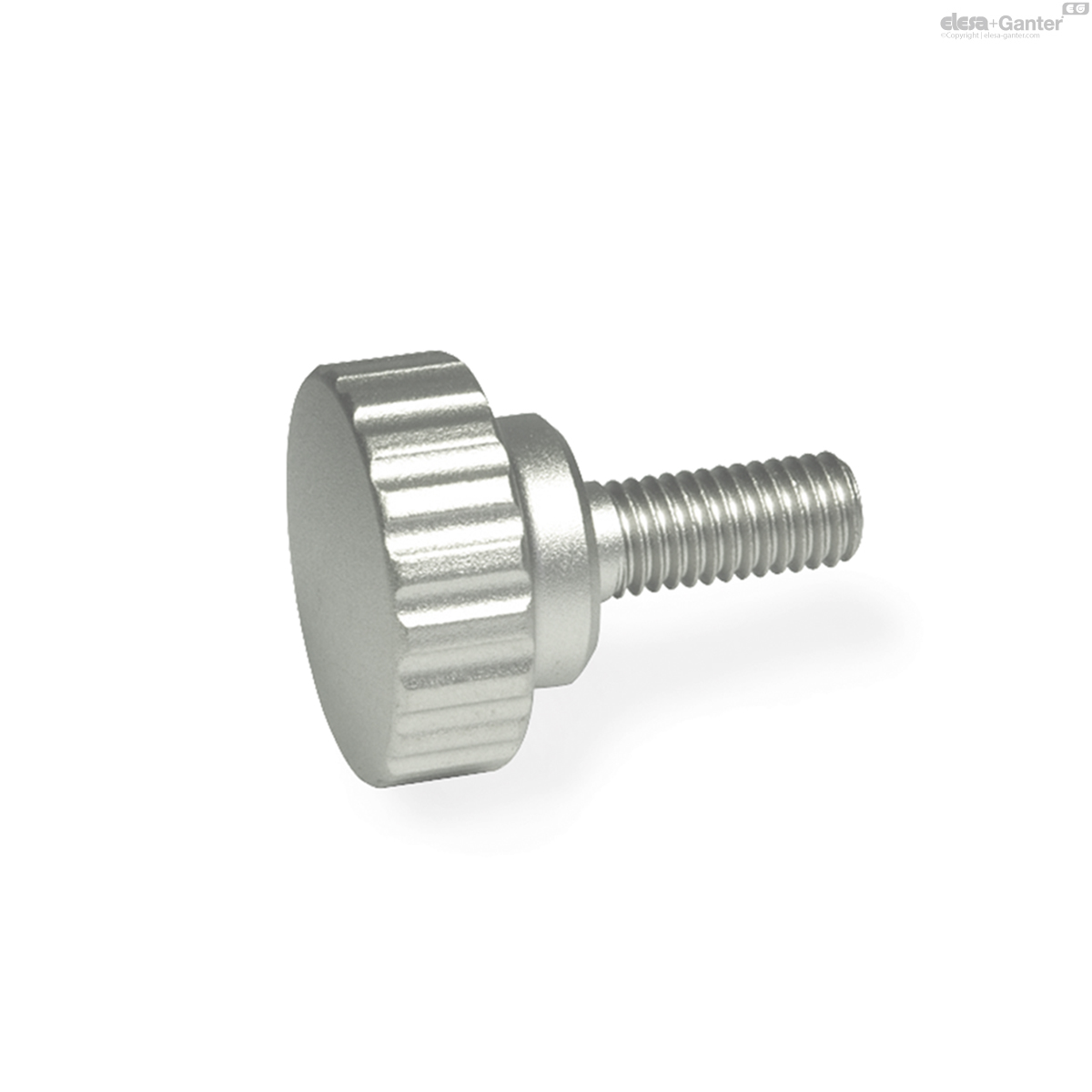

Stainless Steel-Knurled screws

__logo__INOX__

__logo__RoHS__

Enquire Now

Description

Specification

Stainless Steel AISI 304

matt shot-blasted MT

highly polished PL

Information

The knurling of Stainless Steel-Knurled screws GN 535 allows a use in an environment with hygienic requirements.

Technical information

Stainless Steel characteristics

GN 535

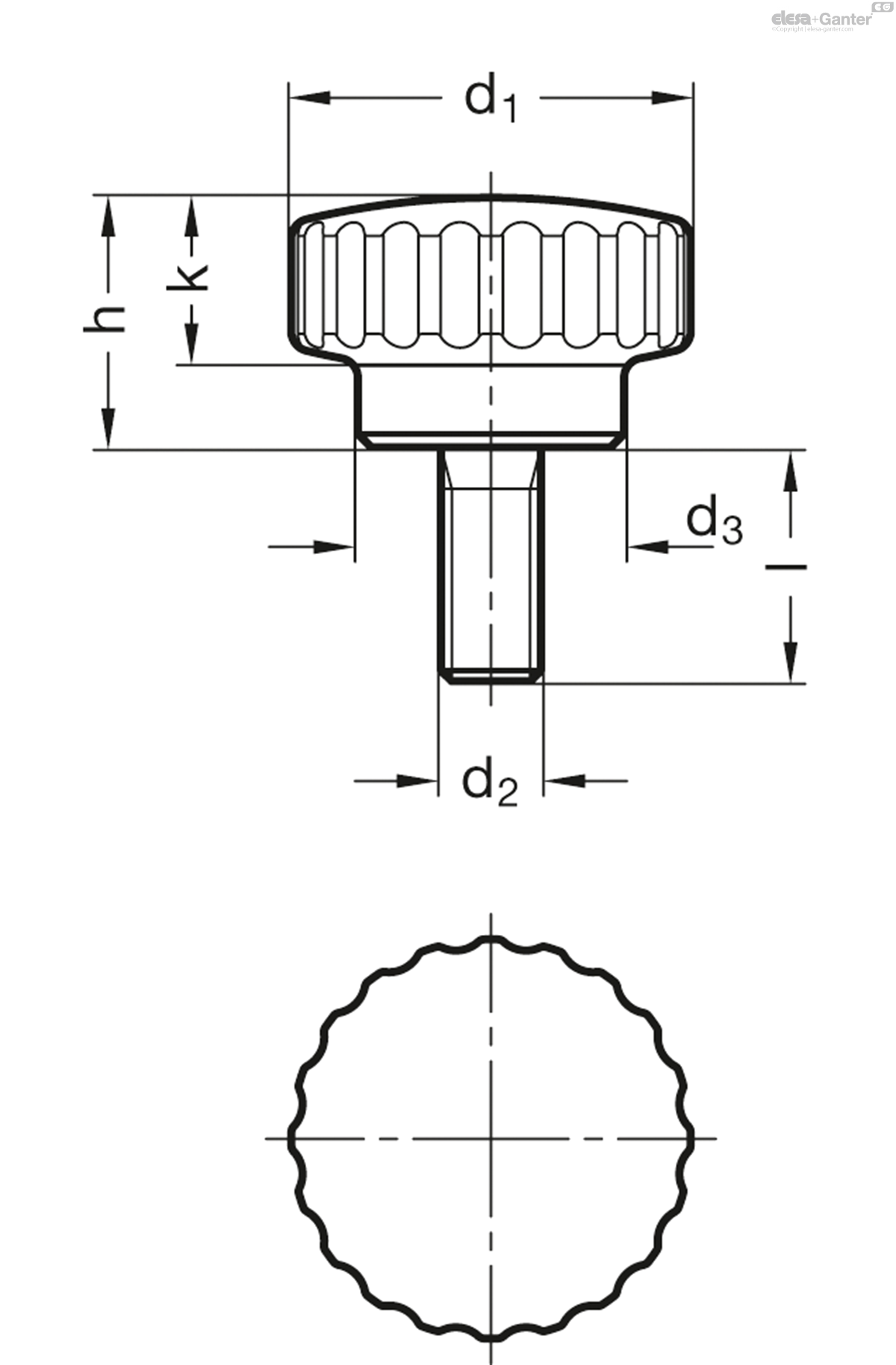

	d₁	d₂	l	d₃	h	k
Code								Actions
GN 535-20-M5-10-MT	20	M 5	10	14	13	8.5	26
GN 535-20-M5-10-PL	20	M 5	10	14	13	8.5	26
GN 535-20-M5-16-MT	20	M 5	16	14	13	8.5	27
GN 535-20-M5-16-PL	20	M 5	16	14	13	8.5	27
GN 535-24-M6-16-MT	24	M 6	16	16	15	10.5	42
GN 535-24-M6-16-PL	24	M 6	16	16	15	10.5	44
GN 535-24-M6-20-MT	24	M 6	20	16	15	10.5	44
GN 535-24-M6-20-PL	24	M 6	20	16	15	10.5	44
GN 535-24-M6-25-MT	24	M 6	25	16	15	10.5	45
GN 535-24-M6-25-PL	24	M 6	25	16	15	10.5	45
GN 535-28-M8-16-MT	28	M 8	16	18	17	12.5	68
GN 535-28-M8-16-PL	28	M 8	16	18	17	12.5	68
GN 535-28-M8-20-MT	28	M 8	20	18	17	12.5	69
GN 535-28-M8-20-PL	28	M 8	20	18	17	12.5	69
GN 535-28-M8-30-MT	28	M 8	30	18	17	12.5	72
GN 535-28-M8-30-PL	28	M 8	30	18	17	12.5	72
