GN 5335

Stainless Steel-Star knobs

with female thread

GN-5335

Stainless Steel-Star knobs

with threaded bolt

Description

Specification

Version with female thread:

Types

Type A: without bore

Type E: with threaded blind bore

Type D: with threaded through bore

Type C: with plain blind bore H7

Stainless Steel AISI 303

matt shot-blasted

highly polished PL (only type D and E)

Version with threaded bolt:

Stainless Steel AISI 303

matt shot-blasted

Information

Stainless Steel-Star knobs GN 5335 are a special development intended for the food processing machinery industry. The smooth and enclosed areas as well as the large corner radii comply with the requirements of hygiene standards.

Technical information

Cross holes GN 110

ISO-Fundamental Tolerances

Stainless Steel characteristics

GN-5335

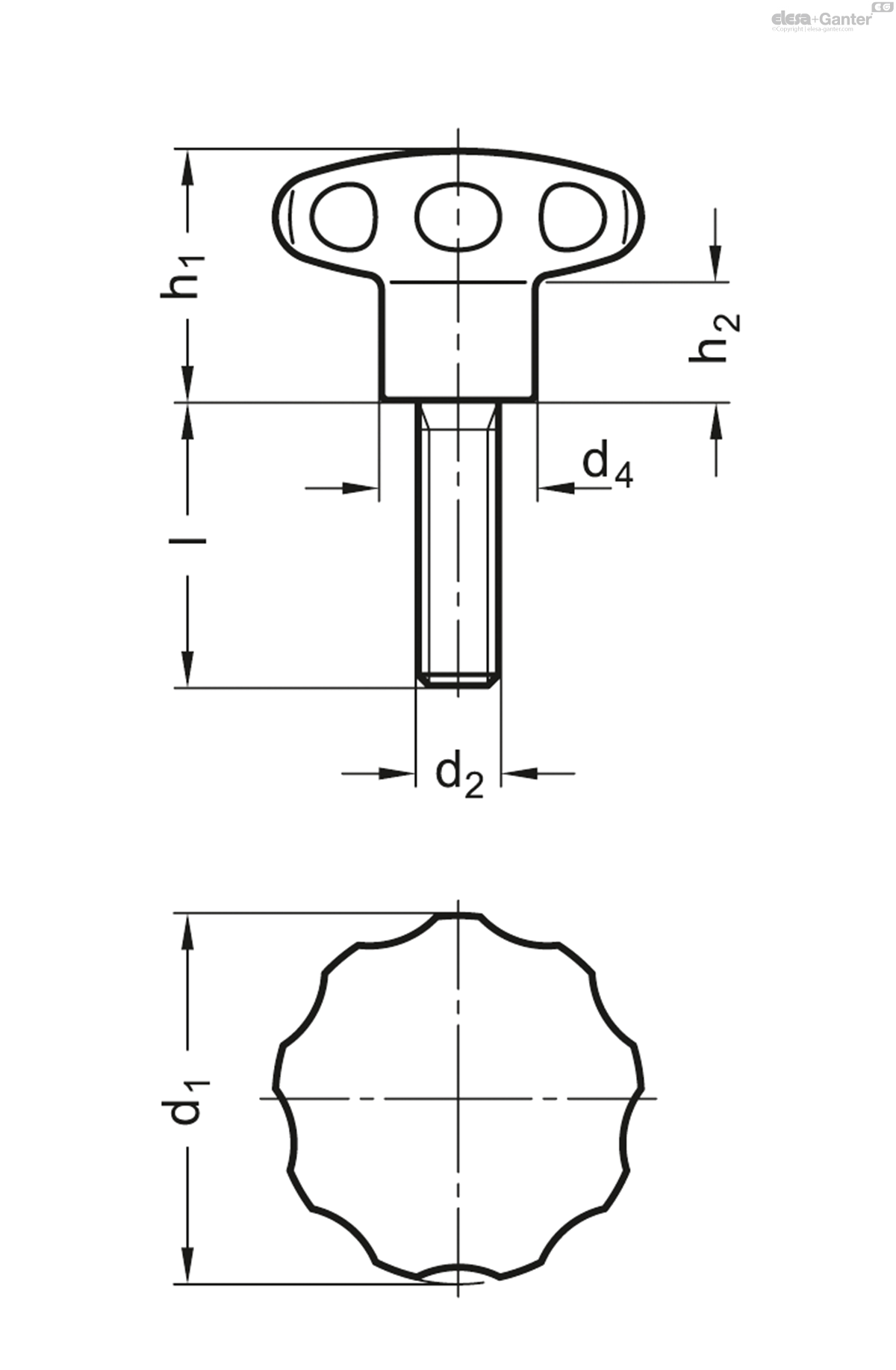

	d₁	d₂	l	d₄	h₁	h₂
Code								Actions
GN 5335-40-M8-16	40	M 8	16	18	30.5	15	150
GN 5335-40-M8-20	40	M 8	20	18	30.5	15	144
GN 5335-40-M8-25	40	M 8	25	18	30.5	15	150
GN 5335-50-M10-20	50	M 10	20	21	34	17	245
GN 5335-50-M10-25	50	M 10	25	21	34	17	247
GN 5335-50-M10-30	50	M 10	30	21	34	17	270
GN 5335-60-M12-25	60	M 12	25	25	39	18	420
GN 5335-60-M12-30	60	M 12	30	25	39	18	426
GN 5335-60-M12-40	60	M 12	40	25	39	18	441
