GN 5335

Stainless Steel-Star knobs

Stainless Steel AISI 303 (A1)

Enquire Now

GN 5335

Stainless Steel-Star knobs

with female thread

GN-5335

Stainless Steel-Star knobs

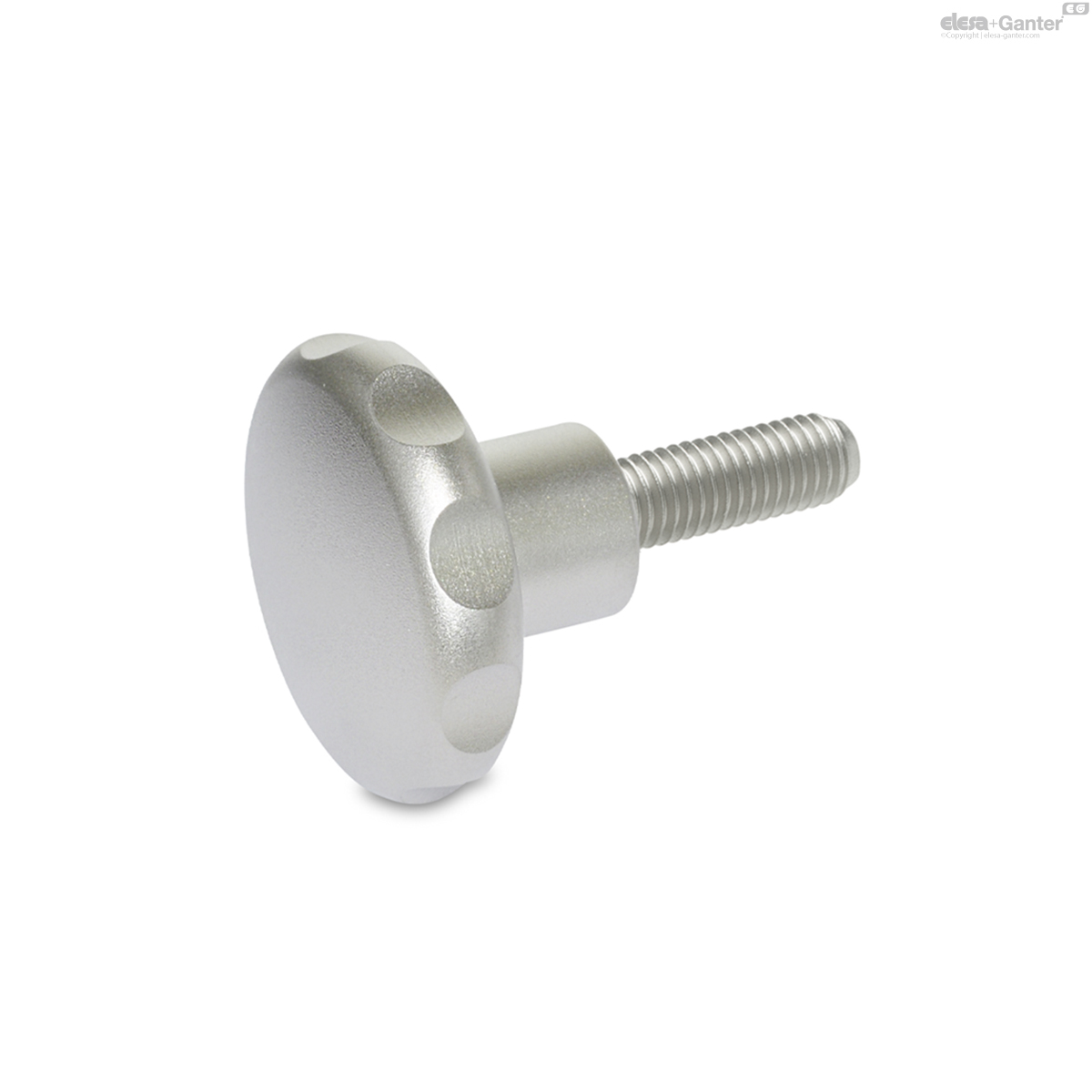

with threaded bolt

Description

Specification

Version with female thread:

Types

Type A: without bore

Type E: with threaded blind bore

Type D: with threaded through bore

Type C: with plain blind bore H7

Stainless Steel AISI 303

matt shot-blasted

highly polished PL (only type D and E)

Version with threaded bolt:

Stainless Steel AISI 303

matt shot-blasted

Information

Stainless Steel-Star knobs GN 5335 are a special development intended for the food processing machinery industry. The smooth and enclosed areas as well as the large corner radii comply with the requirements of hygiene standards.

Technical information

Cross holes GN 110

ISO-Fundamental Tolerances

Stainless Steel characteristics

GN 5335

	d₁	d₂	d₃ H7	d₄	h₁	h₂	t₁ min.	t₂
Code										Actions
GN 5335-40-A	40	-	-	18	30.5	15	-	-	140
GN 5335-40-B8-C	40	-	B 8	18	30.5	15	15	-	131
GN 5335-40-M6-D	40	M 6	-	18	30.5	15	-	13	132
GN 5335-40-M6-D-PL	40	M 6	-	18	30.5	15	-	13	160
GN 5335-40-M6-E	40	M 6	-	18	30.5	15	12	-	135
GN 5335-40-M6-E-PL	40	M 6	-	18	30.5	15	12	-	152
GN 5335-40-M8-D	40	M 8	-	18	30.5	15	-	13	130
GN 5335-40-M8-D-PL	40	M 8	-	18	30.5	15	-	13	130
GN 5335-40-M8-E	40	M 8	-	18	30.5	15	15	-	131
GN 5335-40-M8-E-PL	40	M 8	-	18	30.5	15	15	-	140
GN 5335-50-A	50	-	-	21	34	17	-	-	220
GN 5335-50-B10-C	50	-	B 10	21	34	17	18	-	205
GN 5335-50-M8-D	50	M 8	-	21	34	17	-	16	225
GN 5335-50-M8-D-PL	50	M 8	-	21	34	17	-	16	222
GN 5335-50-M8-E	50	M 8	-	21	34	17	15	-	225
GN 5335-50-M8-E-PL	50	M 8	-	21	34	17	15	-	239
GN 5335-50-M10-D	50	M 10	-	21	34	17	-	16	205
GN 5335-50-M10-D-PL	50	M 10	-	21	34	17	-	16	220
GN 5335-50-M10-E	50	M 10	-	21	34	17	18	-	230
GN 5335-50-M10-E-PL	50	M 10	-	21	34	17	18	-	208
GN 5335-60-A	60	-	-	25	39	18	-	-	388
GN 5335-60-B12-C	60	-	B 12	25	39	18	22	-	380
GN 5335-60-M10-D	60	M 10	-	25	39	18	-	20	400
GN 5335-60-M10-D-PL	60	M 10	-	25	39	18	-	20	360
GN 5335-60-M10-E	60	M 10	-	25	39	18	18	-	400
GN 5335-60-M10-E-PL	60	M 10	-	25	39	18	18	-	373
GN 5335-60-M12-D	60	M 12	-	25	39	18	-	20	366
GN 5335-60-M12-D-PL	60	M 12	-	25	39	18	-	20	366
GN 5335-60-M12-E	60	M 12	-	25	39	18	22	-	400
GN 5335-60-M12-E-PL	60	M 12	-	25	39	18	22	-	390
