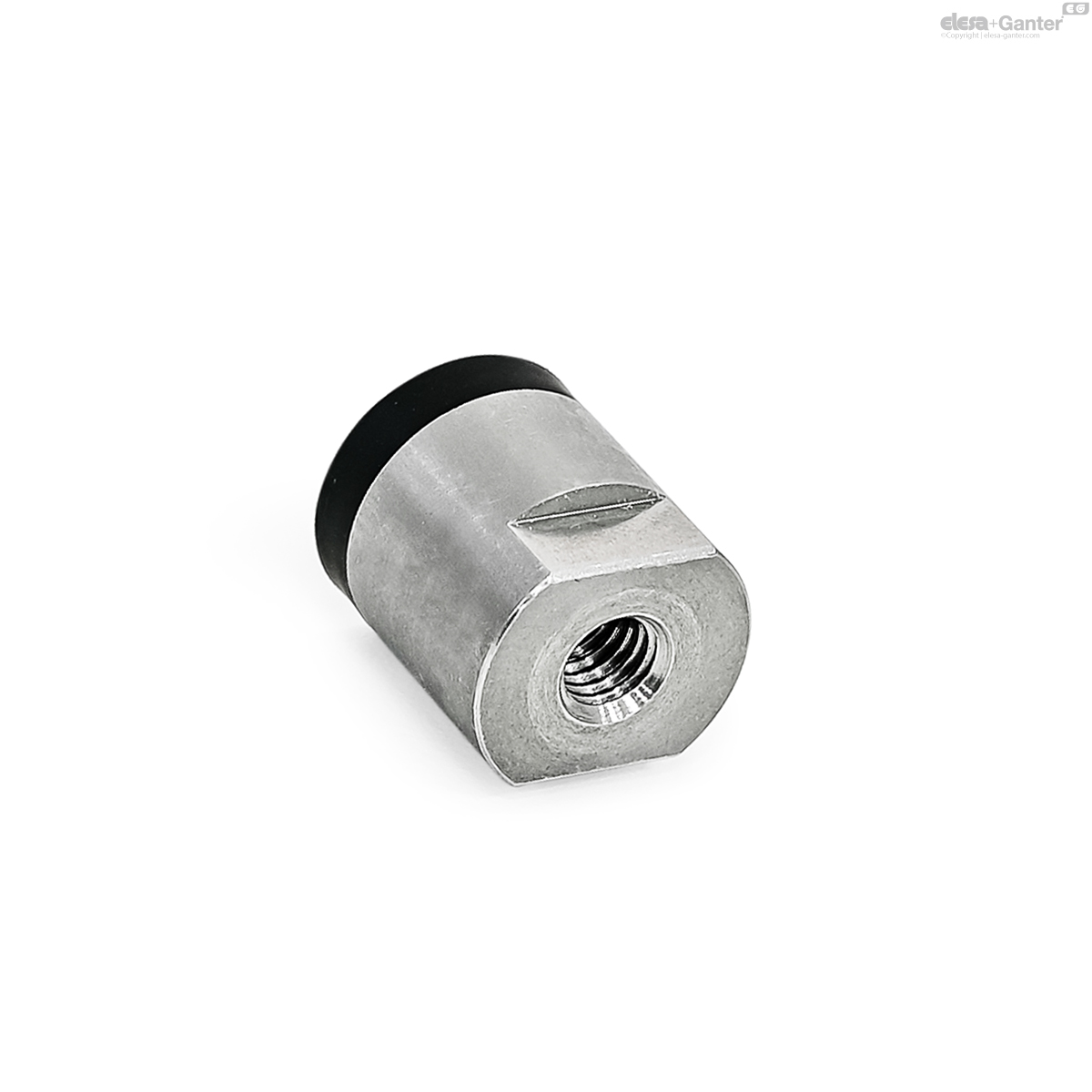

GN 52.6
Retaining Magnets
Neodymium-Iron-Boron (NdFeB), Housing Stainless Steel, with Gummed Magnetic Surface
Description
Specification
Material of the magnet
NdFeB ND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Housing
Stainless steel
Rubber
Elastomer (TPE)
≈ 80 Shore A
Black
Information
Retaining magnets GN 52.6 are combined with the stainless steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the gummed magnetic surface.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
- More Information on Retaining MagnetsÂ
Accessory
- Holding Disks GN 70
- Adhesive Disks GN 70.1
Technical information
- Plastic CharacteristicsÂ
GN 52.6

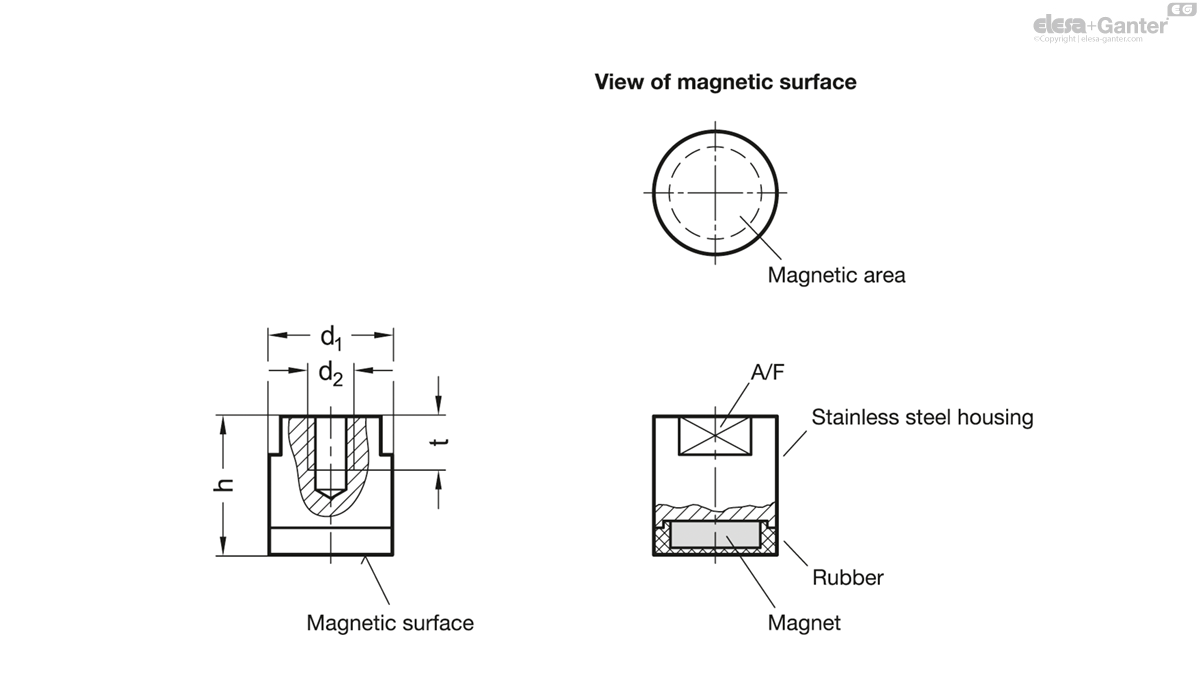

| d1 ±0.2 | d2 | h ±0.2 | A/F | t | Nominal magnetic forces in N |
 |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 52.6-ND-10-M4 | 10 | M 4 | 14 | 8 | 4 | 9.5 | 6 |
|
| GN 52.6-ND-13-M6 | 13 | M 6 | 16 | 11 | 6 | 15 | 12 |
|
| GN 52.6-ND-16-M6 | 16 | M 6 | 18 | 13 | 8 | 23 | 22 |
|
| GN 52.6-ND-20-M8 | 20 | M 8 | 20 | 17 | 8 | 46 | 39 |
|
| GN 52.6-ND-25-M8 | 25 | M 8 | 20 | 21 | 8 | 95 | 64 |
|
