GN 52.5

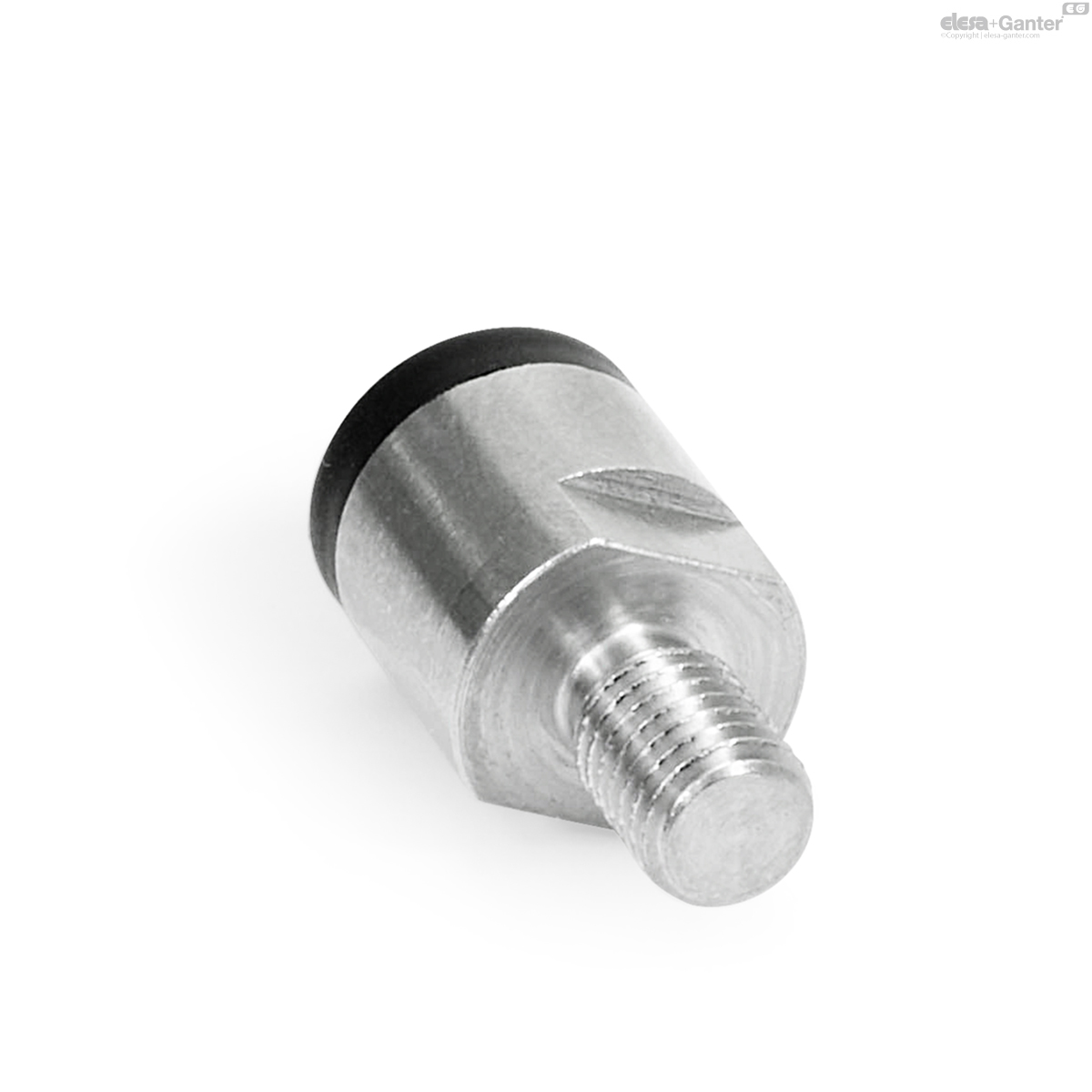

Stainless Steel Retaining Magnets

Rod-Shaped, with Gummed Magnetic Surface

Enquire Now

Description

Specification

Housing

Stainless steel

Material of the magnet

NdFeB ND

Temperature resistant up to 80 °C

Rubber

Elastomer (TPE)

≈ 80 Shore A

Black

Information

Stainless steel retaining magnets GN 52.5 are combined with the stainless steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the gummed magnetic surface.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.

More Information on Retaining Magnets

Technical information

Elastomer Characteristics

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

GN 52.5

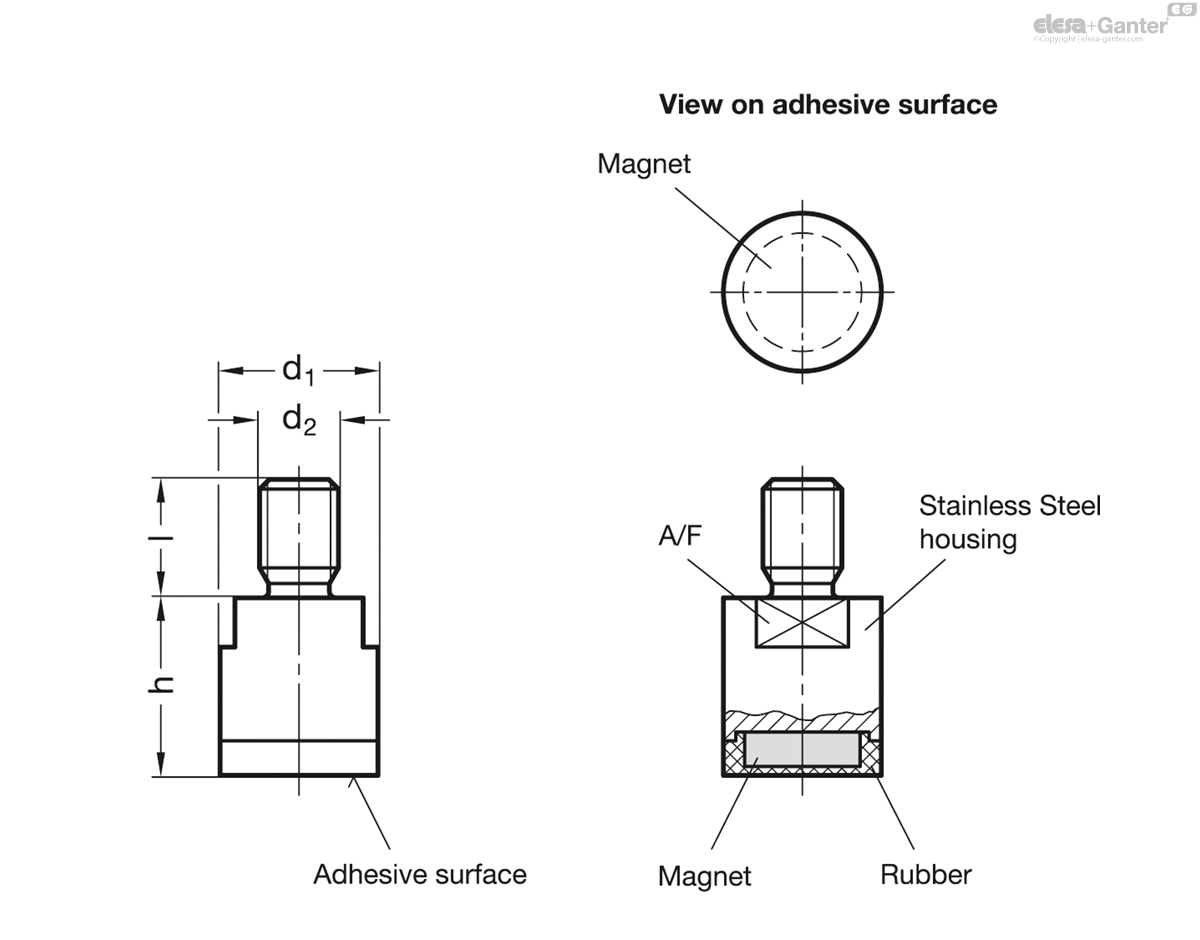

	d₁ ±0.2	d₂	h ±0.2	l	A/F	Nominal adhesive forces in N
Code								Actions
GN 52.5-ND-10-M4	10	M 4	14	6	8	9.5	8
GN 52.5-ND-13-M6	13	M 6	16	10	11	15	17
GN 52.5-ND-16-M8	16	M 8	18	12	13	23	29
GN 52.5-ND-20-M10	20	M 10	20	14	17	46	52
GN 52.5-ND-25-M10	25	M 10	20	14	21	95	78
