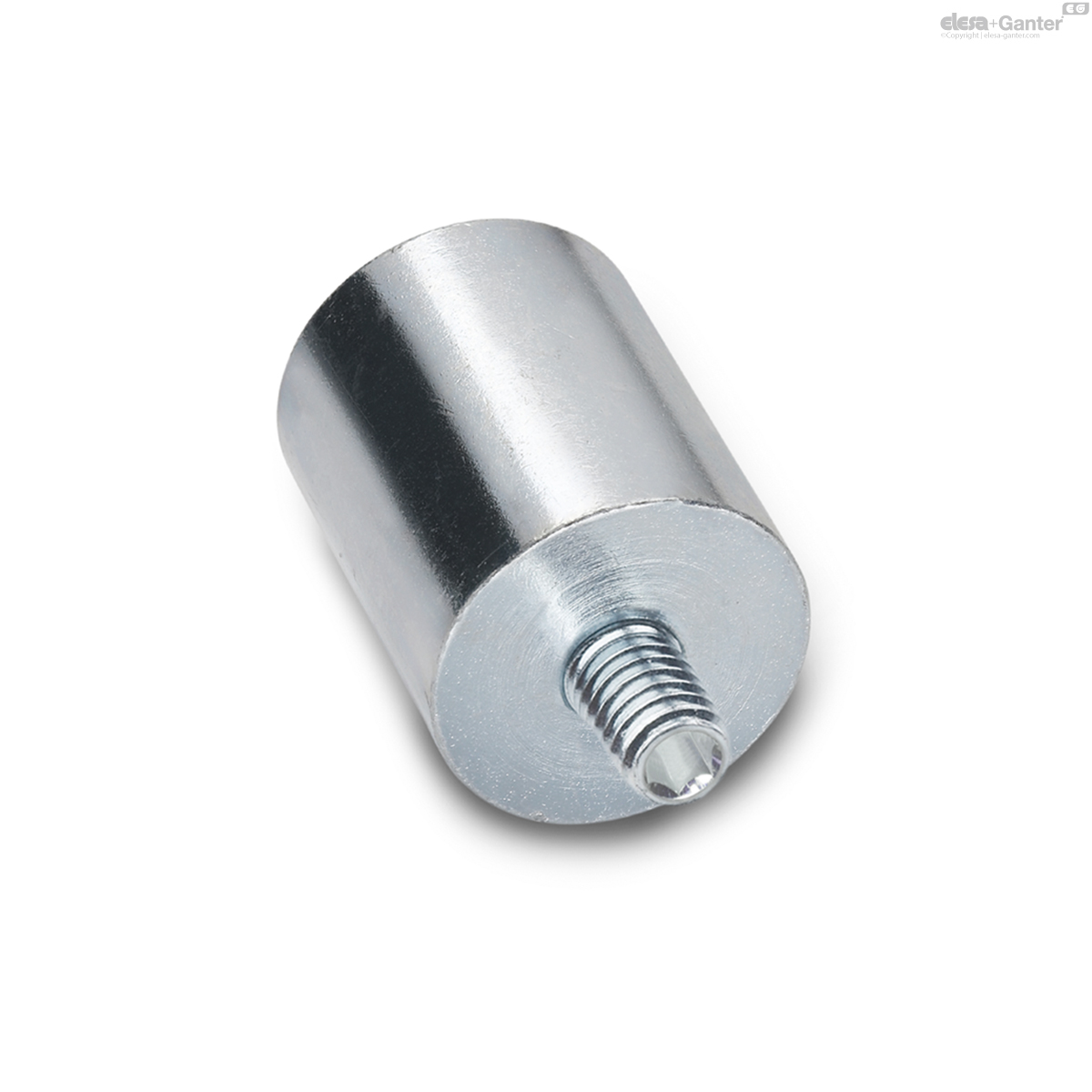

GN 52.4

Retaining Magnets

Rod-Shaped, with Threaded Stud

Enquire Now

Description

Specification

Type

Type E: with threaded stud

Housing

Steel, zinc plated

Materials of the magnet:

AlNiCo AN

Aluminium, nickel, cobalt

Temperature resistant up to 450 °C

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Information

Retaining magnets GN 52.4 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

More information to retaining magnets

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

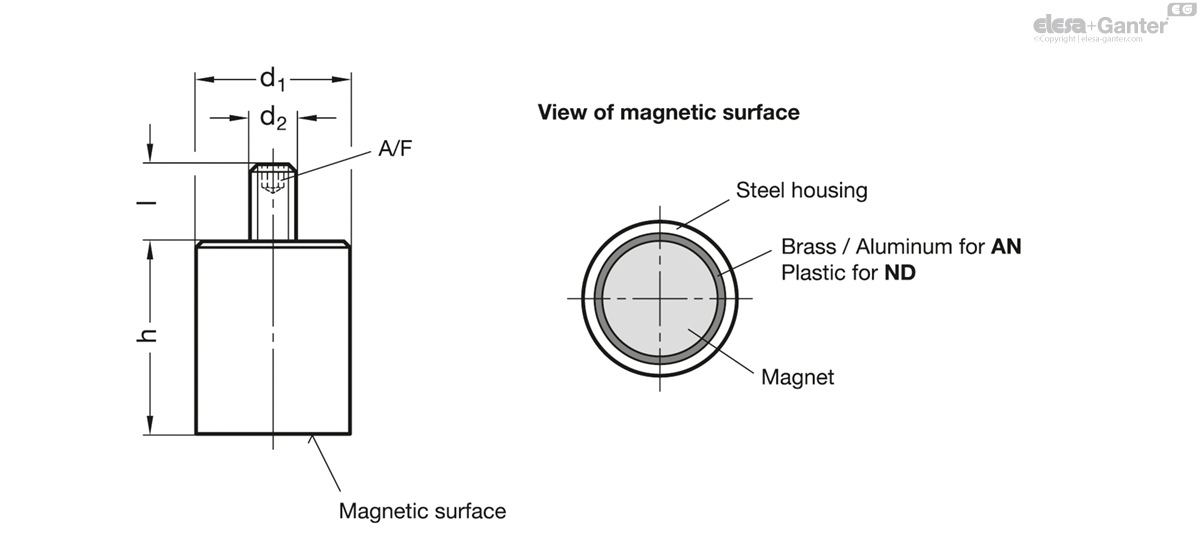

GN 52.4

	d₁ ±0.1	d₂	h ±0.2	l	A/F	Nominal adhesive forces in N
Code								Actions
GN 52.4-AN-6-M3-E	6	M 3	20	7	1.5	2	5
GN 52.4-AN-8-M3-E	8	M 3	20	7	1.5	4	8
GN 52.4-AN-10-M4-E	10	M 4	20	8	2	8.5	13
GN 52.4-AN-13-M4-E	13	M 4	20	8	2	12	21
GN 52.4-AN-16-M4-E	16	M 4	20	10	2	20	26
GN 52.4-AN-20-M6-E	20	M 6	25	10	3	40	60
GN 52.4-AN-25-M6-E	25	M 6	35	10	3	60	125
GN 52.4-AN-32-M8-E	32	M 8	40	12	4	160	217
GN 52.4-AN-40-M8-E	40	M 8	50	15	4	240	458
GN 52.4-AN-50-M10-E	50	M 10	60	15	5	400	855
GN 52.4-AN-63-M12-E	63	M 12	65	20	6	660	1345
GN 52.4-ND-6-M3-E	6	M 3	20	7	1.5	6	5
GN 52.4-ND-8-M3-E	8	M 3	20	7	1.5	12	9
GN 52.4-ND-10-M4-E	10	M 4	20	8	2	24	14
GN 52.4-ND-13-M4-E	13	M 4	20	8	2	60	23
GN 52.4-ND-16-M4-E	16	M 4	20	10	2	90	32
GN 52.4-ND-20-M6-E	20	M 6	25	10	3	135	62
GN 52.4-ND-25-M6-E	25	M 6	35	10	3	190	127
GN 52.4-ND-32-M8-E	32	M 8	40	12	4	340	220
GN 52.4-ND-40-M8-E	40	M 8	50	15	4	700	461
GN 52.4-ND-50-M10-E	50	M 10	60	15	5	1000	860
GN 52.4-ND-63-M12-E	63	M 12	65	20	6	1700	1350
