GN 51.8

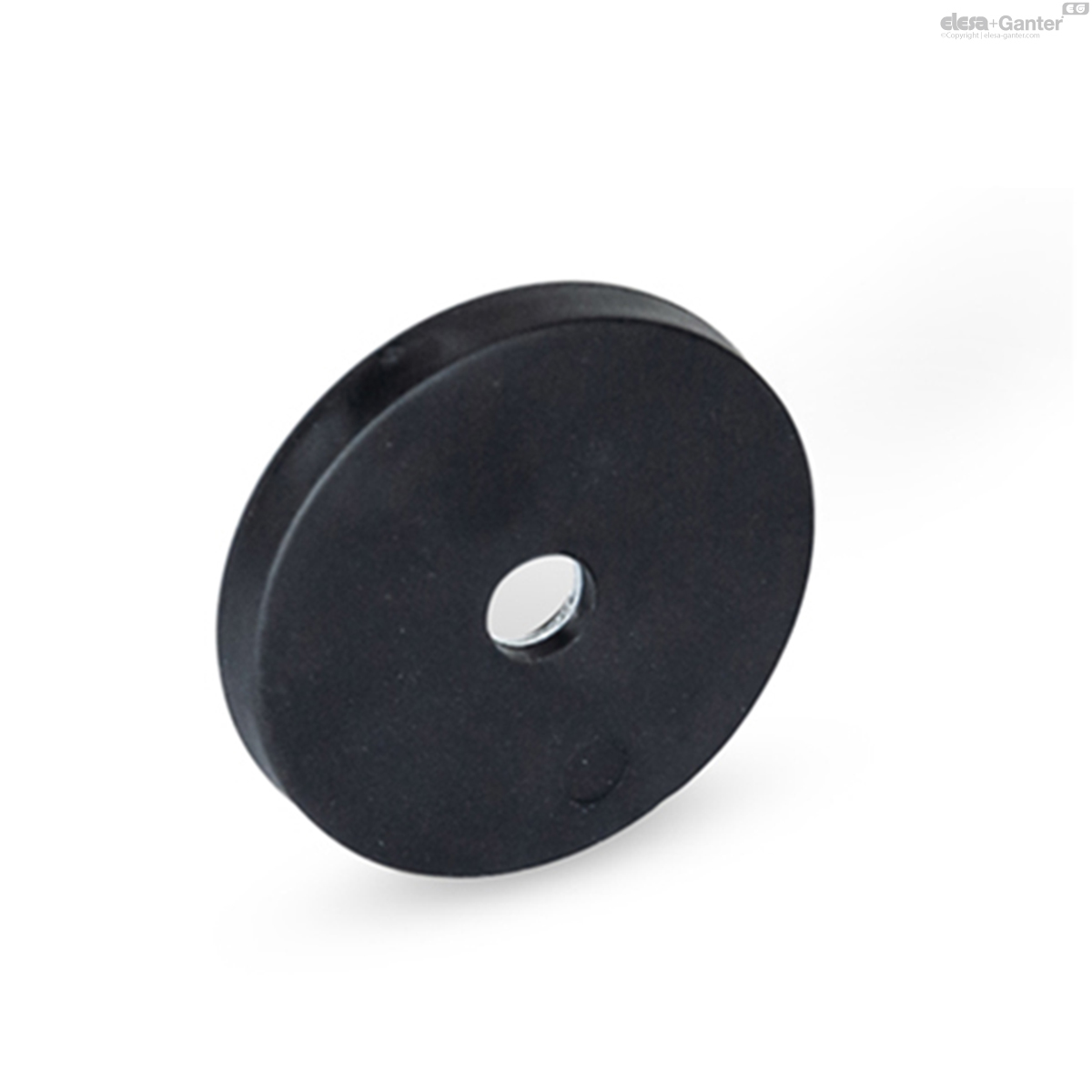

Retaining Magnets

Disk-Shaped, with Countersunk Bore, with Rubber Jacket

Enquire Now

Description

Specification

Steel part

Zinc plated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Rubber jacket

Elastomer (TPE)

≈ 80 Shore A

Black SW

White WS

Information

The retaining magnets GN 51.8 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

On request

Other colors

Other shore hardnesses

Technical information

Elastomer characteristics

GN 51.8

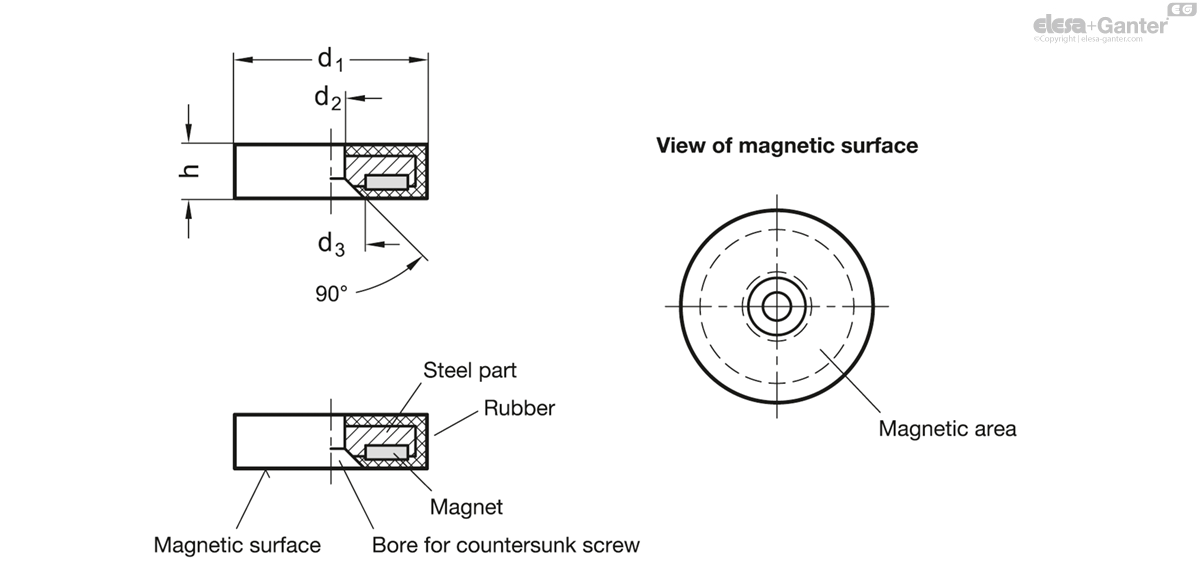

	Color	d₁	d₂	d₃	h	Nominal magnetic forces in N
Code								Actions
GN 51.8-ND-12-SW	SW - Black	12	3.4	6.4	7	10	4
GN 51.8-ND-12-WS	WS - White	12	3.4	6.4	7	10	4
GN 51.8-ND-43-SW	SW - Black	43	7.5	12.5	6	100	28
GN 51.8-ND-43-WS	WS - White	43	7.5	12.5	6	100	28
GN 51.8-ND-88-SW	SW - Black	88	6.5	12.5	8.5	550	182
GN 51.8-ND-88-WS	WS - White	88	6.5	12.5	8.5	550	182
