GN 51.5

Retaining Magnets

Disk-Shaped, with Female Thread, with Rubber Jacket

Enquire Now

Description

Specification

Steel part

Zinc plated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Rubber jacket

Elastomer (TPE)

80 shore A ≈

Black SW

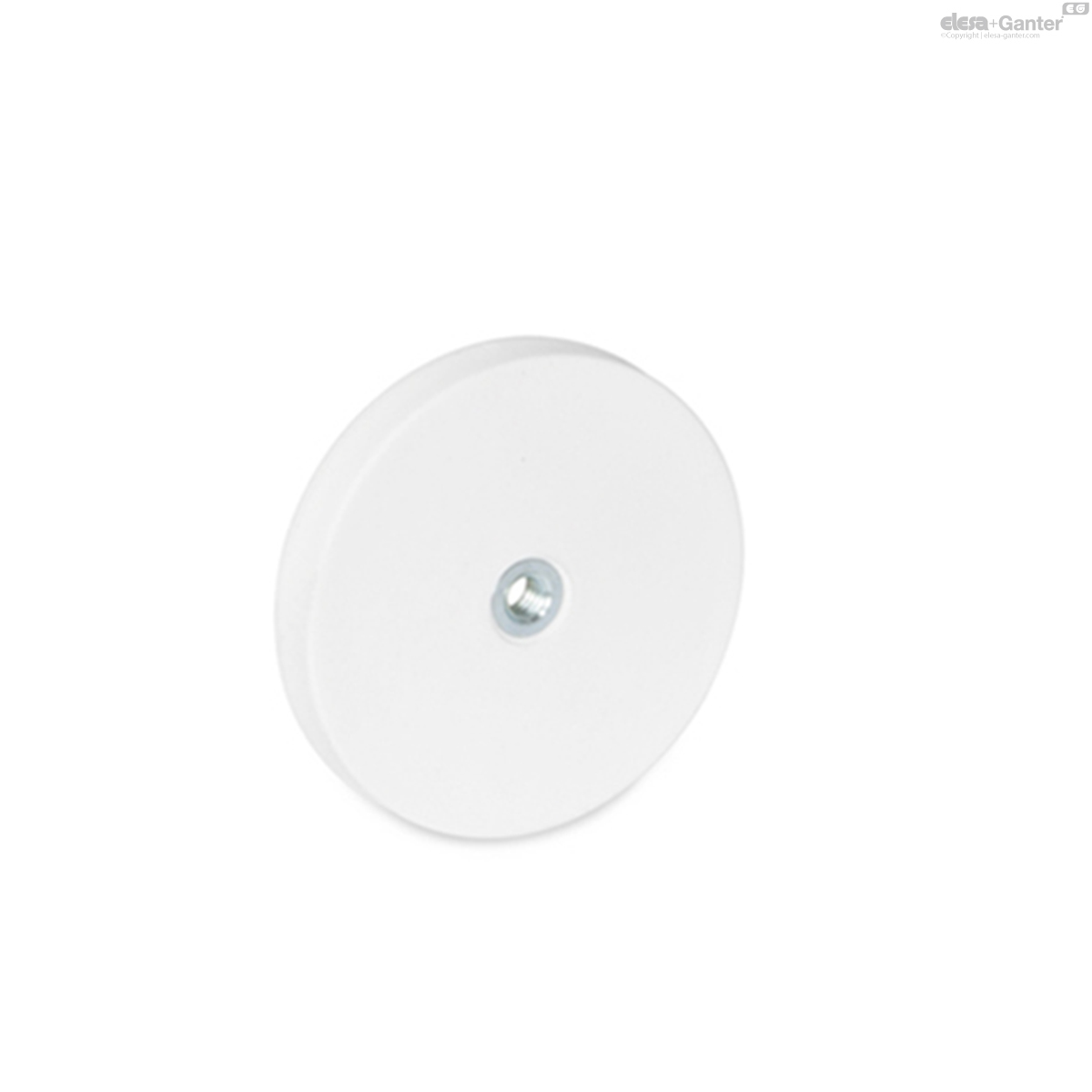

White WS

Information

The retaining magnets GN 51.5 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.

More information to retaining magnets

Technical information

Elastomer characteristics

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

On request

Other colors

Other shore hardnesses

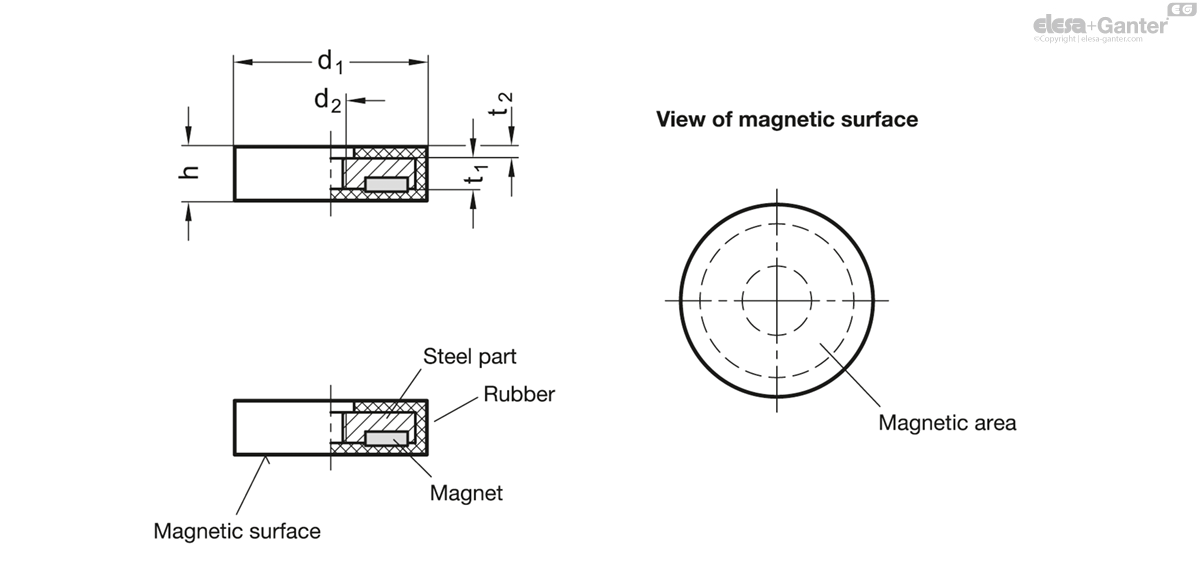

GN 51.5

	Color	d₁	d₂	h	t₁	t₂	Nominal adhesive forces in N
Code									Actions
GN 51.5-ND-18-SW	SW - Black	18	M 4	6	3.5	0.8	25	6
GN 51.5-ND-18-WS	WS - White	18	M 4	6	3.5	0.8	25	6
GN 51.5-ND-22-SW	SW - Black	22	M 4	6	4.5	0.8	38	9
GN 51.5-ND-22-WS	WS - White	22	M 4	6	4.5	0.8	38	9
GN 51.5-ND-31-SW	SW - Black	31	M 5	6	4.5	0.8	89	22
GN 51.5-ND-31-WS	WS - White	31	M 5	6	4.5	0.8	89	22
GN 51.5-ND-43-SW	SW - Black	43	M 4	6	4	0.8	100	29
GN 51.5-ND-43-WS	WS - White	43	M 4	6	4	0.8	100	29
GN 51.5-ND-57-SW	SW - Black	57	M 5	7.5	4.5	1.2	200	79
GN 51.5-ND-57-WS	WS - White	57	M 5	7.5	4.5	1.2	200	79
GN 51.5-ND-66-SW	SW - Black	66	M 6	8.5	6	1.8	250	101
GN 51.5-ND-66-WS	WS - White	66	M 6	8.5	6	1.8	250	101
GN 51.5-ND-88-SW	SW - Black	88	M 6	8.5	6	1.8	550	186
GN 51.5-ND-88-WS	WS - White	88	M 6	8.5	6	1.8	550	186
