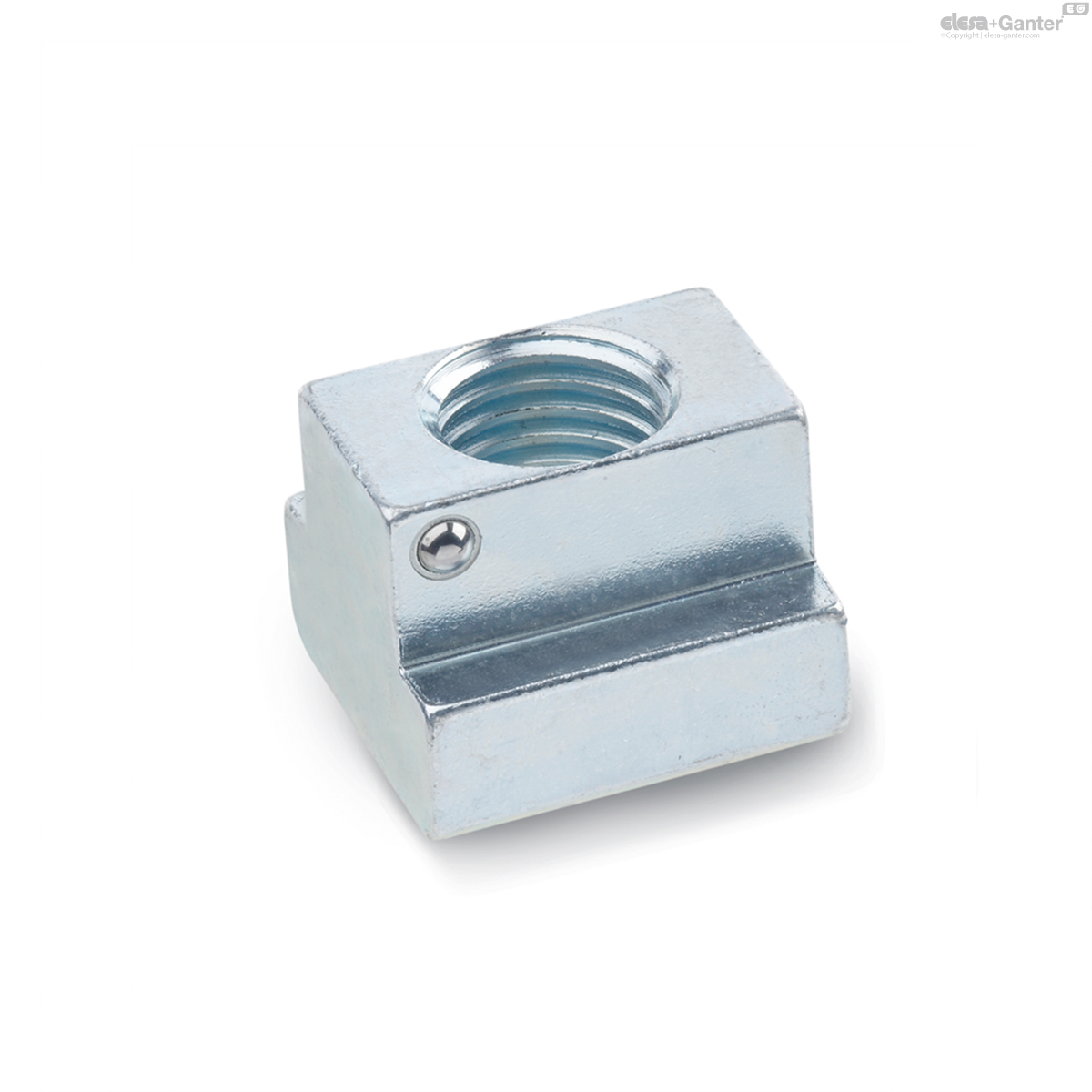

GN 508.2
T-Nuts
with slip proof
Description
Specification
Heat-treated steel
Tensile strength class 8
zinc plated, blue passivated
Tensile strength class 10
blackened
Information
T-nuts GN 508.2 are dimensionally indetical to DIN 508 -.
They are, however, fitted on the side with a spring loaded ball. This will prevent an unwanted movement of the nut, especially in a vertically mounted T-slot bed.
Technical information
- Strength values of nuts -
GN 508.2

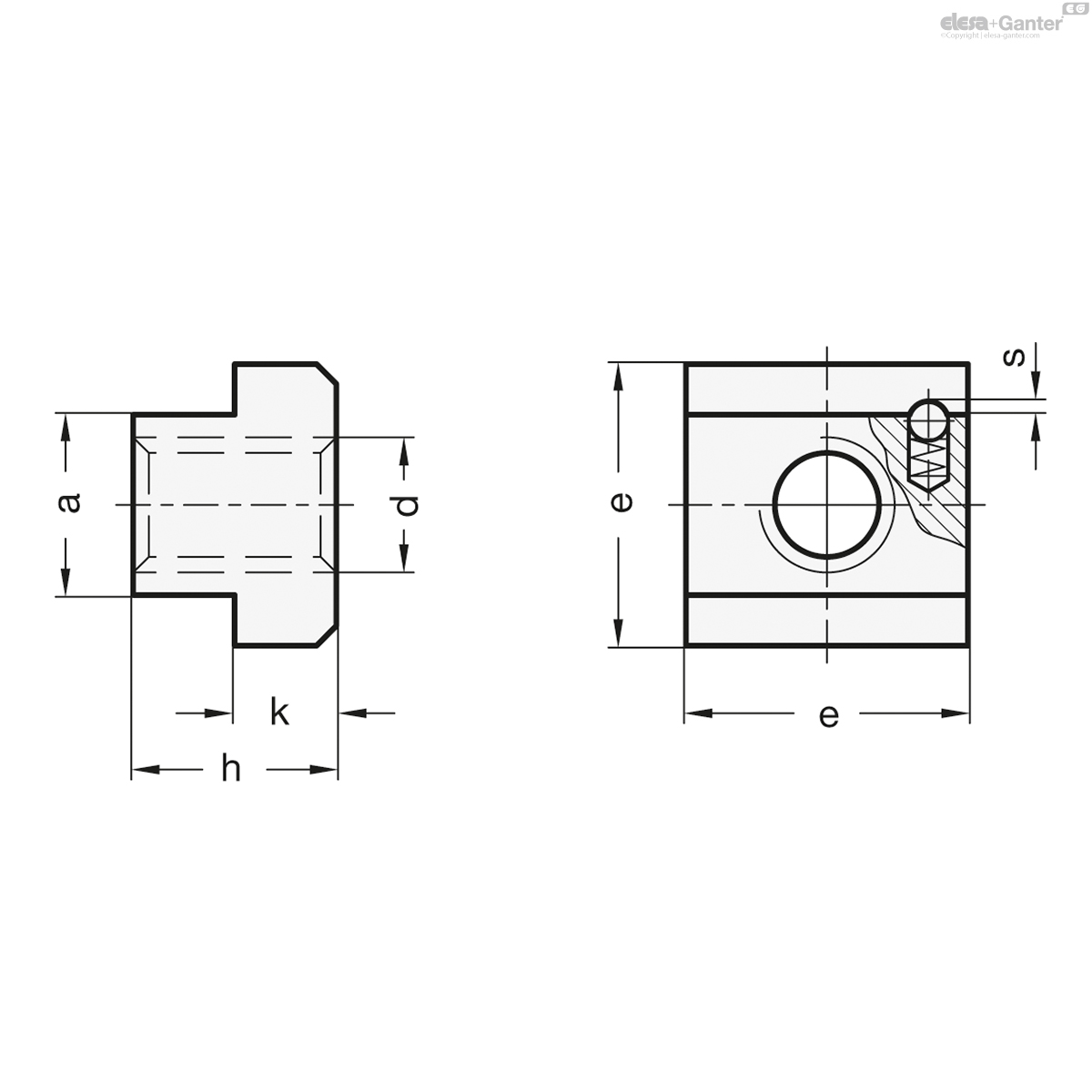

| a -0.3/-0.5 | d | e | h | k | s | T-Slot width DIN 650 |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 508.2-10-M8-8 | 10 | M 8 | 15 | 12 | 6 | 0.65 | 10 | 14 |
|
| GN 508.2-10-M8-10 | 10 | M 8 | 15 | 12 | 6 | 0.65 | 10 | 14 |
|
| GN 508.2-12-M10-8 | 12 | M 10 | 18 | 14 | 7 | 0.65 | 12 | 22 |
|
| GN 508.2-12-M10-10 | 12 | M 10 | 18 | 14 | 7 | 0.65 | 12 | 22 |
|
| GN 508.2-14-M12-8 | 14 | M 12 | 22 | 16 | 8 | 1 | 14 | 34 |
|
| GN 508.2-14-M12-10 | 14 | M 12 | 22 | 16 | 8 | 1 | 14 | 34 |
|
| GN 508.2-18-M16-8 | 18 | M 16 | 28 | 20 | 10 | 1 | 18 | 68 |
|
| GN 508.2-18-M16-10 | 18 | M 16 | 28 | 20 | 10 | 1 | 18 | 68 |
|
| GN 508.2-22-M20-8 | 22 | M 20 | 35 | 28 | 14 | 1.6 | 22 | 155 |
|
| GN 508.2-22-M20-10 | 22 | M 20 | 35 | 28 | 14 | 1.6 | 22 | 150 |
|
