GN 508.1

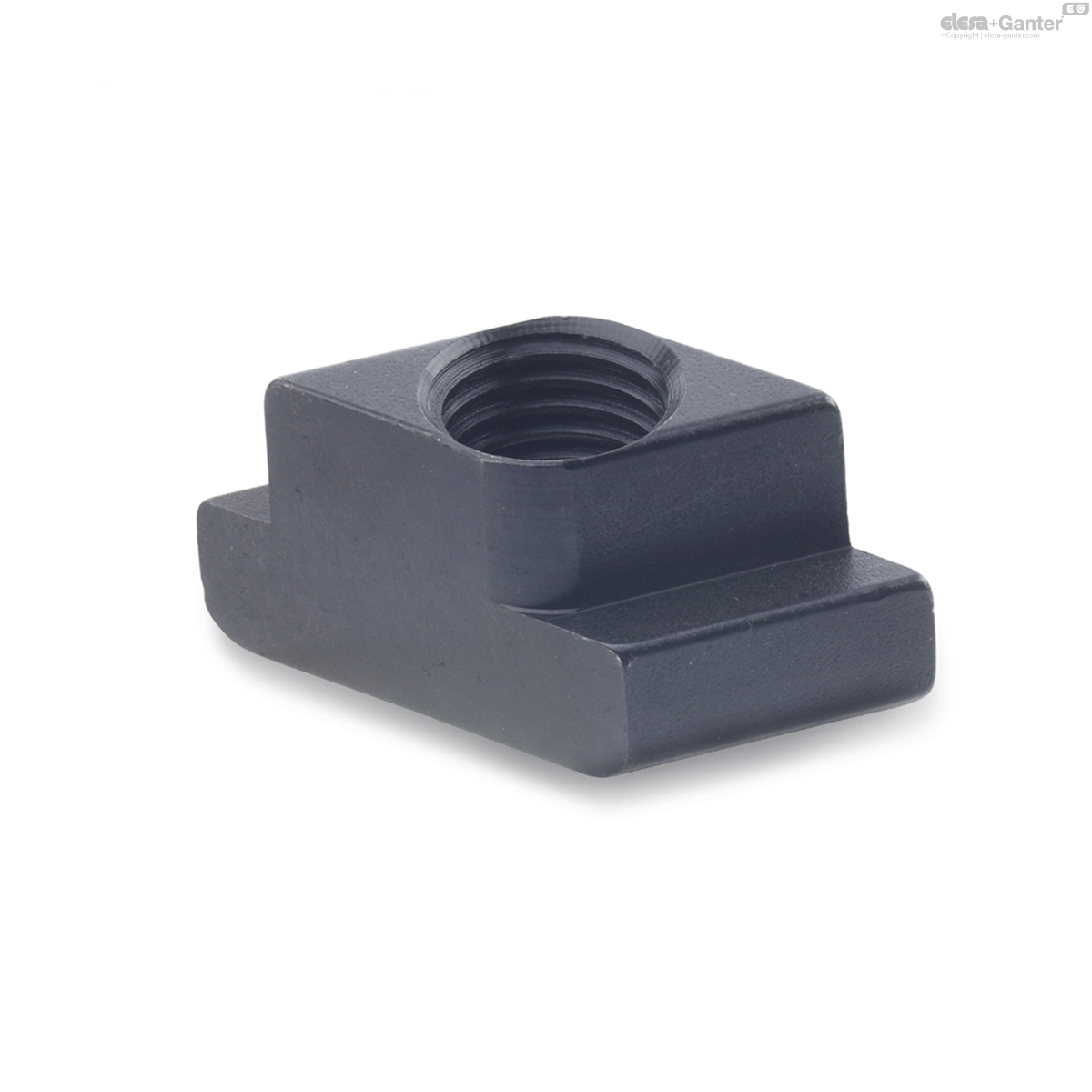

Rhombus T-Nuts
Description
Specification
Heat-treated steel
- Tensile strength class 10
- blackened
Information
Rhombus T-Nuts GN 508.1 can be inserted vertically into the T-Slot.
Technical information

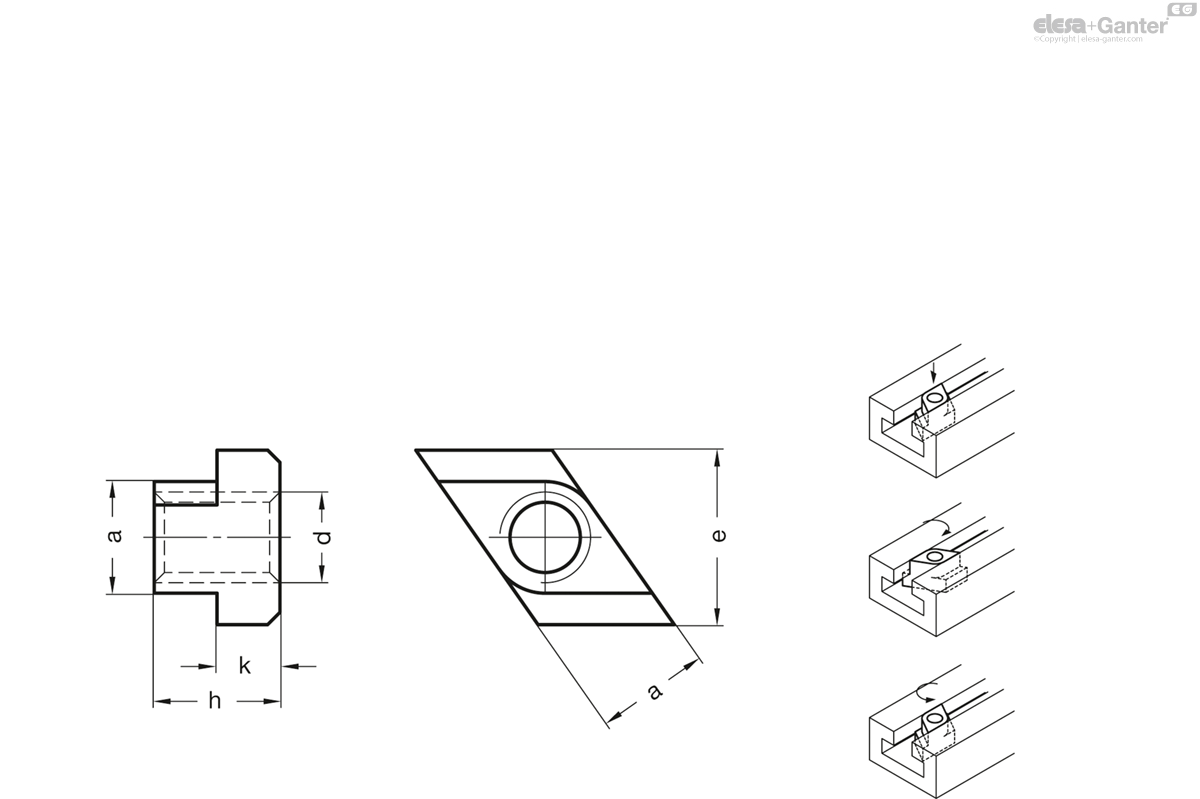

- Strength values of nuts -
GN 508.1
| a -0.3/-0.5 | d | e -0.5 | h | k -0.5 | T-Slot width DIN 650 |  |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 508.1-8-M6 | 8 | M 6 | 13 | 10 | 6 | 8 | 5 |
|
| GN 508.1-10-M8 | 10 | M 8 | 15 | 12 | 6 | 10 | 9 |
|
| GN 508.1-12-M10 | 12 | M 10 | 18 | 14 | 7 | 12 | 13 |
|
| GN 508.1-14-M12 | 14 | M 12 | 22 | 16 | 8 | 14 | 22 |
|
| GN 508.1-16-M14 | 16 | M 14 | 25 | 18 | 9 | 16 | 32 |
|
| GN 508.1-18-M16 | 18 | M 16 | 28 | 20 | 10 | 18 | 44 |
|
| GN 508.1-22-M20 | 22 | M 20 | 35 | 28 | 14 | 22 | 97 |
|
