GN 50.45

Stainless Steel Retaining Magnets

Disk-Shaped, with Bore

Enquire Now

GN 50.45-HF

Stainless Steel Retaining Magnets

Hard ferrite (HF)

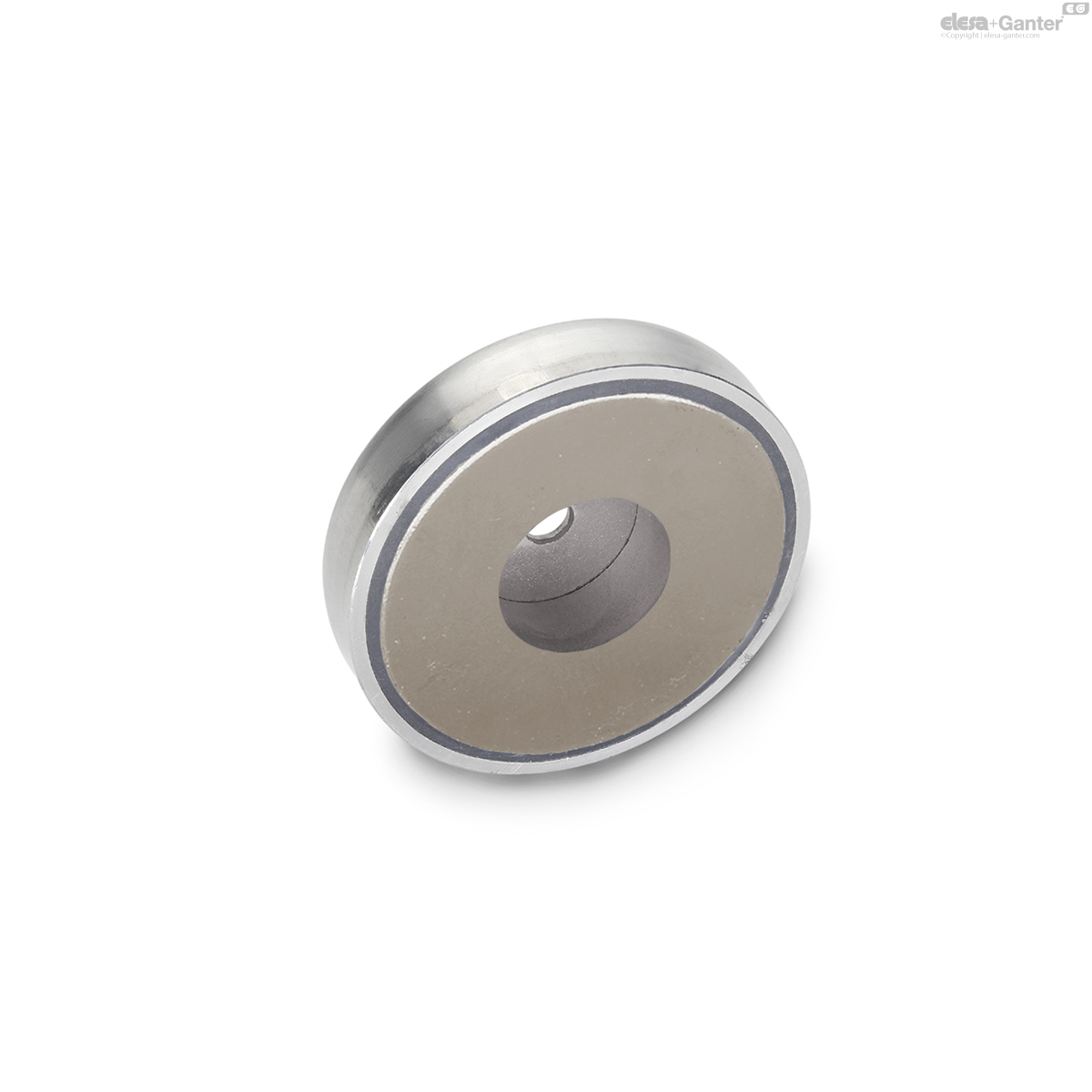

GN 50.45-SC

Stainless Steel Retaining Magnets

SmCo (SC)

Description

Specification

Housing

Stainless steel

Materials of the magnet:

Hard ferrite HF

Temperature resistant up to 220 °C

SmCo SC

Samarium, cobalt

Temperature resistant up to 350 °C

Information

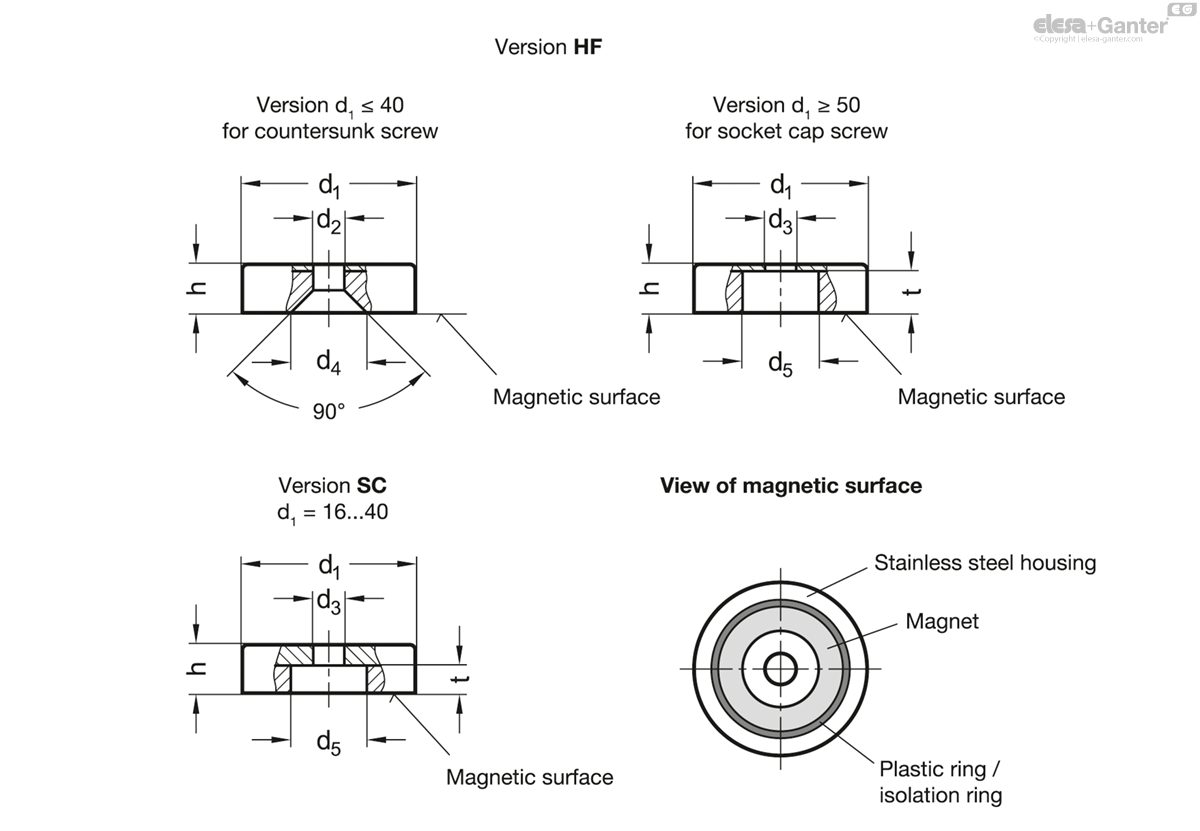

Stainless steel retaining magnets GN 50.45 are combined with a stainless steel housing and a plastic ring / insulation ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.

More Information on Retaining Magnets

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

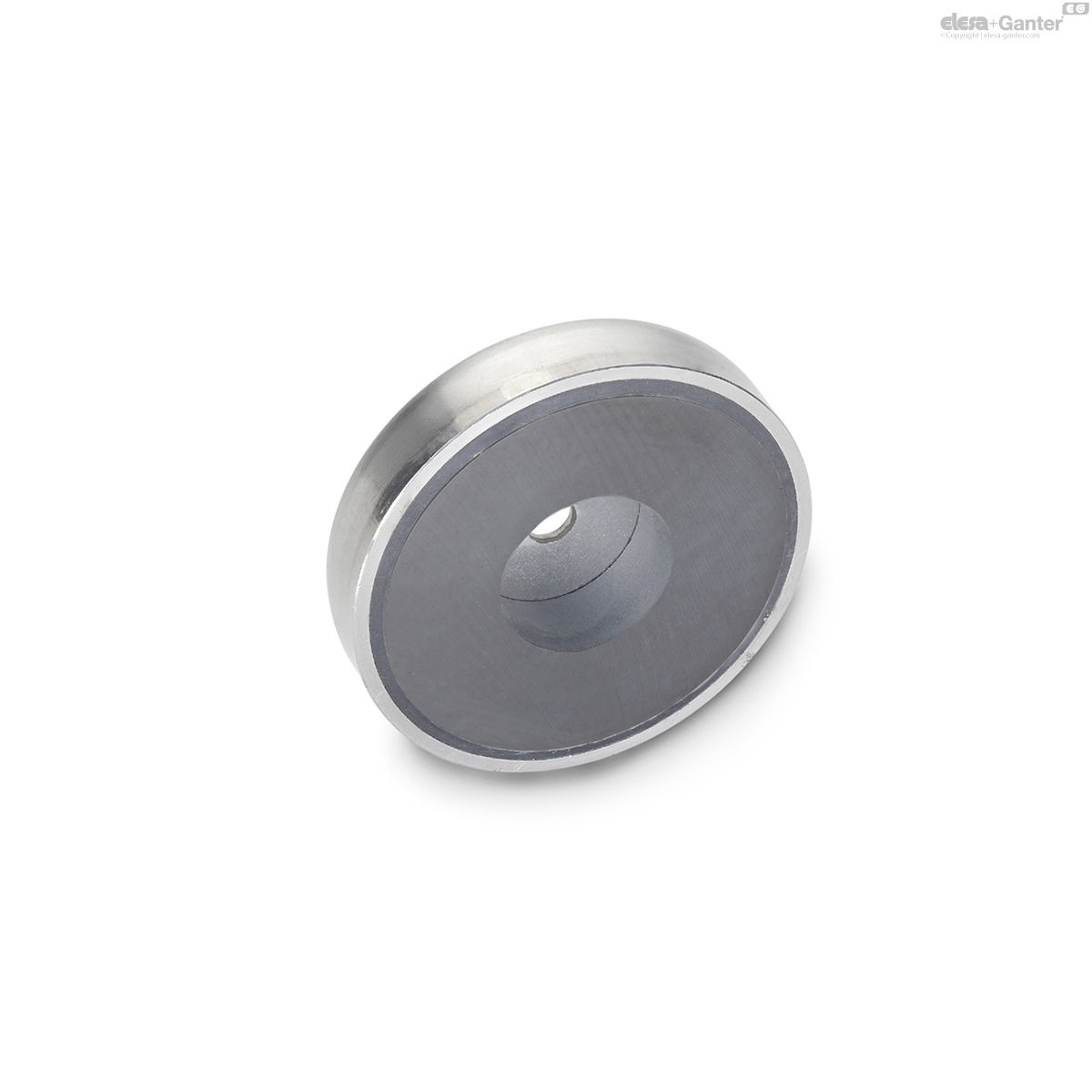

GN 50.45-HF

	d₁	h	d₂	d₃	d₄	d₅	t	Nominal magnetic forces in N
Code										Actions
GN 50.45-HF-20-6-4,3	20 ±0.1	6 +0.2/-0.1	4.3	-	9.5	-	-	22	8
GN 50.45-HF-25-7-5,5	25 ±0.1	7 +0.3/-0.2	5.5	-	11.5	-	-	29	17
GN 50.45-HF-32-7-5,5	32 ±0.1	7 +0.3/-0.2	5.5	-	11.5	-	-	58	28
GN 50.45-HF-40-8-5,5	40 +0.2/-0.1	8 +0.4/-0.2	5.5	-	12.5	-	-	72	52
GN 50.45-HF-50-10-8,5	50 +0.2/-0.1	10 +0.5/-0.2	-	8.5	-	22	8.5	145	91
GN 50.45-HF-63-14-6,5	63 +0.3/-0.1	14 +0.5/-0.2	-	6.5	-	24	12	230	195
