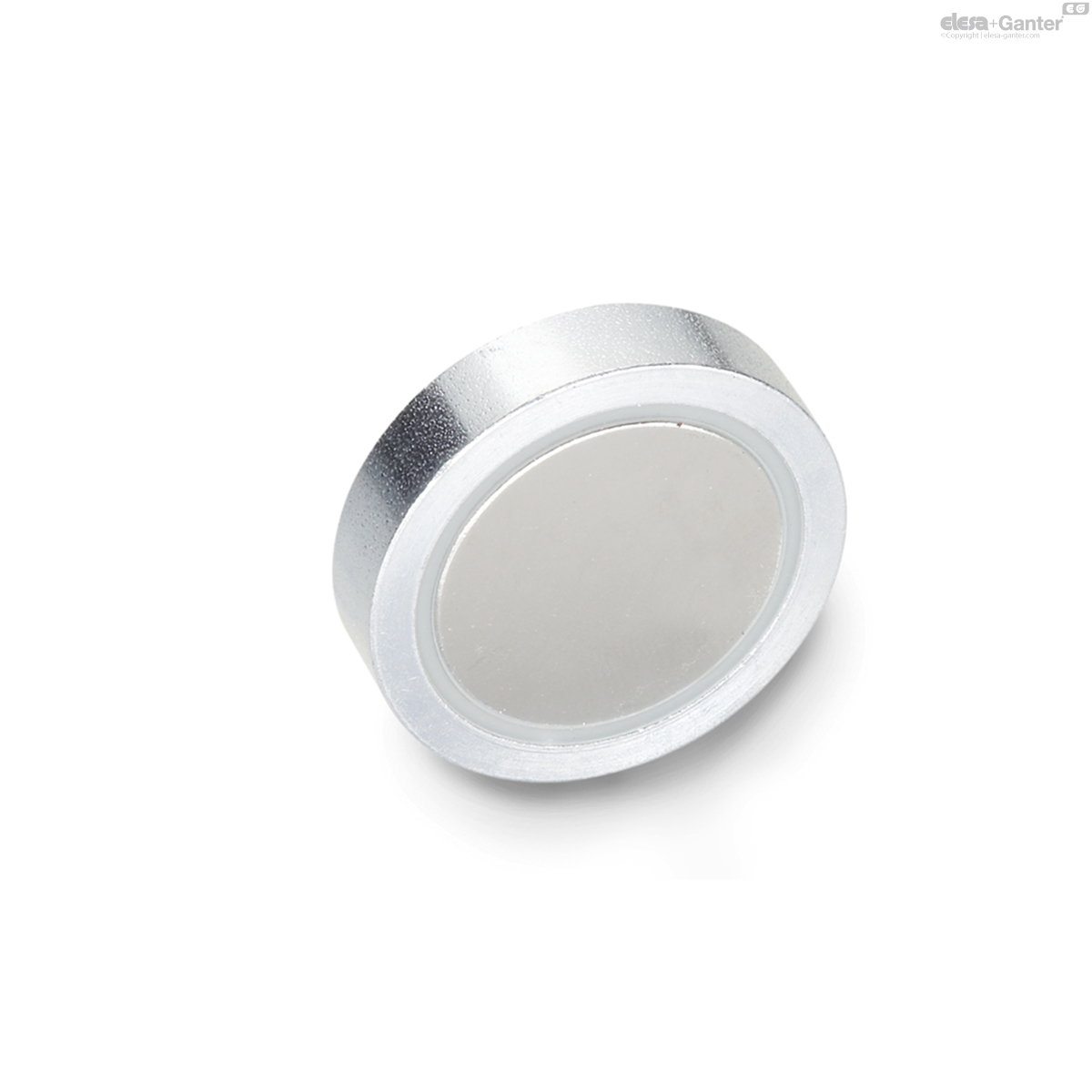

GN 50.1
Retaining magnets
disc-shaped, without thread
Description
Specification
Housing
Steel, zinc plated
Materials of the magnet:
Hard ferrite HF
temperature resistant up to 200 °C
SmCo SC
Samarium, cobalt
temperature resistant up to 200 °C
NdFeB ND
Neodymium, iron, boron
temperature resistant up to 80 °C
Information
Retaining magnets GN 50.1 are combined with a steel housing and a plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
The retaining magnets are easy to fasten securely by side clamping, e.g. with a grub screw GN 913.2 .
- More information to retaining magnetsÂ
Accessory
- Holding discs GN 70Â
- Adhesive discs GN 70.1Â
- Rubber caps GN 70.2Â
GN 50.1

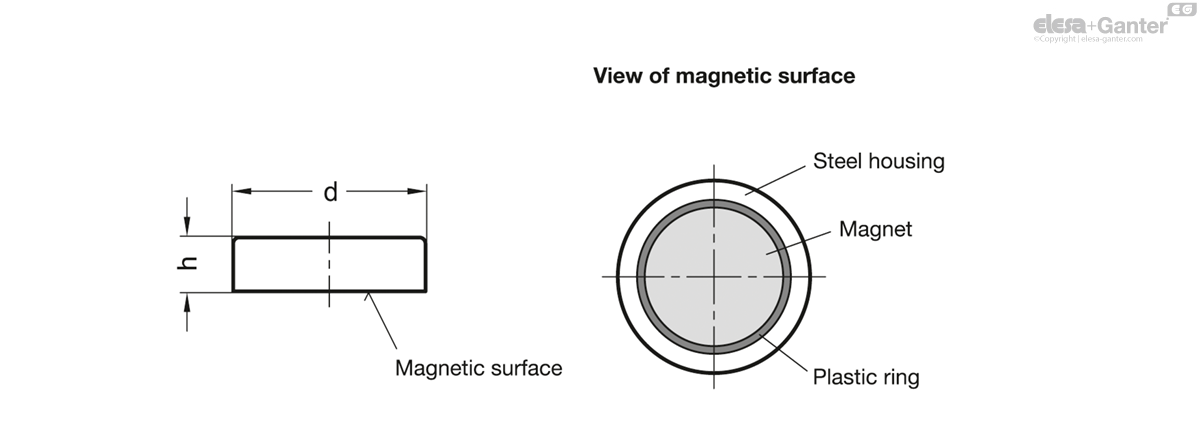

| d | h | Nominal magnetic forces in N |
 |
||
|---|---|---|---|---|---|
| Code | Actions | ||||
| GN 50.1-HF-10-4,5 | 10 ±0.1 | 4.5 +0.2/-0.1 | 4 | 2 |
|
| GN 50.1-HF-13-4,5 | 13 ±0.1 | 4.5 +0.2/-0.1 | 10 | 3 |
|
| GN 50.1-HF-16-4,5 | 16 ±0.1 | 4.5 +0.2/-0.1 | 18 | 5 |
|
| GN 50.1-HF-20-6 | 20 ±0.1 | 6 +0.2/-0.1 | 30 | 9 |
|
| GN 50.1-HF-25-7 | 25 ±0.1 | 7 +0.3/-0.2 | 40 | 17 |
|
| GN 50.1-HF-32-7 | 32 ±0.1 | 7 +0.3/-0.2 | 80 | 29 |
|
| GN 50.1-HF-36-7,7 | 36 +0.2/-0.1 | 7.7 +0.3/-0.2 | 100 | 39 |
|
| GN 50.1-HF-40-8 | 40 +0.2/-0.1 | 8 +0.4/-0.2 | 125 | 54 |
|
| GN 50.1-HF-47-9 | 47 +0.2/-0.1 | 9 +0.5/-0.2 | 180 | 84 |
|
| GN 50.1-HF-50-10 | 50 +0.2/-0.1 | 10 +0.5/-0.2 | 220 | 102 |
|
| GN 50.1-HF-57-10,5 | 57 +0.2/-0.1 | 10.5 +0.5/-0.2 | 280 | 141 |
|
| GN 50.1-HF-63-14 | 63 +0.3/-0.1 | 14 +0.5/-0.2 | 350 | 226 |
|
| GN 50.1-HF-80-18 | 80 +0.5/-0.1 | 18 +0.5/-0.2 | 600 | 468 |
|
| GN 50.1-HF-100-22 | 100 +0.5/-0.1 | 22 +0.5/-0.2 | 900 | 915 |
|
| GN 50.1-HF-125-26 | 125 +0.5/-0.1 | 26 +0.5/-0.2 | 1300 | 1680 |
|
| GN 50.1-ND-6-4,5 | 6 ±0.1 | 4.5 ±0.1 | 5 | 1 |
|
| GN 50.1-ND-8-4,5 | 8 ±0.1 | 4.5 ±0.1 | 13 | 2 |
|
| GN 50.1-ND-10-4,5 | 10 ±0.1 | 4.5 ±0.1 | 25 | 3 |
|
| GN 50.1-ND-13-4,5 | 13 ±0.1 | 4.5 ±0.1 | 60 | 4 |
|
| GN 50.1-ND-16-4,5 | 16 ±0.1 | 4.5 ±0.1 | 95 | 6 |
|
| GN 50.1-ND-20-3,5 | 20 ±0.1 | 3.5 ±0.1 | 110 | 8 |
|
| GN 50.1-ND-20-6 | 20 ±0.1 | 6 ±0.1 | 140 | 14 |
|
| GN 50.1-ND-25-7 | 25 ±0.1 | 7 ±0.2 | 200 | 26 |
|
| GN 50.1-ND-32-7 | 32 ±0.1 | 7 ±0.2 | 350 | 41 |
|
| GN 50.1-SC-6-4,5 | 6 ±0.1 | 4.5 ±0.1 | 5 | 1 |
|
| GN 50.1-SC-8-4,5 | 8 ±0.1 | 4.5 ±0.1 | 11 | 2 |
|
| GN 50.1-SC-10-4,5 | 10 ±0.1 | 4.5 ±0.1 | 20 | 3 |
|
| GN 50.1-SC-13-4,5 | 13 ±0.1 | 4.5 ±0.1 | 40 | 4 |
|
| GN 50.1-SC-16-4,5 | 16 ±0.1 | 4.5 ±0.1 | 60 | 7 |
|
| GN 50.1-SC-20-6 | 20 ±0.1 | 6 ±0.1 | 90 | 14 |
|
| GN 50.1-SC-25-7 | 25 ±0.1 | 7 ±0.2 | 150 | 26 |
|
| GN 50.1-SC-32-7 | 32 ±0.1 | 7 ±0.2 | 220 | 42 |
|
