GN 442

Threaded plugs

Resistant up to 200 °C, Aluminium

Enquire Now

Description

Specification

Identification no.

No. 1: without vent hole

No. 2: with vent hole

Aluminium

plastic coated

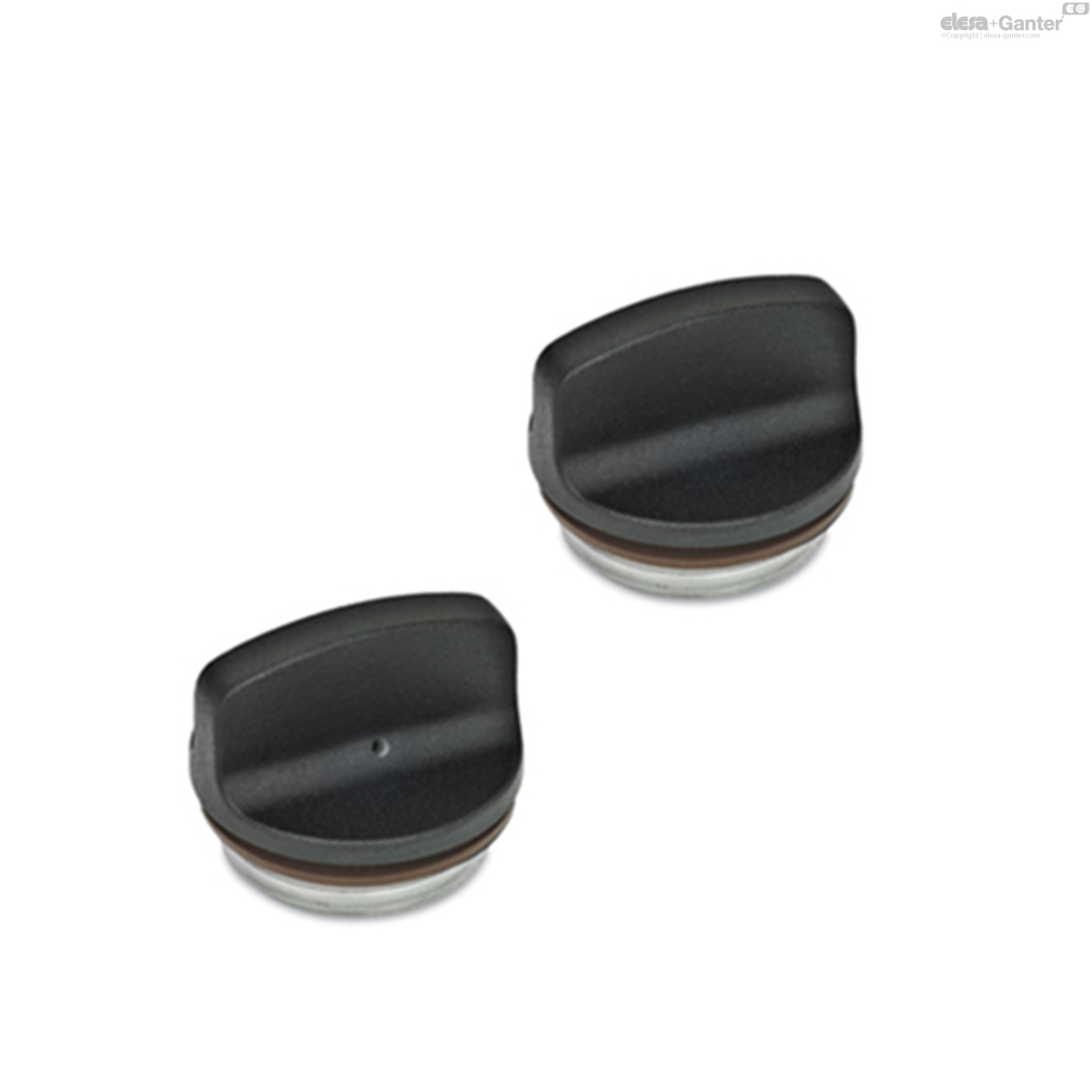

black, RAL 9005, matte finish SW

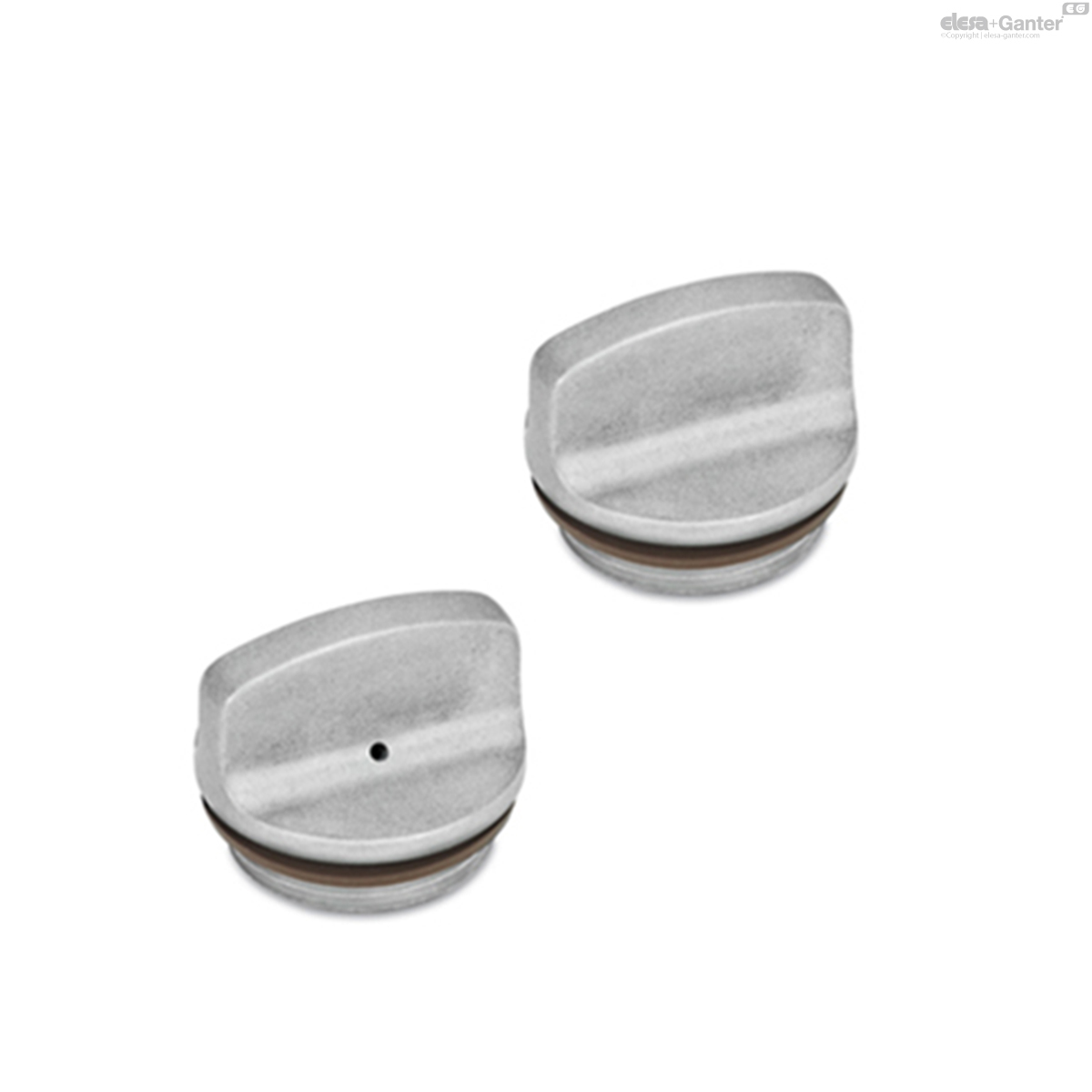

blank BL

tumbled

temperature resistant up to 200 °C

Sealing ring rubber FPM (Viton^®)

Identification by not black finish of the seal

Information

Threaded plugs GN 442 with the external diameter d₁ match the screw-in holes for DIN 3852 pipe bolt connections.

The sealing ring is embedded in a radial recess on the plane side, which makes the sealing ring captive and cannot be squeezed out during tightening. The sealing is also relatively soft, enhancing the sealing effect also on uneven surfaces.

On request

Threaded plugs with dipstick

Technical information

Elastomer characteristics -

GN 442

	Color	d₁	d₂	d₃	d₄	l₁ ±0.5	l₂	l₃	s	t min.
Code												Actions
GN 442-22-G3/8-1-BL	BL - Blank	22	G 3/8	-	M 5	26	8	15	5	8	13
GN 442-22-G3/8-1-SW	SW - RAL 9004	22	G 3/8	-	M 5	26	8	15	5	8	13
GN 442-22-G3/8-2-BL	BL - Blank	22	G 3/8	2	M 5	26	8	15	5	8	13
GN 442-22-G3/8-2-SW	SW - RAL 9004	22	G 3/8	2	M 5	26	8	15	5	8	13
GN 442-22-M16x1,5-1-BL	BL - Blank	22	M 16 x 1.5	-	M 5	26	8	15	5	8	12
GN 442-22-M16x1,5-1-SW	SW - RAL 9004	22	M 16 x 1.5	-	M 5	26	8	15	5	8	12
GN 442-22-M16x1,5-2-BL	BL - Blank	22	M 16 x 1.5	2	M 5	26	8	15	5	8	12
GN 442-22-M16x1,5-2-SW	SW - RAL 9004	22	M 16 x 1.5	2	M 5	26	8	15	5	8	12
GN 442-26-G1/2-1-BL	BL - Blank	26	G 1/2	-	M 5	27.5	8.5	16	5	8	17
GN 442-26-G1/2-1-SW	SW - RAL 9004	26	G 1/2	-	M 5	27.5	8.5	16	5	8	17
GN 442-26-G1/2-2-BL	BL - Blank	26	G 1/2	2	M 5	27.5	8.5	16	5	8	17
GN 442-26-G1/2-2-SW	SW - RAL 9004	26	G 1/2	2	M 5	27.5	8.5	16	5	8	17
GN 442-26-M20x1,5-1-BL	BL - Blank	26	M 20 x 1.5	-	M 5	27.5	8.5	16	5	8	17
GN 442-26-M20x1,5-1-SW	SW - RAL 9004	26	M 20 x 1.5	-	M 5	27.5	8.5	16	5	8	17
GN 442-26-M20x1,5-2-BL	BL - Blank	26	M 20 x 1.5	2	M 5	27.5	8.5	16	5	8	17
GN 442-26-M20x1,5-2-SW	SW - RAL 9004	26	M 20 x 1.5	2	M 5	27.5	8.5	16	5	8	17
GN 442-32-G3/4-1-BL	BL - Blank	32	G 3/4	-	M 5	29	9	17	6	8	27
GN 442-32-G3/4-1-SW	SW - RAL 9004	32	G 3/4	-	M 5	29	9	17	6	8	27
GN 442-32-G3/4-2-BL	BL - Blank	32	G 3/4	2	M 5	29	9	17	6	8	27
GN 442-32-G3/4-2-SW	SW - RAL 9004	32	G 3/4	2	M 5	29	9	17	6	8	27
GN 442-32-M26x1,5-1-BL	BL - Blank	32	M 26 x 1.5	-	M 5	29	9	17	6	8	27
GN 442-32-M26x1,5-1-SW	SW - RAL 9004	32	M 26 x 1.5	-	M 5	29	9	17	6	8	27
GN 442-32-M26x1,5-2-BL	BL - Blank	32	M 26 x 1.5	2	M 5	29	9	17	6	8	27
GN 442-32-M26x1,5-2-SW	SW - RAL 9004	32	M 26 x 1.5	2	M 5	29	9	17	6	8	27
GN 442-40-G1-1-BL	BL - Blank	40	G 1	-	M 5	32.5	11	18	7	8	48
GN 442-40-G1-1-SW	SW - RAL 9004	40	G 1	-	M 5	32.5	11	18	7	8	48
GN 442-40-G1-2-BL	BL - Blank	40	G 1	2	M 5	32.5	11	18	7	8	48
GN 442-40-G1-2-SW	SW - RAL 9004	40	G 1	2	M 5	32.5	11	18	7	8	48
