Home U-Handles Ledge and safety handles GN 430.1

GN 430.1

Ledge handles

with lettering block

Enquire Now

Description

Specification

Aluminium

plastic coated

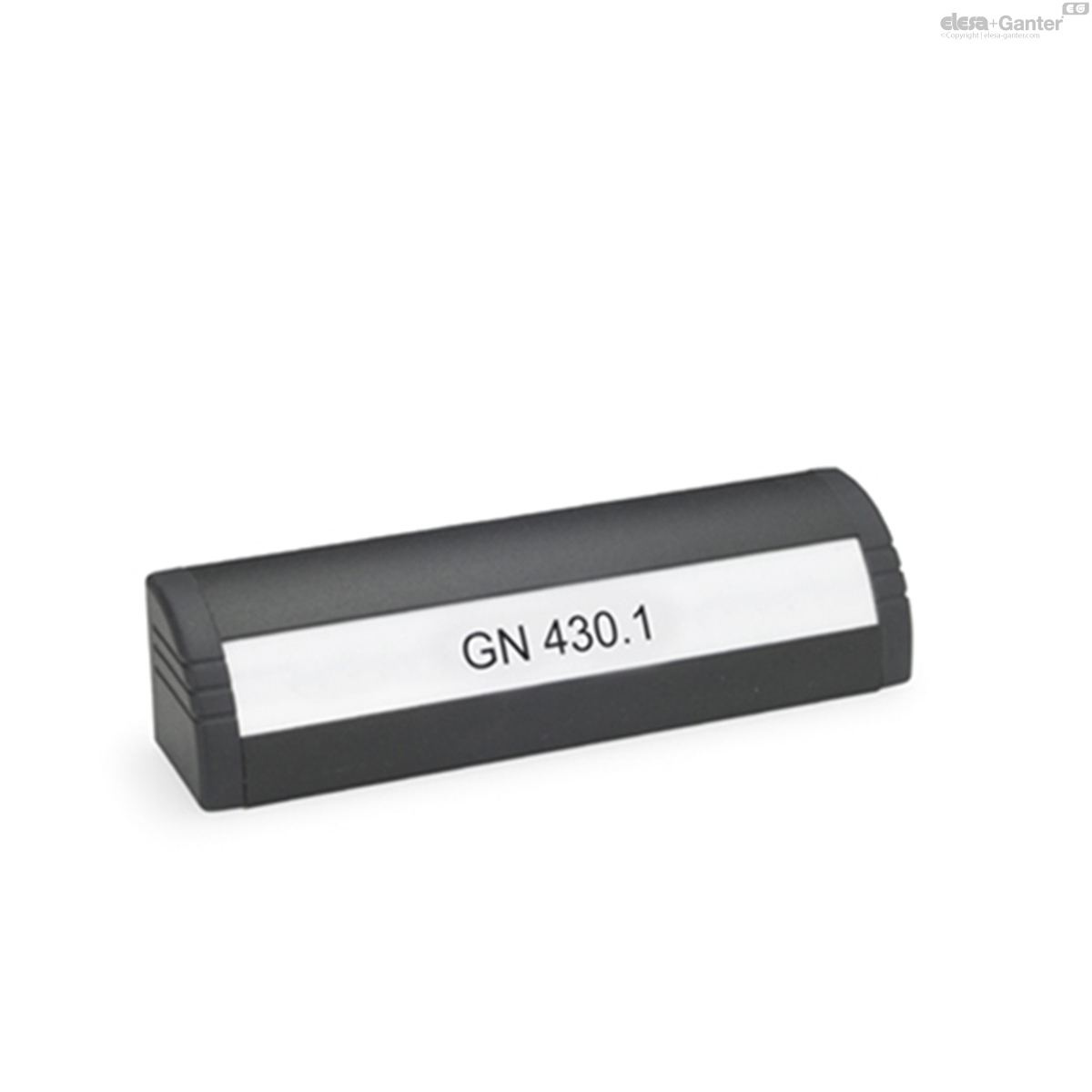

black, RAL 9005, textured finish SW

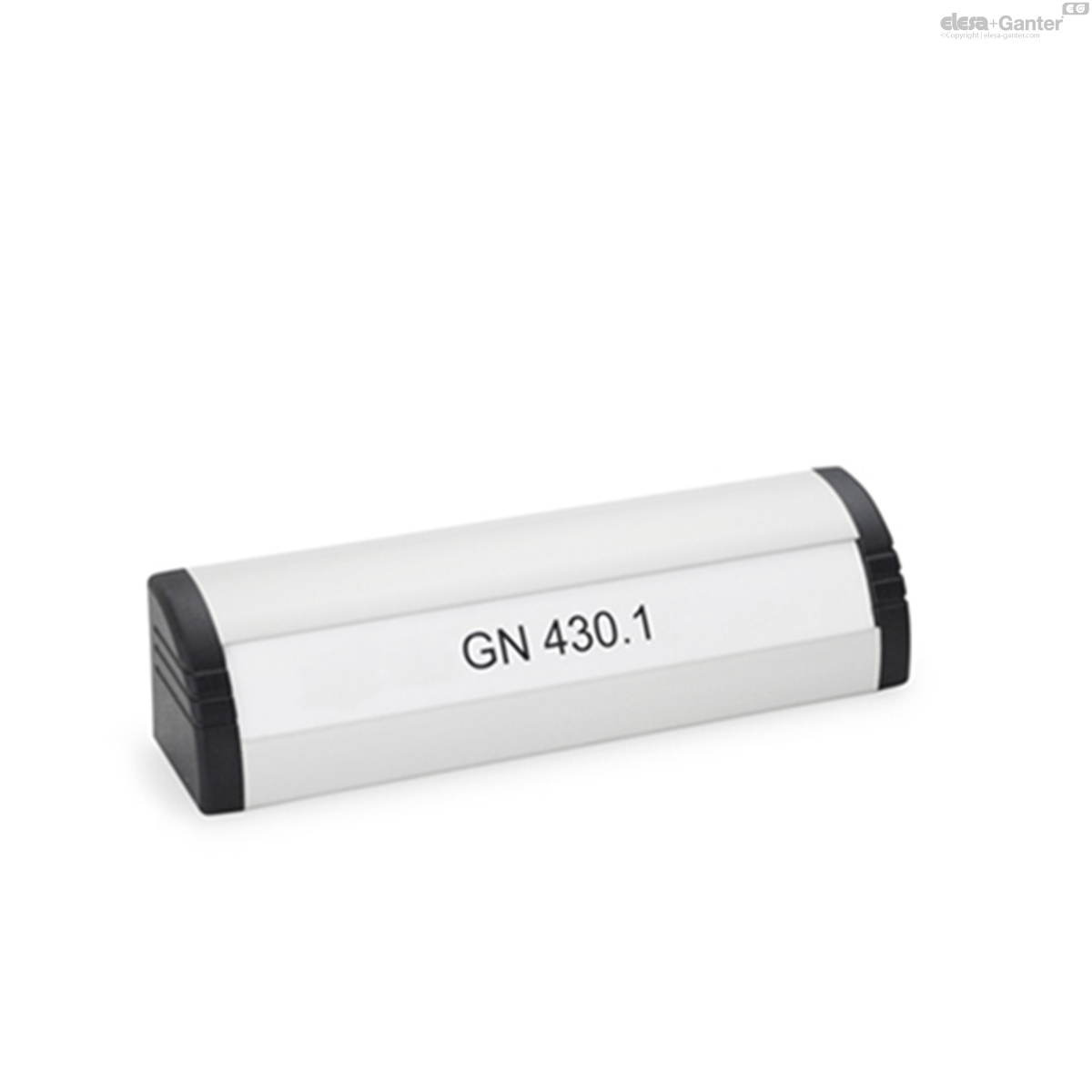

anodized, natural colour EL

Ends

plastic

Technopolymer (Polyamide PA)

black-grey

Lettering block

Insert groove supplied with:

paper strip 200 g/m², width 19.5 mm

bright white, age-resistant

PVC hard film

transparent

Information

Typical applications for ledge handles with lettering block GN 430.1 include swivel or sliding doors on protective doors and equipment. They are also suitable for use as drawer handles.

The screw channel for screw sizes M6 (extruded aluminium) allows an optional number of fixing screws in any position within the dimension l₂.

Special lengths can be manufactured from relatively small quantities upwards.

In the design with lettering block, the end cap when delivered is mounted on one side such that the paper / film strip supplied can be lettered and pushed into the groove provided.

The paper strip can also be used as substrate for common lettering tape in widths below 18 mm.

On request

Special lengths

single paper strips / film strips

Technical information

Plastic characteristics

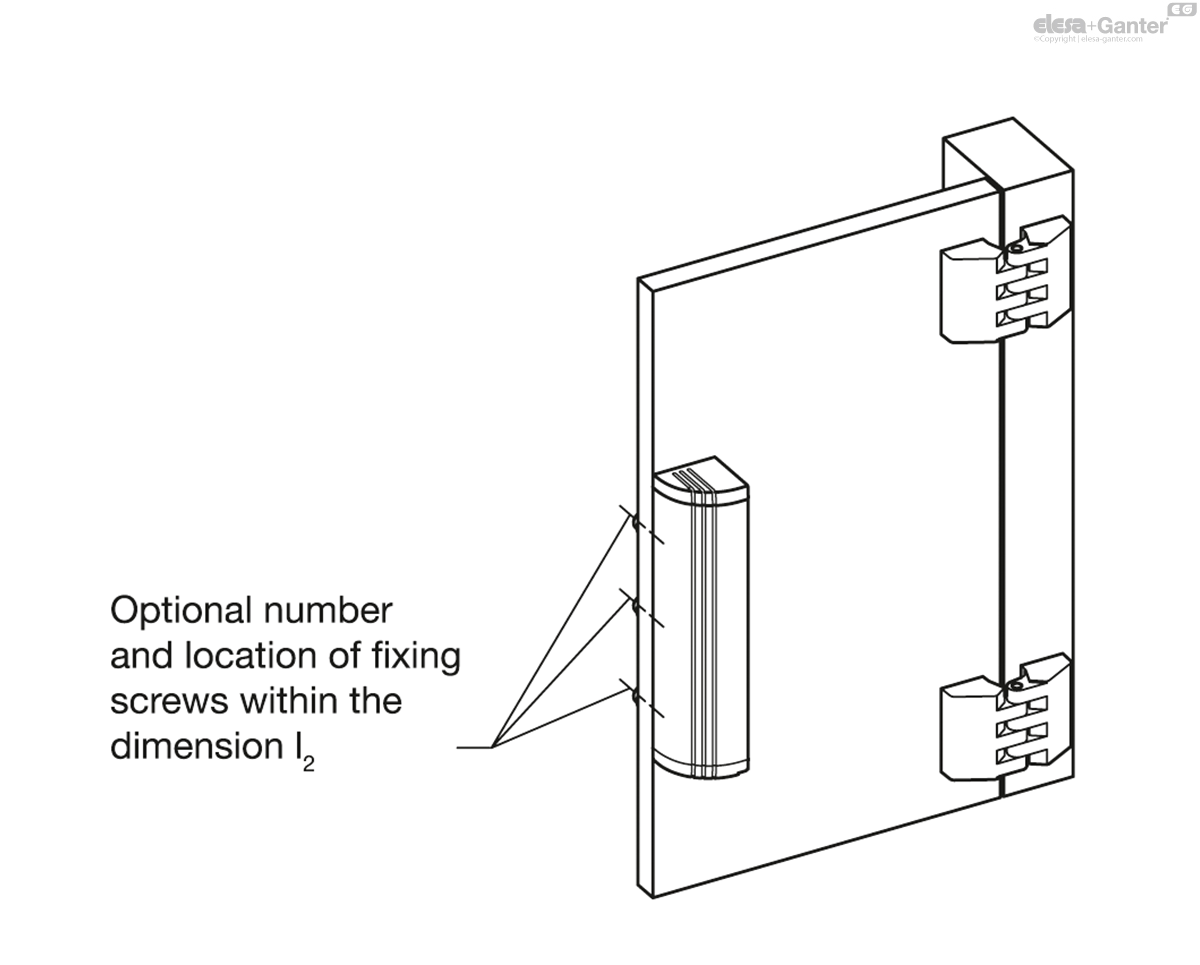

Example of application

Mounting information

Minimum screw-in-depth: 10 mm

Max. load (screw): 400 N

Max. tightening torque: 4 Nm

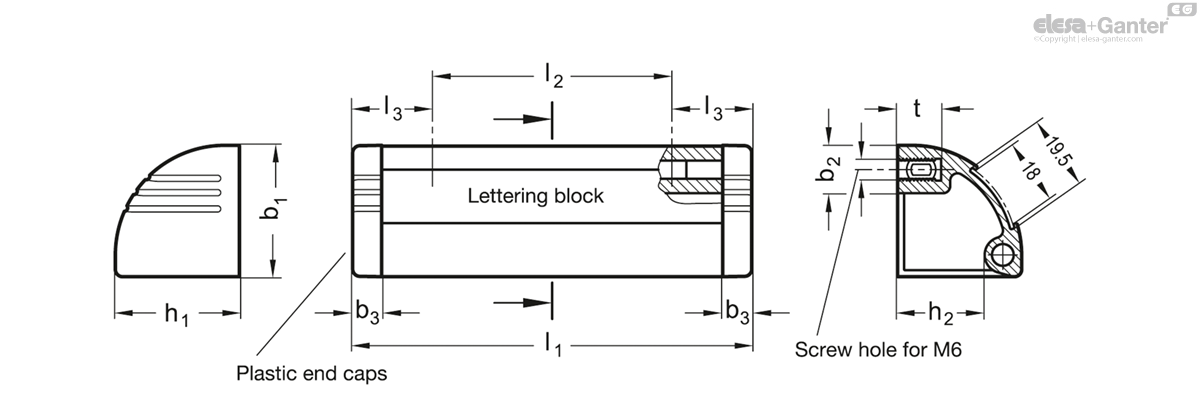

GN 430.1

	Color	l₁	b₁	b₂	b₃	h₁	h₂	l₂	l₃	t
Code												Actions
GN 430.1-110-EL	EL - Anodized, natural color	110	36	13	8	34	24	66	22	12	83
GN 430.1-110-SW	SW - RAL 9004	110	36	13	8	34	24	66	22	12	87
GN 430.1-130-EL	EL - Anodized, natural color	130	36	13	8	34	24	86	22	12	100
GN 430.1-130-SW	SW - RAL 9004	130	36	13	8	34	24	86	22	12	100
GN 430.1-150-EL	EL - Anodized, natural color	150	36	13	8	34	24	106	22	12	119
GN 430.1-150-SW	SW - RAL 9004	150	36	13	8	34	24	106	22	12	119
GN 430.1-200-EL	EL - Anodized, natural color	200	36	13	8	34	24	156	22	12	152
GN 430.1-200-SW	SW - RAL 9004	200	36	13	8	34	24	156	22	12	152
GN 430.1-250-EL	EL - Anodized, natural color	250	36	13	8	34	24	206	22	12	189
GN 430.1-250-SW	SW - RAL 9004	250	36	13	8	34	24	206	22	12	189
GN 430.1-300-EL	EL - Anodized, natural color	300	36	13	8	34	24	256	22	12	226
GN 430.1-300-SW	SW - RAL 9004	300	36	13	8	34	24	256	22	12	226
GN 430.1-400-EL	EL - Anodized, natural color	400	36	13	8	34	24	356	22	12	308
GN 430.1-400-SW	SW - RAL 9004	400	36	13	8	34	24	356	22	12	308
GN 430.1-500-EL	EL - Anodized, natural color	500	36	13	8	34	24	456	22	12	387
GN 430.1-500-SW	SW - RAL 9004	500	36	13	8	34	24	456	22	12	387
