GN 374
Flat springs
Accessories for scaling sets
Description
Specification
Steel
blank
Information

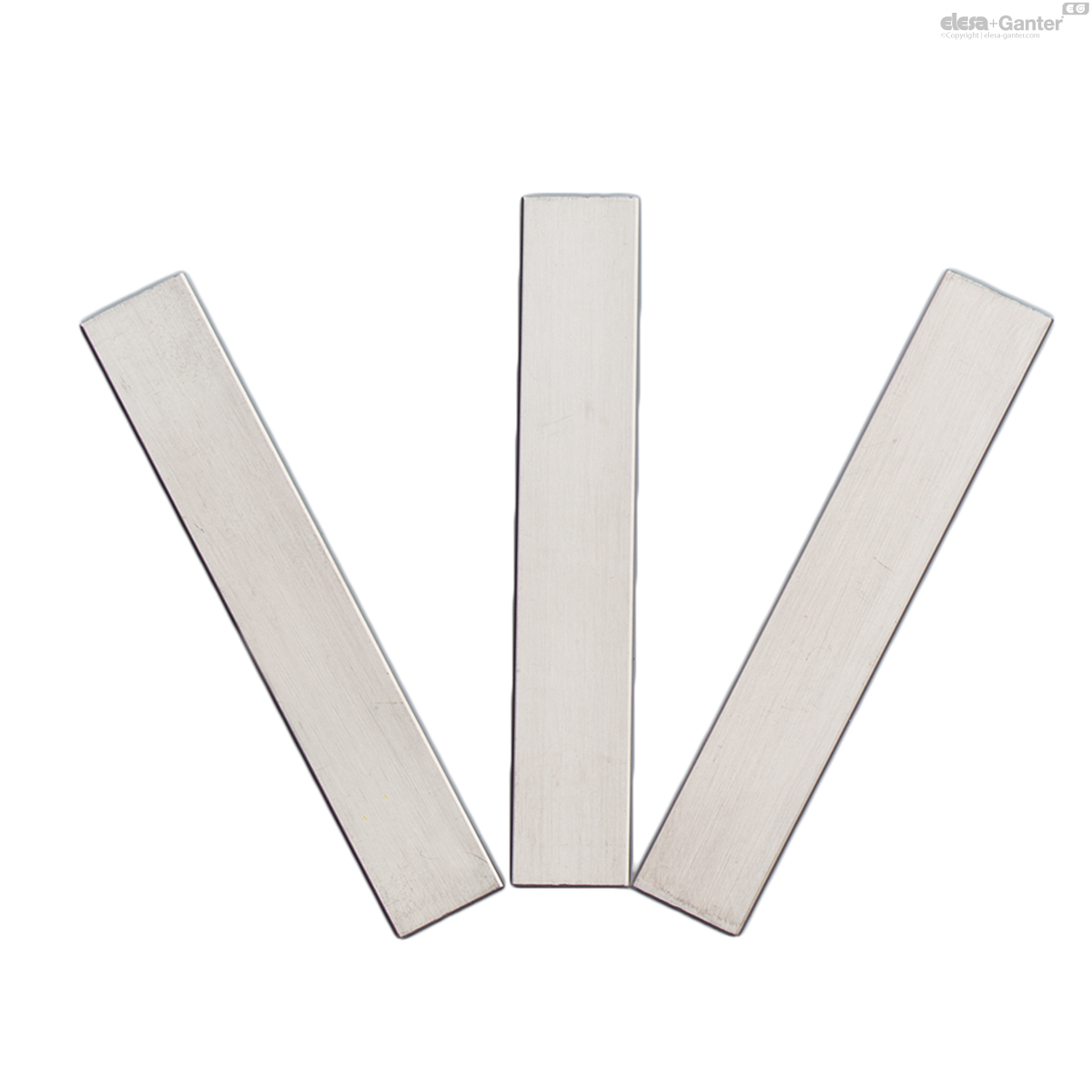

Flat springs GN 374 present an ideal and practical connection piece between scale ring and shaft resp. collar bushes.
When adjusting the shaft, the flat springs guarantee the move of the scale ring without affecting the possibility of adjustment of the scale ring when the shaft does not turn.
Technical information
- ISO-Fundamental TolerancesÂ

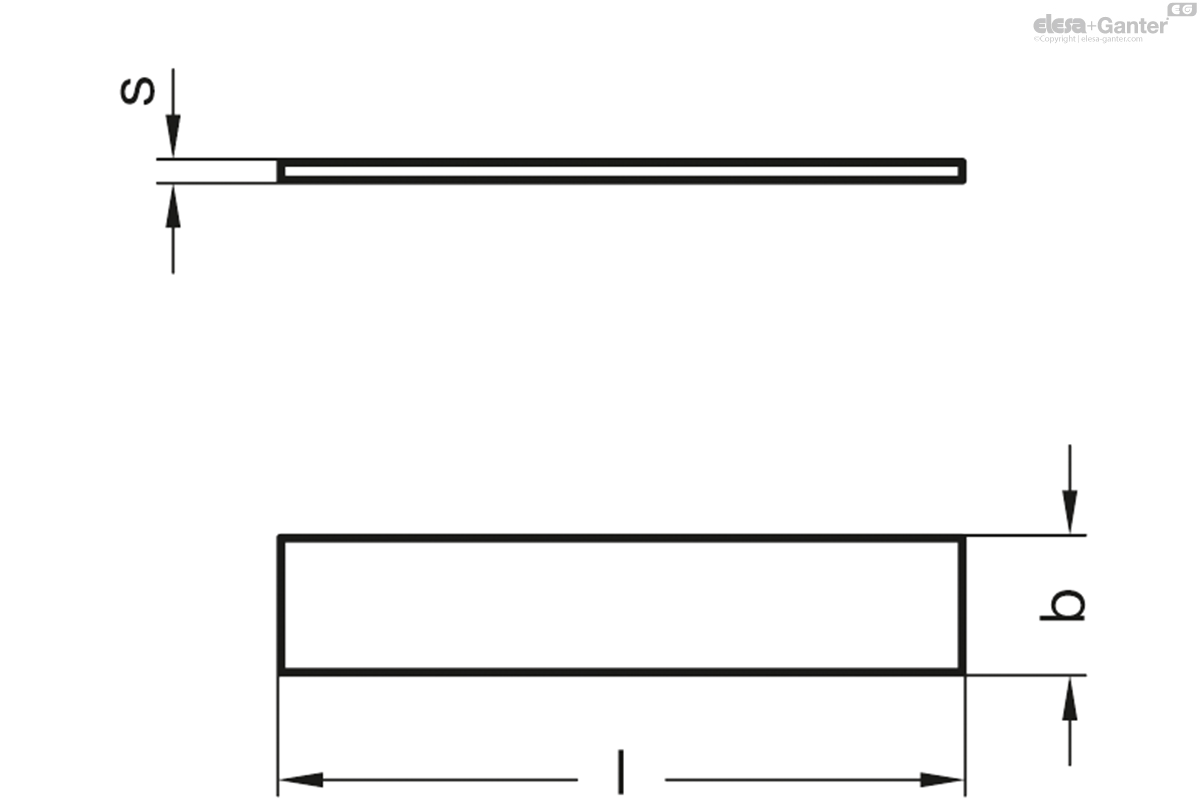

GN 374
| s | b | l |  |
||
|---|---|---|---|---|---|
| Code | Actions | ||||
| GN 374-0,3-10 | 0.3 | 10 | 21 | 1 |
|
| GN 374-0,4-10 | 0.4 | 10 | 29 | 1 |
|
| GN 374-0,6-10 | 0.6 | 10 | 45 | 2 |
|
| GN 374-0,8-10 | 0.8 | 10 | 60 | 4 |
|
