GN 369.5

Stainless Steel-Cranks

Enquire Now

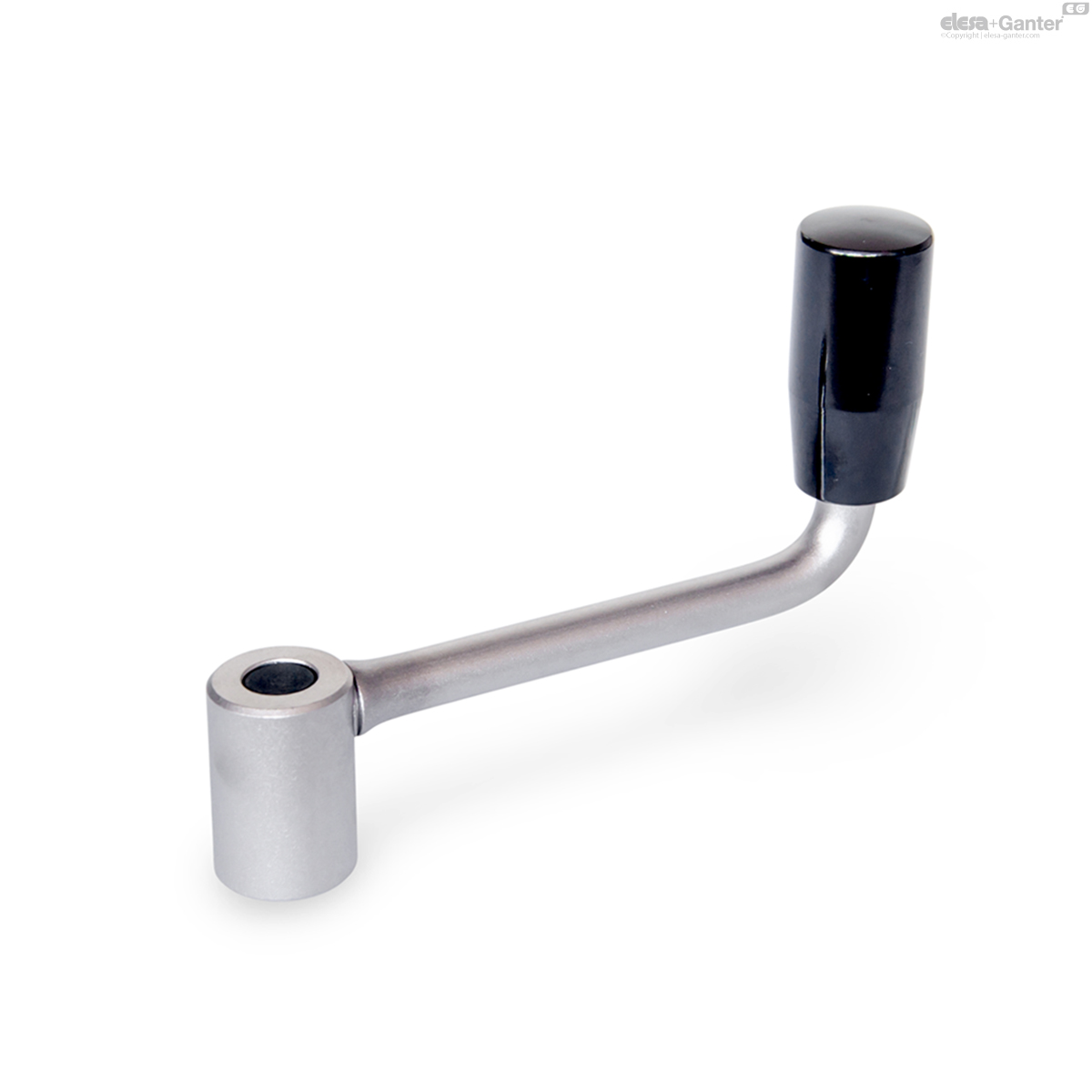

GN 369.5-A

Stainless Steel-Cranks

without slot

GN 369.5-N

Stainless Steel-Cranks

with slot

Description

Specification

Types

Type A: without slot

Type N: with slot

Stainless Steel AISI 304

shot-blasted

Crank butt-welded

Cover cap

Plastic, black

Revolving handle

Plastic, Duroplast, black, shiny finish

temperature resistant up to 110 °C

Information

Stainless Steel-Cranks GN 369.5 feature a compact design and are used for light drive and positioning tasks. Thanks to the material used, the cranks are also suitable for more aggressive environments.

The slot of type N easily transfers the rotary movement to the shaft by means of a transverse pin mounted in the shaft. The crank can be connected removably or permanently fastened axially with a socket head cap screw DIN 912. Type A can be ordered with transverse holes for GN 110.

Thanks to a simple manufacturing process, it is relatively easy and inexpensive to produce these cranks as special designs.

Technical information

Cross holes GN 110

ISO-Fundamental Tolerances

Stainless Steel characteristics

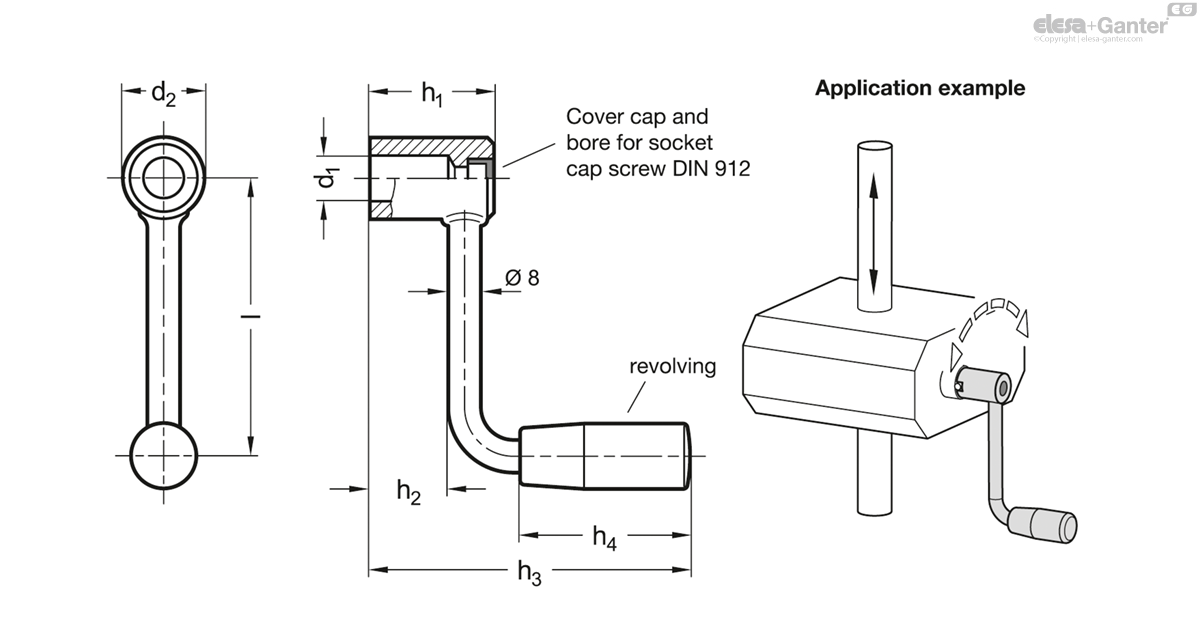

GN 369.5-A

	l ≈	d₁ H9	d₂	h₁	h₂ ≈	h₃ ≈	h₄ ≈	t +0.5	Ø Handle	For screws DIN 912
Code												Actions
GN 369.5-63-B10-A	63	B 10	18	28	18	74	40	18	18	M 5	90
GN 369.5-80-B10-A	80	B 10	18	28	18	74	40	18	18	M 5	98
GN 369.5-100-B12-A	100	B 12	20	30	20	88	50	20	21	M 6	119
GN 369.5-125-B12-A	125	B 12	20	30	20	88	50	20	21	M 6	140
