Home Levelling Elements Levelling feet GN 33

GN 33

Leveling Feet

Stainless Steel, with Rubber Pad, with Mounting Flange

Enquire Now

GN 33-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN 33-T/TK

Leveling Feet

With / without nut, wrench flat at the bottom

GN 33-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

GN 33-V/VK

Leveling Feet

With / without nut, external hex at the top and wrench flat at the bottom

GN 33-W

Leveling Feet

With adjustable sleeve, covered thread, wrench flat at the bottom

GN 33-X

Leveling Feet

External hexagon with internal thread

Description

Specification

Type (Base plate)

Type B1: Matte shot-blasted, rubber inlaid, black

Version (Screw)

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

Version T: Without nut, wrench flat at the bottom

Version TK: With nut, wrench flat at the bottom

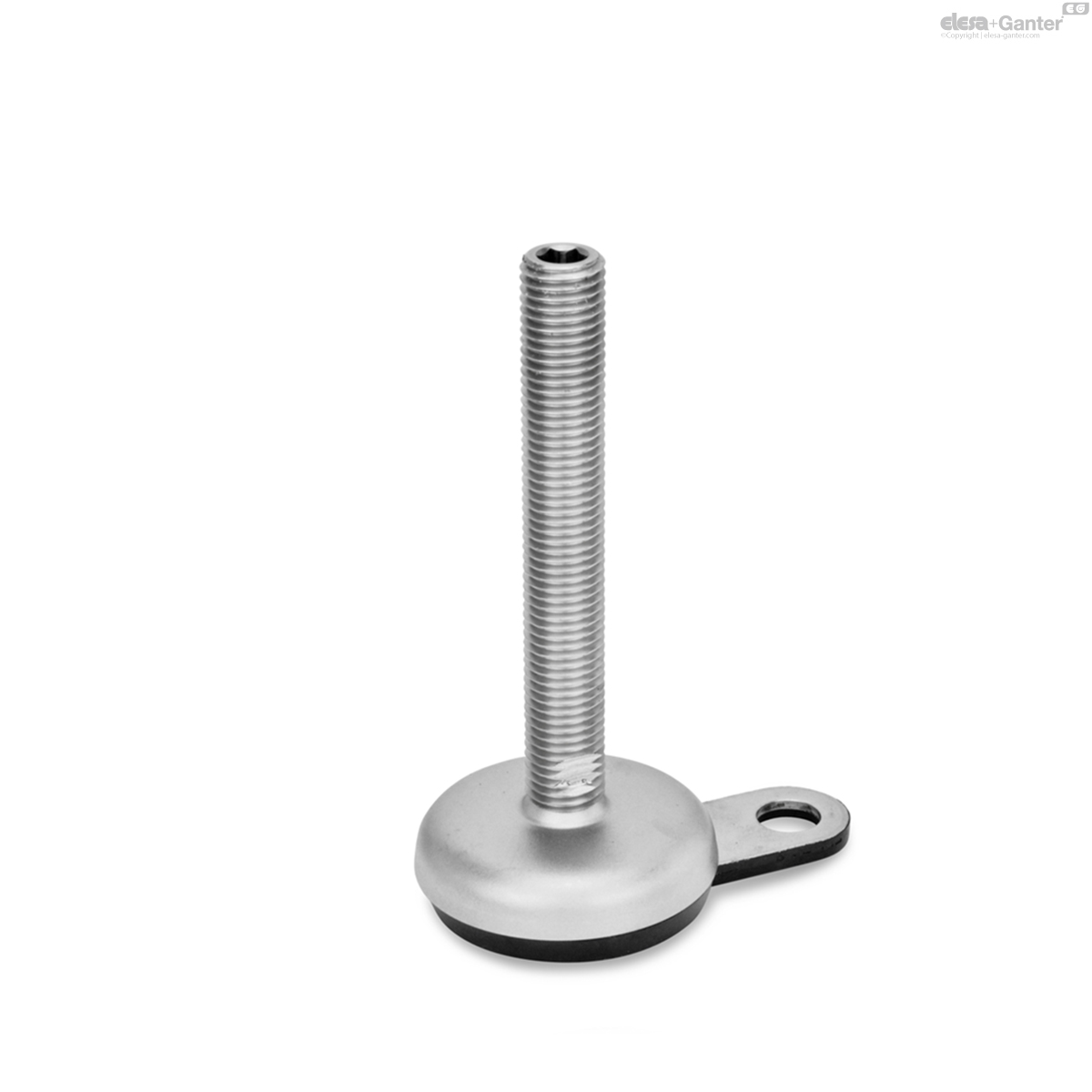

Version U: Without nut, hex socket at the top and wrench flat at the bottom

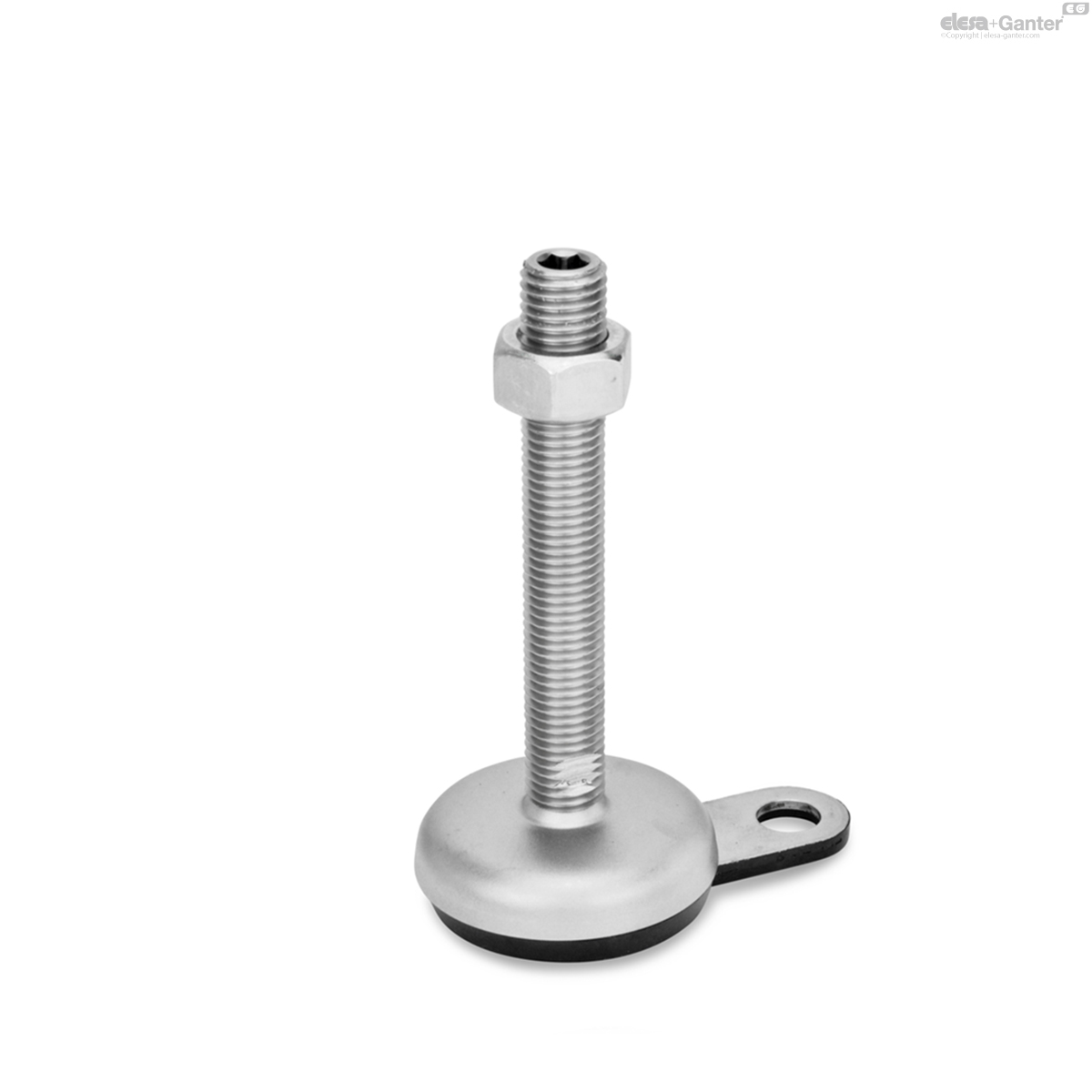

Version UK: With nut, hex socket at the top and wrench flat at the bottom

Version V: Without nut, external hex at the top and wrench flat at the bottom

Version VK: With nut, external hex at the top and wrench flat at the bottom

Version W: With adjustable sleeve, covered thread and wrench flat at the bottom

Version X: External hex with internal thread

Base plate / flange

Stainless steel AISI 304

Threaded stem

Stainless steel AISI 303

Hex nut ISO 4032

Stainless steel AISI 304

Rubber pad, inlaid

Black, NBR (Perbunan®)

80±5 Shore A

Information

Leveling feet GN 33 will be delivered mounted and are not removable.

Technical information

Plastic Characteristics

Stainless Steel Characteristics

Load rating of leveling feet

Information

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate. For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

d1	d2	Static load in kN	-	-	-	-
-	-	Versions of threaded stem	-	-	-	-
-	-	S / SK	T / TK and U / UK	V / VK	W	X
-	-	Rubber black	Rubber black	Rubber black	Rubber black	Rubber black
50	M 8	8	-	-	-	8
50	M 10	14	-	-	-	13
50	M 12	20	-	-	-	20
50	M 16	-	28	-	-	28
60	M 8	8	-	-	-	8
60	M 10	14	-	-	-	13
60	M 12	20	-	-	-	20
60	M 16	-	28	27	27	28
80	M 8	8	-	-	-	8
80	M 10	14	-	-	-	13
80	M 12	19	-	-	-	15
80	M 16	-	19	24	24	19
80	M 20	-	19	24	24	19
80	M 24	-	19	24	24	-
100	M 8	8	-	-	-	8
100	M 10	14	-	-	-	13
100	M 12	17	-	-	-	17
100	M 16	-	17	21	21	17
100	M 20	-	17	21	21	17
100	M 24	-	17	21	21	-
120	M 20	-	25	-	-	25
120	M 24	-	25	-	-	-
120	M 30	-	25	-	-	-

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	T / TK: Wrench flat at the bottom at d₂ M 16, M 20, M 24, M 30	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24, M 30

V / VK: External hex at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	W: Covered thread and wrench flat at the bottom at d₂ M 16, M 20, M 24	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

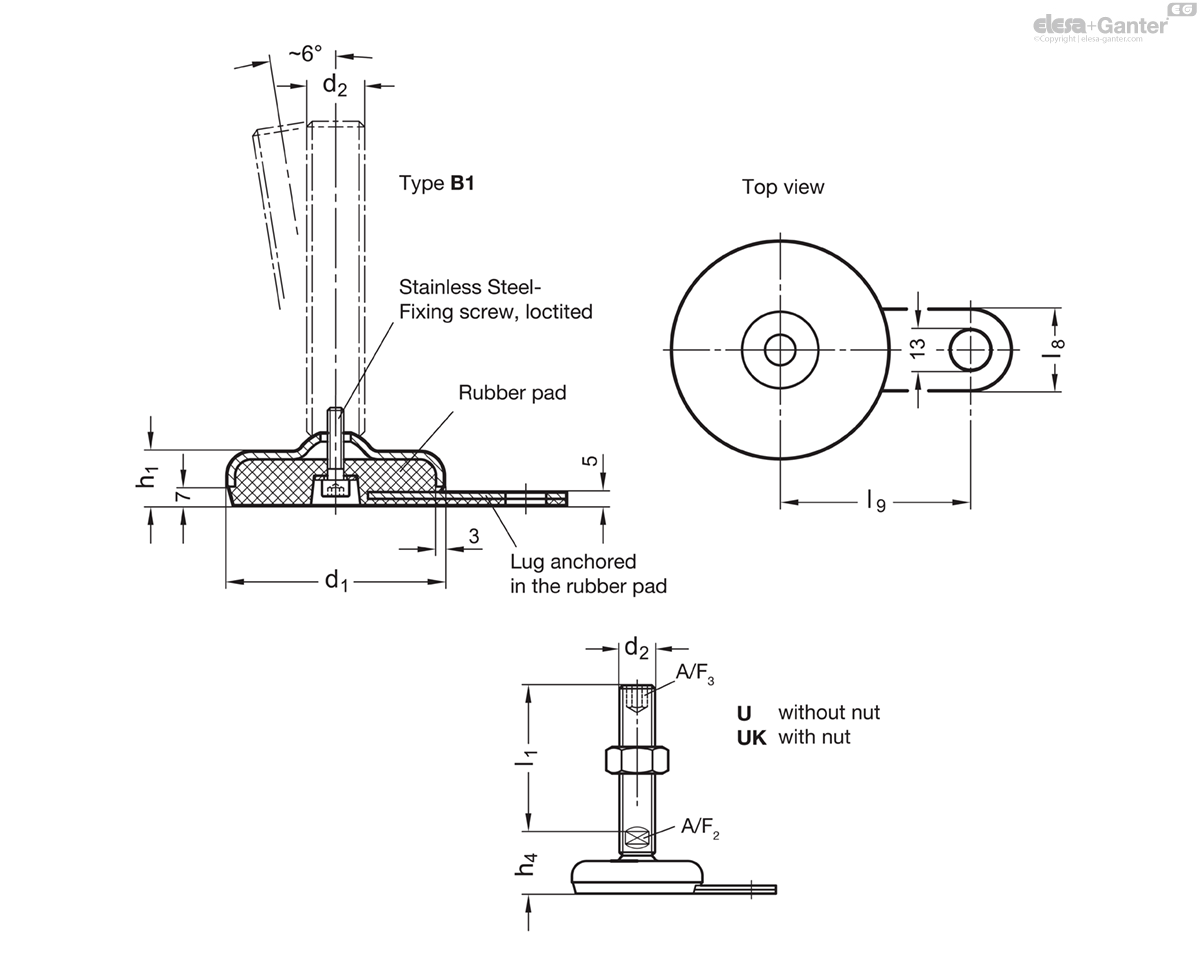

GN 33-U/UK

	Color	d₁	d₂	l₁	h₁	h₄	l₈	l₉	A/F ₂	A/F ₃
Code												Actions
GN 33-50-M16-75-B1-U	Type U	50	M 16	75	18	32	25	45	12	8	213
GN 33-50-M16-75-B1-UK	Type UK	50	M 16	75	18	32	25	45	12	8	240
GN 33-50-M16-100-B1-U	Type U	50	M 16	100	18	32	25	45	12	8	240
GN 33-50-M16-100-B1-UK	Type UK	50	M 16	100	18	32	25	45	12	8	270
GN 33-50-M16-125-B1-U	Type U	50	M 16	125	18	32	25	45	12	8	277
GN 33-50-M16-125-B1-UK	Type UK	50	M 16	125	18	32	25	45	12	8	300
GN 33-50-M16-150-B1-U	Type U	50	M 16	150	18	32	25	45	12	8	320
GN 33-50-M16-150-B1-UK	Type UK	50	M 16	150	18	32	25	45	12	8	340
GN 33-50-M16-200-B1-U	Type U	50	M 16	200	18	32	25	45	12	8	446
GN 33-50-M16-200-B1-UK	Type UK	50	M 16	200	18	32	25	45	12	8	400
GN 33-50-M16-250-B1-U	Type U	50	M 16	250	18	32	25	45	12	8	456
GN 33-50-M16-250-B1-UK	Type UK	50	M 16	250	18	32	25	45	12	8	484
GN 33-60-M16-75-B1-U	Type U	60	M 16	75	19	33	25	50	12	8	260
GN 33-60-M16-75-B1-UK	Type UK	60	M 16	75	19	33	25	50	12	8	289
GN 33-60-M16-100-B1-U	Type U	60	M 16	100	19	33	25	50	12	8	300
GN 33-60-M16-100-B1-UK	Type UK	60	M 16	100	19	33	25	50	12	8	320
GN 33-60-M16-125-B1-U	Type U	60	M 16	125	19	33	25	50	12	8	320
GN 33-60-M16-125-B1-UK	Type UK	60	M 16	125	19	33	25	50	12	8	380
GN 33-60-M16-150-B1-U	Type U	60	M 16	150	19	33	25	50	12	8	350
GN 33-60-M16-150-B1-UK	Type UK	60	M 16	150	19	33	25	50	12	8	380
GN 33-60-M16-200-B1-U	Type U	60	M 16	200	19	33	25	50	12	8	420
GN 33-60-M16-200-B1-UK	Type UK	60	M 16	200	19	33	25	50	12	8	400
GN 33-60-M16-250-B1-U	Type U	60	M 16	250	19	33	25	50	12	8	750
GN 33-60-M16-250-B1-UK	Type UK	60	M 16	250	19	33	25	50	12	8	730
GN 33-80-M16-75-B1-U	Type U	80	M 16	75	20	34	30	70	12	8	360
GN 33-80-M16-75-B1-UK	Type UK	80	M 16	75	20	34	30	70	12	8	400
GN 33-80-M16-100-B1-U	Type U	80	M 16	100	20	34	30	70	12	8	420
GN 33-80-M16-100-B1-UK	Type UK	80	M 16	100	20	34	30	70	12	8	420
GN 33-80-M16-125-B1-U	Type U	80	M 16	125	20	34	30	70	12	8	447
GN 33-80-M16-125-B1-UK	Type UK	80	M 16	125	20	34	30	70	12	8	510
GN 33-80-M16-150-B1-U	Type U	80	M 16	150	20	34	30	70	12	8	487
GN 33-80-M16-150-B1-UK	Type UK	80	M 16	150	20	34	30	70	12	8	520
GN 33-80-M16-200-B1-U	Type U	80	M 16	200	20	34	30	70	12	8	540
GN 33-80-M16-200-B1-UK	Type UK	80	M 16	200	20	34	30	70	12	8	550
GN 33-80-M16-250-B1-U	Type U	80	M 16	250	20	34	30	70	12	8	870
GN 33-80-M16-250-B1-UK	Type UK	80	M 16	250	20	34	30	70	12	8	880
GN 33-80-M20-75-B1-U	Type U	80	M 20	75	20	35	30	70	15	10	440
GN 33-80-M20-75-B1-UK	Type UK	80	M 20	75	20	35	30	70	15	10	500
GN 33-80-M20-100-B1-U	Type U	80	M 20	100	20	35	30	70	15	10	500
GN 33-80-M20-100-B1-UK	Type UK	80	M 20	100	20	35	30	70	15	10	520
GN 33-80-M20-125-B1-U	Type U	80	M 20	125	20	35	30	70	15	10	550
GN 33-80-M20-125-B1-UK	Type UK	80	M 20	125	20	35	30	70	15	10	600
GN 33-80-M20-150-B1-U	Type U	80	M 20	150	20	35	30	70	15	10	600
GN 33-80-M20-150-B1-UK	Type UK	80	M 20	150	20	35	30	70	15	10	620
GN 33-80-M20-200-B1-U	Type U	80	M 20	200	20	35	30	70	15	10	670
GN 33-80-M20-200-B1-UK	Type UK	80	M 20	200	20	35	30	70	15	10	700
GN 33-80-M20-250-B1-U	Type U	80	M 20	250	20	35	30	70	15	10	1193
GN 33-80-M20-250-B1-UK	Type UK	80	M 20	250	20	35	30	70	15	10	1223
GN 33-80-M24-100-B1-U	Type U	80	M 24	100	20	38	30	70	19	12	768
GN 33-80-M24-100-B1-UK	Type UK	80	M 24	100	20	38	30	70	19	12	700
GN 33-80-M24-125-B1-U	Type U	80	M 24	125	20	38	30	70	19	12	700
GN 33-80-M24-125-B1-UK	Type UK	80	M 24	125	20	38	30	70	19	12	750
GN 33-80-M24-150-B1-U	Type U	80	M 24	150	20	38	30	70	19	12	760
GN 33-80-M24-150-B1-UK	Type UK	80	M 24	150	20	38	30	70	19	12	841
GN 33-80-M24-200-B1-U	Type U	80	M 24	200	20	38	30	70	19	12	932
GN 33-80-M24-200-B1-UK	Type UK	80	M 24	200	20	38	30	70	19	12	500
GN 33-80-M24-300-B1-U	Type U	80	M 24	300	20	38	30	70	19	12	1741
GN 33-80-M24-300-B1-UK	Type UK	80	M 24	300	20	38	30	70	19	12	1309
GN 33-100-M16-75-B1-U	Type U	100	M 16	75	21	35	30	80	12	8	515
GN 33-100-M16-75-B1-UK	Type UK	100	M 16	75	21	35	30	80	12	8	540
GN 33-100-M16-100-B1-U	Type U	100	M 16	100	21	35	30	80	12	8	550
GN 33-100-M16-100-B1-UK	Type UK	100	M 16	100	21	35	30	80	12	8	570
GN 33-100-M16-125-B1-U	Type U	100	M 16	125	21	35	30	80	12	8	577
GN 33-100-M16-125-B1-UK	Type UK	100	M 16	125	21	35	30	80	12	8	620
GN 33-100-M16-150-B1-U	Type U	100	M 16	150	21	35	30	80	12	8	608
GN 33-100-M16-150-B1-UK	Type UK	100	M 16	150	21	35	30	80	12	8	640
GN 33-100-M16-200-B1-U	Type U	100	M 16	200	21	35	30	80	12	8	736
GN 33-100-M16-200-B1-UK	Type UK	100	M 16	200	21	35	30	80	12	8	700
GN 33-100-M16-250-B1-U	Type U	100	M 16	250	21	35	30	80	12	8	1066
GN 33-100-M16-250-B1-UK	Type UK	100	M 16	250	21	35	30	80	12	8	1030
GN 33-100-M20-75-B1-U	Type U	100	M 20	75	21	36	30	80	15	10	453
GN 33-100-M20-75-B1-UK	Type UK	100	M 20	75	21	36	30	80	15	10	640
GN 33-100-M20-100-B1-U	Type U	100	M 20	100	21	36	30	80	15	10	620
GN 33-100-M20-100-B1-UK	Type UK	100	M 20	100	21	36	30	80	15	10	685
GN 33-100-M20-125-B1-U	Type U	100	M 20	125	21	36	30	80	15	10	680
GN 33-100-M20-125-B1-UK	Type UK	100	M 20	125	21	36	30	80	15	10	700
GN 33-100-M20-150-B1-U	Type U	100	M 20	150	21	36	30	80	15	10	685
GN 33-100-M20-150-B1-UK	Type UK	100	M 20	150	21	36	30	80	15	10	750
GN 33-100-M20-200-B1-U	Type U	100	M 20	200	21	36	30	80	15	10	850
GN 33-100-M20-200-B1-UK	Type UK	100	M 20	200	21	36	30	80	15	10	900
GN 33-100-M20-250-B1-U	Type U	100	M 20	250	21	36	30	80	15	10	1373
GN 33-100-M20-250-B1-UK	Type UK	100	M 20	250	21	36	30	80	15	10	1423
GN 33-100-M24-100-B1-U	Type U	100	M 24	100	21	39	30	80	19	12	740
GN 33-100-M24-100-B1-UK	Type UK	100	M 24	100	21	39	30	80	19	12	820
GN 33-100-M24-125-B1-U	Type U	100	M 24	125	21	39	30	80	19	12	923
GN 33-100-M24-125-B1-UK	Type UK	100	M 24	125	21	39	30	80	19	12	900
GN 33-100-M24-150-B1-U	Type U	100	M 24	150	21	39	30	80	19	12	885
GN 33-100-M24-150-B1-UK	Type UK	100	M 24	150	21	39	30	80	19	12	980
GN 33-100-M24-200-B1-U	Type U	100	M 24	200	21	39	30	80	19	12	950
GN 33-100-M24-200-B1-UK	Type UK	100	M 24	200	21	39	30	80	19	12	1140
GN 33-100-M24-300-B1-U	Type U	100	M 24	300	21	39	30	80	19	12	1759
GN 33-100-M24-300-B1-UK	Type UK	100	M 24	300	21	39	30	80	19	12	1949
