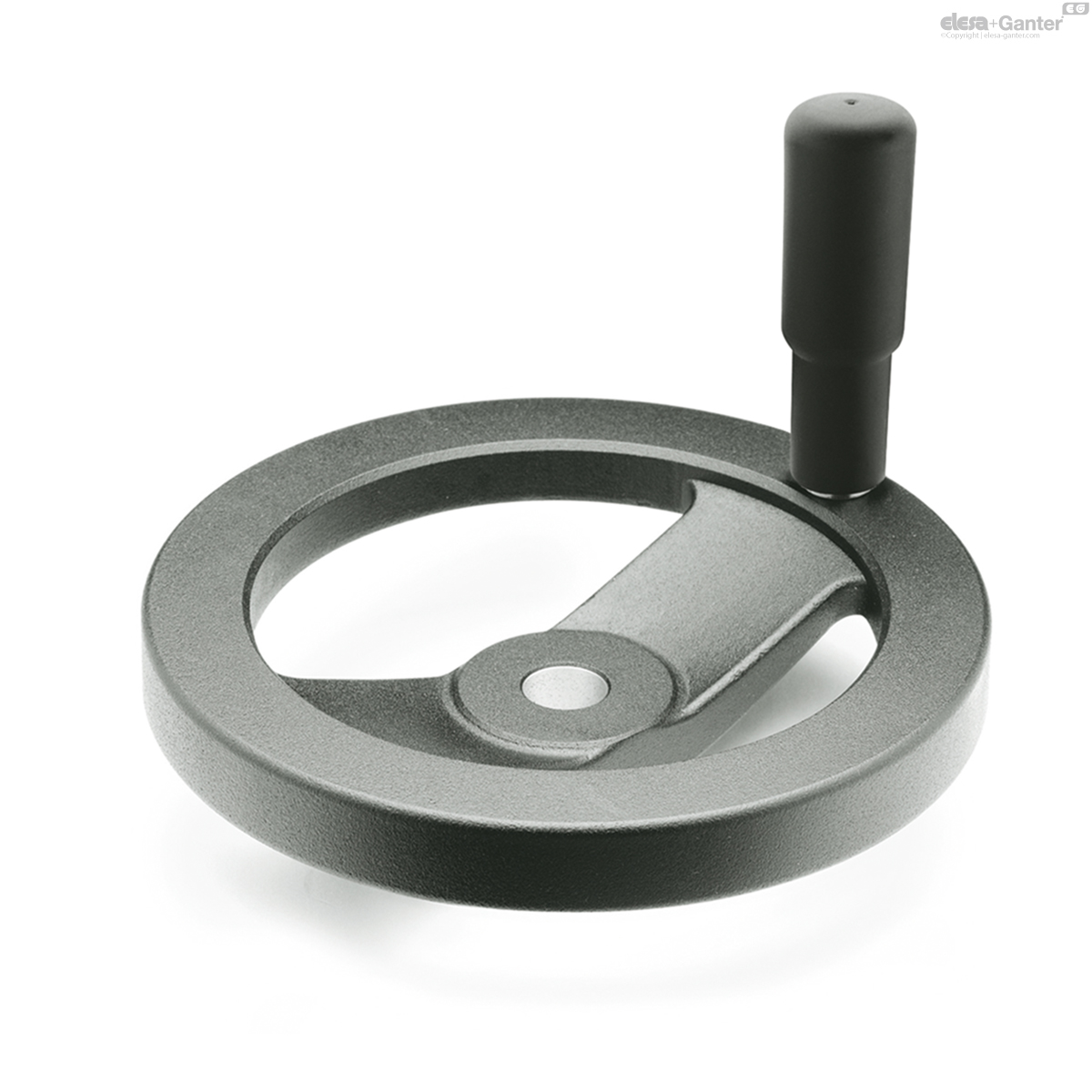

GN 324

Spoked handwheels

Aluminium, black, plastic coated

Enquire Now

Description

Specification

Aluminium

Rim concentric and square to bore < 0.4

Body plastic coated

black, textured finish

Cylindrical Revolving handles GN 798

Plastic, Technopolymer

black, matt

Accessory

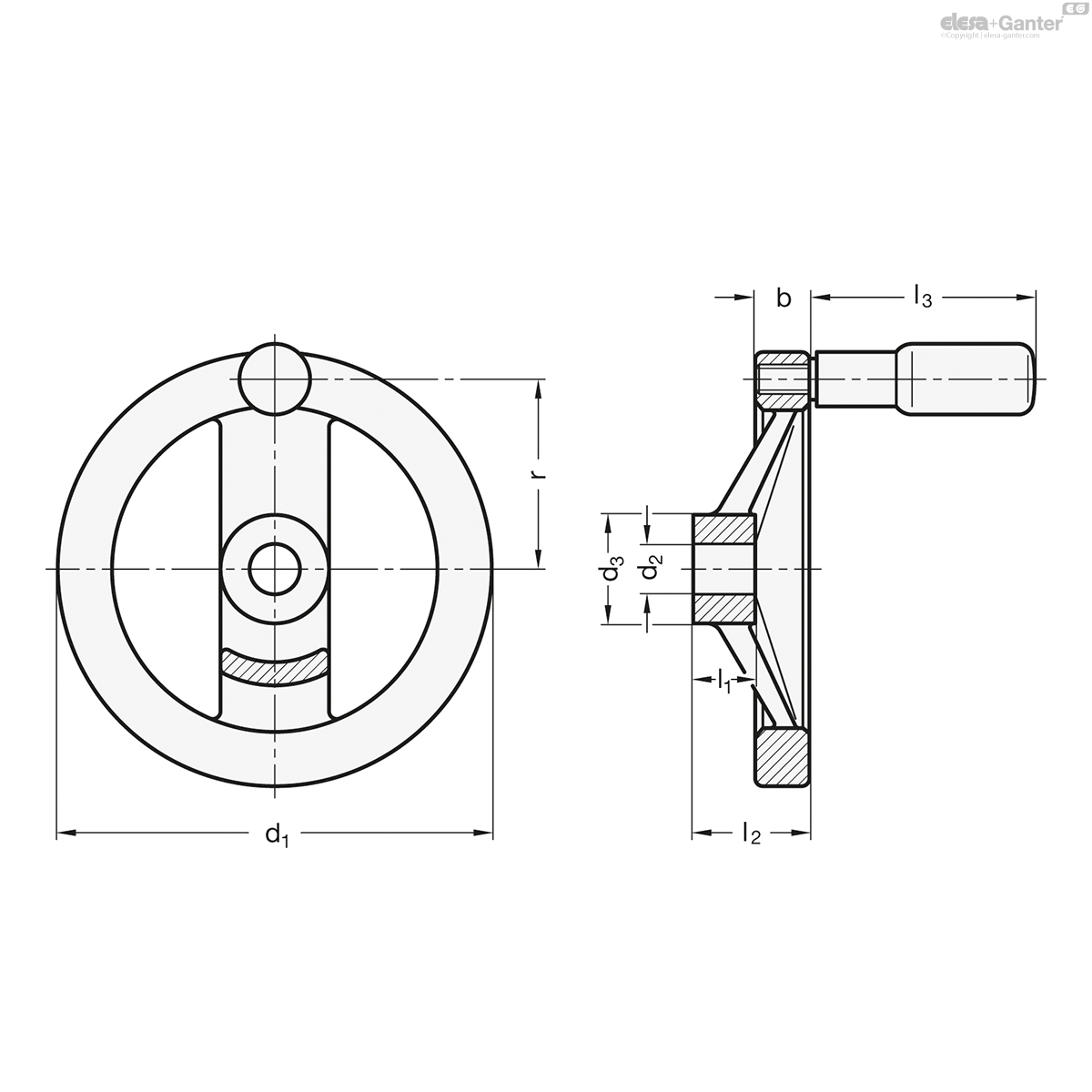

Technical information

	d₁	d₂ H7	d₃	b	l₁	l₂	l₃	r	Ø Handle
Code											Actions
GN 324-125-B12-R	125	12	31	15	18	33	61.5	54	22	390
GN 324-125-B14-R	125	14	31	15	18	33	61.5	54	22	395
GN 324-125-K12-R	125	12	31	15	18	33	61.5	54	22	380
GN 324-125-K14-R	125	14	31	15	18	33	61.5	54	22	395
GN 324-140-B14-R	140	14	36	16.5	19	36	76.5	61	24	510
GN 324-140-B16-R	140	16	36	16.5	19	36	76.5	61	24	490
GN 324-140-K14-R	140	14	36	16.5	19	36	76.5	61	24	450
GN 324-140-K16-R	140	16	36	16.5	19	36	76.5	61	24	490
GN 324-160-B14-R	160	14	36	18	20	39	76.5	71	24	635
GN 324-160-B16-R	160	16	36	18	20	39	76.5	71	24	638
GN 324-160-K14-R	160	14	36	18	20	39	76.5	71	24	615
GN 324-160-K16-R	160	16	36	18	20	39	76.5	71	24	638
GN 324-200-B18-R	200	18	42	20.5	24	45	86.5	89	25	1036
GN 324-200-B20-R	200	20	42	20.5	24	45	86.5	89	25	1019
GN 324-200-K18-R	200	18	42	20.5	24	45	86.5	89	25	1036
GN 324-200-K20-R	200	20	42	20.5	24	45	86.5	89	25	1019
GN 324-250-B22-R	250	22	48	23	28	51	86.5	113	25	1628
GN 324-250-B26-R	250	26	48	23	28	51	86.5	113	25	1622
GN 324-250-K22-R	250	22	48	23	28	51	86.5	113	25	1628
GN 324-250-K26-R	250	26	48	23	28	51	86.5	113	25	1622
