GN 322

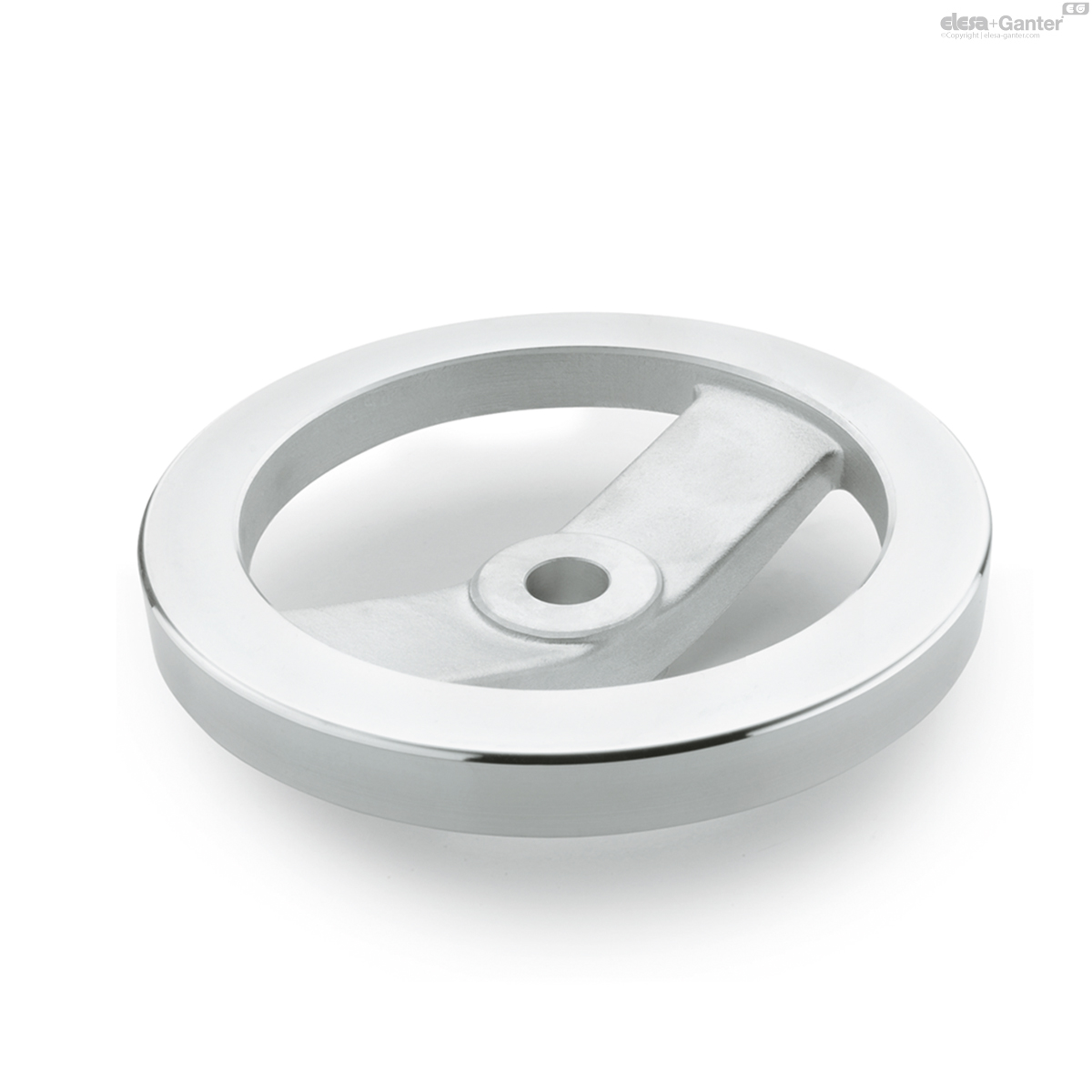

Spoked handwheels

Aluminium, blank, rim polished

Enquire Now

Description

Specification

Aluminium

Rim concentric and square to bore < 0.4

Wheel body

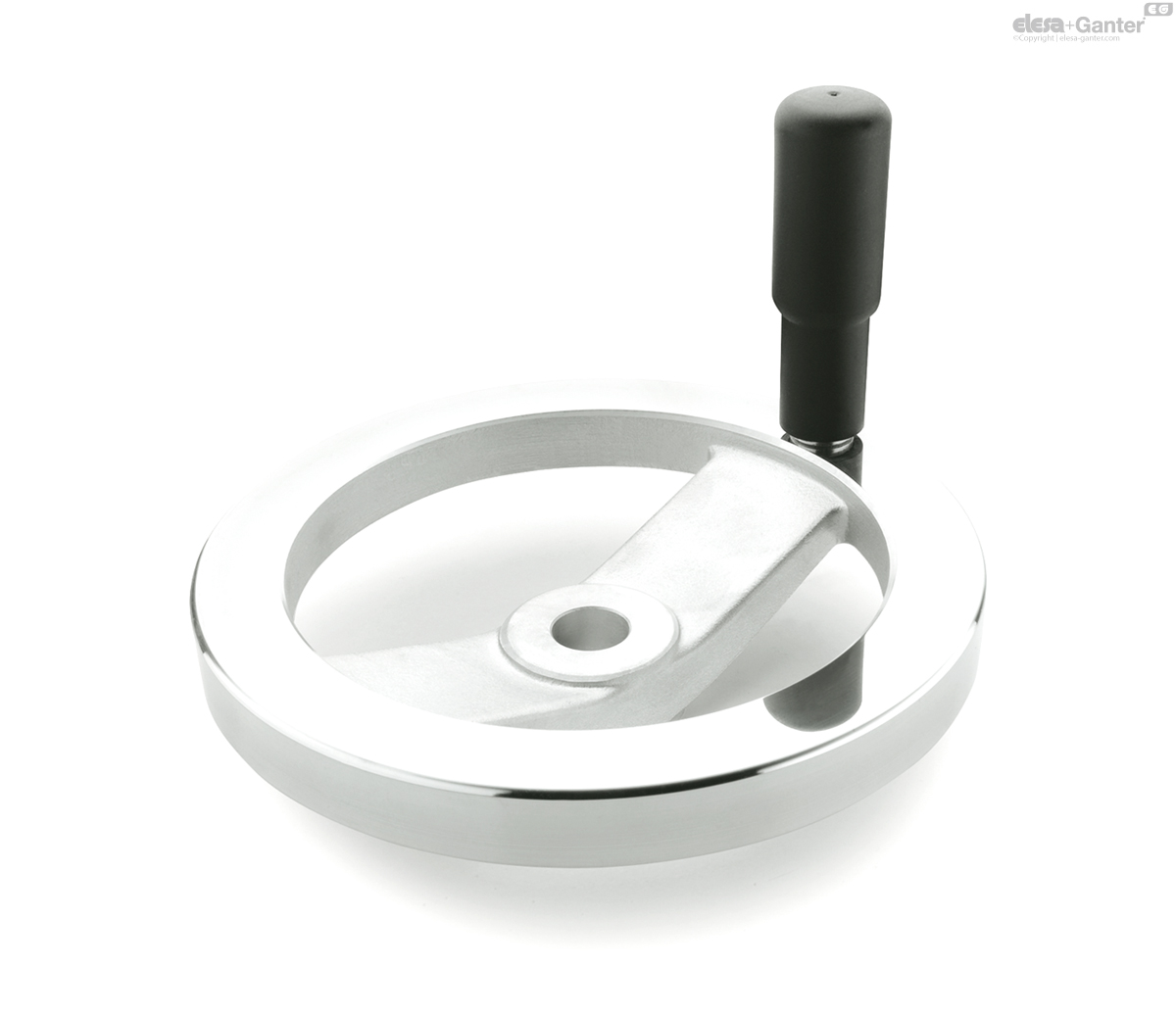

Cylindrical Revolving handles GN 798

Plastic, Technopolymer

black, matt

Accessory

Technical information

	Color	d₁	d₂ H7	d₃	b	l₁	l₂
Code									Actions
GN 322-125-B12-A	-	125	12	31	15	18	33	310
GN 322-125-B14-A	-	125	14	31	15	18	33	308
GN 322-125-K12-A	Swivelling left	125	12	31	15	18	33	311
GN 322-125-K14-A	Swivelling left	125	14	31	15	18	33	308
GN 322-140-B14-A	-	140	14	36	16.5	19	36	402
GN 322-140-B16-A	-	140	16	36	16.5	19	36	397
GN 322-140-K14-A	Swivelling left	140	14	36	16.5	19	36	411
GN 322-140-K16-A	Swivelling left	140	16	36	16.5	19	36	394
GN 322-160-B14-A	-	160	14	36	18	20	39	539
GN 322-160-B16-A	-	160	16	36	18	20	39	530
GN 322-160-K14-A	Swivelling left	160	14	36	18	20	39	539
GN 322-160-K16-A	Swivelling left	160	16	36	18	20	39	530
GN 322-200-B18-A	-	200	18	42	20.5	24	45	870
GN 322-200-B20-A	-	200	20	42	20.5	24	45	870
GN 322-200-K18-A	Swivelling left	200	18	42	20.5	24	45	892
GN 322-200-K20-A	Swivelling left	200	20	42	20.5	24	45	880
GN 322-250-B22-A	-	250	22	48	23	28	51	1490
GN 322-250-B26-A	-	250	26	48	23	28	51	1490
GN 322-250-K22-A	Swivelling left	250	22	48	23	28	51	1478
GN 322-250-K26-A	Swivelling left	250	26	48	23	28	51	1454
