GN 32

Leveling Feet

Steel Sheet Metal, with Rubber Pad, with Mounting Flange

Enquire Now

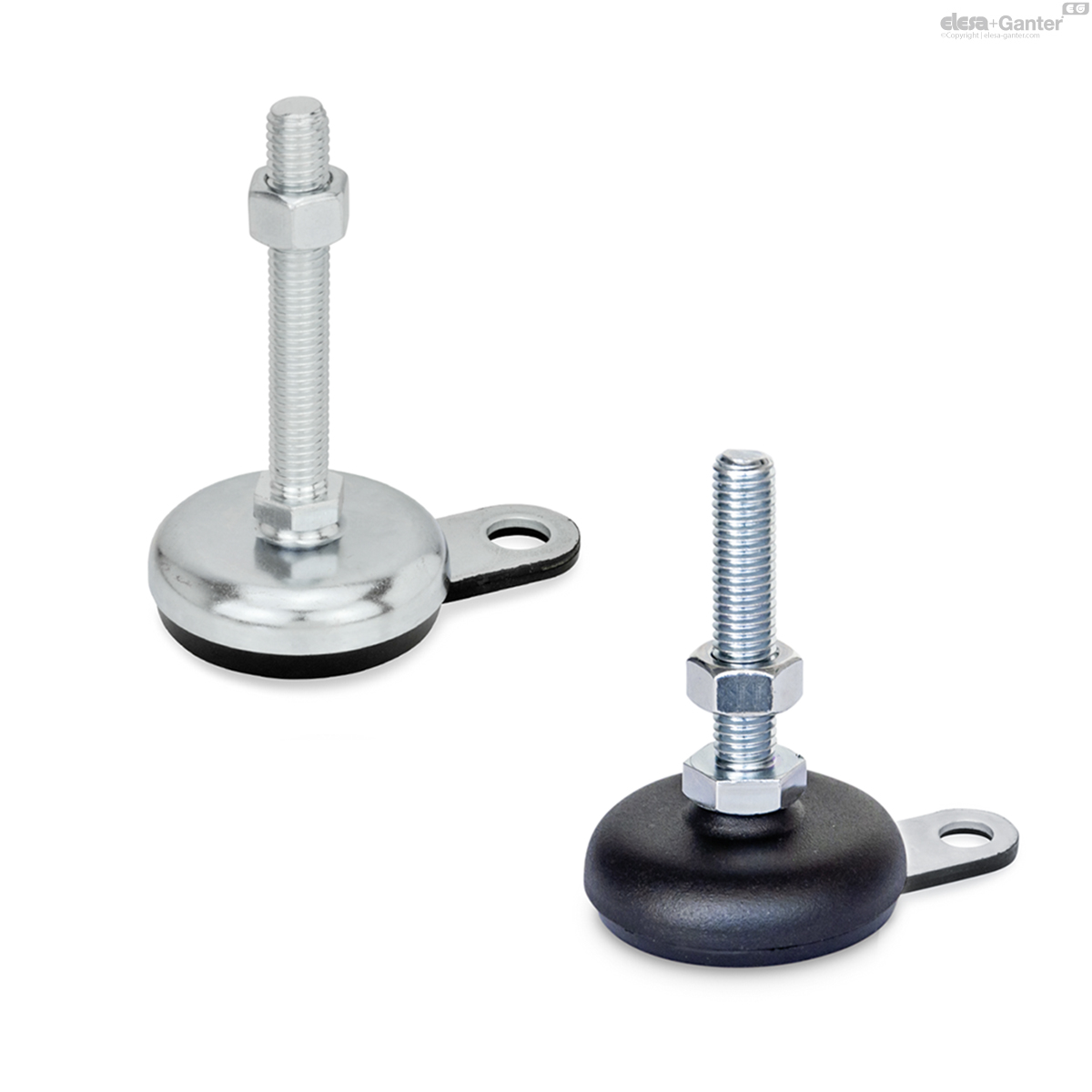

GN 32-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN 32-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

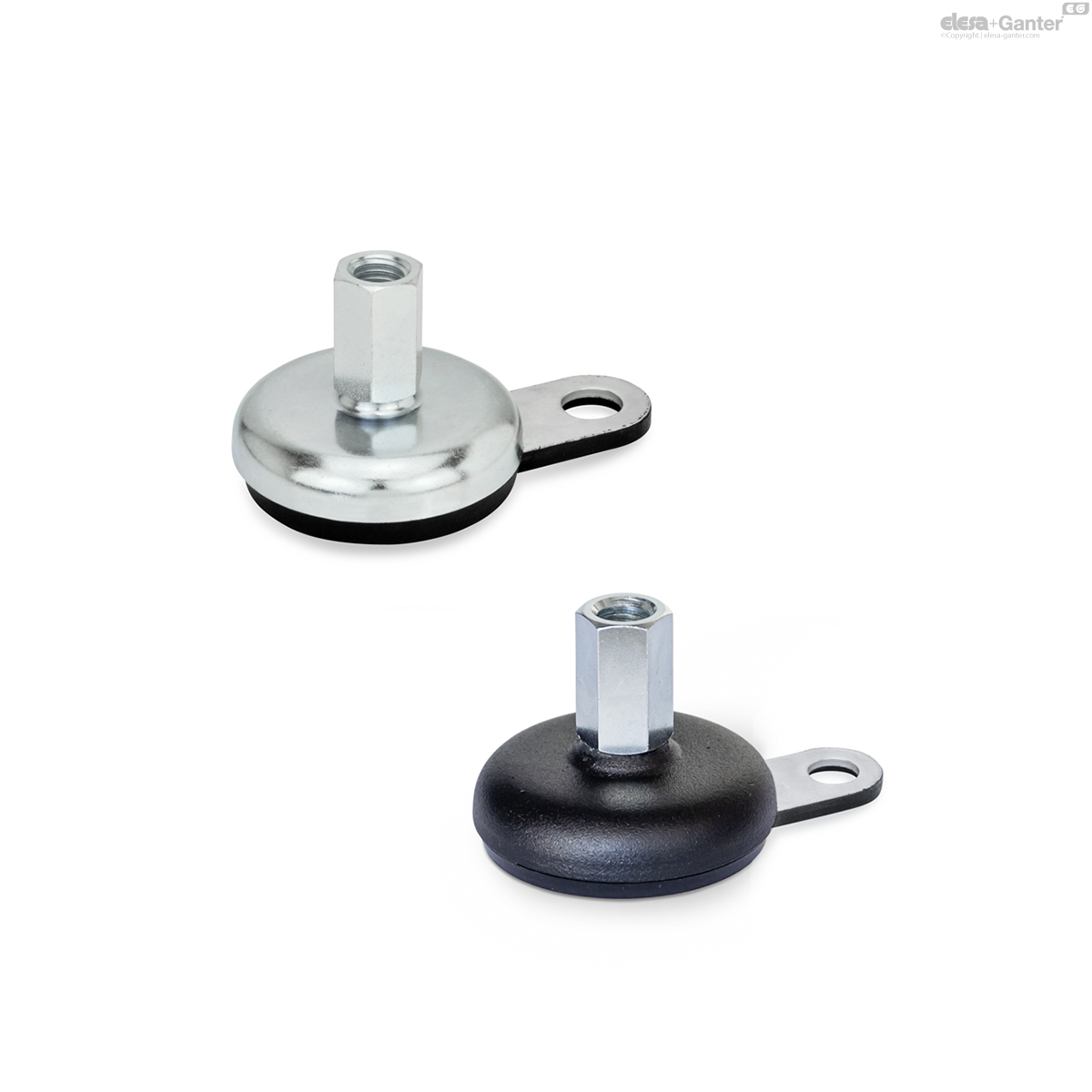

GN 32-X

Leveling Feet

External hex with internal thread

Description

Specification

Type (Base plate)

Type A1: Steel, zinc plated, rubber inlaid, black

Type A5: Steel, plastic coated black, rubber inlaid, black

Version

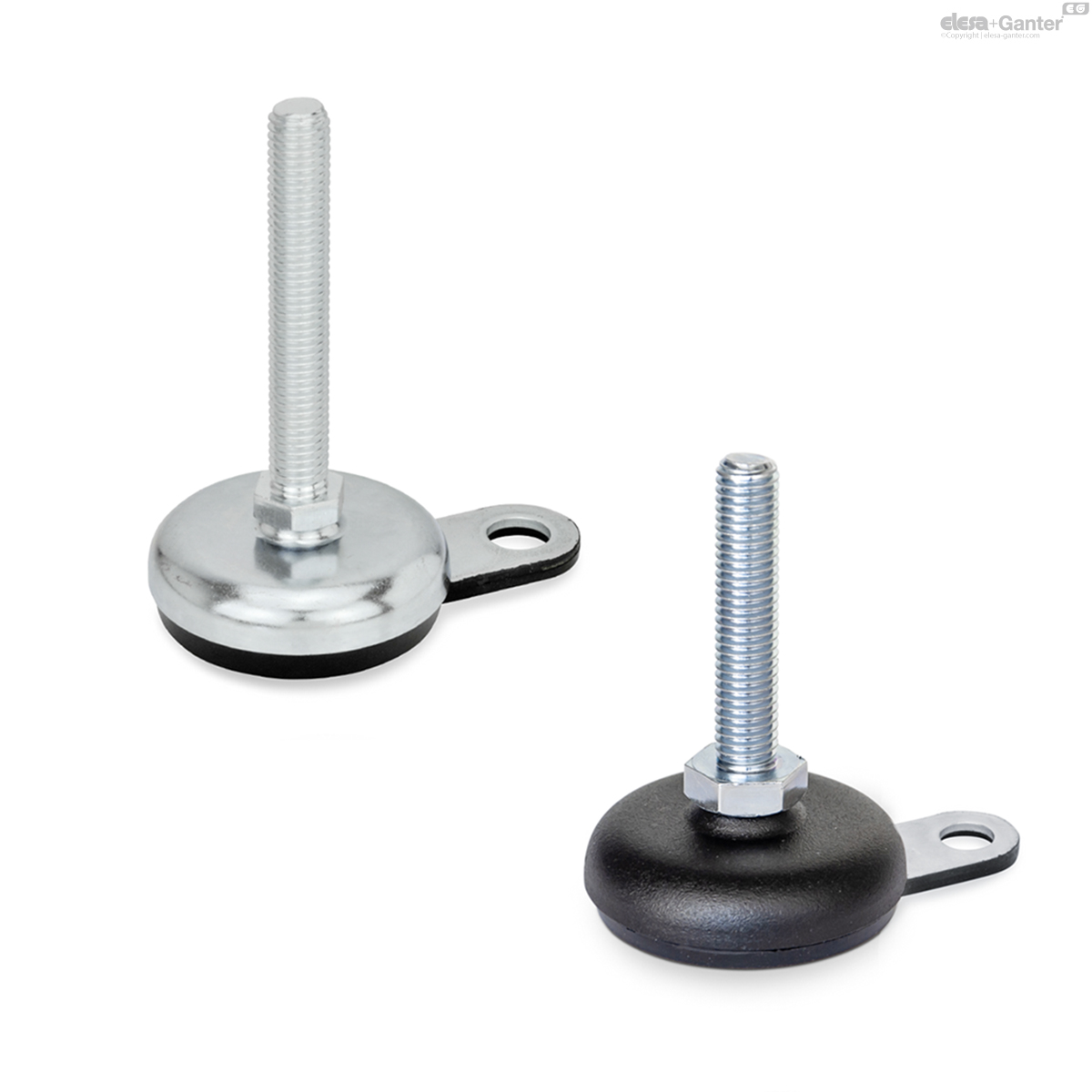

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

Version U: Without nut, hex socket at the top and wrench flat at the bottom

Version UK: With nut, hex socket at the top and wrench flat at the bottom

Version X: External hex with internal thread

Base plate, steel sheet metal

Type A1:

Steel, zinc plated, blue passivated

Type A5:

Steel, powder coated

Black, RAL 9005

Flange, sheet metal

Steel, zinc plated, blue passivated

Threaded stem

Steel, zinc plated, blue passivated

Hex nut ISO 4032

Steel, zinc plated, blue passivated

Rubber pad, inlaid

Black, NBR (Perbunan®)

80±5 Shore A

Information

Leveling feet GN 32 will be delivered mounted and are not removable.

Technical information

Elastomer Characteristics
Load Rating Information

Load rating of leveling feet

Information

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate. For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm².

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

d1	d2	Static load in kN	-	-
-	-	Versions of threaded stem	-	-
-	-	S / SK	U / UK	X
-	-	Rubber black	Rubber black	Rubber black
50	M 8	8	-	8
50	M 10	10	-	13
50	M 12	12	-	16
50	M 16	-	16	16
60	M 8	8	-	8
60	M 10	10	-	13
60	M 12	12	-	16
60	M 16	-	16	16
80	M 8	8	-	8
80	M 10	10	-	12
80	M 12	12	-	12
80	M 16	-	12	12
80	M 20	-	12	12
80	M 24	-	12	-
100	M 8	8	-	8
100	M 10	10	-	11
100	M 12	11	-	11
100	M 16	-	11	11
100	M 20	-	11	11
100	M 24	-	11	-
120	M 20	-	20	20
120	M 24	-	20	-
120	M 30	-	20	-

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24, M 30	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

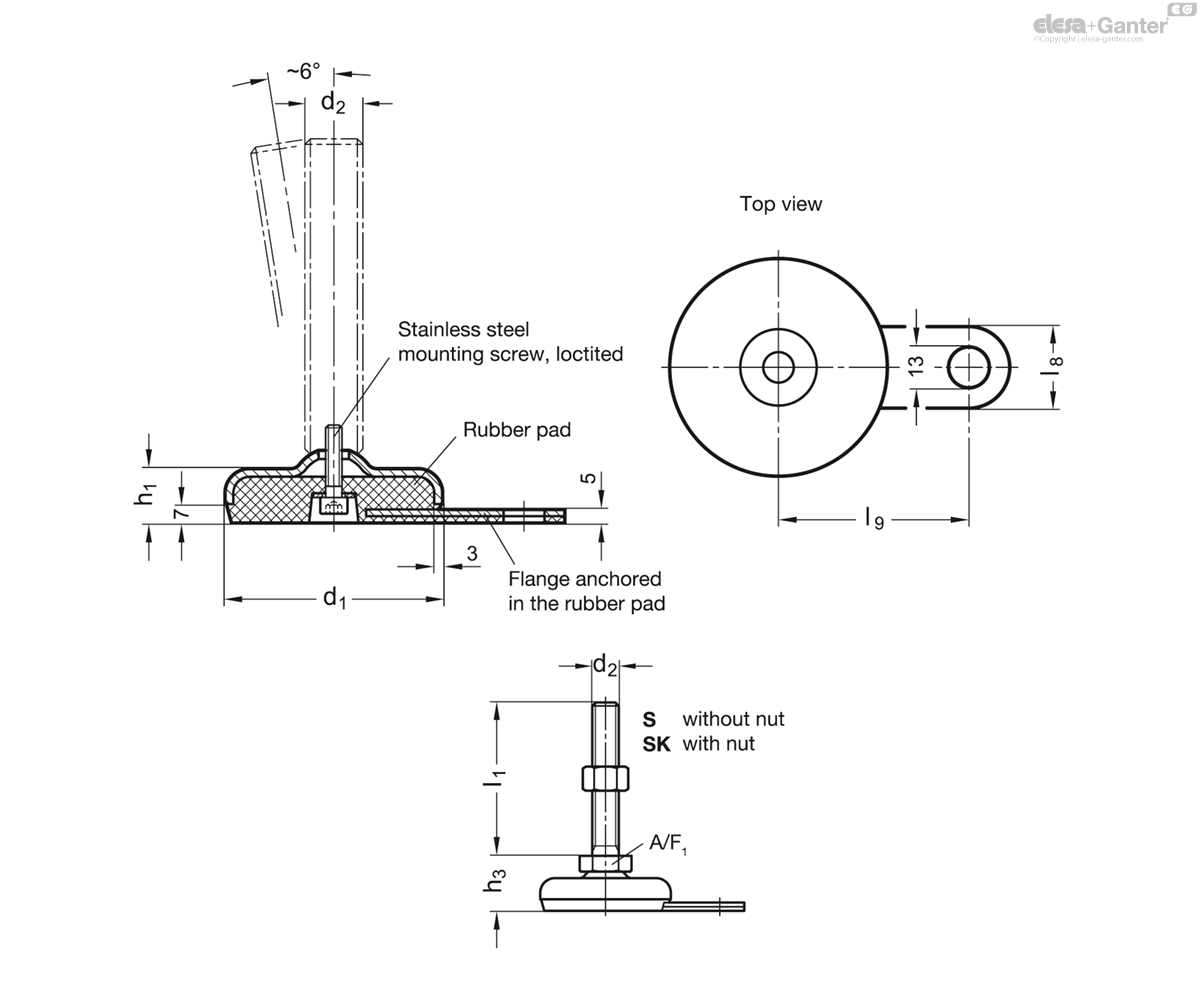

GN 32-S/SK

	Color	d₁	d₂	l₁	h₁	h₃	l₈	l₉	A/F ₁
Code											Actions
GN 32-50-M8-40-A1-S	Type S	50	M 8	40	18	26	25	45	17	130
GN 32-50-M8-40-A1-SK	SK	50	M 8	40	18	26	25	45	17	130
GN 32-50-M8-40-A5-S	Type S	50	M 8	40	18	26	25	45	17	130
GN 32-50-M8-40-A5-SK	SK	50	M 8	40	18	26	25	45	17	130
GN 32-50-M8-50-A1-S	Type S	50	M 8	50	18	26	25	45	17	130
GN 32-50-M8-50-A1-SK	SK	50	M 8	50	18	26	25	45	17	140
GN 32-50-M8-50-A5-S	Type S	50	M 8	50	18	26	25	45	17	130
GN 32-50-M8-50-A5-SK	SK	50	M 8	50	18	26	25	45	17	140
GN 32-50-M8-63-A1-S	Type S	50	M 8	63	18	26	25	45	17	140
GN 32-50-M8-63-A1-SK	SK	50	M 8	63	18	26	25	45	17	140
GN 32-50-M8-63-A5-S	Type S	50	M 8	63	18	26	25	45	17	140
GN 32-50-M8-63-A5-SK	SK	50	M 8	63	18	26	25	45	17	140
GN 32-50-M10-50-A1-S	Type S	50	M 10	50	18	26	25	45	17	130
GN 32-50-M10-50-A1-SK	SK	50	M 10	50	18	26	25	45	17	150
GN 32-50-M10-50-A5-S	Type S	50	M 10	50	18	26	25	45	17	130
GN 32-50-M10-50-A5-SK	SK	50	M 10	50	18	26	25	45	17	150
GN 32-50-M10-60-A1-S	Type S	50	M 10	60	18	26	25	45	17	149
GN 32-50-M10-60-A1-SK	SK	50	M 10	60	18	26	25	45	17	160
GN 32-50-M10-60-A5-S	Type S	50	M 10	60	18	26	25	45	17	149
GN 32-50-M10-60-A5-SK	SK	50	M 10	60	18	26	25	45	17	160
GN 32-50-M10-80-A1-S	Type S	50	M 10	80	18	26	25	45	17	150
GN 32-50-M10-80-A1-SK	SK	50	M 10	80	18	26	25	45	17	160
GN 32-50-M10-80-A5-S	Type S	50	M 10	80	18	26	25	45	17	150
GN 32-50-M10-80-A5-SK	SK	50	M 10	80	18	26	25	45	17	160
GN 32-50-M10-100-A1-S	Type S	50	M 10	100	18	26	25	45	17	170
GN 32-50-M10-100-A1-SK	SK	50	M 10	100	18	26	25	45	17	180
GN 32-50-M10-100-A5-S	Type S	50	M 10	100	18	26	25	45	17	170
GN 32-50-M10-100-A5-SK	SK	50	M 10	100	18	26	25	45	17	180
GN 32-50-M12-60-A1-S	Type S	50	M 12	60	18	26	25	45	17	160
GN 32-50-M12-60-A1-SK	SK	50	M 12	60	18	26	25	45	17	190
GN 32-50-M12-60-A5-S	Type S	50	M 12	60	18	26	25	45	17	160
GN 32-50-M12-60-A5-SK	SK	50	M 12	60	18	26	25	45	17	190
GN 32-50-M12-80-A1-S	Type S	50	M 12	80	18	26	25	45	17	170
GN 32-50-M12-80-A1-SK	SK	50	M 12	80	18	26	25	45	17	200
GN 32-50-M12-80-A5-S	Type S	50	M 12	80	18	26	25	45	17	170
GN 32-50-M12-80-A5-SK	SK	50	M 12	80	18	26	25	45	17	200
GN 32-50-M12-100-A1-S	Type S	50	M 12	100	18	26	25	45	17	195
GN 32-50-M12-100-A1-SK	SK	50	M 12	100	18	26	25	45	17	200
GN 32-50-M12-100-A5-S	Type S	50	M 12	100	18	26	25	45	17	195
GN 32-50-M12-100-A5-SK	SK	50	M 12	100	18	26	25	45	17	200
GN 32-50-M12-125-A1-S	Type S	50	M 12	125	18	26	25	45	17	200
GN 32-50-M12-125-A1-SK	SK	50	M 12	125	18	26	25	45	17	229
GN 32-50-M12-125-A5-S	Type S	50	M 12	125	18	26	25	45	17	200
GN 32-50-M12-125-A5-SK	SK	50	M 12	125	18	26	25	45	17	229
GN 32-60-M8-40-A1-S	Type S	60	M 8	40	19	27	25	50	17	180
GN 32-60-M8-40-A1-SK	SK	60	M 8	40	19	27	25	50	17	298
GN 32-60-M8-40-A5-S	Type S	60	M 8	40	19	27	25	50	17	180
GN 32-60-M8-40-A5-SK	SK	60	M 8	40	19	27	25	50	17	298
GN 32-60-M8-50-A1-S	Type S	60	M 8	50	19	27	25	50	17	170
GN 32-60-M8-50-A1-SK	SK	60	M 8	50	19	27	25	50	17	180
GN 32-60-M8-50-A5-S	Type S	60	M 8	50	19	27	25	50	17	170
GN 32-60-M8-50-A5-SK	SK	60	M 8	50	19	27	25	50	17	180
GN 32-60-M8-63-A1-S	Type S	60	M 8	63	19	27	25	50	17	180
GN 32-60-M8-63-A1-SK	SK	60	M 8	63	19	27	25	50	17	180
GN 32-60-M8-63-A5-S	Type S	60	M 8	63	19	27	25	50	17	180
GN 32-60-M8-63-A5-SK	SK	60	M 8	63	19	27	25	50	17	180
GN 32-60-M10-50-A1-S	Type S	60	M 10	50	19	27	25	50	17	200
GN 32-60-M10-50-A1-SK	SK	60	M 10	50	19	27	25	50	17	200
GN 32-60-M10-50-A5-S	Type S	60	M 10	50	19	27	25	50	17	200
GN 32-60-M10-50-A5-SK	SK	60	M 10	50	19	27	25	50	17	200
GN 32-60-M10-60-A1-S	Type S	60	M 10	60	19	27	25	50	17	200
GN 32-60-M10-60-A1-SK	SK	60	M 10	60	19	27	25	50	17	200
GN 32-60-M10-60-A5-S	Type S	60	M 10	60	19	27	25	50	17	200
GN 32-60-M10-60-A5-SK	SK	60	M 10	60	19	27	25	50	17	200
GN 32-60-M10-80-A1-S	Type S	60	M 10	80	19	27	25	50	17	250
GN 32-60-M10-80-A1-SK	SK	60	M 10	80	19	27	25	50	17	220
GN 32-60-M10-80-A5-S	Type S	60	M 10	80	19	27	25	50	17	250
GN 32-60-M10-80-A5-SK	SK	60	M 10	80	19	27	25	50	17	220
GN 32-60-M10-100-A1-S	Type S	60	M 10	100	19	27	25	50	17	291
GN 32-60-M10-100-A1-SK	SK	60	M 10	100	19	27	25	50	17	220
GN 32-60-M10-100-A5-S	Type S	60	M 10	100	19	27	25	50	17	291
GN 32-60-M10-100-A5-SK	SK	60	M 10	100	19	27	25	50	17	220
GN 32-60-M12-60-A1-S	Type S	60	M 12	60	19	27	25	50	17	200
GN 32-60-M12-60-A1-SK	SK	60	M 12	60	19	27	25	50	17	230
GN 32-60-M12-60-A5-S	Type S	60	M 12	60	19	27	25	50	17	200
GN 32-60-M12-60-A5-SK	SK	60	M 12	60	19	27	25	50	17	230
GN 32-60-M12-80-A1-S	Type S	60	M 12	80	19	27	25	50	17	230
GN 32-60-M12-80-A1-SK	SK	60	M 12	80	19	27	25	50	17	240
GN 32-60-M12-80-A5-S	Type S	60	M 12	80	19	27	25	50	17	230
GN 32-60-M12-80-A5-SK	SK	60	M 12	80	19	27	25	50	17	240
GN 32-60-M12-100-A1-S	Type S	60	M 12	100	19	27	25	50	17	242
GN 32-60-M12-100-A1-SK	SK	60	M 12	100	19	27	25	50	17	250
GN 32-60-M12-100-A5-S	Type S	60	M 12	100	19	27	25	50	17	242
GN 32-60-M12-100-A5-SK	SK	60	M 12	100	19	27	25	50	17	250
GN 32-60-M12-125-A1-S	Type S	60	M 12	125	19	27	25	50	17	260
GN 32-60-M12-125-A1-SK	SK	60	M 12	125	19	27	25	50	17	280
GN 32-60-M12-125-A5-S	Type S	60	M 12	125	19	27	25	50	17	260
GN 32-60-M12-125-A5-SK	SK	60	M 12	125	19	27	25	50	17	280
GN 32-80-M8-40-A1-S	Type S	80	M 8	40	20	28	30	70	17	301
GN 32-80-M8-40-A1-SK	SK	80	M 8	40	20	28	30	70	17	306
GN 32-80-M8-40-A5-S	Type S	80	M 8	40	20	28	30	70	17	301
GN 32-80-M8-40-A5-SK	SK	80	M 8	40	20	28	30	70	17	306
GN 32-80-M8-50-A1-S	Type S	80	M 8	50	20	28	30	70	17	304
GN 32-80-M8-50-A1-SK	SK	80	M 8	50	20	28	30	70	17	310
GN 32-80-M8-50-A5-S	Type S	80	M 8	50	20	28	30	70	17	304
GN 32-80-M8-50-A5-SK	SK	80	M 8	50	20	28	30	70	17	310
GN 32-80-M8-63-A1-S	Type S	80	M 8	63	20	28	30	70	17	308
GN 32-80-M8-63-A1-SK	SK	80	M 8	63	20	28	30	70	17	260
GN 32-80-M8-63-A5-S	Type S	80	M 8	63	20	28	30	70	17	308
GN 32-80-M8-63-A5-SK	SK	80	M 8	63	20	28	30	70	17	260
GN 32-80-M10-50-A1-S	Type S	80	M 10	50	20	28	30	70	17	334
GN 32-80-M10-50-A1-SK	SK	80	M 10	50	20	28	30	70	17	320
GN 32-80-M10-50-A5-S	Type S	80	M 10	50	20	28	30	70	17	334
GN 32-80-M10-50-A5-SK	SK	80	M 10	50	20	28	30	70	17	320
GN 32-80-M10-60-A1-S	Type S	80	M 10	60	20	28	30	70	17	339
GN 32-80-M10-60-A1-SK	SK	80	M 10	60	20	28	30	70	17	340
GN 32-80-M10-60-A5-S	Type S	80	M 10	60	20	28	30	70	17	339
GN 32-80-M10-60-A5-SK	SK	80	M 10	60	20	28	30	70	17	340
GN 32-80-M10-80-A1-S	Type S	80	M 10	80	20	28	30	70	17	349
GN 32-80-M10-80-A1-SK	SK	80	M 10	80	20	28	30	70	17	340
GN 32-80-M10-80-A5-S	Type S	80	M 10	80	20	28	30	70	17	349
GN 32-80-M10-80-A5-SK	SK	80	M 10	80	20	28	30	70	17	340
GN 32-80-M10-100-A1-S	Type S	80	M 10	100	20	28	30	70	17	380
GN 32-80-M10-100-A1-SK	SK	80	M 10	100	20	28	30	70	17	360
GN 32-80-M10-100-A5-S	Type S	80	M 10	100	20	28	30	70	17	380
GN 32-80-M10-100-A5-SK	SK	80	M 10	100	20	28	30	70	17	360
GN 32-80-M12-60-A1-S	Type S	80	M 12	60	20	28	30	70	17	340
GN 32-80-M12-60-A1-SK	SK	80	M 12	60	20	28	30	70	17	340
GN 32-80-M12-60-A5-S	Type S	80	M 12	60	20	28	30	70	17	340
GN 32-80-M12-60-A5-SK	SK	80	M 12	60	20	28	30	70	17	340
GN 32-80-M12-80-A1-S	Type S	80	M 12	80	20	28	30	70	17	320
GN 32-80-M12-80-A1-SK	SK	80	M 12	80	20	28	30	70	17	340
GN 32-80-M12-80-A5-S	Type S	80	M 12	80	20	28	30	70	17	320
GN 32-80-M12-80-A5-SK	SK	80	M 12	80	20	28	30	70	17	340
GN 32-80-M12-100-A1-S	Type S	80	M 12	100	20	28	30	70	17	340
GN 32-80-M12-100-A1-SK	SK	80	M 12	100	20	28	30	70	17	360
GN 32-80-M12-100-A5-S	Type S	80	M 12	100	20	28	30	70	17	340
GN 32-80-M12-100-A5-SK	SK	80	M 12	100	20	28	30	70	17	360
GN 32-80-M12-125-A1-S	Type S	80	M 12	125	20	28	30	70	17	380
GN 32-80-M12-125-A1-SK	SK	80	M 12	125	20	28	30	70	17	390
GN 32-80-M12-125-A5-S	Type S	80	M 12	125	20	28	30	70	17	380
GN 32-80-M12-125-A5-SK	SK	80	M 12	125	20	28	30	70	17	390
GN 32-100-M8-40-A1-S	Type S	100	M 8	40	21	29	30	80	17	427
GN 32-100-M8-40-A1-SK	SK	100	M 8	40	21	29	30	80	17	432
GN 32-100-M8-40-A5-S	Type S	100	M 8	40	21	29	30	80	17	427
GN 32-100-M8-40-A5-SK	SK	100	M 8	40	21	29	30	80	17	432
GN 32-100-M8-50-A1-S	Type S	100	M 8	50	21	29	30	80	17	430
GN 32-100-M8-50-A1-SK	SK	100	M 8	50	21	29	30	80	17	435
GN 32-100-M8-50-A5-S	Type S	100	M 8	50	21	29	30	80	17	430
GN 32-100-M8-50-A5-SK	SK	100	M 8	50	21	29	30	80	17	435
GN 32-100-M8-63-A1-S	Type S	100	M 8	63	21	29	30	80	17	434
GN 32-100-M8-63-A1-SK	SK	100	M 8	63	21	29	30	80	17	439
GN 32-100-M8-63-A5-S	Type S	100	M 8	63	21	29	30	80	17	434
GN 32-100-M8-63-A5-SK	SK	100	M 8	63	21	29	30	80	17	439
GN 32-100-M10-50-A1-S	Type S	100	M 10	50	21	29	30	80	17	460
GN 32-100-M10-50-A1-SK	SK	100	M 10	50	21	29	30	80	17	469
GN 32-100-M10-50-A5-S	Type S	100	M 10	50	21	29	30	80	17	460
GN 32-100-M10-50-A5-SK	SK	100	M 10	50	21	29	30	80	17	469
GN 32-100-M10-60-A1-S	Type S	100	M 10	60	21	29	30	80	17	465
GN 32-100-M10-60-A1-SK	SK	100	M 10	60	21	29	30	80	17	474
GN 32-100-M10-60-A5-S	Type S	100	M 10	60	21	29	30	80	17	465
GN 32-100-M10-60-A5-SK	SK	100	M 10	60	21	29	30	80	17	474
GN 32-100-M10-80-A1-S	Type S	100	M 10	80	21	29	30	80	17	475
GN 32-100-M10-80-A1-SK	SK	100	M 10	80	21	29	30	80	17	440
GN 32-100-M10-80-A5-S	Type S	100	M 10	80	21	29	30	80	17	475
GN 32-100-M10-80-A5-SK	SK	100	M 10	80	21	29	30	80	17	440
GN 32-100-M10-100-A1-S	Type S	100	M 10	100	21	29	30	80	17	484
GN 32-100-M10-100-A1-SK	SK	100	M 10	100	21	29	30	80	17	493
GN 32-100-M10-100-A5-S	Type S	100	M 10	100	21	29	30	80	17	484
GN 32-100-M10-100-A5-SK	SK	100	M 10	100	21	29	30	80	17	493
GN 32-100-M12-60-A1-S	Type S	100	M 12	60	21	29	30	80	17	477
GN 32-100-M12-60-A1-SK	SK	100	M 12	60	21	29	30	80	17	460
GN 32-100-M12-60-A5-S	Type S	100	M 12	60	21	29	30	80	17	477
GN 32-100-M12-60-A5-SK	SK	100	M 12	60	21	29	30	80	17	460
GN 32-100-M12-80-A1-S	Type S	100	M 12	80	21	29	30	80	17	492
GN 32-100-M12-80-A1-SK	SK	100	M 12	80	21	29	30	80	17	506
GN 32-100-M12-80-A5-S	Type S	100	M 12	80	21	29	30	80	17	492
GN 32-100-M12-80-A5-SK	SK	100	M 12	80	21	29	30	80	17	506
GN 32-100-M12-100-A1-S	Type S	100	M 12	100	21	29	30	80	17	500
GN 32-100-M12-100-A1-SK	SK	100	M 12	100	21	29	30	80	17	510
GN 32-100-M12-100-A5-S	Type S	100	M 12	100	21	29	30	80	17	500
GN 32-100-M12-100-A5-SK	SK	100	M 12	100	21	29	30	80	17	510
GN 32-100-M12-125-A1-S	Type S	100	M 12	125	21	29	30	80	17	520
GN 32-100-M12-125-A1-SK	SK	100	M 12	125	21	29	30	80	17	540
GN 32-100-M12-125-A5-S	Type S	100	M 12	125	21	29	30	80	17	520
GN 32-100-M12-125-A5-SK	SK	100	M 12	125	21	29	30	80	17	540

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
