GN 306
Adjustable hand levers
with special tipped threaded studs
Description
Specification
Types
- Type MS: Brass tipp
- Type KU: Plastic tipp
- Type DZ: Hardened oval tipp
- Type ZK: Spherical end

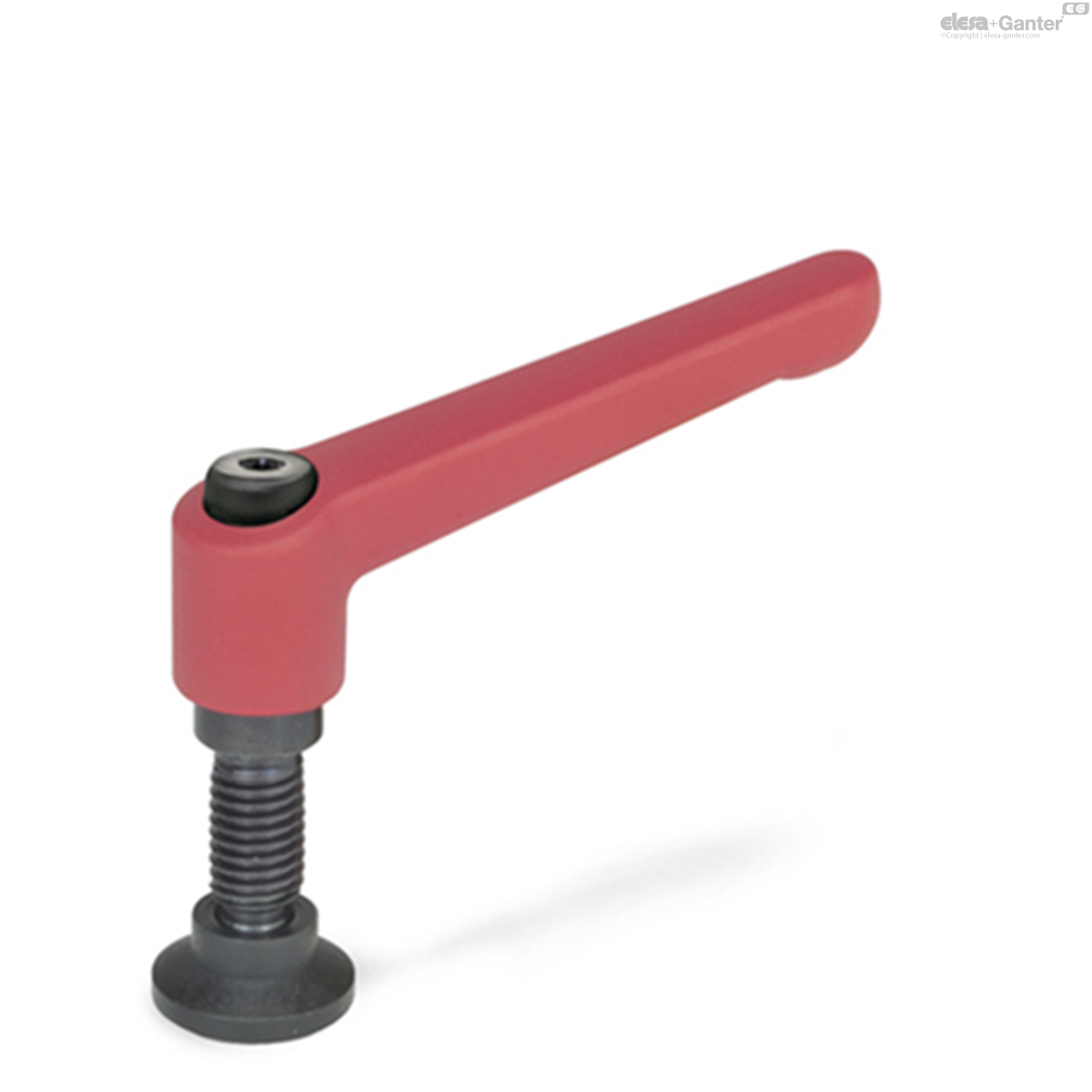

- Type KD: Spherical end with swivel thrust pad
Handle
Zinc die casting
Plastic coated

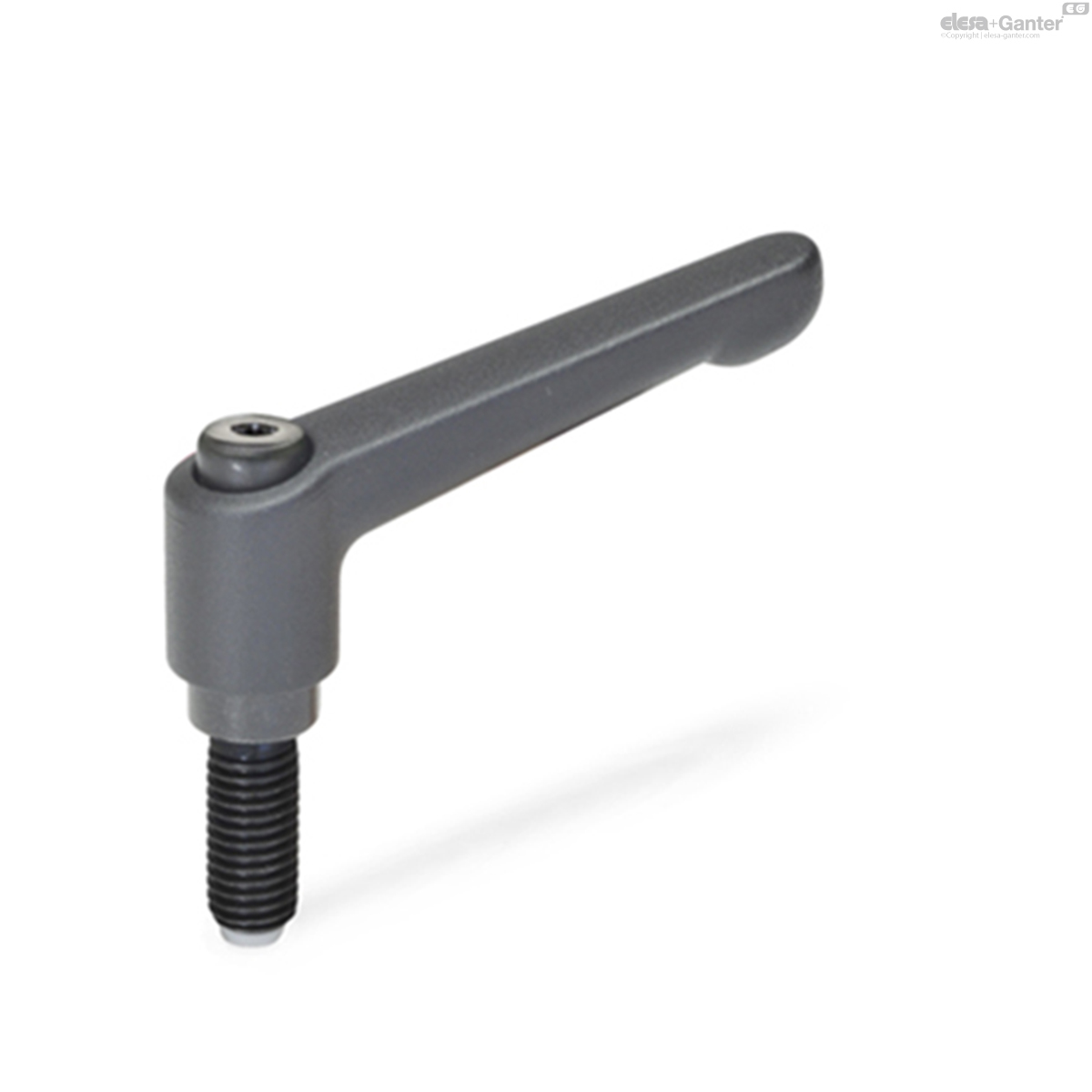

black, RAL 9005, textured finish SW

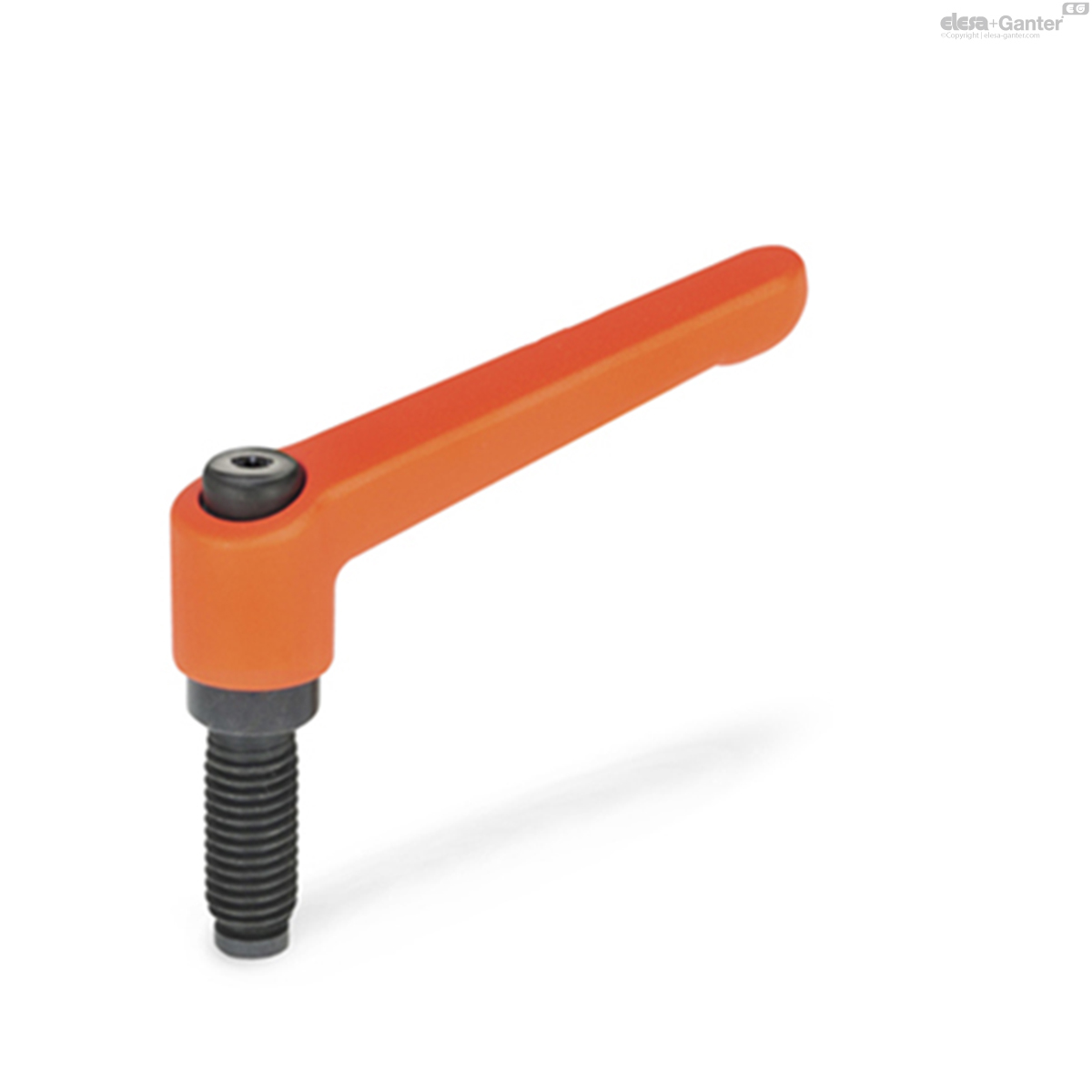

orange, RAL 2004, textured finish OS
red, RAL 3000, textured finsih RS

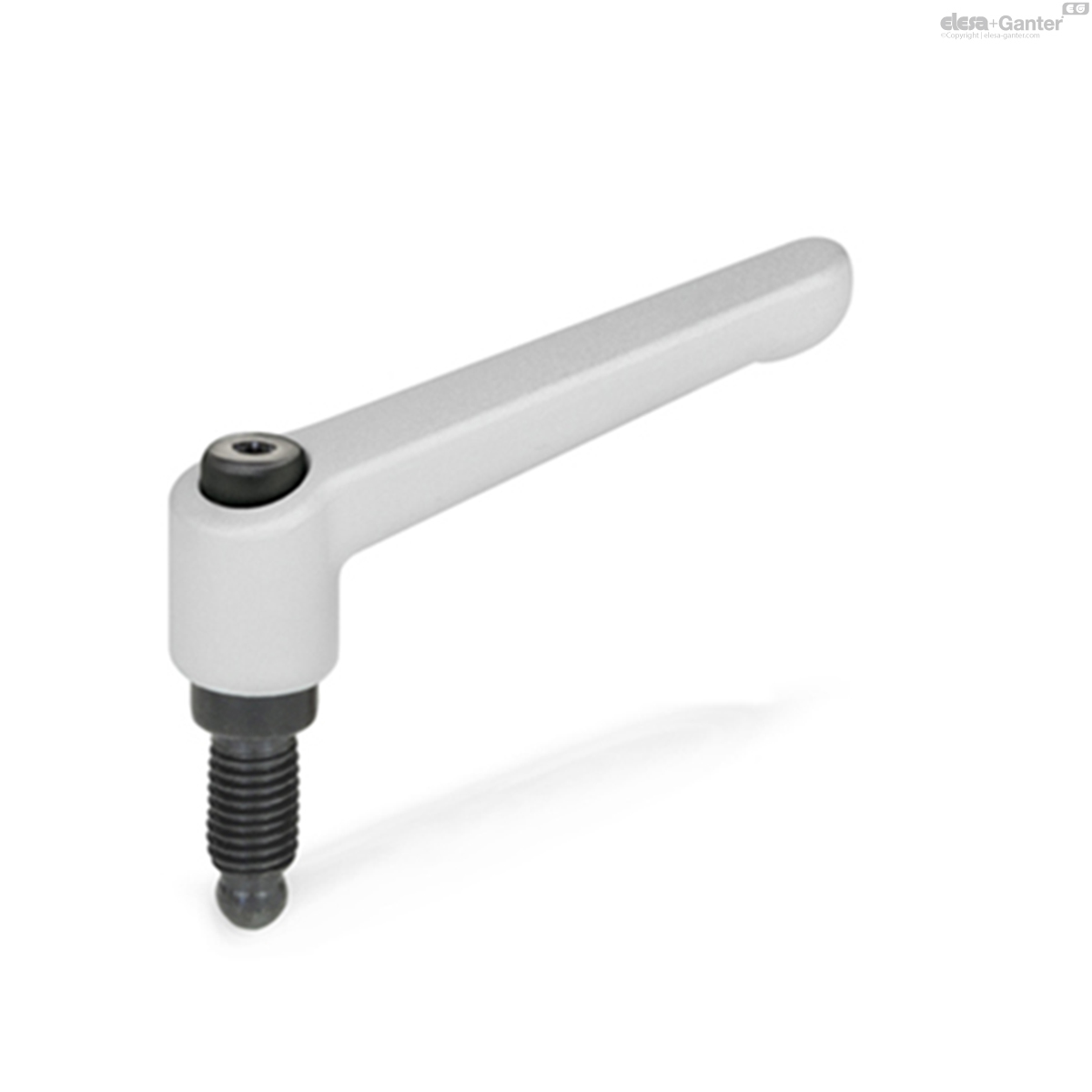

silver, RAL 9006, textured finish SR
Threaded stud and retaining screw
Steel, blackened
Thrust point
- Type MS: Brass
- Type KU: Plastic (POM)
- Type DZ: Steel, hardened (Oval point)
Thrust pad
Plastic (Polyacetal POM)
- temperature resistant up to 80 °C
- black, matt
Information
Adjustable hand levers GN 306 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever disengages the serrations, allowing it to be swivelled to the ideal clamping position. When the lever is released, the serrations
The brass and plastic tipped studs (Types MS / KU) help to avoid damage to the work piece being clamped.
The hardened tipped stud (Type DZ) provides an oval point-shaped pressure point.
The swivel thrust pad (Type KD) can easily be snapped on and taken off.
Pad is supplied unmounted.
Technical information
- ISO-Fundamental Tolerances -
On request
- with threaded stud in Stainless Steel
- Flat handle GN 302Â
GN 306

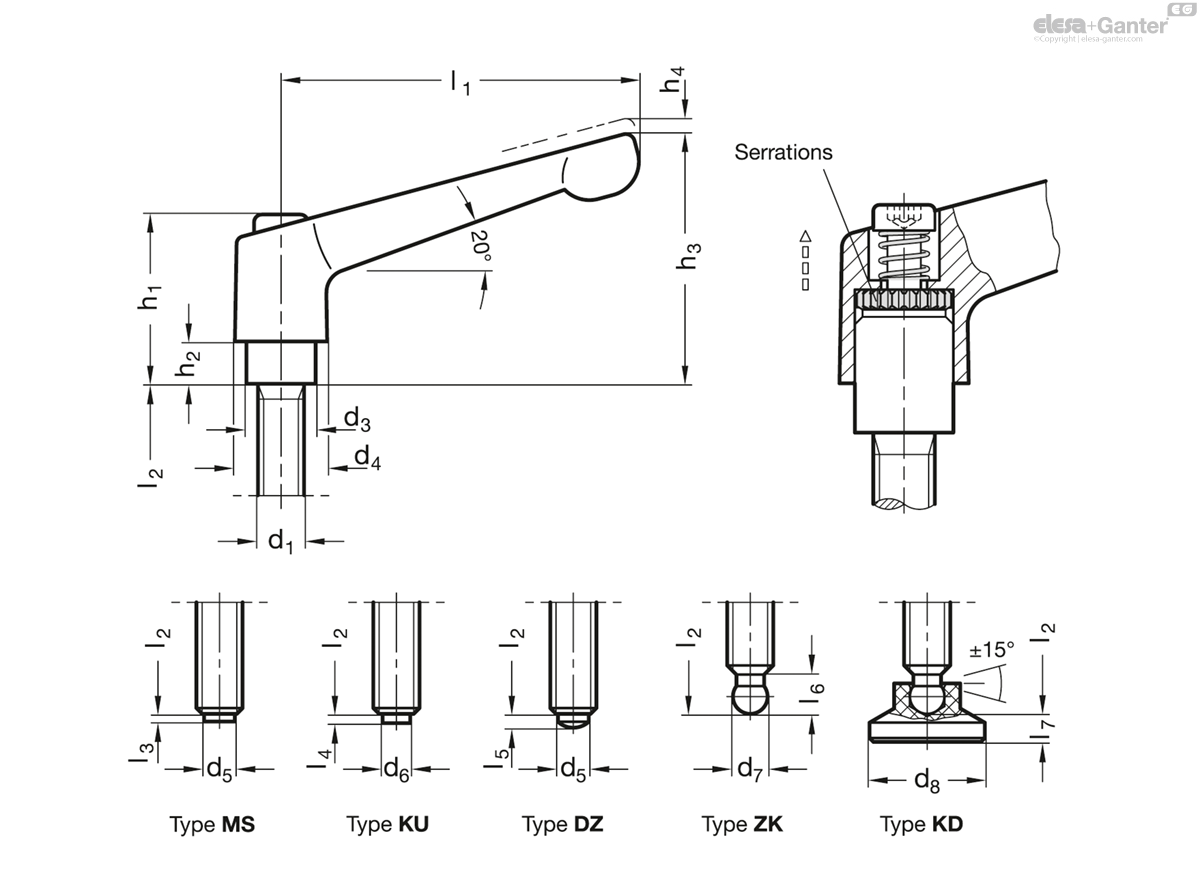

| Color | l1 | d1 | l2 | d3 | d4 | d5 | d6 | d7 | d7 +0.05 | d8 | h1 | h2 | h3 | h4 | l3 | l4 | l5 | l6 | l7 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||||||||||
| GN 306-30-M6-16-DZ-OS | OS - RAL 2004 | 30 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 33 |
|
| GN 306-30-M6-16-DZ-RS | RS - RAL 3000 | 30 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 33 |
|
| GN 306-30-M6-16-DZ-SR | SR - RAL 9006 | 30 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 33 |
|
| GN 306-30-M6-16-DZ-SW | SW - RAL 9004 | 30 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 26 |
|
| GN 306-30-M6-16-KD-OS | OS - RAL 2004 | 30 | M 6 | 16 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 34 |
|
| GN 306-30-M6-16-KD-RS | RS - RAL 3000 | 30 | M 6 | 16 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 34 |
|
| GN 306-30-M6-16-KD-SR | SR - RAL 9006 | 30 | M 6 | 16 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 34 |
|
| GN 306-30-M6-16-KD-SW | SW - RAL 9004 | 30 | M 6 | 16 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 27 |
|
| GN 306-30-M6-16-KU-OS | OS - RAL 2004 | 30 | M 6 | 16 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 33 |
|
| GN 306-30-M6-16-KU-RS | RS - RAL 3000 | 30 | M 6 | 16 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 33 |
|
| GN 306-30-M6-16-KU-SR | SR - RAL 9006 | 30 | M 6 | 16 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 33 |
|
| GN 306-30-M6-16-KU-SW | SW - RAL 9004 | 30 | M 6 | 16 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 26 |
|
| GN 306-30-M6-16-MS-OS | OS - RAL 2004 | 30 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 33 |
|
| GN 306-30-M6-16-MS-RS | RS - RAL 3000 | 30 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 33 |
|
| GN 306-30-M6-16-MS-SR | SR - RAL 9006 | 30 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 33 |
|
| GN 306-30-M6-16-MS-SW | SW - RAL 9004 | 30 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 26 |
|
| GN 306-30-M6-16-ZK-OS | OS - RAL 2004 | 30 | M 6 | 16 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 33 |
|
| GN 306-30-M6-16-ZK-RS | RS - RAL 3000 | 30 | M 6 | 16 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 33 |
|
| GN 306-30-M6-16-ZK-SR | SR - RAL 9006 | 30 | M 6 | 16 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 33 |
|
| GN 306-30-M6-16-ZK-SW | SW - RAL 9004 | 30 | M 6 | 16 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 26 |
|
| GN 306-30-M6-20-DZ-OS | OS - RAL 2004 | 30 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 34 |
|
| GN 306-30-M6-20-DZ-RS | RS - RAL 3000 | 30 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 34 |
|
| GN 306-30-M6-20-DZ-SR | SR - RAL 9006 | 30 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 34 |
|
| GN 306-30-M6-20-DZ-SW | SW - RAL 9004 | 30 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 27 |
|
| GN 306-30-M6-20-KD-OS | OS - RAL 2004 | 30 | M 6 | 20 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 35 |
|
| GN 306-30-M6-20-KD-RS | RS - RAL 3000 | 30 | M 6 | 20 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 35 |
|
| GN 306-30-M6-20-KD-SR | SR - RAL 9006 | 30 | M 6 | 20 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 35 |
|
| GN 306-30-M6-20-KD-SW | SW - RAL 9004 | 30 | M 6 | 20 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 28 |
|
| GN 306-30-M6-20-KU-OS | OS - RAL 2004 | 30 | M 6 | 20 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 34 |
|
| GN 306-30-M6-20-KU-RS | RS - RAL 3000 | 30 | M 6 | 20 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 34 |
|
| GN 306-30-M6-20-KU-SR | SR - RAL 9006 | 30 | M 6 | 20 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 34 |
|
| GN 306-30-M6-20-KU-SW | SW - RAL 9004 | 30 | M 6 | 20 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 27 |
|
| GN 306-30-M6-20-MS-OS | OS - RAL 2004 | 30 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 34 |
|
| GN 306-30-M6-20-MS-RS | RS - RAL 3000 | 30 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 34 |
|
| GN 306-30-M6-20-MS-SR | SR - RAL 9006 | 30 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 34 |
|
| GN 306-30-M6-20-MS-SW | SW - RAL 9004 | 30 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 27 |
|
| GN 306-30-M6-20-ZK-OS | OS - RAL 2004 | 30 | M 6 | 20 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 34 |
|
| GN 306-30-M6-20-ZK-RS | RS - RAL 3000 | 30 | M 6 | 20 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 34 |
|
| GN 306-30-M6-20-ZK-SR | SR - RAL 9006 | 30 | M 6 | 20 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 34 |
|
| GN 306-30-M6-20-ZK-SW | SW - RAL 9004 | 30 | M 6 | 20 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 27 |
|
| GN 306-30-M6-25-DZ-OS | OS - RAL 2004 | 30 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 35 |
|
| GN 306-30-M6-25-DZ-RS | RS - RAL 3000 | 30 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 35 |
|
| GN 306-30-M6-25-DZ-SR | SR - RAL 9006 | 30 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 35 |
|
| GN 306-30-M6-25-DZ-SW | SW - RAL 9004 | 30 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 28 |
|
| GN 306-30-M6-25-KD-OS | OS - RAL 2004 | 30 | M 6 | 25 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 35 |
|
| GN 306-30-M6-25-KD-RS | RS - RAL 3000 | 30 | M 6 | 25 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 35 |
|
| GN 306-30-M6-25-KD-SR | SR - RAL 9006 | 30 | M 6 | 25 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 35 |
|
| GN 306-30-M6-25-KD-SW | SW - RAL 9004 | 30 | M 6 | 25 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 28 |
|
| GN 306-30-M6-25-KU-OS | OS - RAL 2004 | 30 | M 6 | 25 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 34 |
|
| GN 306-30-M6-25-KU-RS | RS - RAL 3000 | 30 | M 6 | 25 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 34 |
|
| GN 306-30-M6-25-KU-SR | SR - RAL 9006 | 30 | M 6 | 25 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 34 |
|
| GN 306-30-M6-25-KU-SW | SW - RAL 9004 | 30 | M 6 | 25 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 27 |
|
| GN 306-30-M6-25-MS-OS | OS - RAL 2004 | 30 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 35 |
|
| GN 306-30-M6-25-MS-RS | RS - RAL 3000 | 30 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 35 |
|
| GN 306-30-M6-25-MS-SR | SR - RAL 9006 | 30 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 35 |
|
| GN 306-30-M6-25-MS-SW | SW - RAL 9004 | 30 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 28 |
|
| GN 306-30-M6-25-ZK-OS | OS - RAL 2004 | 30 | M 6 | 25 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 34 |
|
| GN 306-30-M6-25-ZK-RS | RS - RAL 3000 | 30 | M 6 | 25 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 34 |
|
| GN 306-30-M6-25-ZK-SR | SR - RAL 9006 | 30 | M 6 | 25 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 34 |
|
| GN 306-30-M6-25-ZK-SW | SW - RAL 9004 | 30 | M 6 | 25 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 27 |
|
| GN 306-30-M6-32-DZ-OS | OS - RAL 2004 | 30 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 36 |
|
| GN 306-30-M6-32-DZ-RS | RS - RAL 3000 | 30 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 36 |
|
| GN 306-30-M6-32-DZ-SR | SR - RAL 9006 | 30 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 36 |
|
| GN 306-30-M6-32-DZ-SW | SW - RAL 9004 | 30 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 29 |
|
| GN 306-30-M6-32-KD-OS | OS - RAL 2004 | 30 | M 6 | 32 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 37 |
|
| GN 306-30-M6-32-KD-RS | RS - RAL 3000 | 30 | M 6 | 32 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 37 |
|
| GN 306-30-M6-32-KD-SR | SR - RAL 9006 | 30 | M 6 | 32 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 37 |
|
| GN 306-30-M6-32-KD-SW | SW - RAL 9004 | 30 | M 6 | 32 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 30 |
|
| GN 306-30-M6-32-KU-OS | OS - RAL 2004 | 30 | M 6 | 32 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 36 |
|
| GN 306-30-M6-32-KU-RS | RS - RAL 3000 | 30 | M 6 | 32 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 36 |
|
| GN 306-30-M6-32-KU-SR | SR - RAL 9006 | 30 | M 6 | 32 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 36 |
|
| GN 306-30-M6-32-KU-SW | SW - RAL 9004 | 30 | M 6 | 32 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 29 |
|
| GN 306-30-M6-32-MS-OS | OS - RAL 2004 | 30 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 36 |
|
| GN 306-30-M6-32-MS-RS | RS - RAL 3000 | 30 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 36 |
|
| GN 306-30-M6-32-MS-SR | SR - RAL 9006 | 30 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 36 |
|
| GN 306-30-M6-32-MS-SW | SW - RAL 9004 | 30 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 29 |
|
| GN 306-30-M6-32-ZK-OS | OS - RAL 2004 | 30 | M 6 | 32 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 36 |
|
| GN 306-30-M6-32-ZK-RS | RS - RAL 3000 | 30 | M 6 | 32 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 36 |
|
| GN 306-30-M6-32-ZK-SR | SR - RAL 9006 | 30 | M 6 | 32 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 36 |
|
| GN 306-30-M6-32-ZK-SW | SW - RAL 9004 | 30 | M 6 | 32 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 29 |
|
| GN 306-30-M6-40-DZ-OS | OS - RAL 2004 | 30 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 38 |
|
| GN 306-30-M6-40-DZ-RS | RS - RAL 3000 | 30 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 38 |
|
| GN 306-30-M6-40-DZ-SR | SR - RAL 9006 | 30 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 38 |
|
| GN 306-30-M6-40-DZ-SW | SW - RAL 9004 | 30 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 31 |
|
| GN 306-30-M6-40-KD-OS | OS - RAL 2004 | 30 | M 6 | 40 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 38 |
|
| GN 306-30-M6-40-KD-RS | RS - RAL 3000 | 30 | M 6 | 40 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 38 |
|
| GN 306-30-M6-40-KD-SR | SR - RAL 9006 | 30 | M 6 | 40 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 38 |
|
| GN 306-30-M6-40-KD-SW | SW - RAL 9004 | 30 | M 6 | 40 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 31 |
|
| GN 306-30-M6-40-KU-OS | OS - RAL 2004 | 30 | M 6 | 40 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 37 |
|
| GN 306-30-M6-40-KU-RS | RS - RAL 3000 | 30 | M 6 | 40 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 37 |
|
| GN 306-30-M6-40-KU-SR | SR - RAL 9006 | 30 | M 6 | 40 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 37 |
|
| GN 306-30-M6-40-KU-SW | SW - RAL 9004 | 30 | M 6 | 40 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 30 |
|
| GN 306-30-M6-40-MS-OS | OS - RAL 2004 | 30 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 38 |
|
| GN 306-30-M6-40-MS-RS | RS - RAL 3000 | 30 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 38 |
|
| GN 306-30-M6-40-MS-SR | SR - RAL 9006 | 30 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 38 |
|
| GN 306-30-M6-40-MS-SW | SW - RAL 9004 | 30 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 31 |
|
| GN 306-30-M6-40-ZK-OS | OS - RAL 2004 | 30 | M 6 | 40 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 37 |
|
| GN 306-30-M6-40-ZK-RS | RS - RAL 3000 | 30 | M 6 | 40 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 37 |
|
| GN 306-30-M6-40-ZK-SR | SR - RAL 9006 | 30 | M 6 | 40 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 37 |
|
| GN 306-30-M6-40-ZK-SW | SW - RAL 9004 | 30 | M 6 | 40 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 30 |
|
| GN 306-30-M6-50-DZ-OS | OS - RAL 2004 | 30 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 39 |
|
| GN 306-30-M6-50-DZ-RS | RS - RAL 3000 | 30 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 39 |
|
| GN 306-30-M6-50-DZ-SR | SR - RAL 9006 | 30 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 39 |
|
| GN 306-30-M6-50-DZ-SW | SW - RAL 9004 | 30 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | - | - | 1.8 | - | - | 32 |
|
| GN 306-30-M6-50-KD-OS | OS - RAL 2004 | 30 | M 6 | 50 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 40 |
|
| GN 306-30-M6-50-KD-RS | RS - RAL 3000 | 30 | M 6 | 50 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 40 |
|
| GN 306-30-M6-50-KD-SR | SR - RAL 9006 | 30 | M 6 | 50 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 40 |
|
| GN 306-30-M6-50-KD-SW | SW - RAL 9004 | 30 | M 6 | 50 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 31 | 3.5 | - | - | - | - | 3.6 | 33 |
|
| GN 306-30-M6-50-KU-OS | OS - RAL 2004 | 30 | M 6 | 50 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 39 |
|
| GN 306-30-M6-50-KU-RS | RS - RAL 3000 | 30 | M 6 | 50 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 39 |
|
| GN 306-30-M6-50-KU-SR | SR - RAL 9006 | 30 | M 6 | 50 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 39 |
|
| GN 306-30-M6-50-KU-SW | SW - RAL 9004 | 30 | M 6 | 50 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 31 | 3.5 | - | 1.3 | - | - | - | 32 |
|
| GN 306-30-M6-50-MS-OS | OS - RAL 2004 | 30 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 39 |
|
| GN 306-30-M6-50-MS-RS | RS - RAL 3000 | 30 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 39 |
|
| GN 306-30-M6-50-MS-SR | SR - RAL 9006 | 30 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 39 |
|
| GN 306-30-M6-50-MS-SW | SW - RAL 9004 | 30 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 31 | 3.5 | 1 | - | - | - | - | 32 |
|
| GN 306-30-M6-50-ZK-OS | OS - RAL 2004 | 30 | M 6 | 50 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 39 |
|
| GN 306-30-M6-50-ZK-RS | RS - RAL 3000 | 30 | M 6 | 50 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 39 |
|
| GN 306-30-M6-50-ZK-SR | SR - RAL 9006 | 30 | M 6 | 50 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 39 |
|
| GN 306-30-M6-50-ZK-SW | SW - RAL 9004 | 30 | M 6 | 50 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 31 | 3.5 | - | - | - | 5.1 | - | 32 |
|
| GN 306-45-M6-16-DZ-OS | OS - RAL 2004 | 45 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 37 |
|
| GN 306-45-M6-16-DZ-RS | RS - RAL 3000 | 45 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 36 |
|
| GN 306-45-M6-16-DZ-SR | SR - RAL 9006 | 45 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 37 |
|
| GN 306-45-M6-16-DZ-SW | SW - RAL 9004 | 45 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 38 |
|
| GN 306-45-M6-16-KD-OS | OS - RAL 2004 | 45 | M 6 | 16 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 38 |
|
| GN 306-45-M6-16-KD-RS | RS - RAL 3000 | 45 | M 6 | 16 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 37 |
|
| GN 306-45-M6-16-KD-SR | SR - RAL 9006 | 45 | M 6 | 16 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 38 |
|
| GN 306-45-M6-16-KD-SW | SW - RAL 9004 | 45 | M 6 | 16 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 39 |
|
| GN 306-45-M6-16-KU-OS | OS - RAL 2004 | 45 | M 6 | 16 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 37 |
|
| GN 306-45-M6-16-KU-RS | RS - RAL 3000 | 45 | M 6 | 16 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 36 |
|
| GN 306-45-M6-16-KU-SR | SR - RAL 9006 | 45 | M 6 | 16 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 37 |
|
| GN 306-45-M6-16-KU-SW | SW - RAL 9004 | 45 | M 6 | 16 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 38 |
|
| GN 306-45-M6-16-MS-OS | OS - RAL 2004 | 45 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 37 |
|
| GN 306-45-M6-16-MS-RS | RS - RAL 3000 | 45 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 36 |
|
| GN 306-45-M6-16-MS-SR | SR - RAL 9006 | 45 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 37 |
|
| GN 306-45-M6-16-MS-SW | SW - RAL 9004 | 45 | M 6 | 16 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 38 |
|
| GN 306-45-M6-16-ZK-OS | OS - RAL 2004 | 45 | M 6 | 16 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 37 |
|
| GN 306-45-M6-16-ZK-RS | RS - RAL 3000 | 45 | M 6 | 16 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 36 |
|
| GN 306-45-M6-16-ZK-SR | SR - RAL 9006 | 45 | M 6 | 16 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 37 |
|
| GN 306-45-M6-16-ZK-SW | SW - RAL 9004 | 45 | M 6 | 16 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 38 |
|
| GN 306-45-M6-20-DZ-OS | OS - RAL 2004 | 45 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 38 |
|
| GN 306-45-M6-20-DZ-RS | RS - RAL 3000 | 45 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 37 |
|
| GN 306-45-M6-20-DZ-SR | SR - RAL 9006 | 45 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 38 |
|
| GN 306-45-M6-20-DZ-SW | SW - RAL 9004 | 45 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 39 |
|
| GN 306-45-M6-20-KD-OS | OS - RAL 2004 | 45 | M 6 | 20 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 39 |
|
| GN 306-45-M6-20-KD-RS | RS - RAL 3000 | 45 | M 6 | 20 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 38 |
|
| GN 306-45-M6-20-KD-SR | SR - RAL 9006 | 45 | M 6 | 20 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 39 |
|
| GN 306-45-M6-20-KD-SW | SW - RAL 9004 | 45 | M 6 | 20 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 40 |
|
| GN 306-45-M6-20-KU-OS | OS - RAL 2004 | 45 | M 6 | 20 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 38 |
|
| GN 306-45-M6-20-KU-RS | RS - RAL 3000 | 45 | M 6 | 20 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 37 |
|
| GN 306-45-M6-20-KU-SR | SR - RAL 9006 | 45 | M 6 | 20 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 38 |
|
| GN 306-45-M6-20-KU-SW | SW - RAL 9004 | 45 | M 6 | 20 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 39 |
|
| GN 306-45-M6-20-MS-OS | OS - RAL 2004 | 45 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 38 |
|
| GN 306-45-M6-20-MS-RS | RS - RAL 3000 | 45 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 37 |
|
| GN 306-45-M6-20-MS-SR | SR - RAL 9006 | 45 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 38 |
|
| GN 306-45-M6-20-MS-SW | SW - RAL 9004 | 45 | M 6 | 20 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 39 |
|
| GN 306-45-M6-20-ZK-OS | OS - RAL 2004 | 45 | M 6 | 20 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 38 |
|
| GN 306-45-M6-20-ZK-RS | RS - RAL 3000 | 45 | M 6 | 20 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 37 |
|
| GN 306-45-M6-20-ZK-SR | SR - RAL 9006 | 45 | M 6 | 20 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 38 |
|
| GN 306-45-M6-20-ZK-SW | SW - RAL 9004 | 45 | M 6 | 20 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 39 |
|
| GN 306-45-M6-25-DZ-OS | OS - RAL 2004 | 45 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 39 |
|
| GN 306-45-M6-25-DZ-RS | RS - RAL 3000 | 45 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 38 |
|
| GN 306-45-M6-25-DZ-SR | SR - RAL 9006 | 45 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 39 |
|
| GN 306-45-M6-25-DZ-SW | SW - RAL 9004 | 45 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 40 |
|
| GN 306-45-M6-25-KD-OS | OS - RAL 2004 | 45 | M 6 | 25 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 39 |
|
| GN 306-45-M6-25-KD-RS | RS - RAL 3000 | 45 | M 6 | 25 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 38 |
|
| GN 306-45-M6-25-KD-SR | SR - RAL 9006 | 45 | M 6 | 25 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 39 |
|
| GN 306-45-M6-25-KD-SW | SW - RAL 9004 | 45 | M 6 | 25 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 40 |
|
| GN 306-45-M6-25-KU-OS | OS - RAL 2004 | 45 | M 6 | 25 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 38 |
|
| GN 306-45-M6-25-KU-RS | RS - RAL 3000 | 45 | M 6 | 25 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 37 |
|
| GN 306-45-M6-25-KU-SR | SR - RAL 9006 | 45 | M 6 | 25 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 38 |
|
| GN 306-45-M6-25-KU-SW | SW - RAL 9004 | 45 | M 6 | 25 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 39 |
|
| GN 306-45-M6-25-MS-OS | OS - RAL 2004 | 45 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 39 |
|
| GN 306-45-M6-25-MS-RS | RS - RAL 3000 | 45 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 38 |
|
| GN 306-45-M6-25-MS-SR | SR - RAL 9006 | 45 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 39 |
|
| GN 306-45-M6-25-MS-SW | SW - RAL 9004 | 45 | M 6 | 25 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 40 |
|
| GN 306-45-M6-25-ZK-OS | OS - RAL 2004 | 45 | M 6 | 25 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 38 |
|
| GN 306-45-M6-25-ZK-RS | RS - RAL 3000 | 45 | M 6 | 25 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 37 |
|
| GN 306-45-M6-25-ZK-SR | SR - RAL 9006 | 45 | M 6 | 25 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 38 |
|
| GN 306-45-M6-25-ZK-SW | SW - RAL 9004 | 45 | M 6 | 25 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 39 |
|
| GN 306-45-M6-32-DZ-OS | OS - RAL 2004 | 45 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 40 |
|
| GN 306-45-M6-32-DZ-RS | RS - RAL 3000 | 45 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 39 |
|
| GN 306-45-M6-32-DZ-SR | SR - RAL 9006 | 45 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 40 |
|
| GN 306-45-M6-32-DZ-SW | SW - RAL 9004 | 45 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 41 |
|
| GN 306-45-M6-32-KD-OS | OS - RAL 2004 | 45 | M 6 | 32 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 41 |
|
| GN 306-45-M6-32-KD-RS | RS - RAL 3000 | 45 | M 6 | 32 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 40 |
|
| GN 306-45-M6-32-KD-SR | SR - RAL 9006 | 45 | M 6 | 32 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 41 |
|
| GN 306-45-M6-32-KD-SW | SW - RAL 9004 | 45 | M 6 | 32 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 42 |
|
| GN 306-45-M6-32-KU-OS | OS - RAL 2004 | 45 | M 6 | 32 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 40 |
|
| GN 306-45-M6-32-KU-RS | RS - RAL 3000 | 45 | M 6 | 32 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 39 |
|
| GN 306-45-M6-32-KU-SR | SR - RAL 9006 | 45 | M 6 | 32 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 40 |
|
| GN 306-45-M6-32-KU-SW | SW - RAL 9004 | 45 | M 6 | 32 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 41 |
|
| GN 306-45-M6-32-MS-OS | OS - RAL 2004 | 45 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 40 |
|
| GN 306-45-M6-32-MS-RS | RS - RAL 3000 | 45 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 39 |
|
| GN 306-45-M6-32-MS-SR | SR - RAL 9006 | 45 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 40 |
|
| GN 306-45-M6-32-MS-SW | SW - RAL 9004 | 45 | M 6 | 32 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 41 |
|
| GN 306-45-M6-32-ZK-OS | OS - RAL 2004 | 45 | M 6 | 32 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 40 |
|
| GN 306-45-M6-32-ZK-RS | RS - RAL 3000 | 45 | M 6 | 32 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 39 |
|
| GN 306-45-M6-32-ZK-SR | SR - RAL 9006 | 45 | M 6 | 32 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 40 |
|
| GN 306-45-M6-32-ZK-SW | SW - RAL 9004 | 45 | M 6 | 32 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 41 |
|
| GN 306-45-M6-40-DZ-OS | OS - RAL 2004 | 45 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 42 |
|
| GN 306-45-M6-40-DZ-RS | RS - RAL 3000 | 45 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 41 |
|
| GN 306-45-M6-40-DZ-SR | SR - RAL 9006 | 45 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 42 |
|
| GN 306-45-M6-40-DZ-SW | SW - RAL 9004 | 45 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 43 |
|
| GN 306-45-M6-40-KD-OS | OS - RAL 2004 | 45 | M 6 | 40 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 42 |
|
| GN 306-45-M6-40-KD-RS | RS - RAL 3000 | 45 | M 6 | 40 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 41 |
|
| GN 306-45-M6-40-KD-SR | SR - RAL 9006 | 45 | M 6 | 40 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 42 |
|
| GN 306-45-M6-40-KD-SW | SW - RAL 9004 | 45 | M 6 | 40 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 43 |
|
| GN 306-45-M6-40-KU-OS | OS - RAL 2004 | 45 | M 6 | 40 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 41 |
|
| GN 306-45-M6-40-KU-RS | RS - RAL 3000 | 45 | M 6 | 40 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 40 |
|
| GN 306-45-M6-40-KU-SR | SR - RAL 9006 | 45 | M 6 | 40 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 41 |
|
| GN 306-45-M6-40-KU-SW | SW - RAL 9004 | 45 | M 6 | 40 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 42 |
|
| GN 306-45-M6-40-MS-OS | OS - RAL 2004 | 45 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 42 |
|
| GN 306-45-M6-40-MS-RS | RS - RAL 3000 | 45 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 41 |
|
| GN 306-45-M6-40-MS-SR | SR - RAL 9006 | 45 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 42 |
|
| GN 306-45-M6-40-MS-SW | SW - RAL 9004 | 45 | M 6 | 40 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 43 |
|
| GN 306-45-M6-40-ZK-OS | OS - RAL 2004 | 45 | M 6 | 40 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 41 |
|
| GN 306-45-M6-40-ZK-RS | RS - RAL 3000 | 45 | M 6 | 40 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 40 |
|
| GN 306-45-M6-40-ZK-SR | SR - RAL 9006 | 45 | M 6 | 40 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 41 |
|
| GN 306-45-M6-40-ZK-SW | SW - RAL 9004 | 45 | M 6 | 40 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 42 |
|
| GN 306-45-M6-50-DZ-OS | OS - RAL 2004 | 45 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 43 |
|
| GN 306-45-M6-50-DZ-RS | RS - RAL 3000 | 45 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 42 |
|
| GN 306-45-M6-50-DZ-SR | SR - RAL 9006 | 45 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 43 |
|
| GN 306-45-M6-50-DZ-SW | SW - RAL 9004 | 45 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | - | - | 1.8 | - | - | 44 |
|
| GN 306-45-M6-50-KD-OS | OS - RAL 2004 | 45 | M 6 | 50 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 44 |
|
| GN 306-45-M6-50-KD-RS | RS - RAL 3000 | 45 | M 6 | 50 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 43 |
|
| GN 306-45-M6-50-KD-SR | SR - RAL 9006 | 45 | M 6 | 50 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 44 |
|
| GN 306-45-M6-50-KD-SW | SW - RAL 9004 | 45 | M 6 | 50 | 10 | 13 | - | - | - | - | 15 | 24.5 | 4 | 35 | 3.5 | - | - | - | - | 3.6 | 45 |
|
| GN 306-45-M6-50-KU-OS | OS - RAL 2004 | 45 | M 6 | 50 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 43 |
|
| GN 306-45-M6-50-KU-RS | RS - RAL 3000 | 45 | M 6 | 50 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 42 |
|
| GN 306-45-M6-50-KU-SR | SR - RAL 9006 | 45 | M 6 | 50 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 43 |
|
| GN 306-45-M6-50-KU-SW | SW - RAL 9004 | 45 | M 6 | 50 | 10 | 13 | - | 3.5 | - | - | - | 24.5 | 4 | 35 | 3.5 | - | 1.3 | - | - | - | 44 |
|
| GN 306-45-M6-50-MS-OS | OS - RAL 2004 | 45 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 43 |
|
| GN 306-45-M6-50-MS-RS | RS - RAL 3000 | 45 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 42 |
|
| GN 306-45-M6-50-MS-SR | SR - RAL 9006 | 45 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 43 |
|
| GN 306-45-M6-50-MS-SW | SW - RAL 9004 | 45 | M 6 | 50 | 10 | 13 | 4 | - | - | - | - | 24.5 | 4 | 35 | 3.5 | 1 | - | - | - | - | 44 |
|
| GN 306-45-M6-50-ZK-OS | OS - RAL 2004 | 45 | M 6 | 50 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 43 |
|
| GN 306-45-M6-50-ZK-RS | RS - RAL 3000 | 45 | M 6 | 50 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 42 |
|
| GN 306-45-M6-50-ZK-SR | SR - RAL 9006 | 45 | M 6 | 50 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 43 |
|
| GN 306-45-M6-50-ZK-SW | SW - RAL 9004 | 45 | M 6 | 50 | 10 | 13 | - | - | 4.5 ±0.03 | 4.5 | - | 24.5 | 4 | 35 | 3.5 | - | - | - | 5.1 | - | 44 |
|
| GN 306-63-M8-20-DZ-OS | OS - RAL 2004 | 63 | M 8 | 20 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 80 |
|
| GN 306-63-M8-20-DZ-RS | RS - RAL 3000 | 63 | M 8 | 20 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 80 |
|
| GN 306-63-M8-20-DZ-SR | SR - RAL 9006 | 63 | M 8 | 20 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 80 |
|
| GN 306-63-M8-20-DZ-SW | SW - RAL 9004 | 63 | M 8 | 20 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 82 |
|
| GN 306-63-M8-20-KD-OS | OS - RAL 2004 | 63 | M 8 | 20 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 81 |
|
| GN 306-63-M8-20-KD-RS | RS - RAL 3000 | 63 | M 8 | 20 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 81 |
|
| GN 306-63-M8-20-KD-SR | SR - RAL 9006 | 63 | M 8 | 20 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 81 |
|
| GN 306-63-M8-20-KD-SW | SW - RAL 9004 | 63 | M 8 | 20 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 83 |
|
| GN 306-63-M8-20-KU-OS | OS - RAL 2004 | 63 | M 8 | 20 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 79 |
|
| GN 306-63-M8-20-KU-RS | RS - RAL 3000 | 63 | M 8 | 20 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 79 |
|
| GN 306-63-M8-20-KU-SR | SR - RAL 9006 | 63 | M 8 | 20 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 79 |
|
| GN 306-63-M8-20-KU-SW | SW - RAL 9004 | 63 | M 8 | 20 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 81 |
|
| GN 306-63-M8-20-MS-OS | OS - RAL 2004 | 63 | M 8 | 20 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 80 |
|
| GN 306-63-M8-20-MS-RS | RS - RAL 3000 | 63 | M 8 | 20 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 80 |
|
| GN 306-63-M8-20-MS-SR | SR - RAL 9006 | 63 | M 8 | 20 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 80 |
|
| GN 306-63-M8-20-MS-SW | SW - RAL 9004 | 63 | M 8 | 20 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 82 |
|
| GN 306-63-M8-20-ZK-OS | OS - RAL 2004 | 63 | M 8 | 20 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 79 |
|
| GN 306-63-M8-20-ZK-RS | RS - RAL 3000 | 63 | M 8 | 20 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 79 |
|
| GN 306-63-M8-20-ZK-SR | SR - RAL 9006 | 63 | M 8 | 20 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 79 |
|
| GN 306-63-M8-20-ZK-SW | SW - RAL 9004 | 63 | M 8 | 20 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 81 |
|
| GN 306-63-M8-25-DZ-OS | OS - RAL 2004 | 63 | M 8 | 25 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 82 |
|
| GN 306-63-M8-25-DZ-RS | RS - RAL 3000 | 63 | M 8 | 25 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 82 |
|
| GN 306-63-M8-25-DZ-SR | SR - RAL 9006 | 63 | M 8 | 25 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 82 |
|
| GN 306-63-M8-25-DZ-SW | SW - RAL 9004 | 63 | M 8 | 25 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 84 |
|
| GN 306-63-M8-25-KD-OS | OS - RAL 2004 | 63 | M 8 | 25 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 83 |
|
| GN 306-63-M8-25-KD-RS | RS - RAL 3000 | 63 | M 8 | 25 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 83 |
|
| GN 306-63-M8-25-KD-SR | SR - RAL 9006 | 63 | M 8 | 25 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 83 |
|
| GN 306-63-M8-25-KD-SW | SW - RAL 9004 | 63 | M 8 | 25 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 85 |
|
| GN 306-63-M8-25-KU-OS | OS - RAL 2004 | 63 | M 8 | 25 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 82 |
|
| GN 306-63-M8-25-KU-RS | RS - RAL 3000 | 63 | M 8 | 25 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 82 |
|
| GN 306-63-M8-25-KU-SR | SR - RAL 9006 | 63 | M 8 | 25 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 82 |
|
| GN 306-63-M8-25-KU-SW | SW - RAL 9004 | 63 | M 8 | 25 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 84 |
|
| GN 306-63-M8-25-MS-OS | OS - RAL 2004 | 63 | M 8 | 25 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 82 |
|
| GN 306-63-M8-25-MS-RS | RS - RAL 3000 | 63 | M 8 | 25 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 82 |
|
| GN 306-63-M8-25-MS-SR | SR - RAL 9006 | 63 | M 8 | 25 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 82 |
|
| GN 306-63-M8-25-MS-SW | SW - RAL 9004 | 63 | M 8 | 25 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 84 |
|
| GN 306-63-M8-25-ZK-OS | OS - RAL 2004 | 63 | M 8 | 25 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 81 |
|
| GN 306-63-M8-25-ZK-RS | RS - RAL 3000 | 63 | M 8 | 25 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 81 |
|
| GN 306-63-M8-25-ZK-SR | SR - RAL 9006 | 63 | M 8 | 25 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 81 |
|
| GN 306-63-M8-25-ZK-SW | SW - RAL 9004 | 63 | M 8 | 25 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 83 |
|
| GN 306-63-M8-32-DZ-OS | OS - RAL 2004 | 63 | M 8 | 32 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 84 |
|
| GN 306-63-M8-32-DZ-RS | RS - RAL 3000 | 63 | M 8 | 32 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 84 |
|
| GN 306-63-M8-32-DZ-SR | SR - RAL 9006 | 63 | M 8 | 32 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 84 |
|
| GN 306-63-M8-32-DZ-SW | SW - RAL 9004 | 63 | M 8 | 32 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 86 |
|
| GN 306-63-M8-32-KD-OS | OS - RAL 2004 | 63 | M 8 | 32 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 85 |
|
| GN 306-63-M8-32-KD-RS | RS - RAL 3000 | 63 | M 8 | 32 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 85 |
|
| GN 306-63-M8-32-KD-SR | SR - RAL 9006 | 63 | M 8 | 32 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 85 |
|
| GN 306-63-M8-32-KD-SW | SW - RAL 9004 | 63 | M 8 | 32 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 87 |
|
| GN 306-63-M8-32-KU-OS | OS - RAL 2004 | 63 | M 8 | 32 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 83 |
|
| GN 306-63-M8-32-KU-RS | RS - RAL 3000 | 63 | M 8 | 32 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 83 |
|
| GN 306-63-M8-32-KU-SR | SR - RAL 9006 | 63 | M 8 | 32 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 83 |
|
| GN 306-63-M8-32-KU-SW | SW - RAL 9004 | 63 | M 8 | 32 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 85 |
|
| GN 306-63-M8-32-MS-OS | OS - RAL 2004 | 63 | M 8 | 32 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 84 |
|
| GN 306-63-M8-32-MS-RS | RS - RAL 3000 | 63 | M 8 | 32 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 84 |
|
| GN 306-63-M8-32-MS-SR | SR - RAL 9006 | 63 | M 8 | 32 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 84 |
|
| GN 306-63-M8-32-MS-SW | SW - RAL 9004 | 63 | M 8 | 32 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 86 |
|
| GN 306-63-M8-32-ZK-OS | OS - RAL 2004 | 63 | M 8 | 32 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 83 |
|
| GN 306-63-M8-32-ZK-RS | RS - RAL 3000 | 63 | M 8 | 32 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 83 |
|
| GN 306-63-M8-32-ZK-SR | SR - RAL 9006 | 63 | M 8 | 32 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 83 |
|
| GN 306-63-M8-32-ZK-SW | SW - RAL 9004 | 63 | M 8 | 32 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 85 |
|
| GN 306-63-M8-40-DZ-OS | OS - RAL 2004 | 63 | M 8 | 40 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 87 |
|
| GN 306-63-M8-40-DZ-RS | RS - RAL 3000 | 63 | M 8 | 40 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 87 |
|
| GN 306-63-M8-40-DZ-SR | SR - RAL 9006 | 63 | M 8 | 40 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 87 |
|
| GN 306-63-M8-40-DZ-SW | SW - RAL 9004 | 63 | M 8 | 40 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 89 |
|
| GN 306-63-M8-40-KD-OS | OS - RAL 2004 | 63 | M 8 | 40 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 87 |
|
| GN 306-63-M8-40-KD-RS | RS - RAL 3000 | 63 | M 8 | 40 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 87 |
|
| GN 306-63-M8-40-KD-SR | SR - RAL 9006 | 63 | M 8 | 40 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 87 |
|
| GN 306-63-M8-40-KD-SW | SW - RAL 9004 | 63 | M 8 | 40 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 89 |
|
| GN 306-63-M8-40-KU-OS | OS - RAL 2004 | 63 | M 8 | 40 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 86 |
|
| GN 306-63-M8-40-KU-RS | RS - RAL 3000 | 63 | M 8 | 40 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 86 |
|
| GN 306-63-M8-40-KU-SR | SR - RAL 9006 | 63 | M 8 | 40 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 86 |
|
| GN 306-63-M8-40-KU-SW | SW - RAL 9004 | 63 | M 8 | 40 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 88 |
|
| GN 306-63-M8-40-MS-OS | OS - RAL 2004 | 63 | M 8 | 40 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 86 |
|
| GN 306-63-M8-40-MS-RS | RS - RAL 3000 | 63 | M 8 | 40 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 86 |
|
| GN 306-63-M8-40-MS-SR | SR - RAL 9006 | 63 | M 8 | 40 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 86 |
|
| GN 306-63-M8-40-MS-SW | SW - RAL 9004 | 63 | M 8 | 40 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 88 |
|
| GN 306-63-M8-40-ZK-OS | OS - RAL 2004 | 63 | M 8 | 40 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 85 |
|
| GN 306-63-M8-40-ZK-RS | RS - RAL 3000 | 63 | M 8 | 40 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 85 |
|
| GN 306-63-M8-40-ZK-SR | SR - RAL 9006 | 63 | M 8 | 40 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 85 |
|
| GN 306-63-M8-40-ZK-SW | SW - RAL 9004 | 63 | M 8 | 40 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 87 |
|
| GN 306-63-M8-50-DZ-OS | OS - RAL 2004 | 63 | M 8 | 50 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 90 |
|
| GN 306-63-M8-50-DZ-RS | RS - RAL 3000 | 63 | M 8 | 50 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 90 |
|
| GN 306-63-M8-50-DZ-SR | SR - RAL 9006 | 63 | M 8 | 50 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 90 |
|
| GN 306-63-M8-50-DZ-SW | SW - RAL 9004 | 63 | M 8 | 50 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 92 |
|
| GN 306-63-M8-50-KD-OS | OS - RAL 2004 | 63 | M 8 | 50 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 90 |
|
| GN 306-63-M8-50-KD-RS | RS - RAL 3000 | 63 | M 8 | 50 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 90 |
|
| GN 306-63-M8-50-KD-SR | SR - RAL 9006 | 63 | M 8 | 50 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 90 |
|
| GN 306-63-M8-50-KD-SW | SW - RAL 9004 | 63 | M 8 | 50 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 92 |
|
| GN 306-63-M8-50-KU-OS | OS - RAL 2004 | 63 | M 8 | 50 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 89 |
|
| GN 306-63-M8-50-KU-RS | RS - RAL 3000 | 63 | M 8 | 50 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 89 |
|
| GN 306-63-M8-50-KU-SR | SR - RAL 9006 | 63 | M 8 | 50 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 89 |
|
| GN 306-63-M8-50-KU-SW | SW - RAL 9004 | 63 | M 8 | 50 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 91 |
|
| GN 306-63-M8-50-MS-OS | OS - RAL 2004 | 63 | M 8 | 50 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 90 |
|
| GN 306-63-M8-50-MS-RS | RS - RAL 3000 | 63 | M 8 | 50 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 90 |
|
| GN 306-63-M8-50-MS-SR | SR - RAL 9006 | 63 | M 8 | 50 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 90 |
|
| GN 306-63-M8-50-MS-SW | SW - RAL 9004 | 63 | M 8 | 50 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 92 |
|
| GN 306-63-M8-50-ZK-OS | OS - RAL 2004 | 63 | M 8 | 50 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 88 |
|
| GN 306-63-M8-50-ZK-RS | RS - RAL 3000 | 63 | M 8 | 50 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 88 |
|
| GN 306-63-M8-50-ZK-SR | SR - RAL 9006 | 63 | M 8 | 50 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 88 |
|
| GN 306-63-M8-50-ZK-SW | SW - RAL 9004 | 63 | M 8 | 50 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 90 |
|
| GN 306-63-M8-63-DZ-OS | OS - RAL 2004 | 63 | M 8 | 63 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 93 |
|
| GN 306-63-M8-63-DZ-RS | RS - RAL 3000 | 63 | M 8 | 63 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 93 |
|
| GN 306-63-M8-63-DZ-SR | SR - RAL 9006 | 63 | M 8 | 63 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 93 |
|
| GN 306-63-M8-63-DZ-SW | SW - RAL 9004 | 63 | M 8 | 63 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 2.5 | - | - | 95 |
|
| GN 306-63-M8-63-KD-OS | OS - RAL 2004 | 63 | M 8 | 63 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 94 |
|
| GN 306-63-M8-63-KD-RS | RS - RAL 3000 | 63 | M 8 | 63 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 94 |
|
| GN 306-63-M8-63-KD-SR | SR - RAL 9006 | 63 | M 8 | 63 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 94 |
|
| GN 306-63-M8-63-KD-SW | SW - RAL 9004 | 63 | M 8 | 63 | 13.5 | 17.5 | - | - | - | - | 18 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.2 | 96 |
|
| GN 306-63-M8-63-KU-OS | OS - RAL 2004 | 63 | M 8 | 63 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 92 |
|
| GN 306-63-M8-63-KU-RS | RS - RAL 3000 | 63 | M 8 | 63 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 92 |
|
| GN 306-63-M8-63-KU-SR | SR - RAL 9006 | 63 | M 8 | 63 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 92 |
|
| GN 306-63-M8-63-KU-SW | SW - RAL 9004 | 63 | M 8 | 63 | 13.5 | 17.5 | - | 5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.6 | - | - | - | 94 |
|
| GN 306-63-M8-63-MS-OS | OS - RAL 2004 | 63 | M 8 | 63 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 93 |
|
| GN 306-63-M8-63-MS-RS | RS - RAL 3000 | 63 | M 8 | 63 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 93 |
|
| GN 306-63-M8-63-MS-SR | SR - RAL 9006 | 63 | M 8 | 63 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 93 |
|
| GN 306-63-M8-63-MS-SW | SW - RAL 9004 | 63 | M 8 | 63 | 13.5 | 17.5 | 6 | - | - | - | - | 31 | 6.5 | 45 | 4 | 1.5 | - | - | - | - | 95 |
|
| GN 306-63-M8-63-ZK-OS | OS - RAL 2004 | 63 | M 8 | 63 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 92 |
|
| GN 306-63-M8-63-ZK-RS | RS - RAL 3000 | 63 | M 8 | 63 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 92 |
|
| GN 306-63-M8-63-ZK-SR | SR - RAL 9006 | 63 | M 8 | 63 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 92 |
|
| GN 306-63-M8-63-ZK-SW | SW - RAL 9004 | 63 | M 8 | 63 | 13.5 | 17.5 | - | - | 6.1 ±0.05 | 6.1 | - | 31 | 6.5 | 45 | 4 | - | - | - | 6.2 | - | 94 |
|
| GN 306-63-M10-20-DZ-OS | OS - RAL 2004 | 63 | M 10 | 20 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 84 |
|
| GN 306-63-M10-20-DZ-RS | RS - RAL 3000 | 63 | M 10 | 20 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 84 |
|
| GN 306-63-M10-20-DZ-SR | SR - RAL 9006 | 63 | M 10 | 20 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 84 |
|
| GN 306-63-M10-20-DZ-SW | SW - RAL 9004 | 63 | M 10 | 20 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 86 |
|
| GN 306-63-M10-20-KD-OS | OS - RAL 2004 | 63 | M 10 | 20 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 85 |
|
| GN 306-63-M10-20-KD-RS | RS - RAL 3000 | 63 | M 10 | 20 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 85 |
|
| GN 306-63-M10-20-KD-SR | SR - RAL 9006 | 63 | M 10 | 20 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 85 |
|
| GN 306-63-M10-20-KD-SW | SW - RAL 9004 | 63 | M 10 | 20 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 87 |
|
| GN 306-63-M10-20-KU-OS | OS - RAL 2004 | 63 | M 10 | 20 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 82 |
|
| GN 306-63-M10-20-KU-RS | RS - RAL 3000 | 63 | M 10 | 20 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 82 |
|
| GN 306-63-M10-20-KU-SR | SR - RAL 9006 | 63 | M 10 | 20 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 82 |
|
| GN 306-63-M10-20-KU-SW | SW - RAL 9004 | 63 | M 10 | 20 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 84 |
|
| GN 306-63-M10-20-MS-OS | OS - RAL 2004 | 63 | M 10 | 20 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 84 |
|
| GN 306-63-M10-20-MS-RS | RS - RAL 3000 | 63 | M 10 | 20 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 84 |
|
| GN 306-63-M10-20-MS-SR | SR - RAL 9006 | 63 | M 10 | 20 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 84 |
|
| GN 306-63-M10-20-MS-SW | SW - RAL 9004 | 63 | M 10 | 20 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 86 |
|
| GN 306-63-M10-20-ZK-OS | OS - RAL 2004 | 63 | M 10 | 20 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 82 |
|
| GN 306-63-M10-20-ZK-RS | RS - RAL 3000 | 63 | M 10 | 20 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 82 |
|
| GN 306-63-M10-20-ZK-SR | SR - RAL 9006 | 63 | M 10 | 20 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 82 |
|
| GN 306-63-M10-20-ZK-SW | SW - RAL 9004 | 63 | M 10 | 20 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 84 |
|
| GN 306-63-M10-25-DZ-OS | OS - RAL 2004 | 63 | M 10 | 25 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 87 |
|
| GN 306-63-M10-25-DZ-RS | RS - RAL 3000 | 63 | M 10 | 25 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 87 |
|
| GN 306-63-M10-25-DZ-SR | SR - RAL 9006 | 63 | M 10 | 25 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 87 |
|
| GN 306-63-M10-25-DZ-SW | SW - RAL 9004 | 63 | M 10 | 25 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 89 |
|
| GN 306-63-M10-25-KD-OS | OS - RAL 2004 | 63 | M 10 | 25 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 88 |
|
| GN 306-63-M10-25-KD-RS | RS - RAL 3000 | 63 | M 10 | 25 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 88 |
|
| GN 306-63-M10-25-KD-SR | SR - RAL 9006 | 63 | M 10 | 25 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 88 |
|
| GN 306-63-M10-25-KD-SW | SW - RAL 9004 | 63 | M 10 | 25 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 90 |
|
| GN 306-63-M10-25-KU-OS | OS - RAL 2004 | 63 | M 10 | 25 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 85 |
|
| GN 306-63-M10-25-KU-RS | RS - RAL 3000 | 63 | M 10 | 25 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 85 |
|
| GN 306-63-M10-25-KU-SR | SR - RAL 9006 | 63 | M 10 | 25 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 85 |
|
| GN 306-63-M10-25-KU-SW | SW - RAL 9004 | 63 | M 10 | 25 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 87 |
|
| GN 306-63-M10-25-MS-OS | OS - RAL 2004 | 63 | M 10 | 25 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 87 |
|
| GN 306-63-M10-25-MS-RS | RS - RAL 3000 | 63 | M 10 | 25 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 87 |
|
| GN 306-63-M10-25-MS-SR | SR - RAL 9006 | 63 | M 10 | 25 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 87 |
|
| GN 306-63-M10-25-MS-SW | SW - RAL 9004 | 63 | M 10 | 25 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 89 |
|
| GN 306-63-M10-25-ZK-OS | OS - RAL 2004 | 63 | M 10 | 25 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 85 |
|
| GN 306-63-M10-25-ZK-RS | RS - RAL 3000 | 63 | M 10 | 25 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 85 |
|
| GN 306-63-M10-25-ZK-SR | SR - RAL 9006 | 63 | M 10 | 25 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 85 |
|
| GN 306-63-M10-25-ZK-SW | SW - RAL 9004 | 63 | M 10 | 25 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 87 |
|
| GN 306-63-M10-32-DZ-OS | OS - RAL 2004 | 63 | M 10 | 32 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 90 |
|
| GN 306-63-M10-32-DZ-RS | RS - RAL 3000 | 63 | M 10 | 32 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 90 |
|
| GN 306-63-M10-32-DZ-SR | SR - RAL 9006 | 63 | M 10 | 32 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 90 |
|
| GN 306-63-M10-32-DZ-SW | SW - RAL 9004 | 63 | M 10 | 32 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 92 |
|
| GN 306-63-M10-32-KD-OS | OS - RAL 2004 | 63 | M 10 | 32 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 91 |
|
| GN 306-63-M10-32-KD-RS | RS - RAL 3000 | 63 | M 10 | 32 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 91 |
|
| GN 306-63-M10-32-KD-SR | SR - RAL 9006 | 63 | M 10 | 32 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 91 |
|
| GN 306-63-M10-32-KD-SW | SW - RAL 9004 | 63 | M 10 | 32 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 93 |
|
| GN 306-63-M10-32-KU-OS | OS - RAL 2004 | 63 | M 10 | 32 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 88 |
|
| GN 306-63-M10-32-KU-RS | RS - RAL 3000 | 63 | M 10 | 32 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 88 |
|
| GN 306-63-M10-32-KU-SR | SR - RAL 9006 | 63 | M 10 | 32 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 88 |
|
| GN 306-63-M10-32-KU-SW | SW - RAL 9004 | 63 | M 10 | 32 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 90 |
|
| GN 306-63-M10-32-MS-OS | OS - RAL 2004 | 63 | M 10 | 32 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 90 |
|
| GN 306-63-M10-32-MS-RS | RS - RAL 3000 | 63 | M 10 | 32 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 90 |
|
| GN 306-63-M10-32-MS-SR | SR - RAL 9006 | 63 | M 10 | 32 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 90 |
|
| GN 306-63-M10-32-MS-SW | SW - RAL 9004 | 63 | M 10 | 32 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 92 |
|
| GN 306-63-M10-32-ZK-OS | OS - RAL 2004 | 63 | M 10 | 32 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 88 |
|
| GN 306-63-M10-32-ZK-RS | RS - RAL 3000 | 63 | M 10 | 32 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 88 |
|
| GN 306-63-M10-32-ZK-SR | SR - RAL 9006 | 63 | M 10 | 32 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 88 |
|
| GN 306-63-M10-32-ZK-SW | SW - RAL 9004 | 63 | M 10 | 32 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 90 |
|
| GN 306-63-M10-40-DZ-OS | OS - RAL 2004 | 63 | M 10 | 40 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 94 |
|
| GN 306-63-M10-40-DZ-RS | RS - RAL 3000 | 63 | M 10 | 40 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 94 |
|
| GN 306-63-M10-40-DZ-SR | SR - RAL 9006 | 63 | M 10 | 40 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 94 |
|
| GN 306-63-M10-40-DZ-SW | SW - RAL 9004 | 63 | M 10 | 40 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 96 |
|
| GN 306-63-M10-40-KD-OS | OS - RAL 2004 | 63 | M 10 | 40 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 95 |
|
| GN 306-63-M10-40-KD-RS | RS - RAL 3000 | 63 | M 10 | 40 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 95 |
|
| GN 306-63-M10-40-KD-SR | SR - RAL 9006 | 63 | M 10 | 40 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 95 |
|
| GN 306-63-M10-40-KD-SW | SW - RAL 9004 | 63 | M 10 | 40 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 97 |
|
| GN 306-63-M10-40-KU-OS | OS - RAL 2004 | 63 | M 10 | 40 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 92 |
|
| GN 306-63-M10-40-KU-RS | RS - RAL 3000 | 63 | M 10 | 40 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 92 |
|
| GN 306-63-M10-40-KU-SR | SR - RAL 9006 | 63 | M 10 | 40 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 92 |
|
| GN 306-63-M10-40-KU-SW | SW - RAL 9004 | 63 | M 10 | 40 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 94 |
|
| GN 306-63-M10-40-MS-OS | OS - RAL 2004 | 63 | M 10 | 40 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 94 |
|
| GN 306-63-M10-40-MS-RS | RS - RAL 3000 | 63 | M 10 | 40 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 94 |
|
| GN 306-63-M10-40-MS-SR | SR - RAL 9006 | 63 | M 10 | 40 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 94 |
|
| GN 306-63-M10-40-MS-SW | SW - RAL 9004 | 63 | M 10 | 40 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 96 |
|
| GN 306-63-M10-40-ZK-OS | OS - RAL 2004 | 63 | M 10 | 40 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 92 |
|
| GN 306-63-M10-40-ZK-RS | RS - RAL 3000 | 63 | M 10 | 40 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 92 |
|
| GN 306-63-M10-40-ZK-SR | SR - RAL 9006 | 63 | M 10 | 40 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 92 |
|
| GN 306-63-M10-40-ZK-SW | SW - RAL 9004 | 63 | M 10 | 40 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 94 |
|
| GN 306-63-M10-50-DZ-OS | OS - RAL 2004 | 63 | M 10 | 50 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 99 |
|
| GN 306-63-M10-50-DZ-RS | RS - RAL 3000 | 63 | M 10 | 50 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 99 |
|
| GN 306-63-M10-50-DZ-SR | SR - RAL 9006 | 63 | M 10 | 50 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 99 |
|
| GN 306-63-M10-50-DZ-SW | SW - RAL 9004 | 63 | M 10 | 50 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 101 |
|
| GN 306-63-M10-50-KD-OS | OS - RAL 2004 | 63 | M 10 | 50 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 100 |
|
| GN 306-63-M10-50-KD-RS | RS - RAL 3000 | 63 | M 10 | 50 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 100 |
|
| GN 306-63-M10-50-KD-SR | SR - RAL 9006 | 63 | M 10 | 50 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 100 |
|
| GN 306-63-M10-50-KD-SW | SW - RAL 9004 | 63 | M 10 | 50 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 102 |
|
| GN 306-63-M10-50-KU-OS | OS - RAL 2004 | 63 | M 10 | 50 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 97 |
|
| GN 306-63-M10-50-KU-RS | RS - RAL 3000 | 63 | M 10 | 50 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 97 |
|
| GN 306-63-M10-50-KU-SR | SR - RAL 9006 | 63 | M 10 | 50 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 97 |
|
| GN 306-63-M10-50-KU-SW | SW - RAL 9004 | 63 | M 10 | 50 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 99 |
|
| GN 306-63-M10-50-MS-OS | OS - RAL 2004 | 63 | M 10 | 50 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 99 |
|
| GN 306-63-M10-50-MS-RS | RS - RAL 3000 | 63 | M 10 | 50 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 99 |
|
| GN 306-63-M10-50-MS-SR | SR - RAL 9006 | 63 | M 10 | 50 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 99 |
|
| GN 306-63-M10-50-MS-SW | SW - RAL 9004 | 63 | M 10 | 50 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 101 |
|
| GN 306-63-M10-50-ZK-OS | OS - RAL 2004 | 63 | M 10 | 50 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 97 |
|
| GN 306-63-M10-50-ZK-RS | RS - RAL 3000 | 63 | M 10 | 50 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 97 |
|
| GN 306-63-M10-50-ZK-SR | SR - RAL 9006 | 63 | M 10 | 50 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 97 |
|
| GN 306-63-M10-50-ZK-SW | SW - RAL 9004 | 63 | M 10 | 50 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 99 |
|
| GN 306-63-M10-63-DZ-OS | OS - RAL 2004 | 63 | M 10 | 63 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 105 |
|
| GN 306-63-M10-63-DZ-RS | RS - RAL 3000 | 63 | M 10 | 63 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 105 |
|
| GN 306-63-M10-63-DZ-SR | SR - RAL 9006 | 63 | M 10 | 63 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 105 |
|
| GN 306-63-M10-63-DZ-SW | SW - RAL 9004 | 63 | M 10 | 63 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | - | - | 3.5 | - | - | 107 |
|
| GN 306-63-M10-63-KD-OS | OS - RAL 2004 | 63 | M 10 | 63 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 106 |
|
| GN 306-63-M10-63-KD-RS | RS - RAL 3000 | 63 | M 10 | 63 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 106 |
|
| GN 306-63-M10-63-KD-SR | SR - RAL 9006 | 63 | M 10 | 63 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 106 |
|
| GN 306-63-M10-63-KD-SW | SW - RAL 9004 | 63 | M 10 | 63 | 13.5 | 17.5 | - | - | - | - | 21 | 31 | 6.5 | 45 | 4 | - | - | - | - | 4.3 | 108 |
|
| GN 306-63-M10-63-KU-OS | OS - RAL 2004 | 63 | M 10 | 63 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 104 |
|
| GN 306-63-M10-63-KU-RS | RS - RAL 3000 | 63 | M 10 | 63 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 104 |
|
| GN 306-63-M10-63-KU-SR | SR - RAL 9006 | 63 | M 10 | 63 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 104 |
|
| GN 306-63-M10-63-KU-SW | SW - RAL 9004 | 63 | M 10 | 63 | 13.5 | 17.5 | - | 6.5 | - | - | - | 31 | 6.5 | 45 | 4 | - | 1.9 | - | - | - | 106 |
|
| GN 306-63-M10-63-MS-OS | OS - RAL 2004 | 63 | M 10 | 63 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 105 |
|
| GN 306-63-M10-63-MS-RS | RS - RAL 3000 | 63 | M 10 | 63 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 105 |
|
| GN 306-63-M10-63-MS-SR | SR - RAL 9006 | 63 | M 10 | 63 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 105 |
|
| GN 306-63-M10-63-MS-SW | SW - RAL 9004 | 63 | M 10 | 63 | 13.5 | 17.5 | 8 | - | - | - | - | 31 | 6.5 | 45 | 4 | 2 | - | - | - | - | 107 |
|
| GN 306-63-M10-63-ZK-OS | OS - RAL 2004 | 63 | M 10 | 63 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 103 |
|
| GN 306-63-M10-63-ZK-RS | RS - RAL 3000 | 63 | M 10 | 63 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 103 |
|
| GN 306-63-M10-63-ZK-SR | SR - RAL 9006 | 63 | M 10 | 63 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 103 |
|
| GN 306-63-M10-63-ZK-SW | SW - RAL 9004 | 63 | M 10 | 63 | 13.5 | 17.5 | - | - | 7.8 ±0.05 | 7.8 | - | 31 | 6.5 | 45 | 4 | - | - | - | 7.3 | - | 105 |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
GN 300.1Adjustable hand leversZinc die casting, Bushing / Threaded bolt Stainless SteelView Product -
MR.Adjustable handlesTechnopolymerView Product
-
ERX.Adjustable handlesTechnopolymerView Product
-
VC.692-SST-p-PLobe knobs with solid sectionTechnopolymer, padView Product
-
EWN-SST-p-PWing knobsTechnopolymer, padView Product
-
GN 903Toggle clamp spindle assembliesSteel / Stainless Steel, with swivel plastic thrust padView Product
-
GN 300.5Adjustable Stainless Steel-Hand leversMatte shot-blasted, with bushing / with threaded studView Product
