GN 284

Swivel clamp connector joints

Aluminium

Enquire Now

Description

Specification

Identification No.

No. 2: with 3 Stainless Steel-Clamping screws DIN 912

Types

Type S: stepless adjustment

Type T: adjustment by 15°-division (serration)

Aluminium

plastic coated

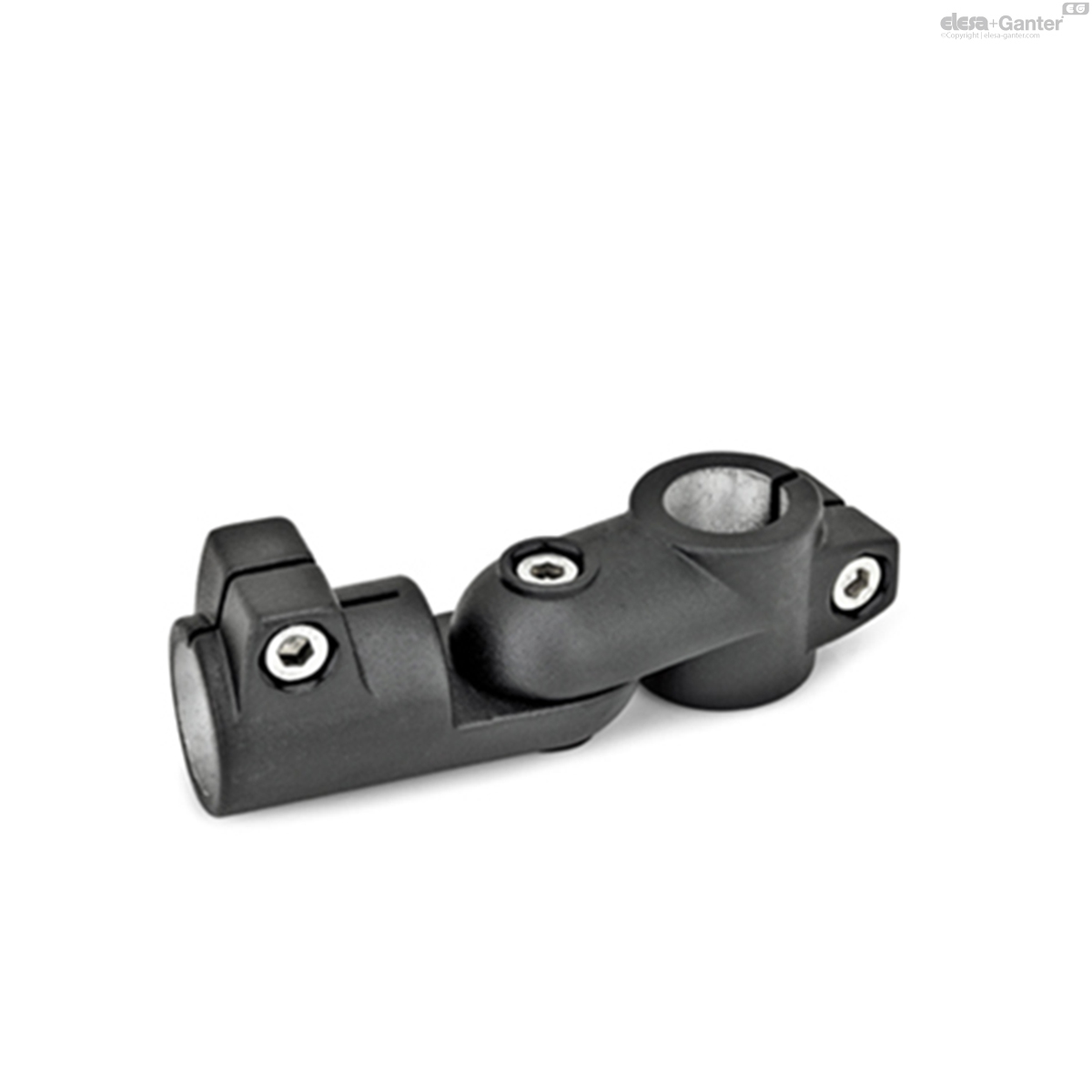

black RAL 9005, textured finish SW

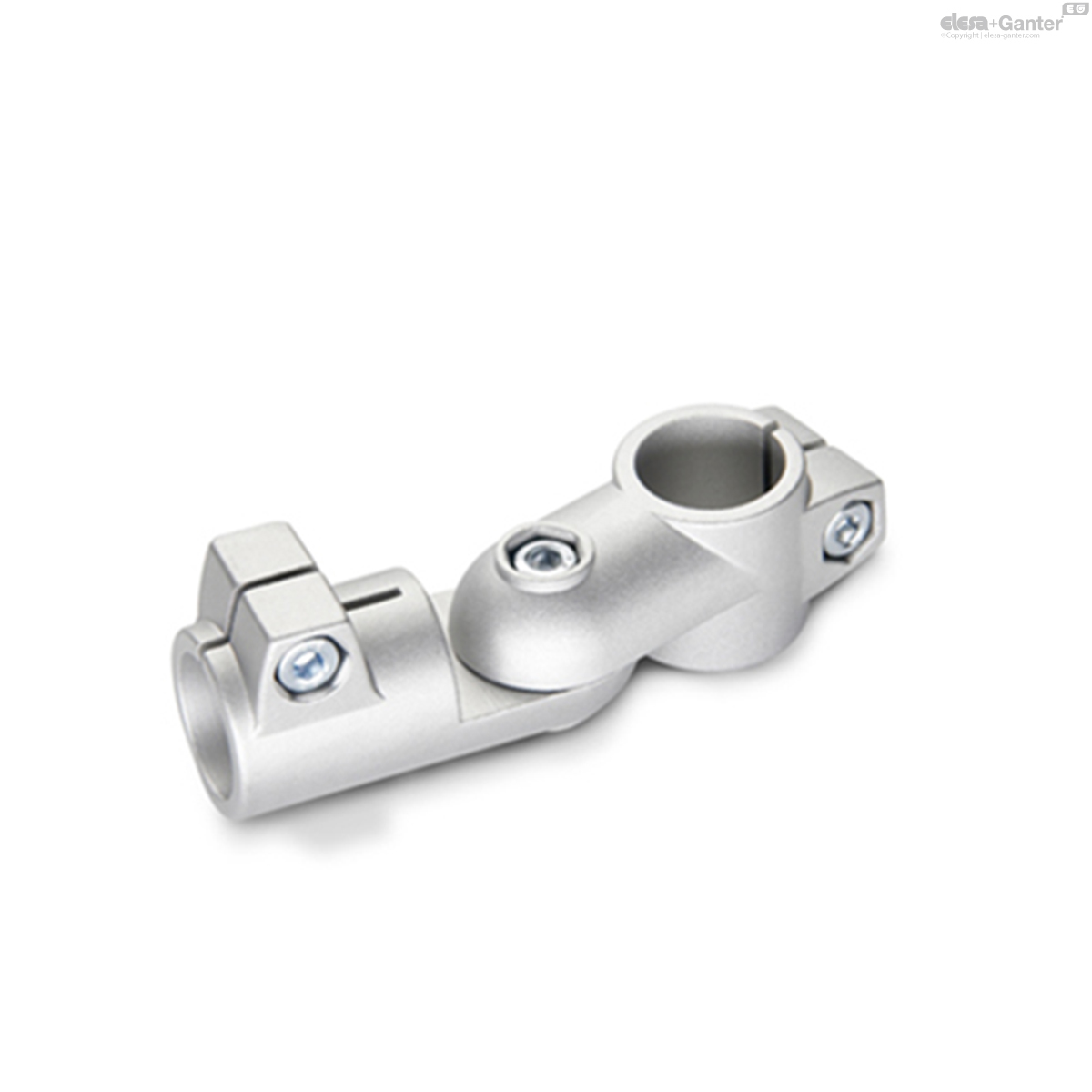

blank BL

matt shot-blasted

Clamping bores mechanically machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

Information

GN 284 swivel clamp connector joints are an assembly of the swivel clamp connectors GN 274 and GN 276 .

For the type with stepless adjustment (Type S) swivel clamp connectors with a centring step are used. Within the identical swivel width “b”, all bores „d₁ / d₂' can be combined as required.

The clamping bore is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by adjustable clamping levers GN 911 (see table of dimensions).

Accessory

Clamping kits GN 911

Technical information

Stainless Steel characteristics

GN 284

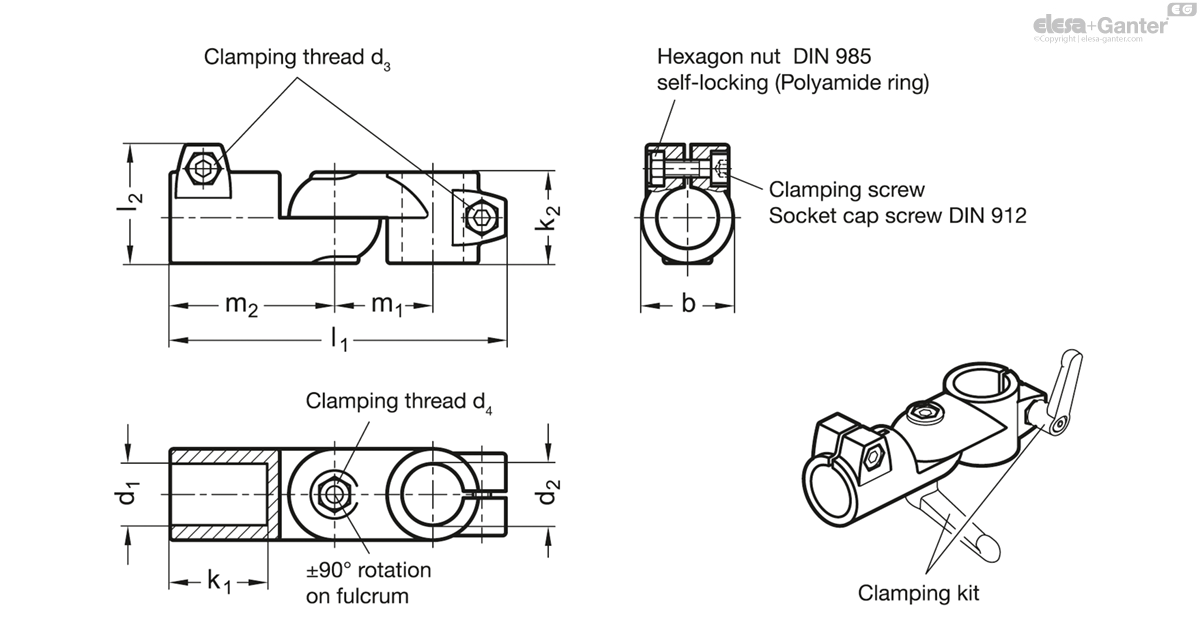

	Color	d₁	d₂	b	d₃	d₄	k₁	k₂	l₁	l₂	m₁	m₂	Clamping kit for d₃	Clamping kit for d₄
Code																Actions
GN 284-B20-B20-S-2-BL	BL - Blank	B 20	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	410
GN 284-B20-B20-S-2-SW	SW - RAL 9004	B 20	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	410
GN 284-B20-B20-T-2-BL	BL - Blank	B 20	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	410
GN 284-B20-B20-T-2-SW	SW - RAL 9004	B 20	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	410
GN 284-B20-B25-S-2-BL	BL - Blank	B 20	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	405
GN 284-B20-B25-S-2-SW	SW - RAL 9004	B 20	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	405
GN 284-B20-B25-T-2-BL	BL - Blank	B 20	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	405
GN 284-B20-B25-T-2-SW	SW - RAL 9004	B 20	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	405
GN 284-B20-B30-S-2-BL	BL - Blank	B 20	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	400
GN 284-B20-B30-S-2-SW	SW - RAL 9004	B 20	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	400
GN 284-B20-B30-T-2-BL	BL - Blank	B 20	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	400
GN 284-B20-B30-T-2-SW	SW - RAL 9004	B 20	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	400
GN 284-B25-B20-S-2-BL	BL - Blank	B 25	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	405
GN 284-B25-B20-S-2-SW	SW - RAL 9004	B 25	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	405
GN 284-B25-B20-T-2-BL	BL - Blank	B 25	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	405
GN 284-B25-B20-T-2-SW	SW - RAL 9004	B 25	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	405
GN 284-B25-B25-S-2-BL	BL - Blank	B 25	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	375
GN 284-B25-B25-S-2-SW	SW - RAL 9004	B 25	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	375
GN 284-B25-B25-T-2-BL	BL - Blank	B 25	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	375
GN 284-B25-B25-T-2-SW	SW - RAL 9004	B 25	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	375
GN 284-B25-B30-S-2-BL	BL - Blank	B 25	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	405
GN 284-B25-B30-S-2-SW	SW - RAL 9004	B 25	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	405
GN 284-B25-B30-T-2-BL	BL - Blank	B 25	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	405
GN 284-B25-B30-T-2-SW	SW - RAL 9004	B 25	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	405
GN 284-B30-B20-S-2-BL	BL - Blank	B 30	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	405
GN 284-B30-B20-S-2-SW	SW - RAL 9004	B 30	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	405
GN 284-B30-B20-T-2-BL	BL - Blank	B 30	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	405
GN 284-B30-B20-T-2-SW	SW - RAL 9004	B 30	B 20	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	405
GN 284-B30-B25-S-2-BL	BL - Blank	B 30	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	405
GN 284-B30-B25-S-2-SW	SW - RAL 9004	B 30	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	405
GN 284-B30-B25-T-2-BL	BL - Blank	B 30	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	405
GN 284-B30-B25-T-2-SW	SW - RAL 9004	B 30	B 25	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	405
GN 284-B30-B30-S-2-BL	BL - Blank	B 30	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	325
GN 284-B30-B30-S-2-SW	SW - RAL 9004	B 30	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GN 911-M8-35	325
GN 284-B30-B30-T-2-BL	BL - Blank	B 30	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	325
GN 284-B30-B30-T-2-SW	SW - RAL 9004	B 30	B 30	40	M 8	M 8	42.5	40	147	52	43	72	GN 911-M8-32	GM 911-M8-35	325
GN 284-B40-B40-S-2-BL	BL - Blank	B 40	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1510
GN 284-B40-B40-S-2-SW	SW - RAL 9004	B 40	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1510
GN 284-B40-B40-T-2-BL	BL - Blank	B 40	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1510
GN 284-B40-B40-T-2-SW	SW - RAL 9004	B 40	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1510
GN 284-B40-B42-S-2-BL	BL - Blank	B 40	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B42-S-2-SW	SW - RAL 9004	B 40	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B42-T-2-BL	BL - Blank	B 40	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B42-T-2-SW	SW - RAL 9004	B 40	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B45-S-2-BL	BL - Blank	B 40	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B45-S-2-SW	SW - RAL 9004	B 40	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B45-T-2-BL	BL - Blank	B 40	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B45-T-2-SW	SW - RAL 9004	B 40	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B48-S-2-BL	BL - Blank	B 40	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B48-S-2-SW	SW - RAL 9004	B 40	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B48-T-2-BL	BL - Blank	B 40	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B48-T-2-SW	SW - RAL 9004	B 40	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B50-S-2-BL	BL - Blank	B 40	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B50-S-2-SW	SW - RAL 9004	B 40	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B50-T-2-BL	BL - Blank	B 40	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B40-B50-T-2-SW	SW - RAL 9004	B 40	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1500
GN 284-B42-B40-S-2-BL	BL - Blank	B 42	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1485
GN 284-B42-B40-S-2-SW	SW - RAL 9004	B 42	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1485
GN 284-B42-B40-T-2-BL	BL - Blank	B 42	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1485
GN 284-B42-B40-T-2-SW	SW - RAL 9004	B 42	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1485
GN 284-B42-B42-S-2-BL	BL - Blank	B 42	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1470
GN 284-B42-B42-S-2-SW	SW - RAL 9004	B 42	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1470
GN 284-B42-B42-T-2-BL	BL - Blank	B 42	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1470
GN 284-B42-B42-T-2-SW	SW - RAL 9004	B 42	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1470
GN 284-B42-B45-S-2-BL	BL - Blank	B 42	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1435
GN 284-B42-B45-S-2-SW	SW - RAL 9004	B 42	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1435
GN 284-B42-B45-T-2-BL	BL - Blank	B 42	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1435
GN 284-B42-B45-T-2-SW	SW - RAL 9004	B 42	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1435
GN 284-B42-B48-S-2-BL	BL - Blank	B 42	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1410
GN 284-B42-B48-S-2-SW	SW - RAL 9004	B 42	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1410
GN 284-B42-B48-T-2-BL	BL - Blank	B 42	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1410
GN 284-B42-B48-T-2-SW	SW - RAL 9004	B 42	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1410
GN 284-B42-B50-S-2-BL	BL - Blank	B 42	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1370
GN 284-B42-B50-S-2-SW	SW - RAL 9004	B 42	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1370
GN 284-B42-B50-T-2-BL	BL - Blank	B 42	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1370
GN 284-B42-B50-T-2-SW	SW - RAL 9004	B 42	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1370
GN 284-B45-B40-S-2-BL	BL - Blank	B 45	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B45-B40-S-2-SW	SW - RAL 9004	B 45	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B45-B40-T-2-BL	BL - Blank	B 45	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B45-B40-T-2-SW	SW - RAL 9004	B 45	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B45-B42-S-2-BL	BL - Blank	B 45	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B45-B42-S-2-SW	SW - RAL 9004	B 45	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B45-B42-T-2-BL	BL - Blank	B 45	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B45-B42-T-2-SW	SW - RAL 9004	B 45	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B45-B45-S-2-BL	BL - Blank	B 45	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B45-B45-S-2-SW	SW - RAL 9004	B 45	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B45-B45-T-2-BL	BL - Blank	B 45	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B45-B45-T-2-SW	SW - RAL 9004	B 45	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B45-B48-S-2-BL	BL - Blank	B 45	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1355
GN 284-B45-B48-S-2-SW	SW - RAL 9004	B 45	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1355
GN 284-B45-B48-T-2-BL	BL - Blank	B 45	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1355
GN 284-B45-B48-T-2-SW	SW - RAL 9004	B 45	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1355
GN 284-B45-B50-S-2-BL	BL - Blank	B 45	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B45-B50-S-2-SW	SW - RAL 9004	B 45	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B45-B50-T-2-BL	BL - Blank	B 45	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B45-B50-T-2-SW	SW - RAL 9004	B 45	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B48-B40-S-2-BL	BL - Blank	B 48	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B40-S-2-SW	SW - RAL 9004	B 48	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B40-T-2-BL	BL - Blank	B 48	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B40-T-2-SW	SW - RAL 9004	B 48	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B42-S-2-BL	BL - Blank	B 48	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B42-S-2-SW	SW - RAL 9004	B 48	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B42-T-2-BL	BL - Blank	B 48	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B42-T-2-SW	SW - RAL 9004	B 48	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B45-S-2-BL	BL - Blank	B 48	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B45-S-2-SW	SW - RAL 9004	B 48	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B45-T-2-BL	BL - Blank	B 48	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B45-T-2-SW	SW - RAL 9004	B 48	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B48-S-2-BL	BL - Blank	B 48	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1350
GN 284-B48-B48-S-2-SW	SW - RAL 9004	B 48	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1350
GN 284-B48-B48-T-2-BL	BL - Blank	B 48	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1350
GN 284-B48-B48-T-2-SW	SW - RAL 9004	B 48	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1350
GN 284-B48-B50-S-2-BL	BL - Blank	B 48	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B50-S-2-SW	SW - RAL 9004	B 48	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B50-T-2-BL	BL - Blank	B 48	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B48-B50-T-2-SW	SW - RAL 9004	B 48	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1400
GN 284-B50-B40-S-2-BL	BL - Blank	B 50	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B40-S-2-SW	SW - RAL 9004	B 50	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B40-T-2-BL	BL - Blank	B 50	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B40-T-2-SW	SW - RAL 9004	B 50	B 40	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B42-S-2-BL	BL - Blank	B 50	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B42-S-2-SW	SW - RAL 9004	B 50	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B42-T-2-BL	BL - Blank	B 50	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B42-T-2-SW	SW - RAL 9004	B 50	B 42	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B45-S-2-BL	BL - Blank	B 50	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B45-S-2-SW	SW - RAL 9004	B 50	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B45-T-2-BL	BL - Blank	B 50	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B45-T-2-SW	SW - RAL 9004	B 50	B 45	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B48-S-2-BL	BL - Blank	B 50	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B48-S-2-SW	SW - RAL 9004	B 50	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B48-T-2-BL	BL - Blank	B 50	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B48-T-2-SW	SW - RAL 9004	B 50	B 48	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1380
GN 284-B50-B50-S-2-BL	BL - Blank	B 50	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1270
GN 284-B50-B50-S-2-SW	SW - RAL 9004	B 50	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1270
GN 284-B50-B50-T-2-BL	BL - Blank	B 50	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1270
GN 284-B50-B50-T-2-SW	SW - RAL 9004	B 50	B 50	65	M 10	M 10	74	65	230	77.5	70	115	GN 911-M10-55	GN 911-M10-63	1270
