GN 212
Tension levers
Steel / Stainless Steel
Description
Specification
Types
- Type C: Angled lever with plain bore H7
- Type E: Angled lever with threaded bore
- Type B: Straight lever with plain bore H7
- Type D: Straight lever with threaded bore
Version in Steel, blackened
Ball knobs DIN 319Â
Plastic, Duroplast
black, shiny finish
Version in Stainless Steel AISI 303 NI
- matt shot-blasted
- only type E
Ball knobs DIN 319Â
Plastic, Duroplast
black, shiny finish
Information
Tension levers GN 212 are used as clamping element as well as operating levers.
Techncial information
- Cross holes GN 110
- ISO Fundamental TolerancesÂ
- Stainless Steel characteristicsÂ
GN 212-NI

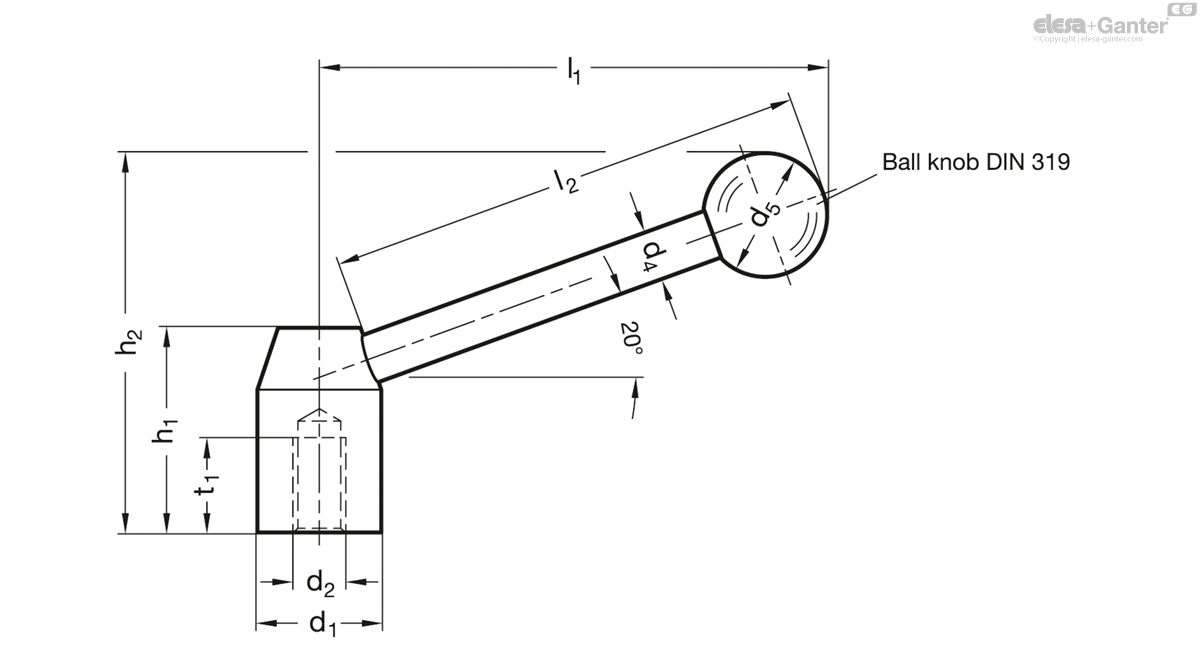

| d1 | d2 | d4 | d5 | h1 | h2 ≈ | l1 ≈ | l2 ≈ | t1 min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 212-22-M8-E-NI | 22 | M 8 | 8 | 20 | 37 | 67 | 89.5 | 85 | 18 | 121 |
|
| GN 212-25-M10-E-NI | 25 | M 10 | 10 | 25 | 42 | 76 | 100.5 | 95 | 18 | 186 |
|
| GN 212-28-M12-E-NI | 28 | M 12 | 12 | 30 | 47 | 87 | 114 | 108 | 20 | 276 |
|
| GN 212-32-M16-E-NI | 32 | M 16 | 12 | 32 | 52 | 98 | 133 | 126 | 25 | 358 |
|
