GN 211

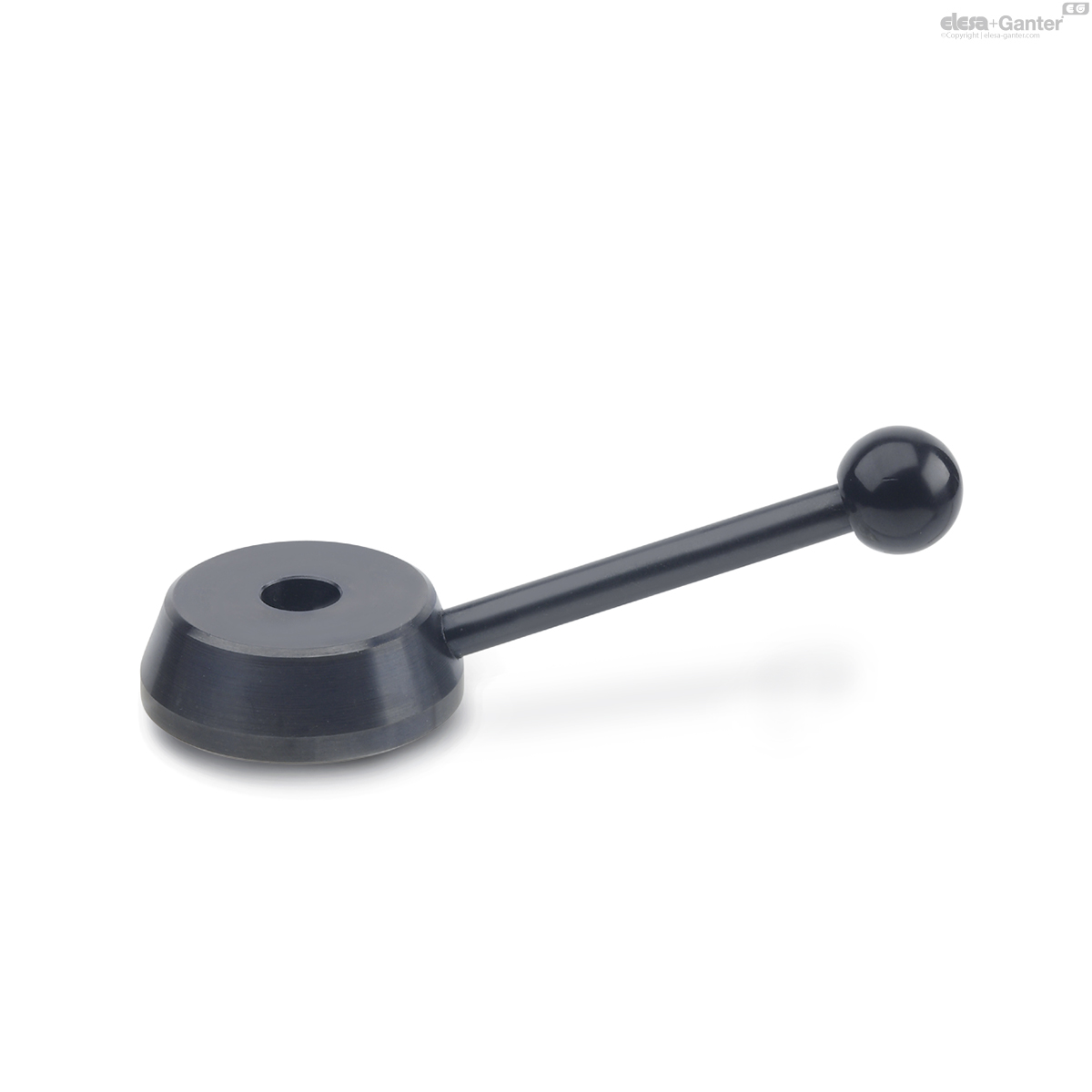

Control levers

Steel, blackened

Enquire Now

Description

Specification

Steel

blackened

Ball knobs DIN 319 -

Plastic, Duroplast

black, shiny finish

Information

Control levers GN 211 can be used in connection with indexing elements, grooves for angle limitations and such like due to their comparably big hub diameter.

Spring plungers as well as indexing plungers can be used as indexing elements.

Control levers GN 211 can also be supplied as standard with:

Square DIN 79 |b bb| + Bore-Ø

Keyway DIN 6885 K + Bore-Ø

Technical information

Keyway P9 DIN 6885 -

ISO-Fundamental Tolerances

GN 211

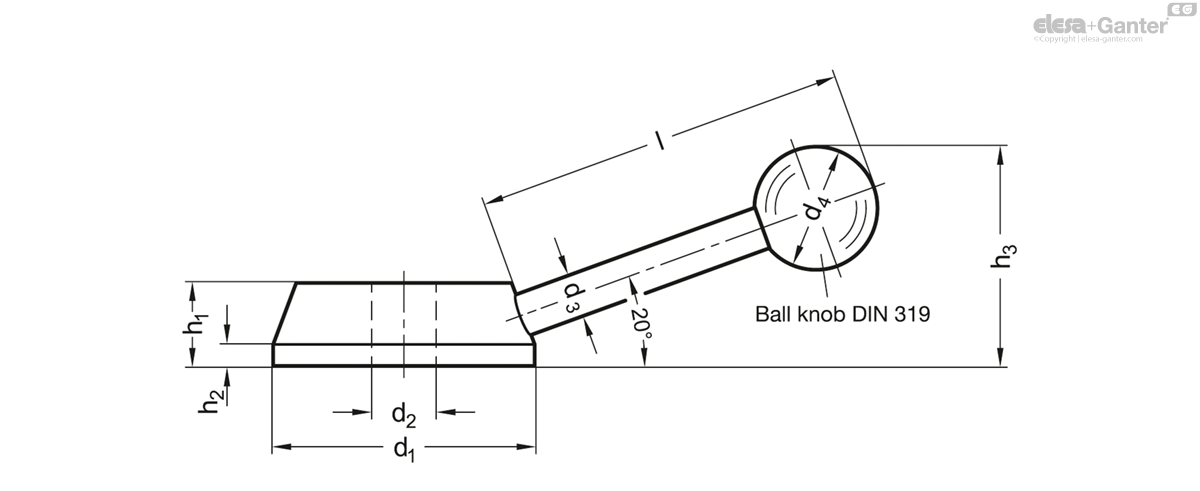

	d₁	d₂ H7	d₃	d₄	h₁	h₂	h₃ ≈	l ≈
Code										Actions
GN 211-50-B12	50	B 12	8	20	17	5	45	82	244
GN 211-55-B14	55	B 14	10	25	18	5	52	96	321
GN 211-65-B16	65	B 16	12	30	20	5	60	110	519
GN 211-80-B20	80	B 20	14	35	24	6	74	138	951
