GN 206

Clamp nuts

Malleable Cast Iron / Stainless Steel

__logo__INOX__

__logo__RoHS__

Enquire Now

gn-206

Malleable Cast Iron

gn-206-ni

Stainless Steel

Description

Specification

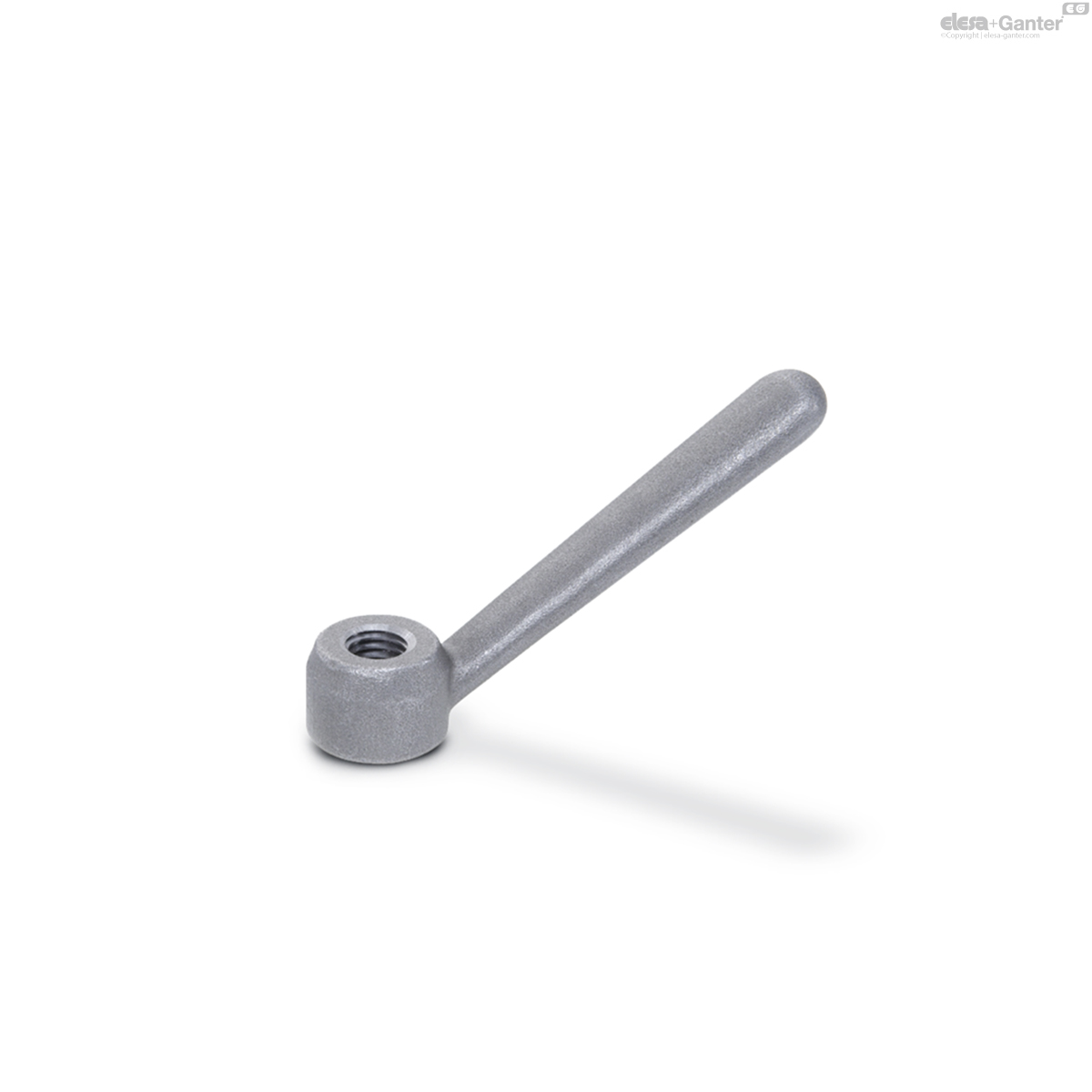

Version in malleable cast iron

Fettled

Contact face machined

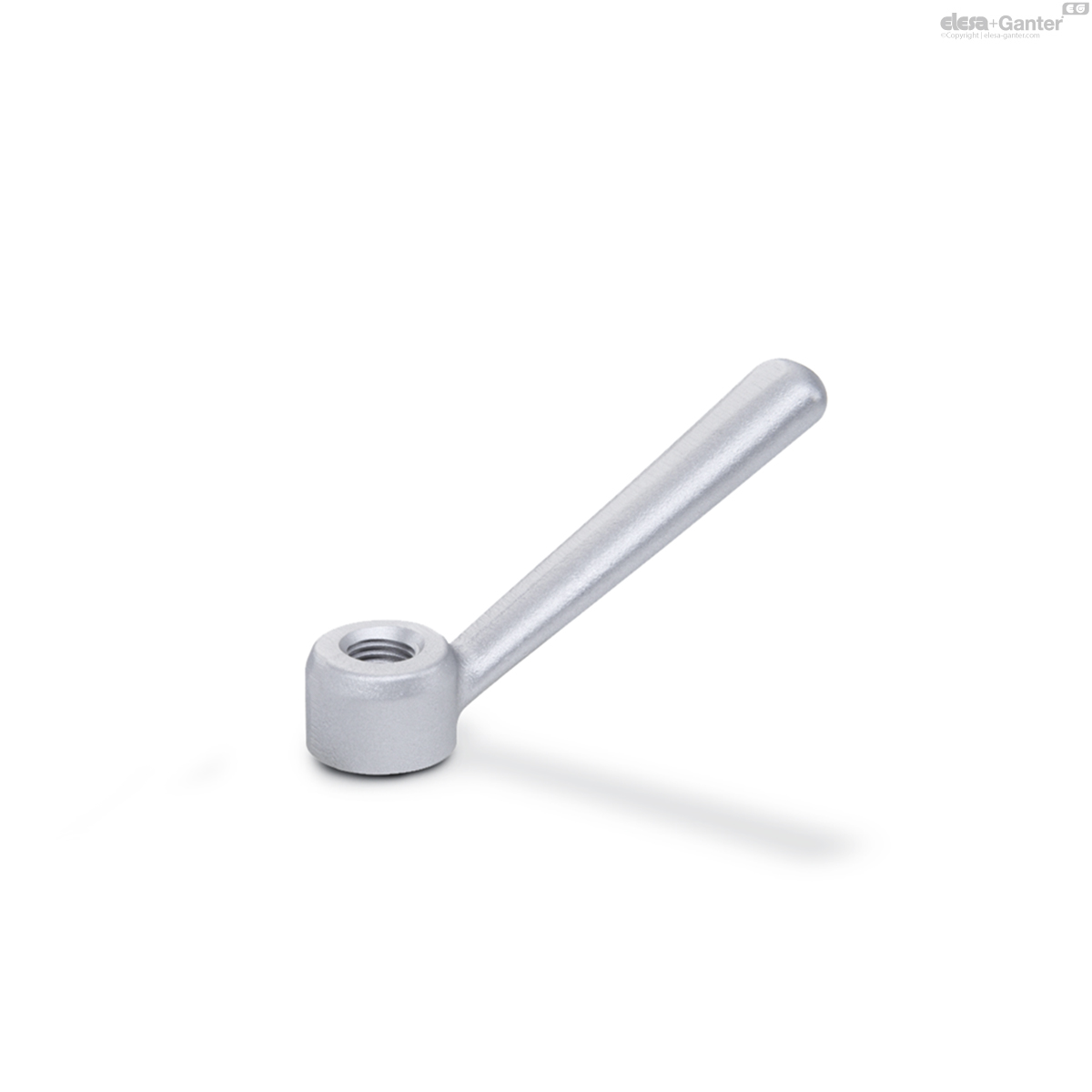

Version in Stainless Steel precision casting AISI CF-8 NI

Fettled

Contact face machined

On request

Clamp nuts GN 206, powder coated

Technical information

Stainless Steel Characteristics

GN 206

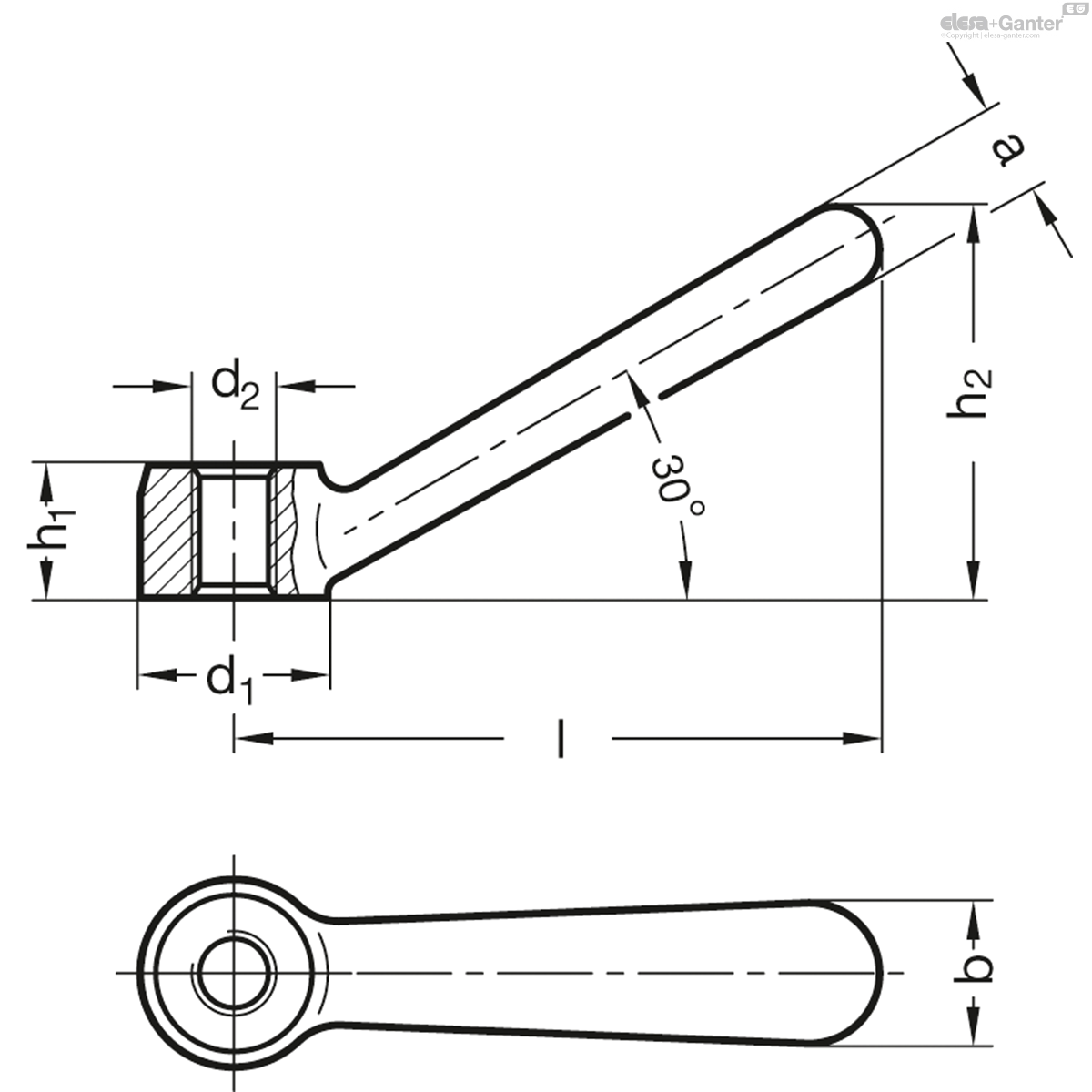

	d₁	d₂	a	b	h₁	h₂ ≈	l ≈
Code									Actions
GN 206-16-M8	16	M 8	7	12	12	35	56	34
GN 206-20-M10	20	M 10	9	14	14	44	70	63
GN 206-25-M12	25	M 12	11	18	18	52	87	125
GN 206-32-M16	32	M 16	15	22	22	66	109	248
GN 206-40-M20	40	M 20	18	28	28	84	140	518
