Home Tube Clamp Connectors Tube clamp connectors GN 197

GN 197

Monitor mounts

Aluminum

Enquire Now

Description

Specification

Type

Type A: with connecting stud

Aluminum

Connection plate blank, ground BL

Connection stud blank, turned

Countersunk screws DIN 7991

Stainless Steel AISI 304

Information

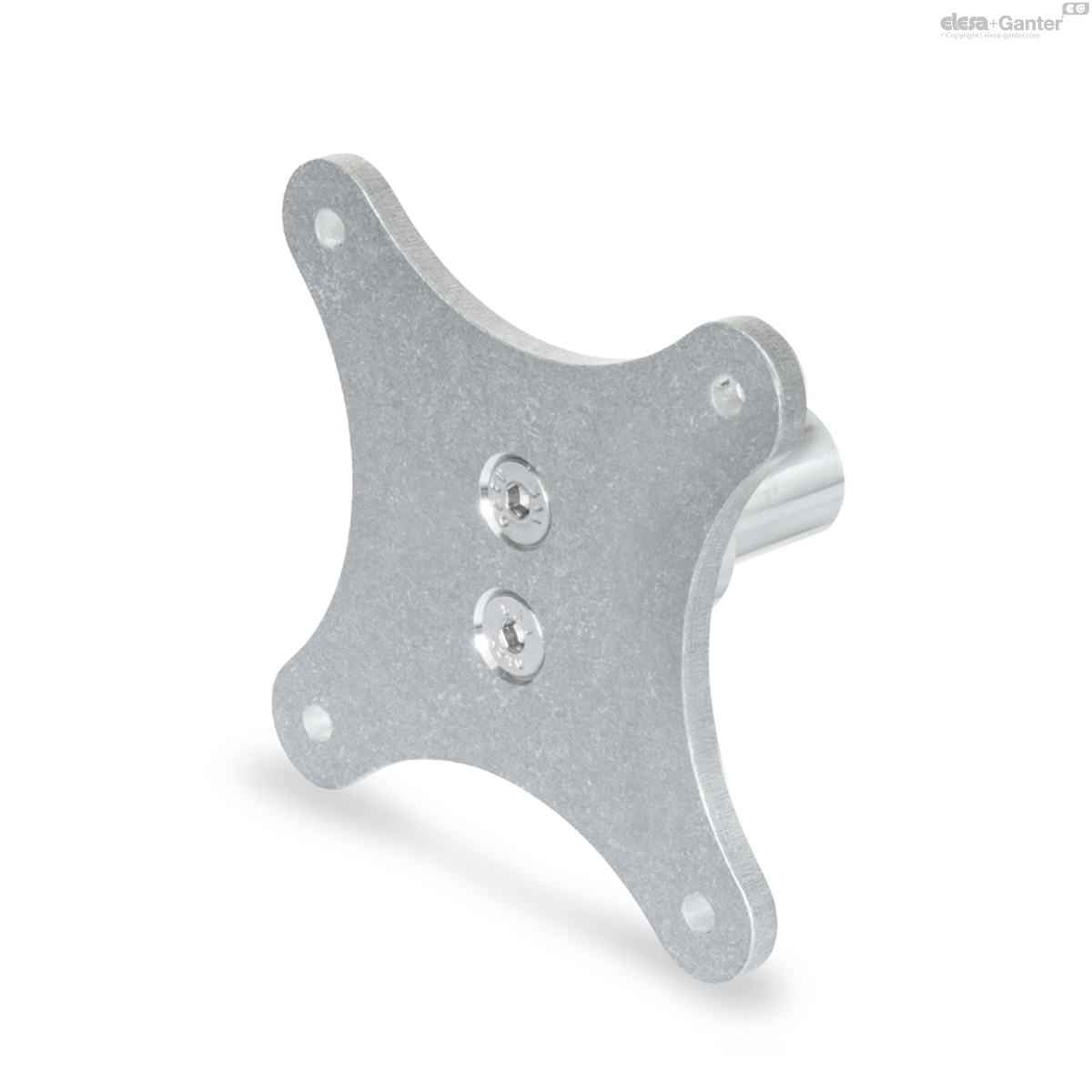

Monitor mounts GN 197 have a hole pattern according to the VESA standard.

The connecting studs can be combined with diverse components within the tube clamp connector program in order to realize a wide range of fastening variants, degrees of freedom and adjusting options.

On request

with additional VESA hole patterns

Technical information

Stainless Steel characteristics

Application examples

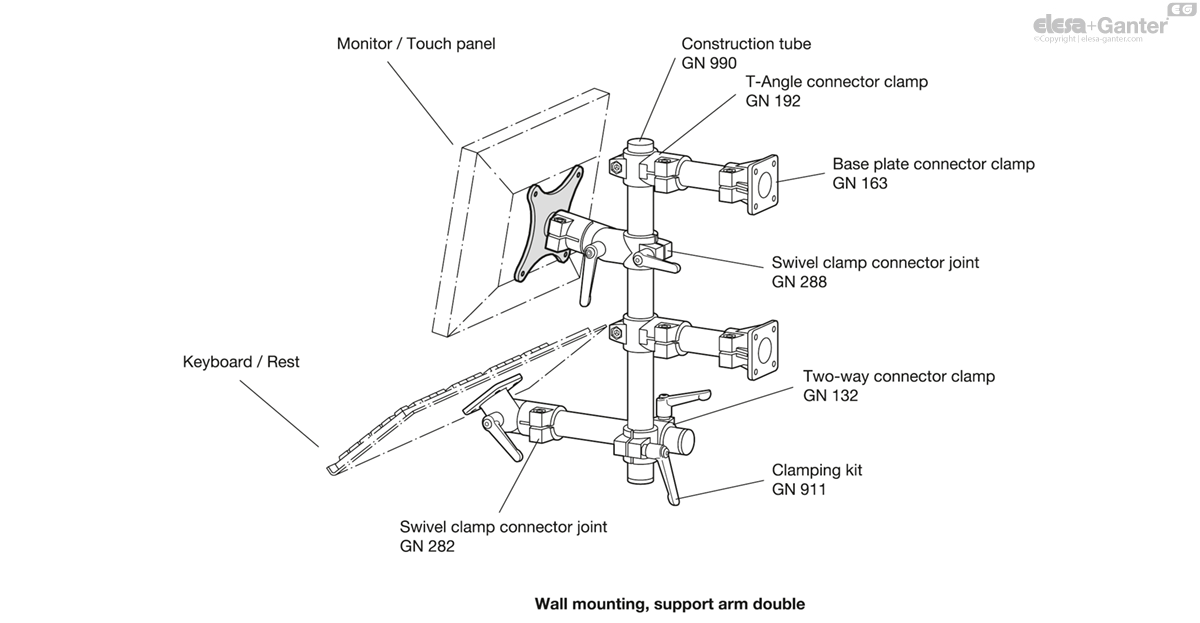

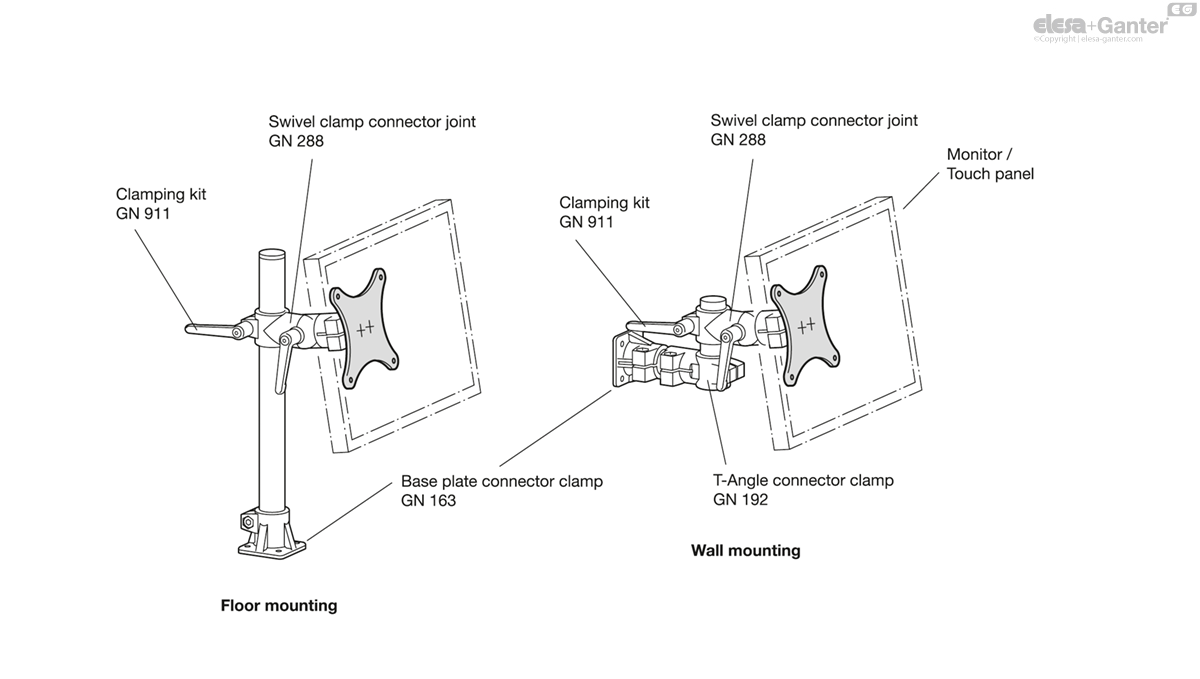

Depending on the requirements, monitor mounts GN 197 can be expanded with tube clamp connectors and construction tubes GN 990 to create complete solutions for wall or floor mounting. It is also easy to affix other accessories nearby, such as keyboards or hand scanners.

GN 197

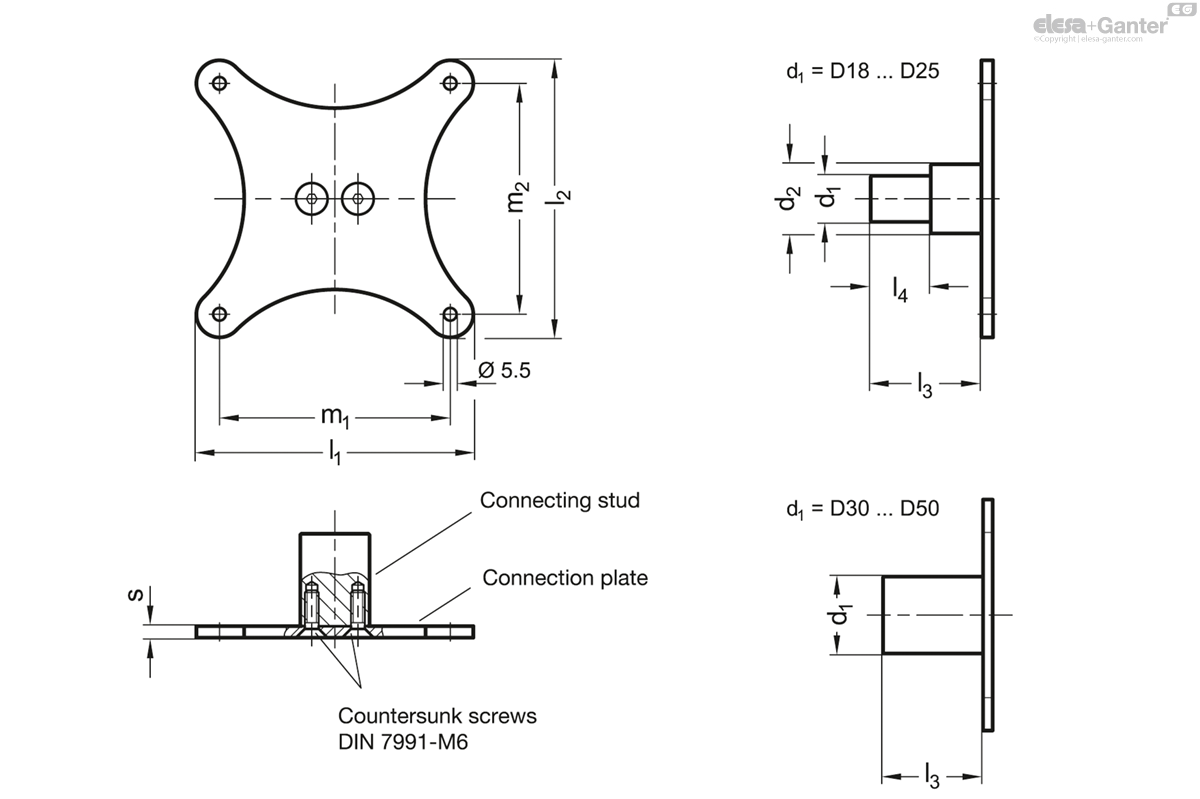

	d₁	m₁	m₂	d₂	l₁	l₂	l₃	l₄	s
Code											Actions
GN 197-D18-75-75-A-BL	D 18	75	75	30	95	95	46	24	5	158
GN 197-D18-100-100-A-BL	D 18	100	100	30	120	120	46	24	5	200
GN 197-D20-75-75-A-BL	D 20	75	75	30	95	95	48	26	5	166
GN 197-D20-100-100-A-BL	D 20	100	100	30	120	120	48	26	5	200
GN 197-D25-75-75-A-BL	D 25	75	75	30	95	95	54	32	5	188
GN 197-D25-100-100-A-BL	D 25	100	100	30	120	120	54	32	5	224
GN 197-D30-75-75-A-BL	D 30	75	75	-	95	95	40	-	5	180
GN 197-D30-100-100-A-BL	D 30	100	100	-	120	120	40	-	5	222
GN 197-D40-75-75-A-BL	D 40	75	75	-	95	95	52	-	5	282
GN 197-D40-100-100-A-BL	D 40	100	100	-	120	120	52	-	5	322
GN 197-D50-75-75-A-BL	D 50	75	75	-	95	95	65	-	5	427
GN 197-D50-100-100-A-BL	D 50	100	100	-	120	120	65	-	5	468
