GN 112.1

Control handles

Zinc die casting

Enquire Now

Description

Specification

Body

Zinc die casting

plastic coated

black, textured finish

Cylindrical Revolving handles GN 598

Information

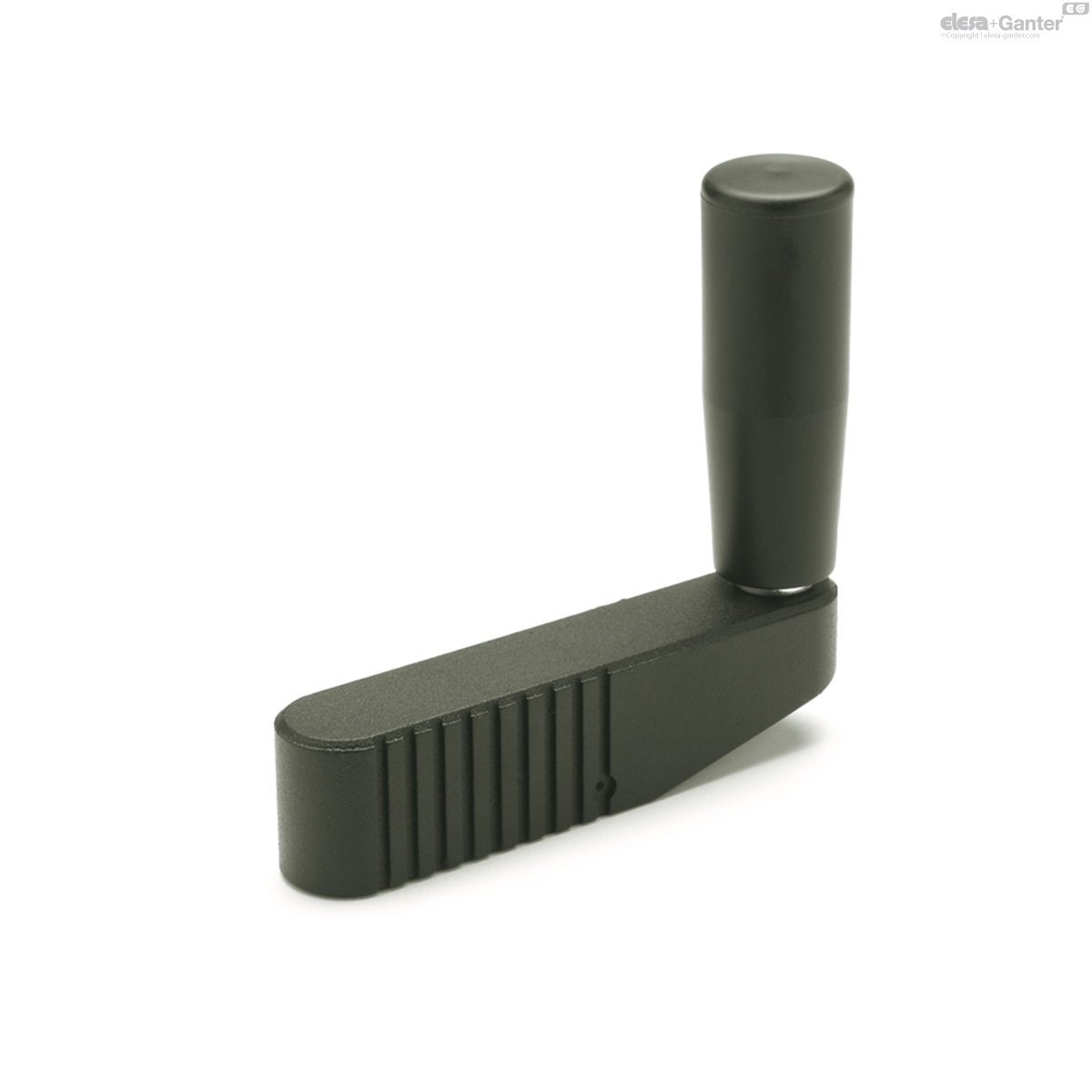

Control handles GN 112.1 allow fine adjustment.

They are connected to a shaft by means of a cross pin. To simplify the installation threre is a centred drilling on both sides.

Technical information

	l₁	d H7	b	h₁	h₂	h₃ ≈	l₂	t min.	Ø Handle
Code											Actions
GN 112.1-70-S8	70	S 8	17	19	11.5	42.5	26.5	12	18	125
GN 112.1-80-S8	80	S 8	18	21	12.5	52.5	31	12	21	170
GN 112.1-90-S10	90	S 10	19	23	13.5	52.5	35.5	15	21	251
GN 112.1-100-S10	100	S 10	20	25	14	67.5	40	17	23	320
GN 112.1-100-S12	100	S 12	20	25	14	67.5	40	17	23	320
