F.N - F.K - F.GS
Flanges for graduations
for IZN.381 control knobs
F.N
Flanges for graduations
Plain
F.K
Flanges for graduations
With triangular index
F.GS
Flanges for graduations
With graduation
Description
Main specifications
Material
Matte anodised aluminium.
Mounting
By means of three supplied self-tapping rivets for fitting to control knobs IZN.381.
Standard executions
- F.N: plain flange.
- F.K: flange with triangular black index.
- F.GS: flange with black graduation (marks and numbers).
- F.32 GS e F.40 GS: 40 marks, numbering 0, 1, 2 .... 9 increases as the knob is turned clockwise.
- F.45, 50, 63 GS: 100 marks, numbering 0, 1, 2 .... 9 increases as the knob is turned clockwise.
Special executions on request
Special executions on request
On the surface of the flanges other kinds of precision graduations can be laser-engraved (see Graduations), numbers, graphic symbols, etc.

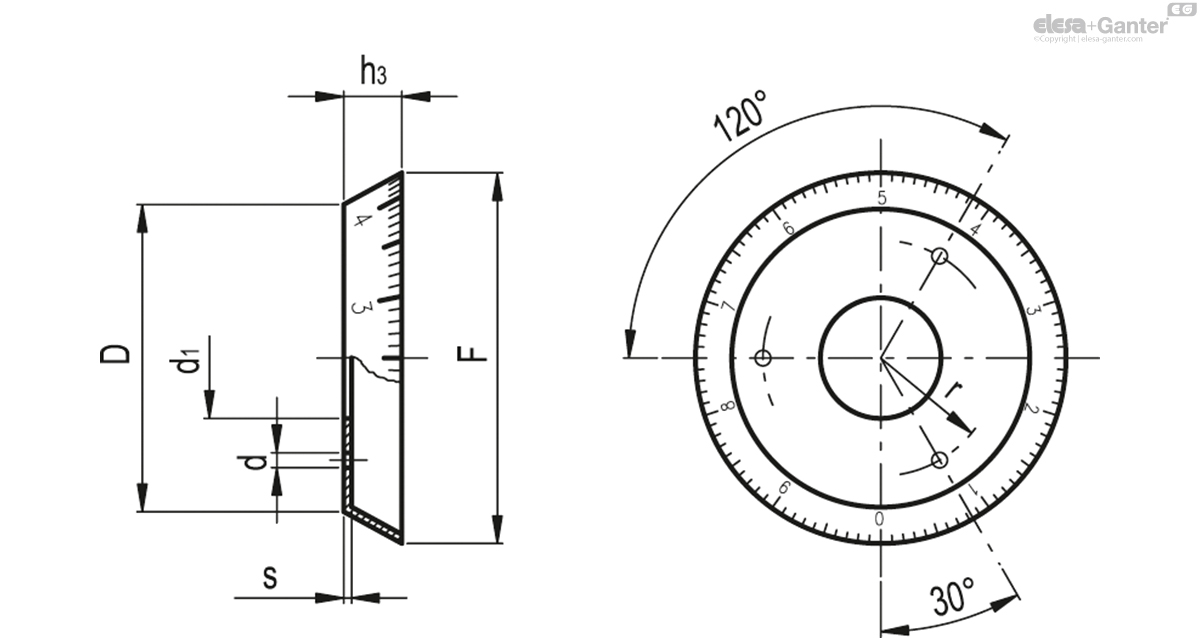

F.GS
| D | F | d | d1 | h3 | s | r |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 29003 | F.32 GS-10/40 | 32 | 38 | 2.1 | 15 | 6 | 0.8 | 9.5 | 4 |
|
| 30103 | F.40 GS-10/40 | 42 | 50 | 3 | 18 | 7 | 1 | 14 | 8 |
|
| 30203 | F.45 GS-10/100 | 48 | 55 | 2.7 | 22 | 7 | 1 | 15.8 | 9 |
|
| 30303 | F.50 GS-10/100 | 52 | 63 | 2.7 | 22 | 9 | 1 | 18.1 | 13 |
|
| 30453 | F.63 GS-10/100 | 63 | 78 | 2.7 | 26 | 13 | 1 | 22.7 | 19 |
|
