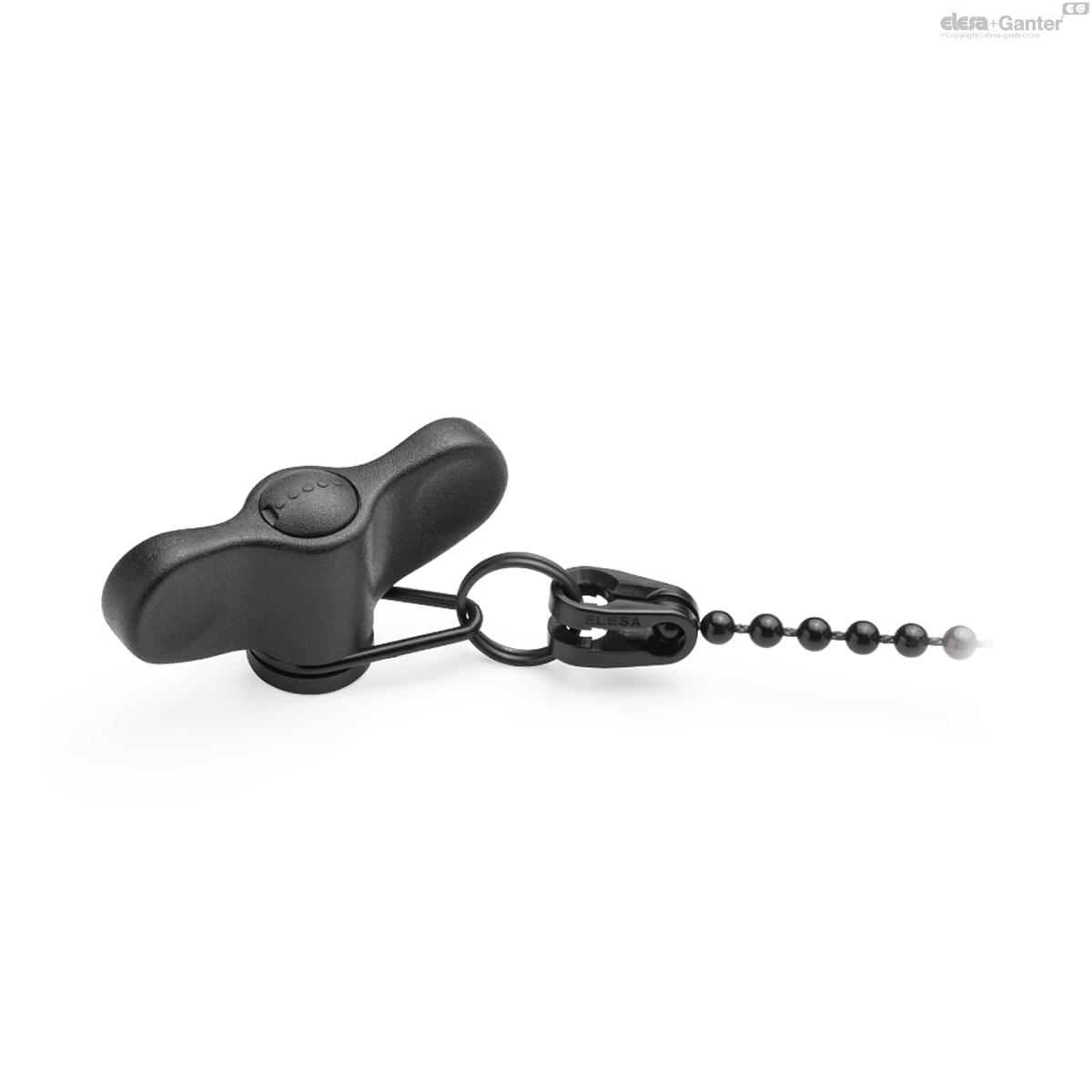

EWN-LP

Wing knobs

with retaining chain, technopolymer

Enquire Now

EWN-B-LP

Wing knobs

Brass boss, threaded hole

EWN-SST-LP

Wing knobs

Stainless steel boss, threaded hole

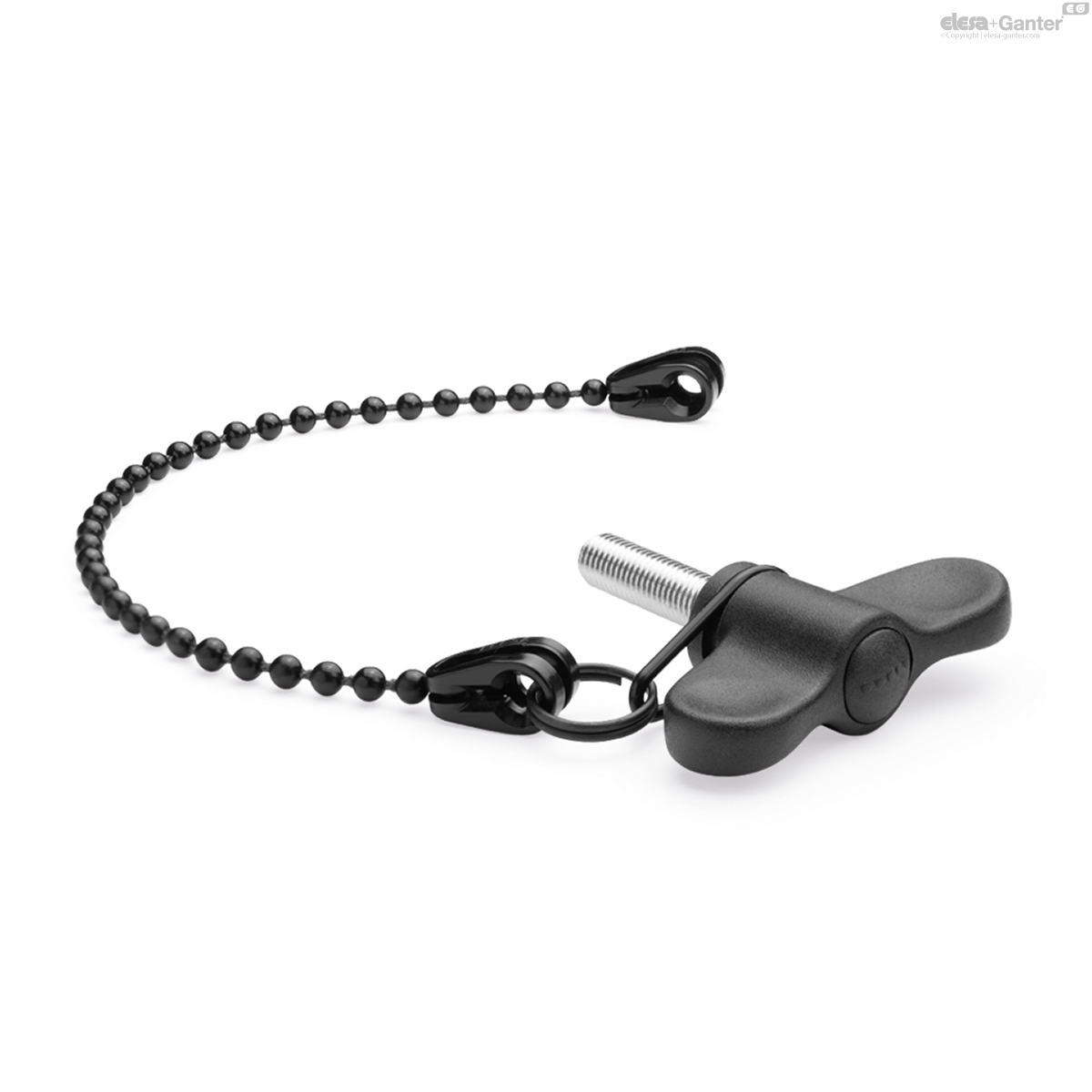

EWN-p-LP

Wing knobs

Zinc-plated steel threaded stud

EWN-SST-p-LP

Wing knobs

Stainless steel threaded stud

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Elastic retaining ring in acetal based technopolymer (POM), black colour.

Boss cap

Polyamide based (PA) technopolymer, grey-black colour, matte finish, press-fit assembly, removable by a screwdriver.

Retaining chain

Ball cable and coupling heads in acetal resin based (POM) technopolymer, black colour.

NERINOX treated stainless steel ring with two coils.

Head fastening by means of a self-tapping screw ø4.8 mm UNI EN ISO 7050 or a M5 countersunk-head screw UNI EN ISO 10642.

Standard executions

EWN-B-LP: brass boss, threaded through hole.

EWN-SST-LP: AISI 303 stainless steel, threaded pass-through hole.

EWN-p-LP: zinc-plated steel threaded stud, chamfered flat end according to UNI EN ISO 4753:2012 (see Technical data).

EWN-SST-p-LP: AISI 303 stainless steel threaded stud, chamfered flat end UNI EN ISO 4753:2012 (see Technical data).

General information

Features and applications

The elastic retaining ring, housed in the groove of the wing nut can turn freely. The coiled ring connects the elastic retaining ring to the chain.

Suitable where it is necessary to prevent the loss of the wing nut.

For applications in which the fixing of the chain is at a position higher than that of the wing nut, it is advisable to leave it with slack movement to prevent the ring from touching the wing nut.

Other executions

Special executions on request

Chain in different lengths.

Wing nut with retaining cable CV-T in polyethylene black colour.

Wing nut with stainless steel cable GN 111, GN 111.2, GN 111.4.

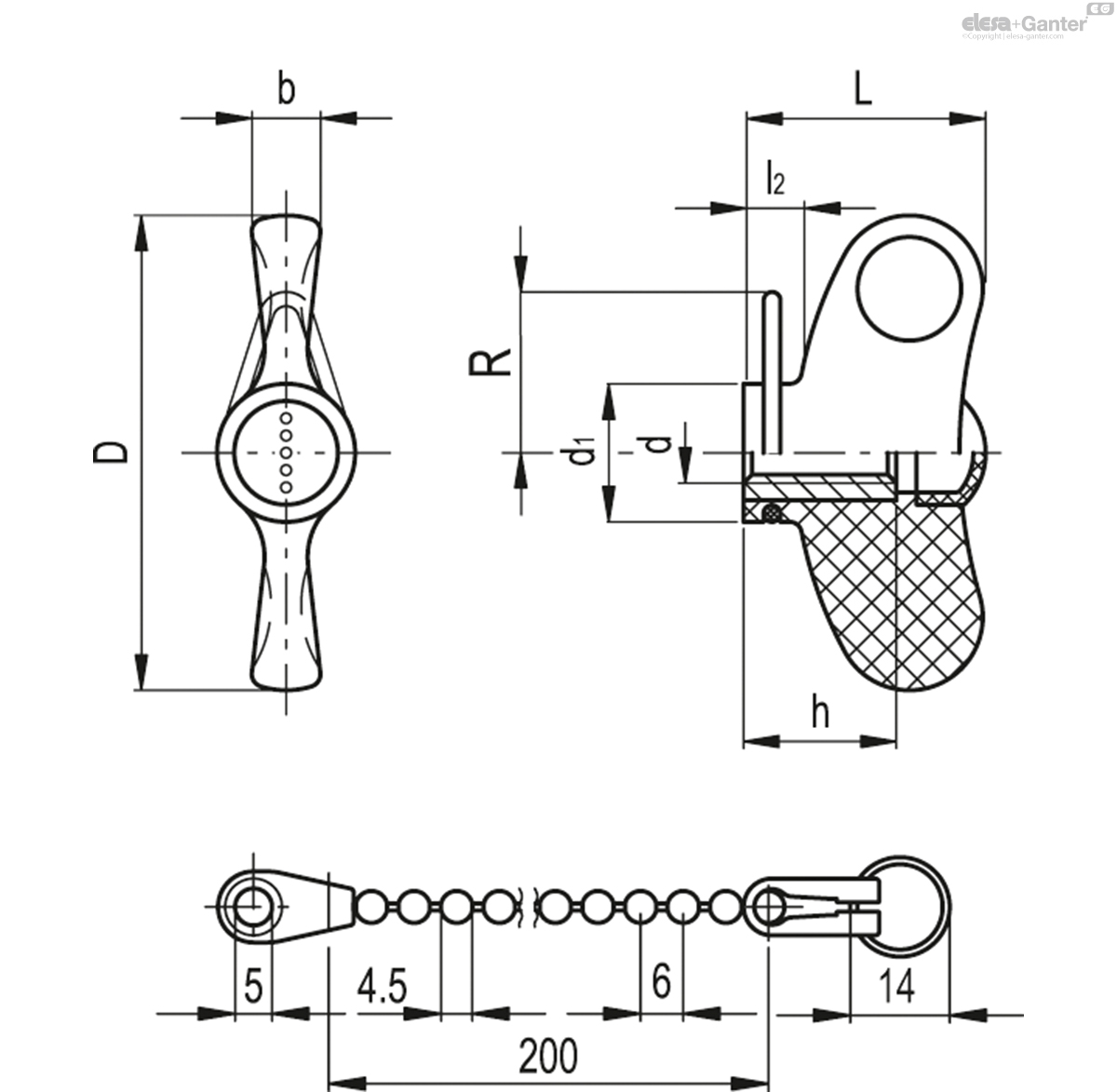

EWN-B-LP

		D	d_6H	L	d₁	l₂	b	h	R	C# [Nm]
Code	Description											Actions
222916-C1	EWN.48 B-M5-C1-LP	47	M5	24	13.5	5.5	7	12	20.5	10	10
222921-C1	EWN.48 B-M6-C1-LP	47	M6	24	13.5	5.5	7	12	20.5	11	15
222936-C1	EWN.55 B-M6-C1-LP	55	M6	28	16	6.5	8	18	21.5	20	20
222941-C1	EWN.55 B-M8-C1-LP	55	M8	28	16	6.5	8	18	21.5	26	24
222951-C1	EWN.63 B-M8-C1-LP	63	M8	32	19	7.5	9	20	22.5	45	35
222956-C1	EWN.63 B-M10-C1-LP	63	M10	32	19	7.5	9	20	22.5	58	33
