EMW.

Monospoke handwheels

Technopolymer

Enquire Now

Description

Main specifications

Glass-fibre reinforced polypropylene based (PP) technopolymer black colour, matte finish.

ECB.I: polyester based technopolymer (PBT) in Elecolors colours, glossy finish, press-fit assembly. Supplied.

Available also as accessory sold separately (see table).

Black-oxide steel boss, H7 reamed hole.

EMW+IEL: with revolving handle IEL+x SOFT in technopolymer coated with 'Soft touch' thermoplastic elastomer (TPE).

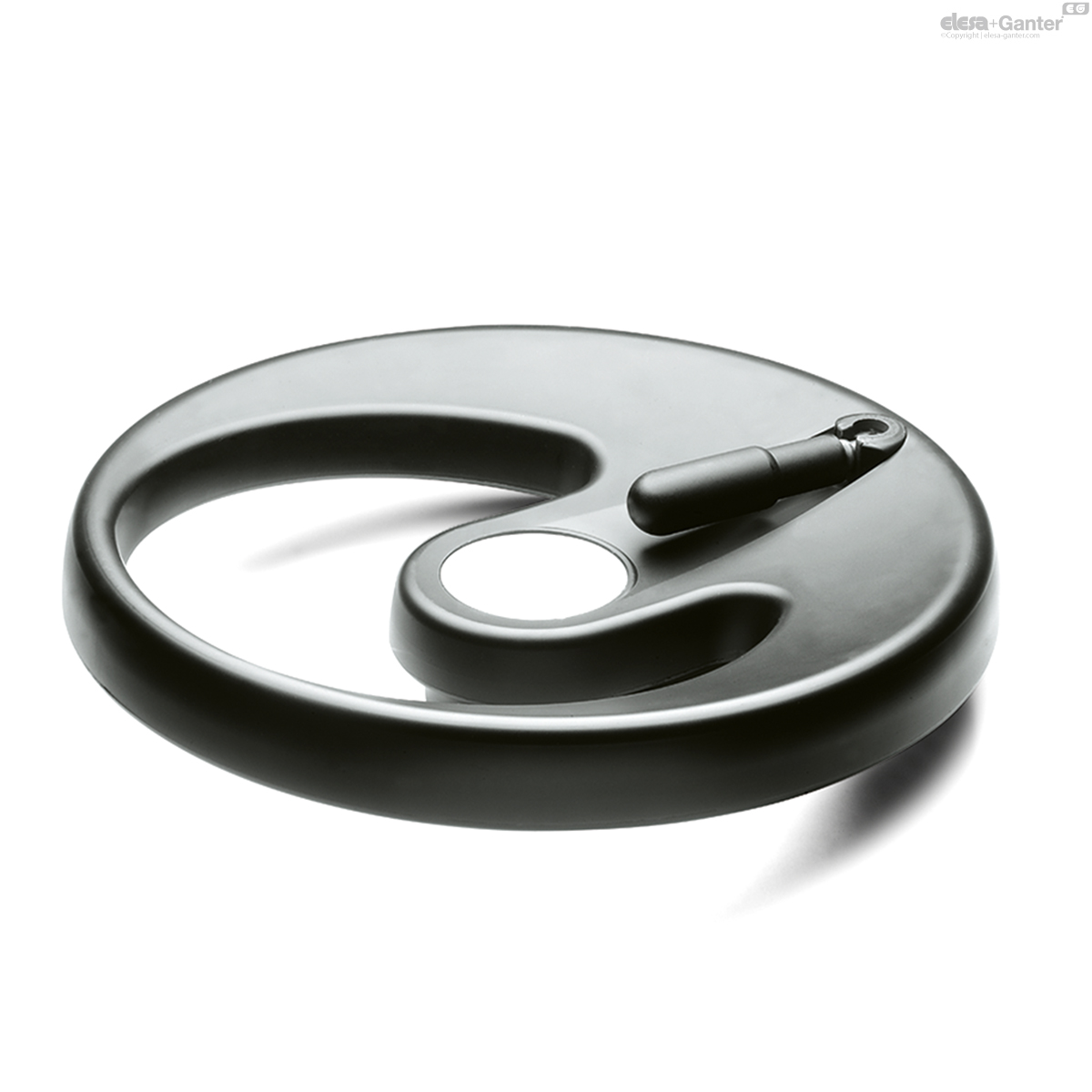

EMW+IR: with fold-away handle IR.620 in technopolymer.

Other executions

Bosses with hole and keyway in compliance with DIN 6885/1 tolerance P9.

To order the handwheel with keyway complete code and description with the index -K (i.e. 204611-K- EMW.350+IEL A-20-K).

For sufficient quantities: executions with locking device (Elesa patent).

Accessories on request

GN 184: axial retaining washer in black-oxide steel.

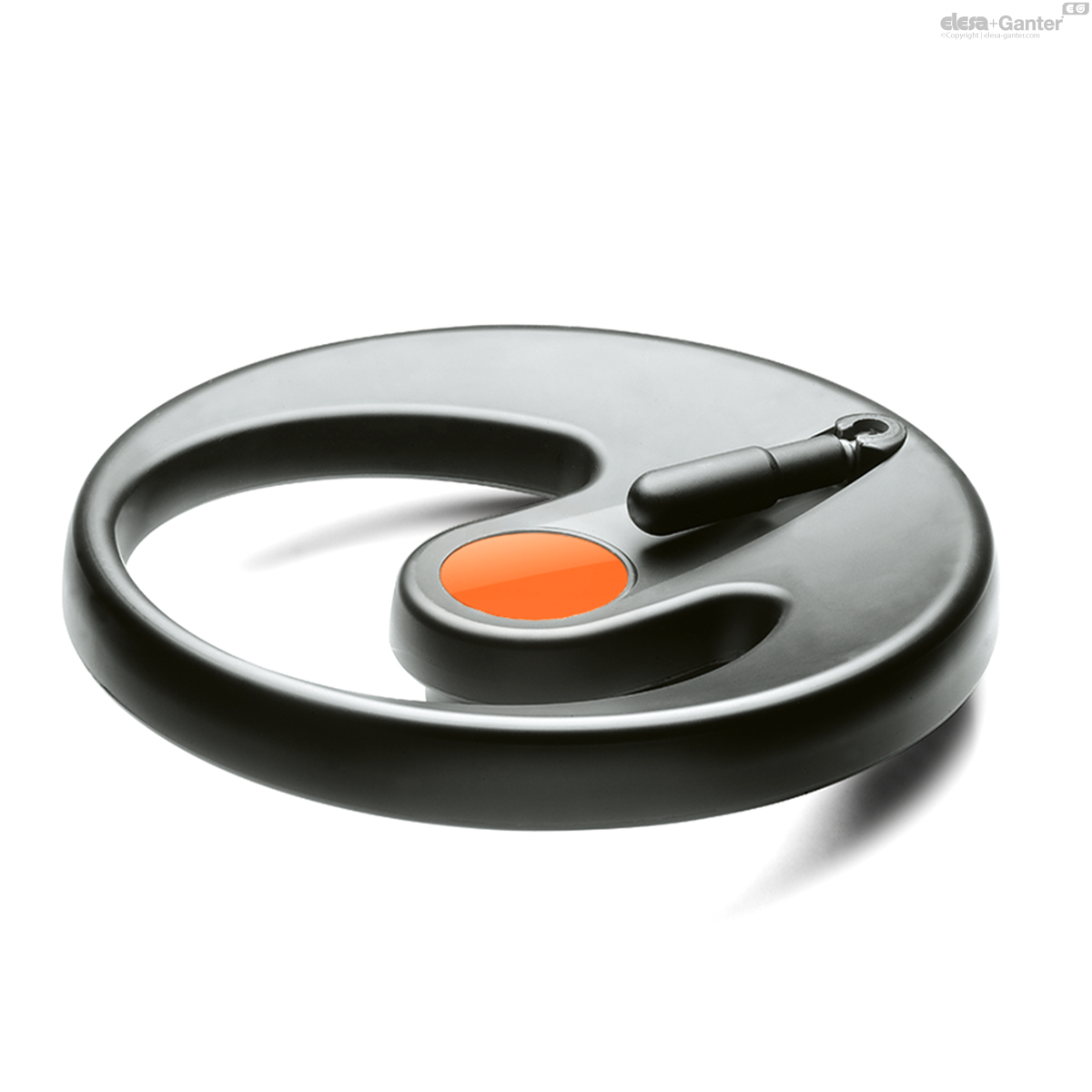

ECB.I: polyester based technopolymer (PBT) boss cap, in Elecolors colours, glossy finish, press-fit assembly (see table).

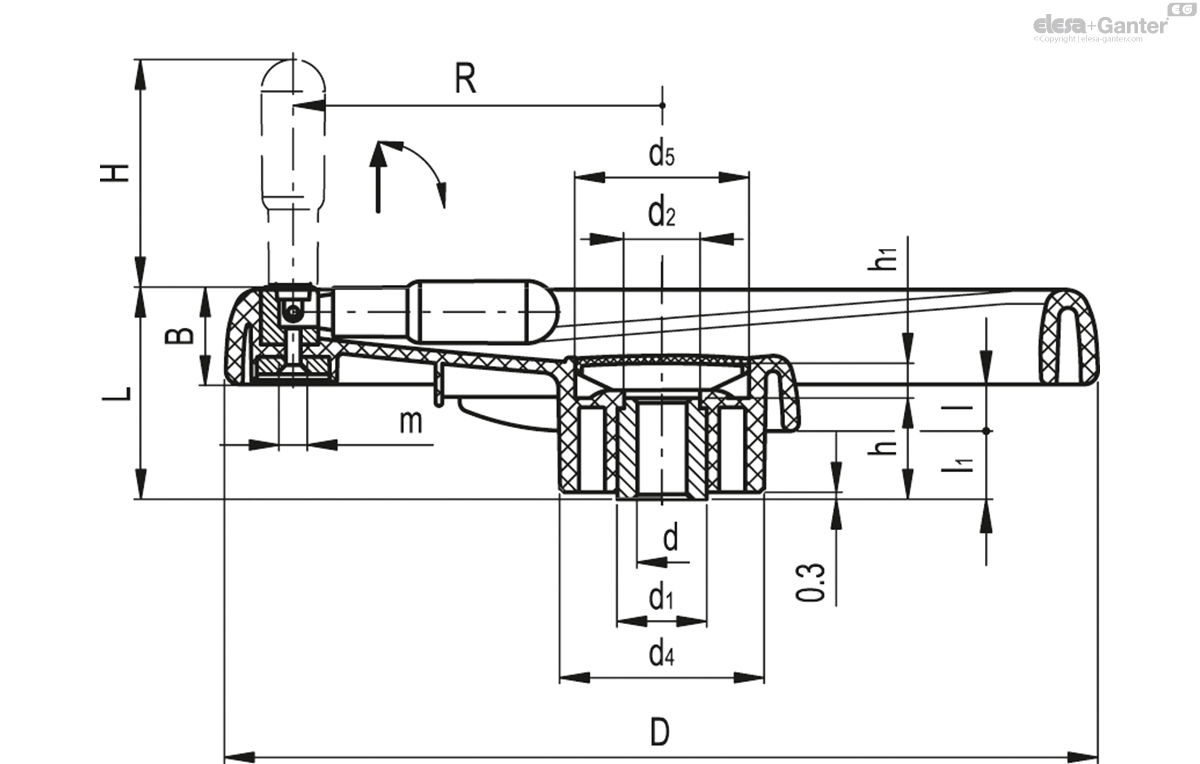

		Color	D	d_H7	L	B	d₁	d₂	d₄	d₅	l	l₁	h	h₁	H	R	C# [Nm]	L# [J]
Code	Description																			Actions
204711-C1	EMW.350+IR-A-20-C1	C1 - RAL 7021	350	20	82	38	35	33	82	70	19	25	38	14	90	148	380	14	1270
204711-C2	EMW.350+IR-A-20-C2	C2 - RAL 2004	350	20	82	38	35	33	82	70	19	25	38	14	90	148	380	14	1270
204711-C3	EMW.350+IR-A-20-C3	C3 - RAL 7035	350	20	82	38	35	33	82	70	19	25	38	14	90	148	380	14	1270
204711-C4	EMW.350+IR-A-20-C4	C4 - RAL 1021	350	20	82	38	35	33	82	70	19	25	38	14	90	148	380	14	1270
204711-C5	EMW.350+IR-A-20-C5	C5 - RAL 5024	350	20	82	38	35	33	82	70	19	25	38	14	90	148	380	14	1270
204711-C6	EMW.350+IR-A-20-C6	C6 - RAL 3000	350	20	82	38	35	33	82	70	19	25	38	14	90	148	380	14	1270
