DVB.6

Rubber buffers

Rubber and steel or stainless steel

Enquire Now

Stainless steel base plate

Description

Main specifications

Standard executions

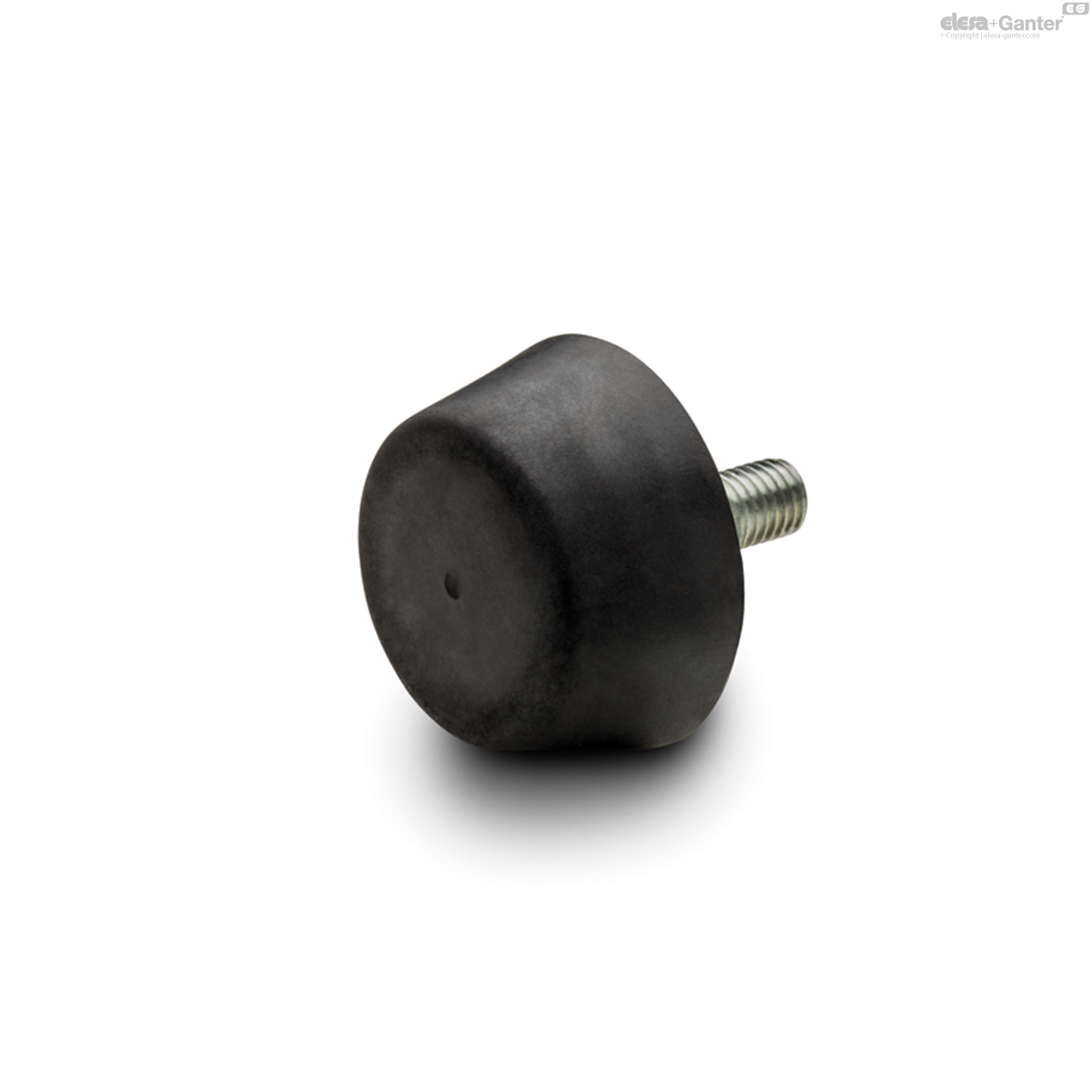

DVB.6: threaded stud and base plate in polished zinc-plated steel, vibration-damper body in natural rubber NR, black colour, hardness 40, 55, 70 Shore A ±5.

DVB.6-SST: threaded stud and base plate in INOX AISI 304 stainless steel, vibration-damper body in natural rubber NR, black colour, hardness 55 Shore A ±5.

General information

Features and applications

DVB. rubber buffers have been designed to damp vibrations, shocks and noises produced by moving bodies or non-balanced vibrating masses of equipment and machines.

DVB elements are generally used as a bumper or as a limit stop for the absorption of vibrations.

Vibrations can cause:

malfunctioning and reduction of the machine lifespan and/or of the adjacent ones;

damage to operator's health;

noise.

Load diagrams for each single code are available on request.

See Technical data and guidelines for the choice.

Other executions

Special executions on request

Natural rubber NR, hardness 40, 70 Shore A ±5 for the executions with AISI 304 stainless steel base.

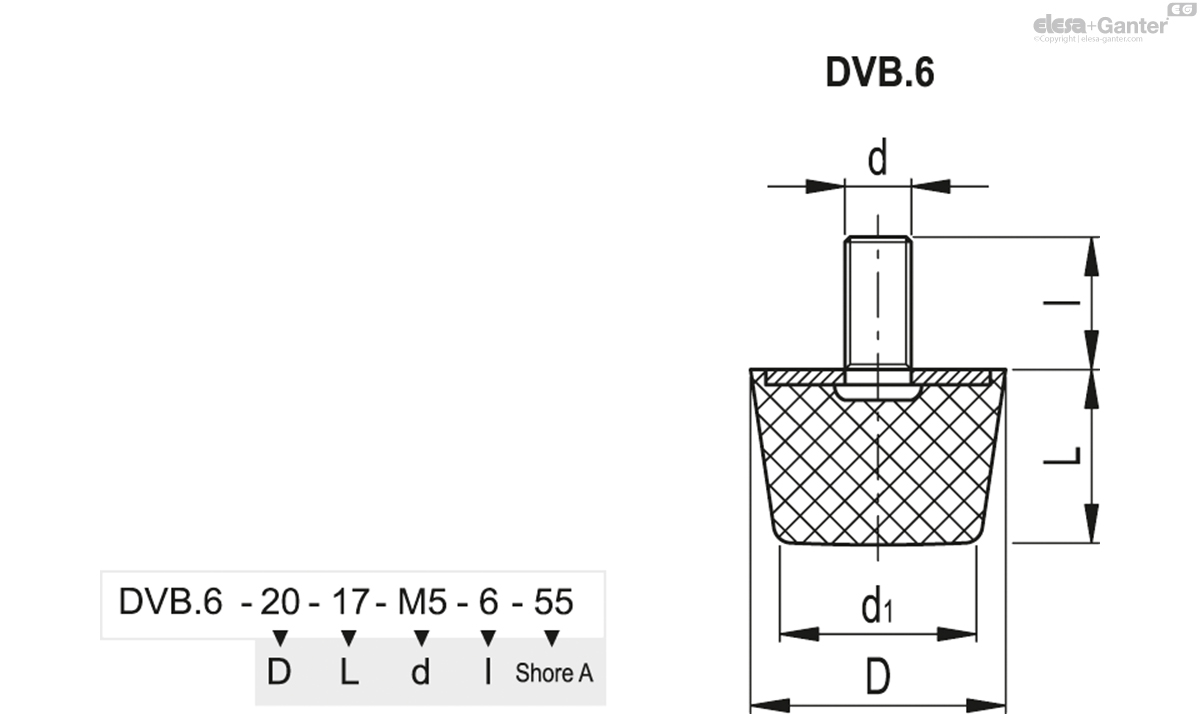

DVB.6

		D	L	d	d₁	l	Max. load [N]	Max. deflection [mm]	Stiffness [N/mm]
Code	Description										Actions
432001	DVB.6-20-17-M5-6-55	20	17	M5	10	6	407	4.25	96	8
432002	DVB.6-20-17-M5-10-55	20	17	M5	10	10	407	4.25	96	9
432003	DVB.6-20-17-M5-20-55	20	17	M5	10	20	407	4.25	96	9
432011	DVB.6-20-17-M6-12-55	20	17	M6	10	12	407	4.25	96	9
432012	DVB.6-20-17-M6-18-55	20	17	M6	10	18	407	4.25	96	10
432013	DVB.6-20-17-M6-25-55	20	17	M6	10	25	407	4.25	96	11
432021	DVB.6-25-17-M6-8-55	25	17	M6	19	8	293	4.25	69	16
432022	DVB.6-25-17-M6-12-55	25	17	M6	19	12	293	4.25	69	16
432023	DVB.6-25-17-M6-18-55	25	17	M6	19	18	293	4.25	69	17
432024	DVB.6-25-17-M6-25-55	25	17	M6	19	25	293	4.25	69	18
432025	DVB.6-25-20-M6-8-55	25	20	M6	16	8	399	5	80	16
432026	DVB.6-25-20-M6-12-55	25	20	M6	16	12	399	5	80	17
432027	DVB.6-25-20-M6-25-55	25	20	M6	16	25	399	5	80	19
432031	DVB.6-32-22-M8-10-55	32	22	M8	24	10	638	5.5	116	29
432032	DVB.6-32-22-M8-16-55	32	22	M8	24	16	638	5.5	116	31
432033	DVB.6-32-22-M8-23-55	32	22	M8	24	23	638	5.5	116	33
432034	DVB.6-32-22-M8-30-55	32	22	M8	24	30	638	5.5	116	35
432035	DVB.6-32-26-M8-10-55	32	32	M8	21	10	650	6.5	100	30
432036	DVB.6-32-26-M8-16-55	32	32	M8	21	16	650	6.5	100	32
432037	DVB.6-32-26-M8-30-55	32	32	M8	21	30	650	6.5	100	36
432038	DVB.6-38-32-M8-10-55	38	38	M8	24	10	862	8	108	45
432039	DVB.6-38-32-M8-16-55	38	38	M8	24	16	862	8	108	46
432040	DVB.6-38-32-M8-30-55	38	38	M8	24	30	862	8	108	51
432041	DVB.6-38-35-M8-10-55	38	35	M8	30	10	1117	8.75	128	54
432042	DVB.6-38-35-M8-16-55	38	35	M8	30	16	1117	8.75	128	56
432043	DVB.6-38-35-M8-30-55	38	35	M8	30	30	1117	8.75	128	61
432051	DVB.6-38-35-M10-12-55	38	35	M10	30	12	1117	8.75	128	58
432052	DVB.6-38-35-M10-20-55	38	35	M10	30	20	1117	8.75	128	62
432053	DVB.6-38-35-M10-28-55	38	35	M10	30	28	1117	8.75	128	66
432054	DVB.6-38-35-M10-40-55	38	35	M10	30	40	1117	8.75	128	72
432061	DVB.6-43-50-M10-12-55	43	50	M10	30	12	1523	12.5	122	82
432062	DVB.6-43-50-M10-20-55	43	50	M10	30	20	1523	12.5	122	86
432063	DVB.6-43-50-M10-28-55	43	50	M10	30	28	1523	12.5	122	89
432064	DVB.6-43-50-M10-40-55	43	50	M10	30	40	1523	12.5	122	98
432071	DVB.6-50-20-M10-12-55	50	20	M10	40	12	2310	5	462	65
432072	DVB.6-50-20-M10-20-55	50	20	M10	40	20	2310	5	462	69
432073	DVB.6-50-20-M10-28-55	50	20	M10	40	28	2310	5	462	72
432074	DVB.6-50-20-M10-40-55	50	20	M10	40	40	2310	5	462	72
432075	DVB.6-50-43-M10-12-55	50	43	M10	32	12	1423	10.7	132	95
432076	DVB.6-50-43-M10-20-55	50	43	M10	32	20	1423	10.7	132	99
432077	DVB.6-50-43-M10-40-55	50	43	M10	32	40	1423	10.7	132	109
432081	DVB.6-60-40-M10-12-55	60	40	M10	40	12	2090	10	209	295
432082	DVB.6-60-40-M10-20-55	60	40	M10	40	20	2090	10	209	134
432083	DVB.6-60-40-M10-28-55	60	40	M10	40	28	2090	10	209	295
432084	DVB.6-60-40-M10-40-55	60	40	M10	40	40	2090	10	209	145
432201	DVB.6-20-17-M5-6-40	20	17	M5	10	6	358	4.25	84	8
432202	DVB.6-20-17-M5-10-40	20	17	M5	10	10	358	4.25	84	8
432203	DVB.6-20-17-M5-20-40	20	17	M5	10	20	358	4.25	84	9
432211	DVB.6-20-17-M6-12-40	20	17	M6	10	12	358	4.25	84	9
432212	DVB.6-20-17-M6-18-40	20	17	M6	10	18	358	4.25	84	10
432213	DVB.6-20-17-M6-25-40	20	17	M6	10	25	358	4.25	84	11
432221	DVB.6-25-17-M6-8-40	25	17	M6	19	8	261	4.25	61	16
432222	DVB.6-25-17-M6-12-40	25	17	M6	19	12	261	4.25	61	16
432223	DVB.6-25-17-M6-18-40	25	17	M6	19	18	261	4.25	61	16
432224	DVB.6-25-17-M6-25-40	25	17	M6	19	25	261	4.25	61	18
432225	DVB.6-25-20-M6-8-40	25	20	M6	16	8	262	5	52	16
432226	DVB.6-25-20-M6-12-40	25	20	M6	16	12	262	5	52	17
432227	DVB.6-25-20-M6-25-40	25	20	M6	16	25	262	5	52	20
432231	DVB.6-32-22-M8-10-40	32	22	M8	24	10	492	5.5	89	28
432232	DVB.6-32-22-M8-16-40	32	22	M8	24	16	492	5.5	89	30
432233	DVB.6-32-22-M8-23-40	32	22	M8	24	23	492	5.5	89	33
432234	DVB.6-32-22-M8-30-40	32	22	M8	24	30	492	5.5	89	34
432235	DVB.6-32-26-M8-10-40	32	32	M8	21	10	1070	6.5	165	29
432236	DVB.6-32-26-M8-16-40	32	32	M8	21	16	1070	6.5	165	31
432237	DVB.6-32-26-M8-30-40	32	32	M8	21	30	1070	6.5	165	36
432238	DVB.6-38-32-M8-10-40	38	38	M8	24	10	540	8	67	44
432239	DVB.6-38-32-M8-16-40	38	38	M8	24	16	540	8	67	45
432240	DVB.6-38-32-M8-30-40	38	38	M8	24	30	540	8	67	45
432241	DVB.6-38-35-M8-10-40	38	35	M8	30	10	840	8.75	96	53
432242	DVB.6-38-35-M8-16-40	38	35	M8	30	16	840	8.75	96	54
432243	DVB.6-38-35-M8-30-40	38	35	M8	30	30	840	8.75	96	59
432251	DVB.6-38-35-M10-12-40	38	35	M10	30	12	840	8.75	96	57
432252	DVB.6-38-35-M10-20-40	38	35	M10	30	20	840	8.75	96	60
432253	DVB.6-38-35-M10-28-40	38	35	M10	30	28	840	8.75	96	65
432254	DVB.6-38-35-M10-40-40	38	35	M10	30	40	840	8.75	96	70
432261	DVB.6-43-50-M10-12-40	43	50	M10	30	12	1027	12.5	82	78
432262	DVB.6-43-50-M10-20-40	43	50	M10	30	20	1027	12.5	82	98
432263	DVB.6-43-50-M10-28-40	43	50	M10	30	28	1027	12.5	82	98
432264	DVB.6-43-50-M10-40-40	43	50	M10	30	40	1027	12.5	82	98
432271	DVB.6-50-20-M10-12-40	50	20	M10	40	12	1843	5	369	64
432272	DVB.6-50-20-M10-20-40	50	20	M10	40	20	1843	5	369	67
432273	DVB.6-50-20-M10-28-40	50	20	M10	40	28	1843	5	369	71
432274	DVB.6-50-20-M10-40-40	50	20	M10	40	40	1843	5	369	77
432275	DVB.6-50-43-M10-12-40	50	43	M10	32	12	919	10.7	85	93
432276	DVB.6-50-43-M10-20-40	50	43	M10	32	20	919	10.7	85	96
432277	DVB.6-50-43-M10-40-40	50	43	M10	32	40	919	10.7	85	106
432281	DVB.6-60-40-M10-12-40	60	40	M10	40	12	1652	10	165	126
432282	DVB.6-60-40-M10-20-40	60	40	M10	40	20	1652	10	165	129
432283	DVB.6-60-40-M10-28-40	60	40	M10	40	28	1652	10	165	134
432284	DVB.6-60-40-M10-40-40	60	40	M10	40	40	1652	10	165	138
432401	DVB.6-20-17-M5-6-70	20	17	M5	10	6	468	4.25	110	9
432402	DVB.6-20-17-M5-10-70	20	17	M5	10	10	468	4.25	110	9
432403	DVB.6-20-17-M5-20-70	20	17	M5	10	20	468	4.25	110	9
432411	DVB.6-20-17-M6-12-70	20	17	M6	10	12	468	4.25	110	9
432412	DVB.6-20-17-M6-18-70	20	17	M6	10	18	468	4.25	110	10
432413	DVB.6-20-17-M6-25-70	20	17	M6	10	25	468	4.25	110	12
432421	DVB.6-25-17-M6-8-70	25	17	M6	19	8	374	4.25	88	16
432422	DVB.6-25-17-M6-12-70	25	17	M6	19	12	374	4.25	88	16
432423	DVB.6-25-17-M6-18-70	25	17	M6	19	18	374	4.25	88	17
432424	DVB.6-25-17-M6-25-70	25	17	M6	19	25	374	4.25	88	19
432425	DVB.6-25-20-M6-8-70	25	20	M6	16	8	626	5	125	17
432426	DVB.6-25-20-M6-12-70	25	20	M6	16	12	626	5	125	17
432427	DVB.6-25-20-M6-25-70	25	20	M6	16	25	626	5	125	19
432431	DVB.6-32-22-M8-10-70	32	22	M8	24	10	813	5.5	148	30
432432	DVB.6-32-22-M8-16-70	32	22	M8	24	16	813	5.5	148	32
432433	DVB.6-32-22-M8-23-70	32	22	M8	24	23	813	5.5	148	35
432434	DVB.6-32-22-M8-30-70	32	22	M8	24	30	813	5.5	148	36
432435	DVB.6-32-26-M8-10-70	32	32	M8	21	10	1018	6.5	157	31
432436	DVB.6-32-26-M8-16-70	32	32	M8	21	16	1018	6.5	157	33
432437	DVB.6-32-26-M8-30-70	32	32	M8	21	30	1018	6.5	157	38
432438	DVB.6-38-32-M8-10-70	38	38	M8	24	10	1442	8	180	47
432439	DVB.6-38-32-M8-16-70	38	38	M8	24	16	1442	8	180	49
432440	DVB.6-38-32-M8-30-70	38	38	M8	24	30	1442	8	180	53
432441	DVB.6-38-35-M8-10-70	38	35	M8	30	10	1432	8.75	164	57
432442	DVB.6-38-35-M8-16-70	38	35	M8	30	16	1432	8.75	164	30
432443	DVB.6-38-35-M8-30-70	38	35	M8	30	30	1432	8.75	164	64
432451	DVB.6-38-35-M10-12-70	38	35	M10	30	12	1432	8.75	164	61
432452	DVB.6-38-35-M10-20-70	38	35	M10	30	20	1432	8.75	164	64
432453	DVB.6-38-35-M10-28-70	38	35	M10	30	28	1432	8.75	164	69
432454	DVB.6-38-35-M10-40-70	38	35	M10	30	40	1432	8.75	164	74
432461	DVB.6-43-50-M10-12-70	43	50	M10	30	12	2009	12.5	161	84
432462	DVB.6-43-50-M10-20-70	43	50	M10	30	20	2009	12.5	161	89
432463	DVB.6-43-50-M10-28-70	43	50	M10	30	28	2009	12.5	161	94
432464	DVB.6-43-50-M10-40-70	43	50	M10	30	40	2009	12.5	161	99
432471	DVB.6-50-20-M10-12-70	50	20	M10	40	12	3007	5	601	67
432472	DVB.6-50-20-M10-20-70	50	20	M10	40	20	3007	5	601	71
432473	DVB.6-50-20-M10-28-70	50	20	M10	40	28	3007	5	601	75
432474	DVB.6-50-20-M10-40-70	50	20	M10	40	40	3007	5	601	80
432475	DVB.6-50-43-M10-12-70	50	43	M10	32	12	2323	10.7	216	100
432476	DVB.6-50-43-M10-20-70	50	43	M10	32	20	2323	10.7	216	104
432477	DVB.6-50-43-M10-40-70	50	43	M10	32	40	2323	10.7	216	114
432481	DVB.6-60-40-M10-12-70	60	40	M10	40	12	3258	10	326	136
432482	DVB.6-60-40-M10-20-70	60	40	M10	40	20	3258	10	326	139
432483	DVB.6-60-40-M10-28-70	60	40	M10	40	28	3258	10	326	144
432484	DVB.6-60-40-M10-40-70	60	40	M10	40	40	3258	10	326	151
