DVA.6

Rubber buffers

Rubber and steel or stainless steel

Enquire Now

Stainless steel base plate

Description

Main specifications

Standard executions

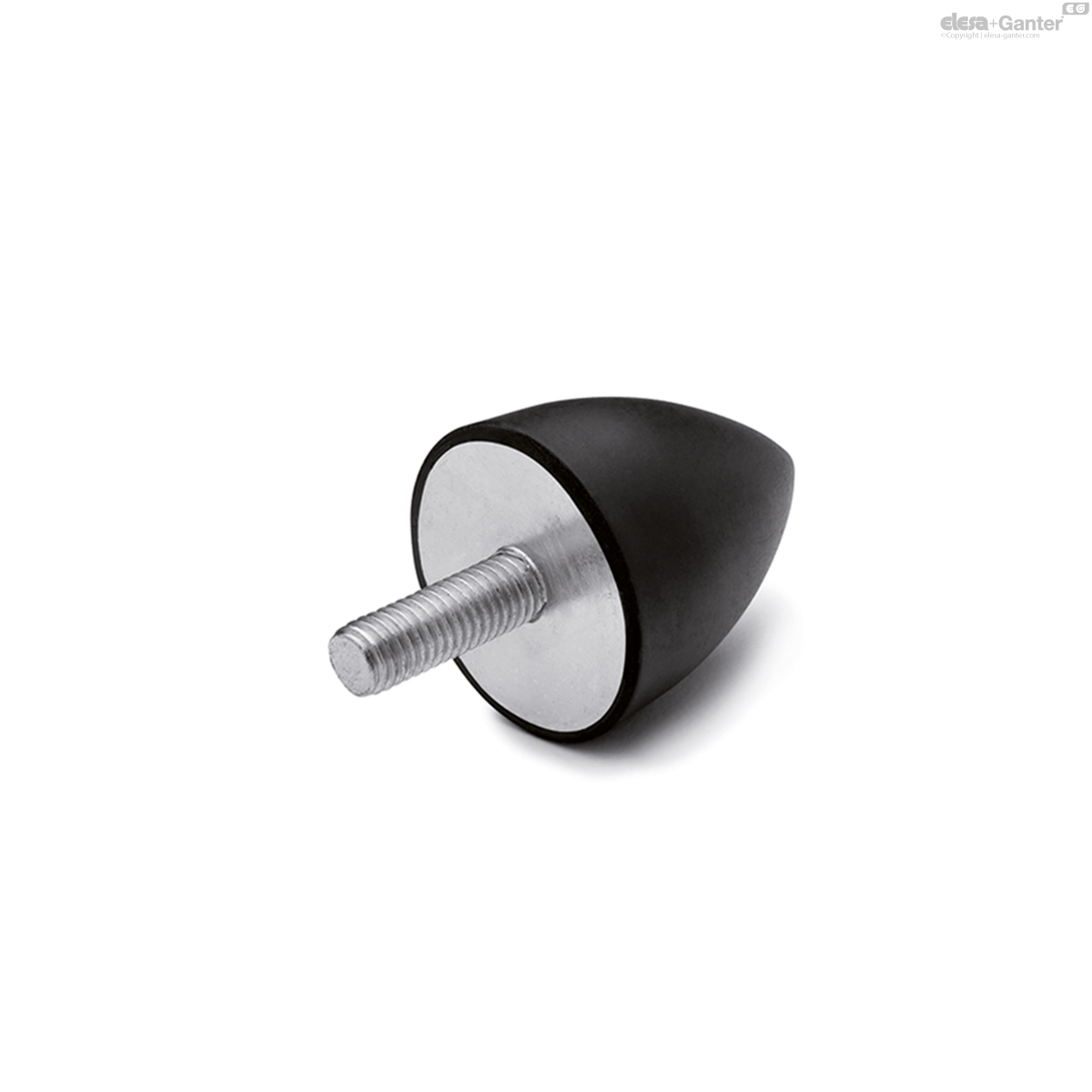

DVA.6: threaded stud and base plate in polished zinc-plated steel, vibration-damper body in natural rubber NR, black colour, hardness 40, 55, 70 Shore A ±5.

DVA.6-SST: threaded stud and base plate in INOX AISI 304 stainless steel, vibration-damper body in natural rubber NR, black colour, hardness 55 Shore A ±5.

General information

Features and applications

The rubber buffers have been designed to damp vibrations, shocks and noises produced by moving bodies or non-balanced vibrating masses of equipment and machines which can cause:

malfunctioning and reduction of the machine lifespan and/or of the adjacent ones;

damage to health;

noise.

Load diagrams for each single code are available on request.

See Technical data and guidelines for the choice.

Other executions

Special executions on request

Natural rubber NR, hardness 40, 70 tolerance ±5 Shore A for executions with AISI 304 stainless steel base.

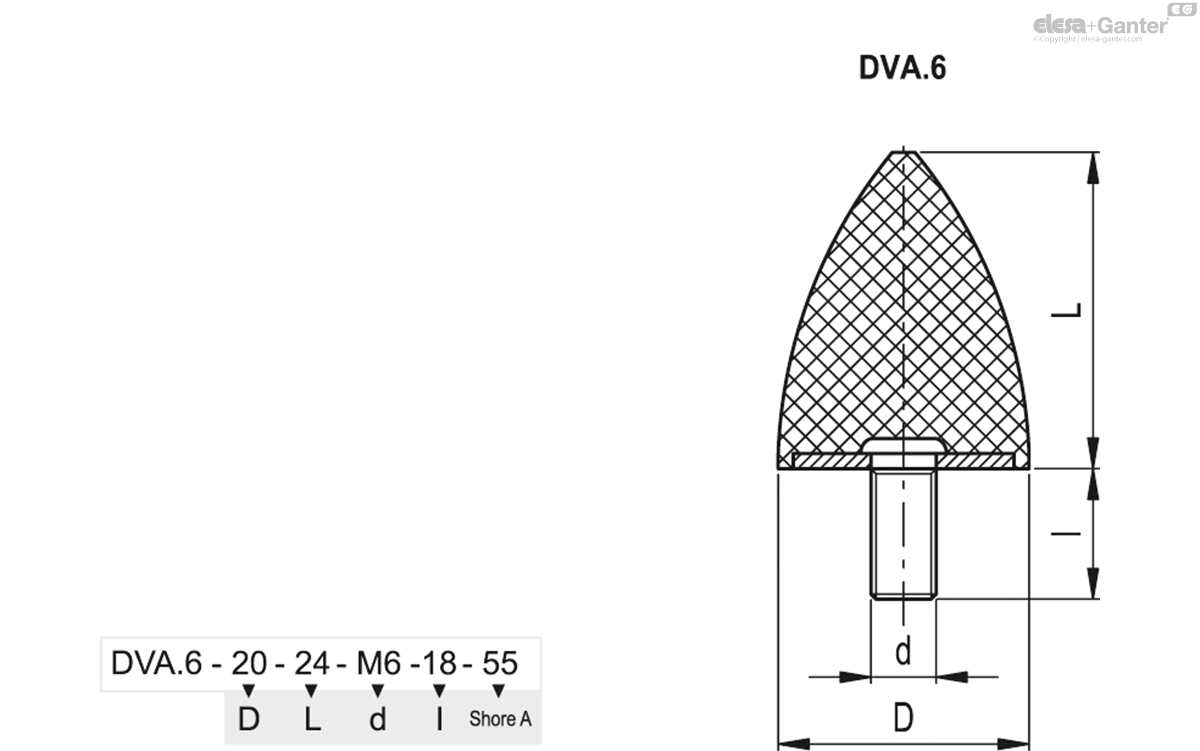

DVA.6

		D	L	d	l	Max. load [N]	Max. deflection [mm]	Stiffness [N/mm]
Code	Description									Actions
413381	DVA.6-10-10-M5-12-55	10	10	M5	12	59	3	20	2
413397	DVA.6-20-15-M6-18-55	20	15	M6	18	194	4	48	9
413401	DVA.6-20-24-M6-18-55	20	24	M6	18	130	6	22	10
413407	DVA.6-25-20-M6-18-55	25	20	M6	18	190	5	38	15
413411	DVA.6-30-30-M8-18-55	30	30	M8	18	260	8	35	24
413413	DVA.6-30-30-M8-25-55	30	30	M8	25	260	7.5	34	31
413421	DVA.6-30-36-M8-20-55	30	36	M8	20	320	9	36	39
413431	DVA.6-35-40-M8-23-55	35	40	M8	23	300	10	30	45
413432	DVA.6-50-50-M8-20-55	50	50	M8	20	740	12.5	59	100
413433	DVA.6-50-58-M8-20-55	50	50	M8	20	760	14.5	52	105
413434	DVA.6-50-50-M8-28-55	50	50	M8	28	865	12.5	69	111
413435	DVA.6-50-58-M8-28-55	50	58	M8	28	760	14.5	52.4	111
413436	DVA.6-50-58-M10-28-55	50	58	M10	28	865	15	60	112
413437	DVA.6-50-50-M10-28-55	50	50	M10	28	740	13	59	110
413441	DVA.6-50-61-M8-28-55	50	61	M8	28	600	15	39	114
413446	DVA.6-50-67-M8-28-55	50	67	M8	28	980	17	58	130
413451	DVA.6-50-68-M10-28-55	50	68	M10	28	890	17	52	131
413471	DVA.6-70-58-M12-37-55	70	58	M12	37	1332	15	92	258
413481	DVA.6-75-89-M12-37-55	75	89	M12	37	1680	22	76	373
413491	DVA.6-95-80-M16-41-55	95	80	M16	41	3090	20	154	488
413501	DVA.6-115-136-M16-41-55	115	136	M16	41	4330	34	127	603
416101	DVA.6-20-24-M6-18-40	20	24	M6	18	82	6	14	10
416107	DVA.6-25-20-M6-18-40	25	20	M6	18	84	5	17	15
416111	DVA.6-30-30-M8-18-40	30	30	M8	18	190	8	25	24
416113	DVA.6-30-30-M8-25-40	30	30	M8	25	190	7.5	25	31
416121	DVA.6-30-36-M8-20-40	30	36	M8	20	180	9	20	39
416131	DVA.6-35-40-M8-23-40	35	40	M8	23	260	10	26	45
416132	DVA.6-50-50-M8-20-40	50	50	M8	20	481	12.5	38	100
416133	DVA.6-50-50-M8-28-40	50	50	M8	28	535	12.5	43	111
416134	DVA.6-50-58-M8-20-40	50	50	M8	20	460	14.5	31	105
416135	DVA.6-50-58-M8-28-40	50	58	M8	28	430	14.5	30	111
416137	DVA.6-50-50-M10-28-40	50	50	M10	28	481	13	38	110
416138	DVA.6-50-67-M8-28-40	50	67	M8	28	500	17	30	130
416139	DVA.6-50-58-M10-28-40	50	58	M10	28	460	15	31	112
416141	DVA.6-50-61-M8-28-40	50	61	M8	28	490	15	32	114
416151	DVA.6-50-68-M10-28-40	50	68	M10	28	490	17	29	131
416171	DVA.6-70-58-M12-37-40	70	58	M12	37	769	15	53	258
416181	DVA.6-75-89-M12-37-40	75	89	M12	37	971	22	44	373
416191	DVA.6-95-80-M16-41-40	95	80	M16	41	1970	20	98	488
416211	DVA.6-115-136-M16-41-40	115	136	M16	41	2600	34	76	603
416991	DVA.6-10-10-M5-12-40	10	10	M5	12	46	3	14	2
416997	DVA.6-20-15-M6-18-40	20	15	M6	18	84	5	17	9
418791	DVA.6-10-10-M5-12-70	10	10	M5	12	113	3	40	2
418797	DVA.6-20-15-M6-18-70	20	15	M6	18	321	4	78	9
418801	DVA.6-20-24-M6-18-70	20	24	M6	18	330	6	55	10
418807	DVA.6-25-20-M6-18-70	25	20	M6	18	495	5	96	15
418811	DVA.6-30-30-M8-18-70	30	30	M8	18	630	8	84	24
418813	DVA.6-30-30-M8-25-70	30	30	M8	25	630	7.5	84	31
418821	DVA.6-30-36-M8-20-70	30	36	M8	20	650	9	72	39
418831	DVA.6-35-40-M8-23-70	35	40	M8	23	630	10	63	45
418832	DVA.6-50-50-M8-20-70	50	50	M8	20	1656	12.5	132	100
418833	DVA.6-50-50-M8-28-70	50	50	M8	28	2100	12.5	168	111
418834	DVA.6-50-58-M8-20-70	50	50	M8	20	1080	14.5	74	105
418835	DVA.6-50-58-M8-28-70	50	58	M8	28	1080	14.5	74.5	111
418836	DVA.6-50-67-M8-28-70	50	67	M8	28	1750	17	104	130
418837	DVA.6-50-50-M10-28-70	50	50	M10	28	1656	13	132	110
418841	DVA.6-50-61-M8-28-70	50	61	M8	28	1520	15	100	114
418846	DVA.6-50-58-M10-28-70	50	58	M10	28	1755	15	121	112
418851	DVA.6-50-68-M10-28-70	50	68	M10	28	1950	17	115	131
418871	DVA.6-70-58-M12-37-70	70	58	M12	37	1923	15	133	258
418881	DVA.6-75-89-M12-37-70	75	89	M12	37	2328	22	105	373
418891	DVA.6-95-80-M16-41-70	95	80	M16	41	5540	20	277	488
418901	DVA.6-115-136-M16-41-70	115	136	M16	41	7730	34	227	603
