DIN 6336

Star knobs

Cast iron / Stainless Steel / Aluminium

__logo__INOX__

__logo__RoHS__

Enquire Now

product image

product image

product image

Stainless Steel

product image

Description

Specification

Types

Type A: without bore (unmachined)

Type B: with plain through bore H7

Type C: with plain blind bore H7

Type D: with threaded through bore

Type E: with threaded blind bore

Cast iron GG

fettled and tumbled

zinc plated, blue passivated ZB

Thread: screw mobility

only types D and E

Stainless Steel precision casting NI

only types A, D, E

AISI CF-8

matt shot-blasted

Aluminium AL

only types A, C, D, E

matt finish (ground), flash mark not visible MT

polished PL

On request

plastic coated

Technical information

ISO-Fundamental Tolerances

Stainless Steel characteristics

DIN 6336-ZB

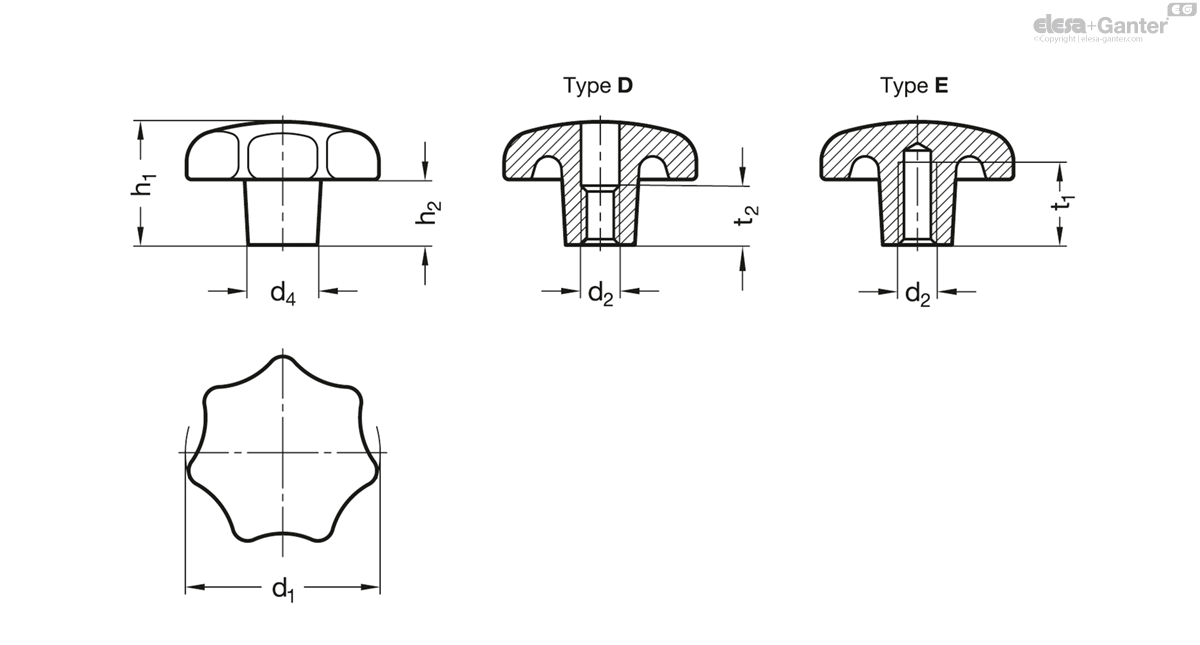

	d₁	d₂	d₄	h₁	h₂ min.	t₁	t₂
Code									Actions
DIN 6336-GG-32-M6-D-ZB	32	M 6	12	20	9	-	10	40
DIN 6336-GG-32-M6-E-ZB	32	M 6	12	20	9	12	-	34
DIN 6336-GG-40-M8-D-ZB	40	M 8	14	25	12	-	12	69
DIN 6336-GG-40-M8-E-ZB	40	M 8	14	25	12	15	-	69
DIN 6336-GG-50-M8-D-ZB	50	M 8	18	32	15	-	16	124
DIN 6336-GG-50-M8-E-ZB	50	M 8	18	32	15	18	-	152
DIN 6336-GG-50-M10-D-ZB	50	M 10	18	32	15	-	16	140
DIN 6336-GG-50-M10-E-ZB	50	M 10	18	32	15	18	-	149
DIN 6336-GG-63-M10-D-ZB	63	M 10	20	40	19	-	20	245
DIN 6336-GG-63-M10-E-ZB	63	M 10	20	40	19	22	-	280
DIN 6336-GG-63-M12-D-ZB	63	M 12	20	40	19	-	20	260
DIN 6336-GG-63-M12-E-ZB	63	M 12	20	40	19	22	-	240
DIN 6336-GG-80-M12-D-ZB	80	M 12	25	50	23	-	30	560
DIN 6336-GG-80-M12-E-ZB	80	M 12	25	50	23	28	-	550
DIN 6336-GG-80-M16-D-ZB	80	M 16	25	50	23	-	30	537
DIN 6336-GG-80-M16-E-ZB	80	M 16	25	50	23	28	-	565
