Star knobs

Cast iron / Stainless Steel / Aluminium

__logo__INOX__

__logo__RoHS__

Enquire Now

product image

product image

product image

Stainless Steel

product image

Description

Specification

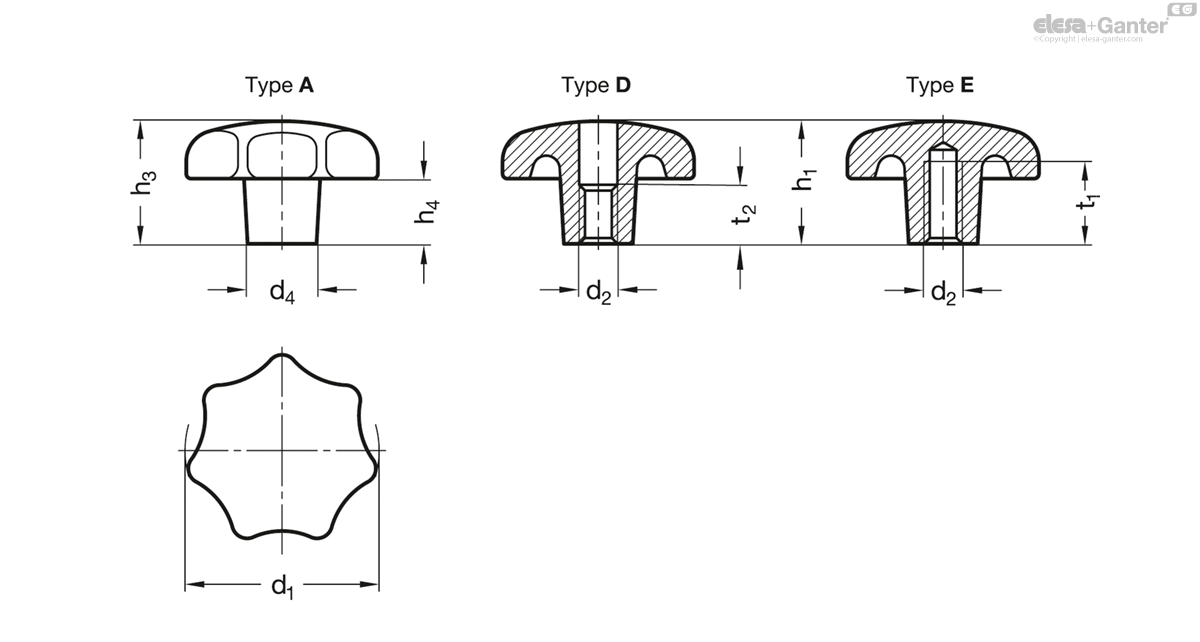

Types

Type A: without bore (unmachined)

Type B: with plain through bore H7

Type C: with plain blind bore H7

Type D: with threaded through bore

Type E: with threaded blind bore

Cast iron GG

fettled and tumbled

zinc plated, blue passivated ZB

Thread: screw mobility

only types D and E

Stainless Steel precision casting NI

only types A, D, E

AISI CF-8

matt shot-blasted

Aluminium AL

only types A, C, D, E

matt finish (ground), flash mark not visible MT

polished PL

On request

plastic coated

Technical information

ISO-Fundamental Tolerances

Stainless Steel characteristics

DIN 6336-NI

	d₁	d₂	d₄	h₁	h₂ min.	h₃	h₄ min.	t₁	t₂
Code											Actions
DIN 6336-NI-32-A	32	-	12	-	-	21	10	-	-	56
DIN 6336-NI-32-M6-D	32	M 6	12	20	9	-	-	-	10	52
DIN 6336-NI-32-M6-E	32	M 6	12	20	9	-	-	12	-	53
DIN 6336-NI-40-A	40	-	14	-	-	26	13	-	-	85
DIN 6336-NI-40-M8-D	40	M 8	14	25	12	-	-	-	12	76
DIN 6336-NI-40-M8-E	40	M 8	14	25	12	-	-	15	-	76
DIN 6336-NI-50-A	50	-	18	-	-	34	17	-	-	179
DIN 6336-NI-50-M8-D	50	M 8	18	32	15	-	-	-	16	155
DIN 6336-NI-50-M8-E	50	M 8	18	32	15	-	-	18	-	173
DIN 6336-NI-50-M10-D	50	M 10	18	32	15	-	-	-	16	140
DIN 6336-NI-50-M10-E	50	M 10	18	32	15	-	-	18	-	156
DIN 6336-NI-63-A	63	-	20	-	-	42	21	-	-	320
DIN 6336-NI-63-M10-D	63	M 10	20	40	19	-	-	-	20	289
DIN 6336-NI-63-M10-E	63	M 10	20	40	19	-	-	22	-	303
DIN 6336-NI-63-M12-D	63	M 12	20	40	19	-	-	-	20	290
DIN 6336-NI-63-M12-E	63	M 12	20	40	19	-	-	22	-	296
