DIN 6336
Star knobs
Cast iron / Stainless Steel / Aluminium
DIN 6336-GG
Star knobs
Cast iron
DIN 6336-ZB
Star knobs
Zinc plated
DIN 6336-NI
Star knobs
Stainless Steel
DIN 6336-AL
Star knobs
Aluminium
Description
Specification

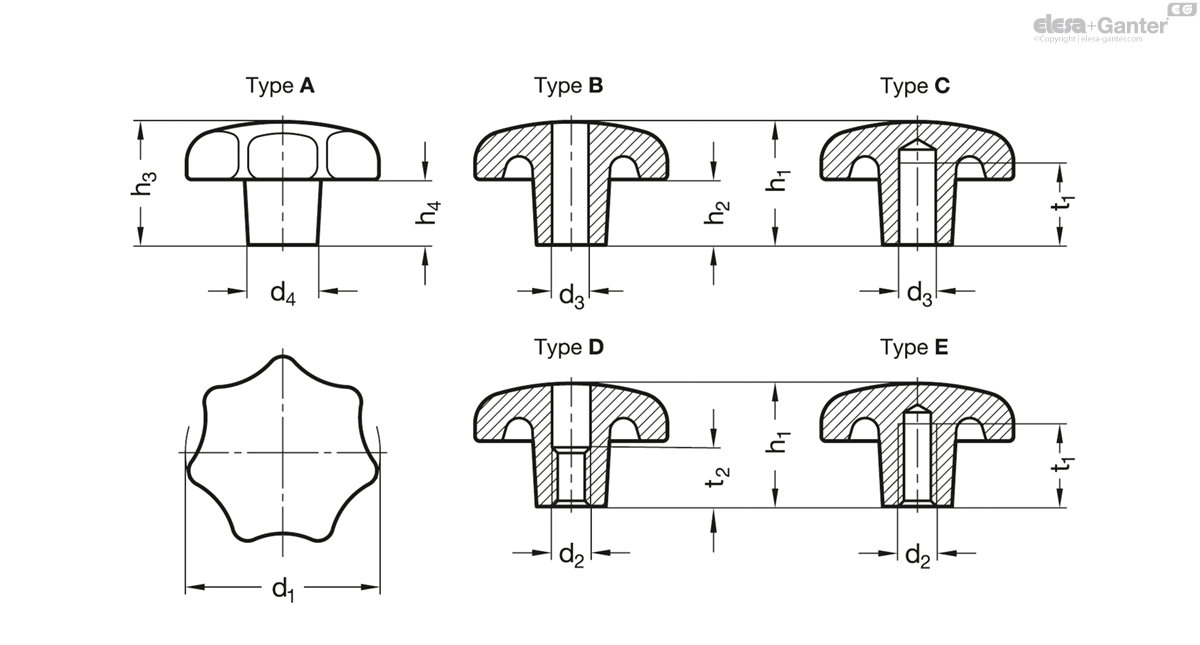

Types
- Type A: without bore (unmachined)
- Type B: with plain through bore H7
- Type C: with plain blind bore H7
- Type D: with threaded through bore
- Type E: with threaded blind bore
Cast iron GG
fettled and tumbled

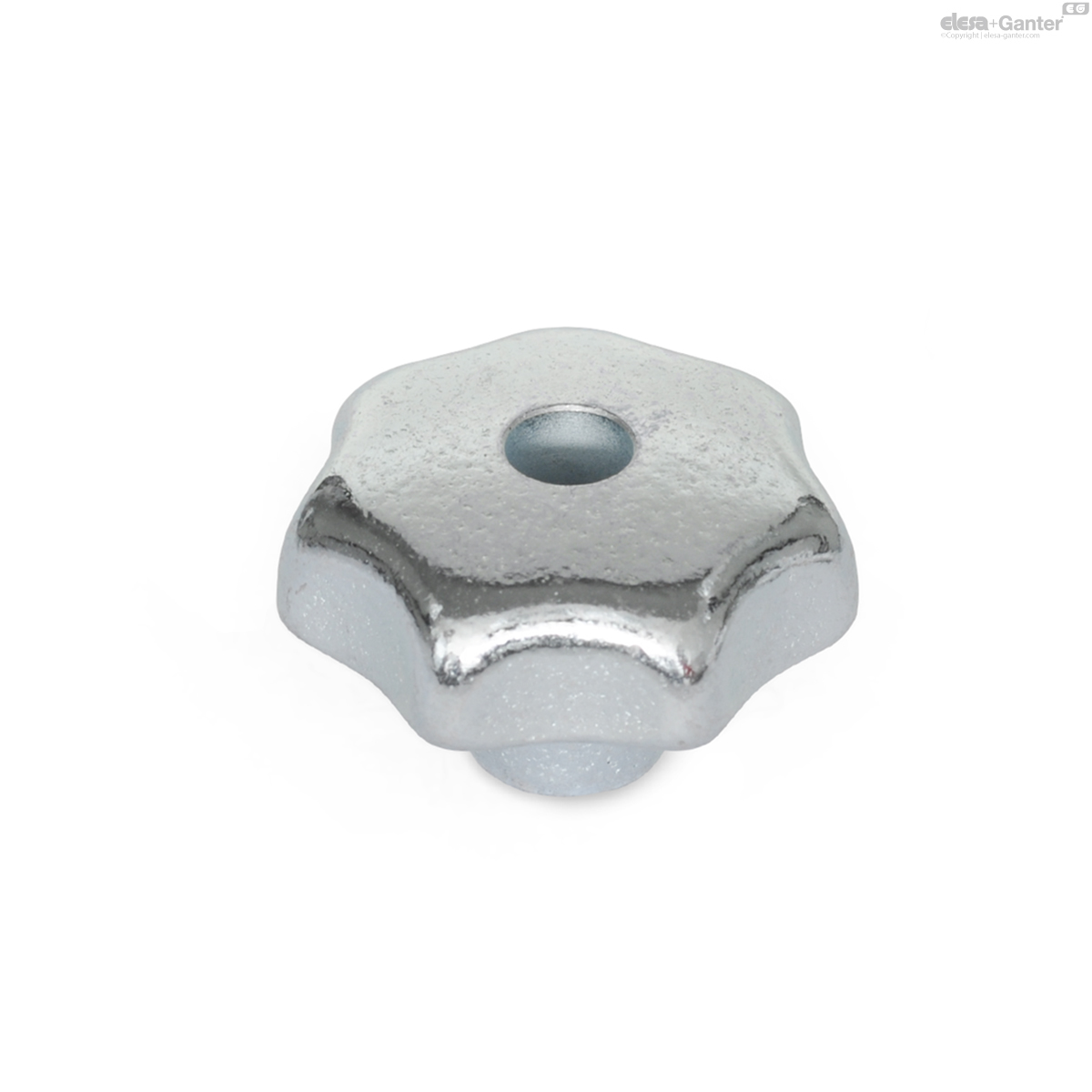

zinc plated, blue passivated ZB
Thread: screw mobility
only types D and E

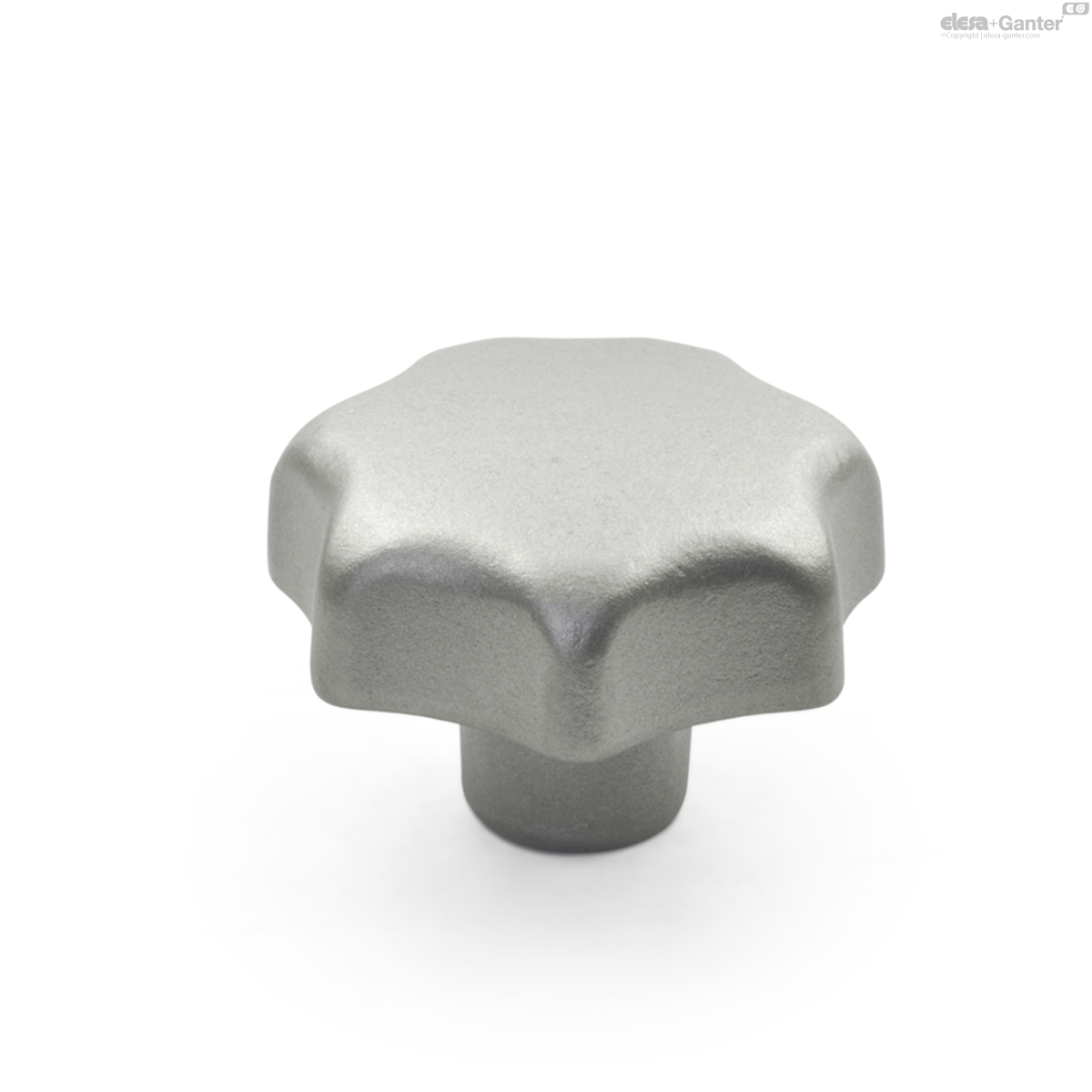

Stainless Steel precision casting NI
only types A, D, E
- AISI CF-8
- matt shot-blasted

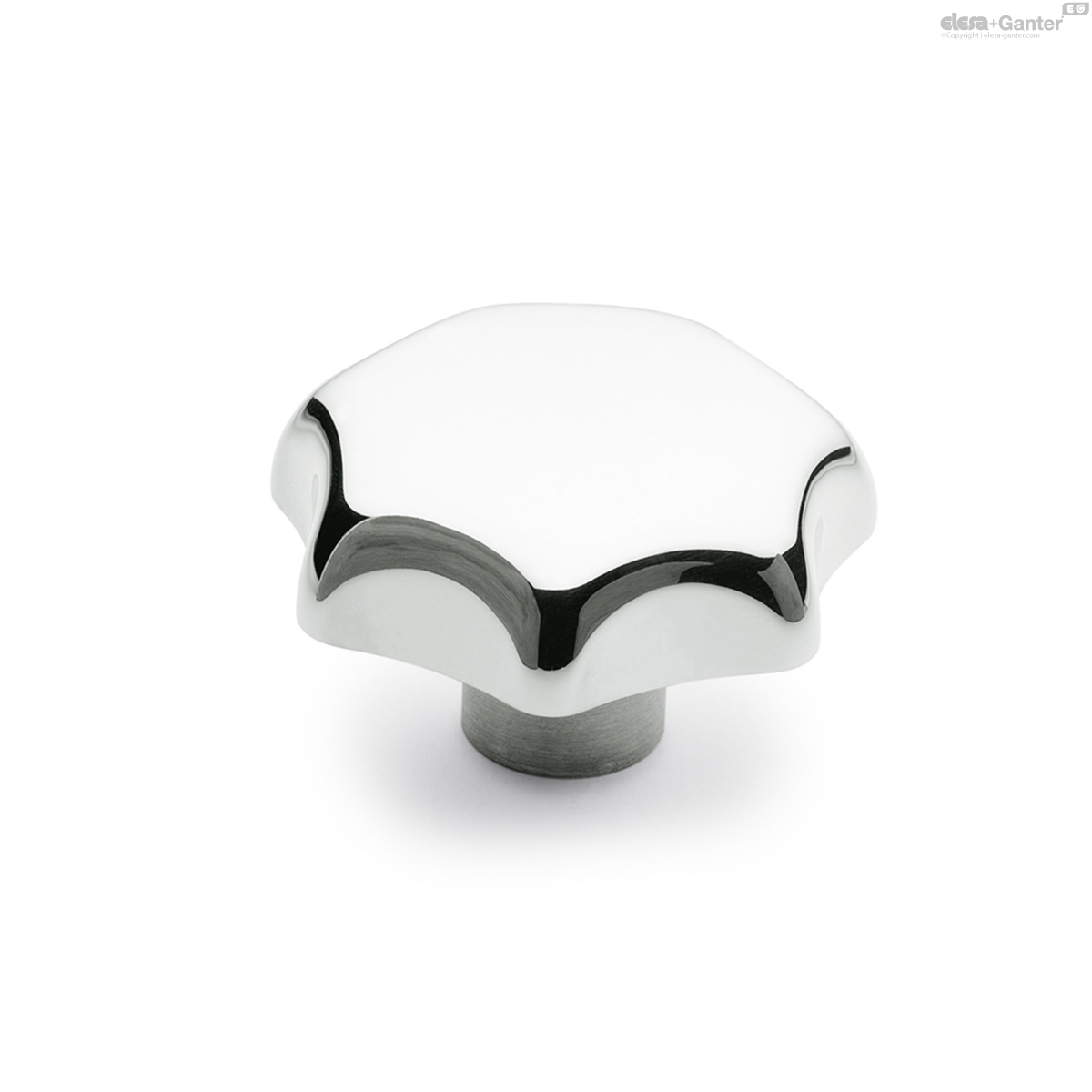

Aluminium AL
only types A, C, D, E
- matt finish (ground), flash mark not visible MT
- polished PL
On request
- plastic coated
Technical information
- ISO-Fundamental TolerancesÂ
- Stainless Steel characteristicsÂ
DIN 6336-GG
| d1 | d2 | d3 H7 | d4 | h1 | h2 min. | h3 | h4 min. | t1 | t2 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| DIN 6336-GG-32-A | 32 | - | - | 12 | - | - | 21 | 10 | - | - | 53 |
|
| DIN 6336-GG-32-B6-B | 32 | - | B 6 | 12 | 20 | 9 | - | - | - | - | 42 |
|
| DIN 6336-GG-32-B6-C | 32 | - | B 6 | 12 | 20 | 9 | - | - | 12 | - | 51 |
|
| DIN 6336-GG-32-M6-D | 32 | M 6 | - | 12 | 20 | 9 | - | - | - | 10 | 40 |
|
| DIN 6336-GG-32-M6-E | 32 | M 6 | - | 12 | 20 | 9 | - | - | 12 | - | 50 |
|
| DIN 6336-GG-40-A | 40 | - | - | 14 | - | - | 26 | 13 | - | - | 79 |
|
| DIN 6336-GG-40-B8-B | 40 | - | B 8 | 14 | 25 | 12 | - | - | - | - | 69 |
|
| DIN 6336-GG-40-B8-C | 40 | - | B 8 | 14 | 25 | 12 | - | - | 15 | - | 67 |
|
| DIN 6336-GG-40-M8-D | 40 | M 8 | - | 14 | 25 | 12 | - | - | - | 12 | 69 |
|
| DIN 6336-GG-40-M8-E | 40 | M 8 | - | 14 | 25 | 12 | - | - | 15 | - | 69 |
|
| DIN 6336-GG-50-A | 50 | - | - | 18 | - | - | 34 | 17 | - | - | 161 |
|
| DIN 6336-GG-50-B8-B | 50 | - | B 8 | 18 | 32 | 15 | - | - | - | - | 150 |
|
| DIN 6336-GG-50-B8-C | 50 | - | B 8 | 18 | 32 | 15 | - | - | 18 | - | 133 |
|
| DIN 6336-GG-50-B10-B | 50 | - | B 10 | 18 | 32 | 15 | - | - | - | - | 120 |
|
| DIN 6336-GG-50-B10-C | 50 | - | B 10 | 18 | 32 | 15 | - | - | 18 | - | 150 |
|
| DIN 6336-GG-50-M8-D | 50 | M 8 | - | 18 | 32 | 15 | - | - | - | 16 | 150 |
|
| DIN 6336-GG-50-M8-E | 50 | M 8 | - | 18 | 32 | 15 | - | - | 18 | - | 152 |
|
| DIN 6336-GG-50-M10-D | 50 | M 10 | - | 18 | 32 | 15 | - | - | - | 16 | 139 |
|
| DIN 6336-GG-50-M10-E | 50 | M 10 | - | 18 | 32 | 15 | - | - | 18 | - | 144 |
|
| DIN 6336-GG-63-A | 63 | - | - | 20 | - | - | 42 | 21 | - | - | 281 |
|
| DIN 6336-GG-63-B10-B | 63 | - | B 10 | 20 | 40 | 19 | - | - | - | - | 249 |
|
| DIN 6336-GG-63-B10-C | 63 | - | B 10 | 20 | 40 | 19 | - | - | 22 | - | 256 |
|
| DIN 6336-GG-63-B12-B | 63 | - | B 12 | 20 | 40 | 19 | - | - | - | - | 250 |
|
| DIN 6336-GG-63-B12-C | 63 | - | B 12 | 20 | 40 | 19 | - | - | 22 | - | 260 |
|
| DIN 6336-GG-63-M10-D | 63 | M 10 | - | 20 | 40 | 19 | - | - | - | 20 | 245 |
|
| DIN 6336-GG-63-M10-E | 63 | M 10 | - | 20 | 40 | 19 | - | - | 22 | - | 280 |
|
| DIN 6336-GG-63-M12-D | 63 | M 12 | - | 20 | 40 | 19 | - | - | - | 20 | 260 |
|
| DIN 6336-GG-63-M12-E | 63 | M 12 | - | 20 | 40 | 19 | - | - | 22 | - | 274 |
|
| DIN 6336-GG-80-A | 80 | - | - | 25 | - | - | 52 | 25 | - | - | 580 |
|
| DIN 6336-GG-80-B12-B | 80 | - | B 12 | 25 | 50 | 23 | - | - | - | - | 546 |
|
| DIN 6336-GG-80-B12-C | 80 | - | B 12 | 25 | 50 | 23 | - | - | 28 | - | 490 |
|
| DIN 6336-GG-80-B16-B | 80 | - | B 16 | 25 | 50 | 23 | - | - | - | - | 500 |
|
| DIN 6336-GG-80-B16-C | 80 | - | B 16 | 25 | 50 | 23 | - | - | 28 | - | 542 |
|
| DIN 6336-GG-80-M12-D | 80 | M 12 | - | 25 | 50 | 23 | - | - | - | 30 | 550 |
|
| DIN 6336-GG-80-M12-E | 80 | M 12 | - | 25 | 50 | 23 | - | - | 28 | - | 550 |
|
| DIN 6336-GG-80-M16-D | 80 | M 16 | - | 25 | 50 | 23 | - | - | - | 30 | 510 |
|
| DIN 6336-GG-80-M16-E | 80 | M 16 | - | 25 | 50 | 23 | - | - | 28 | - | 560 |
|
