DIN 6336
Star knobs
Cast iron / Stainless Steel / Aluminium
DIN 6336-GG
Star knobs
Cast iron
DIN 6336-ZB
Star knobs
Zinc plated
DIN 6336-NI
Star knobs
Stainless Steel
DIN 6336-AL
Star knobs
Aluminium
Description
Specification
Types

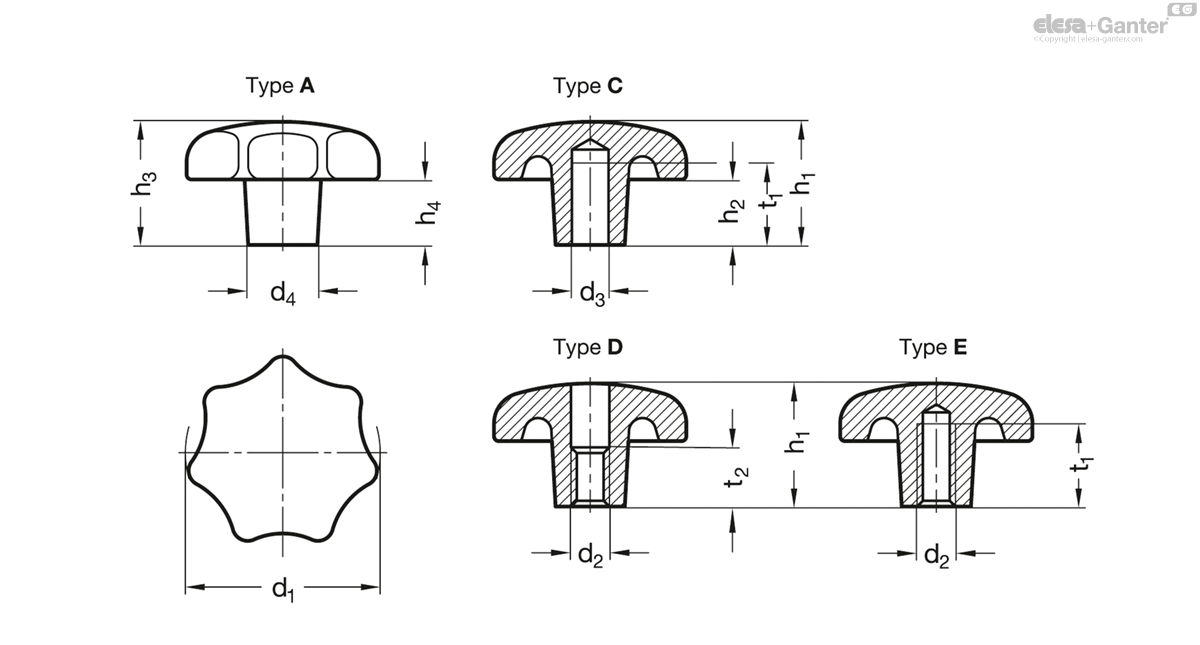

- Type A: without bore (unmachined)
- Type B: with plain through bore H7
- Type C: with plain blind bore H7
- Type D: with threaded through bore
- Type E: with threaded blind bore
Cast iron GG
fettled and tumbled
zinc plated, blue passivated ZB
Thread: screw mobility
only types D and E
Stainless Steel precision casting NI
only types A, D, E
- AISI CF-8
- matt shot-blasted
Aluminium AL
only types A, C, D, E
- matt finish (ground), flash mark not visible MT
- polished PL
On request
- plastic coated
Technical information
- ISO-Fundamental TolerancesÂ
- Stainless Steel characteristicsÂ
DIN 6336-AL
| d1 | d2 | d3 H7 | d4 | h1 | h2 min. | h3 | h4 min. | t1 | t2 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| DIN 6336-AL-40-A | 40 | - | - | 14 | - | - | 26 | 13 | - | - | 30 |
|
| DIN 6336-AL-40-B8-C-MT | 40 | - | B 8 | 14 | 25 | 12 | - | - | 15 | - | 25 |
|
| DIN 6336-AL-40-B8-C-PL | 40 | - | B 8 | 14 | 25 | 12 | - | - | 15 | - | 28 |
|
| DIN 6336-AL-40-M8-D-MT | 40 | M 8 | - | 14 | 25 | 12 | - | - | - | 12 | 32 |
|
| DIN 6336-AL-40-M8-D-PL | 40 | M 8 | - | 14 | 25 | 12 | - | - | - | 12 | 32 |
|
| DIN 6336-AL-40-M8-E-MT | 40 | M 8 | - | 14 | 25 | 12 | - | - | 15 | - | 25 |
|
| DIN 6336-AL-40-M8-E-PL | 40 | M 8 | - | 14 | 25 | 12 | - | - | 15 | - | 37 |
|
| DIN 6336-AL-50-A | 50 | - | - | 18 | - | - | 34 | 17 | - | - | 57 |
|
| DIN 6336-AL-50-B8-C-MT | 50 | - | B 8 | 18 | 32 | 15 | - | - | 18 | - | 55 |
|
| DIN 6336-AL-50-B8-C-PL | 50 | - | B 8 | 18 | 32 | 15 | - | - | 18 | - | 55 |
|
| DIN 6336-AL-50-B10-C-MT | 50 | - | B 10 | 18 | 32 | 15 | - | - | 18 | - | 50 |
|
| DIN 6336-AL-50-B10-C-PL | 50 | - | B 10 | 18 | 32 | 15 | - | - | 18 | - | 50 |
|
| DIN 6336-AL-50-M8-D-MT | 50 | M 8 | - | 18 | 32 | 15 | - | - | - | 16 | 56 |
|
| DIN 6336-AL-50-M8-D-PL | 50 | M 8 | - | 18 | 32 | 15 | - | - | - | 16 | 56 |
|
| DIN 6336-AL-50-M8-E-MT | 50 | M 8 | - | 18 | 32 | 15 | - | - | 18 | - | 57 |
|
| DIN 6336-AL-50-M8-E-PL | 50 | M 8 | - | 18 | 32 | 15 | - | - | 18 | - | 57 |
|
| DIN 6336-AL-50-M10-D-MT | 50 | M 10 | - | 18 | 32 | 15 | - | - | - | 16 | 54 |
|
| DIN 6336-AL-50-M10-D-PL | 50 | M 10 | - | 18 | 32 | 15 | - | - | - | 16 | 54 |
|
| DIN 6336-AL-50-M10-E-MT | 50 | M 10 | - | 18 | 32 | 15 | - | - | 18 | - | 55 |
|
| DIN 6336-AL-50-M10-E-PL | 50 | M 10 | - | 18 | 32 | 15 | - | - | 18 | - | 55 |
|
| DIN 6336-AL-63-A | 63 | - | - | 20 | - | - | 42 | 21 | - | - | 97 |
|
| DIN 6336-AL-63-B10-C-MT | 63 | - | B 10 | 20 | 40 | 19 | - | - | 22 | - | 121 |
|
| DIN 6336-AL-63-B10-C-PL | 63 | - | B 10 | 20 | 40 | 19 | - | - | 22 | - | 110 |
|
| DIN 6336-AL-63-B12-C-MT | 63 | - | B 12 | 20 | 40 | 19 | - | - | 22 | - | 117 |
|
| DIN 6336-AL-63-B12-C-PL | 63 | - | B 12 | 20 | 40 | 19 | - | - | 22 | - | 130 |
|
| DIN 6336-AL-63-M10-D-MT | 63 | M 10 | - | 20 | 40 | 19 | - | - | - | 20 | 118 |
|
| DIN 6336-AL-63-M10-D-PL | 63 | M 10 | - | 20 | 40 | 19 | - | - | - | 20 | 120 |
|
| DIN 6336-AL-63-M10-E-MT | 63 | M 10 | - | 20 | 40 | 19 | - | - | 22 | - | 110 |
|
| DIN 6336-AL-63-M10-E-PL | 63 | M 10 | - | 20 | 40 | 19 | - | - | 22 | - | 113 |
|
| DIN 6336-AL-63-M12-D-MT | 63 | M 12 | - | 20 | 40 | 19 | - | - | - | 20 | 114 |
|
| DIN 6336-AL-63-M12-D-PL | 63 | M 12 | - | 20 | 40 | 19 | - | - | - | 20 | 130 |
|
| DIN 6336-AL-63-M12-E-MT | 63 | M 12 | - | 20 | 40 | 19 | - | - | 22 | - | 120 |
|
| DIN 6336-AL-63-M12-E-PL | 63 | M 12 | - | 20 | 40 | 19 | - | - | 22 | - | 130 |
|
| DIN 6336-AL-80-A | 80 | - | - | 25 | - | - | 52 | 25 | - | - | 250 |
|
| DIN 6336-AL-80-B12-C-MT | 80 | - | B 12 | 25 | 50 | 23 | - | - | 28 | - | 240 |
|
| DIN 6336-AL-80-B12-C-PL | 80 | - | B 12 | 25 | 50 | 23 | - | - | 28 | - | 211 |
|
| DIN 6336-AL-80-B16-C-MT | 80 | - | B 16 | 25 | 50 | 23 | - | - | 28 | - | 224 |
|
| DIN 6336-AL-80-B16-C-PL | 80 | - | B 16 | 25 | 50 | 23 | - | - | 28 | - | 220 |
|
| DIN 6336-AL-80-M12-D-MT | 80 | M 12 | - | 25 | 50 | 23 | - | - | - | 30 | 231 |
|
| DIN 6336-AL-80-M12-D-PL | 80 | M 12 | - | 25 | 50 | 23 | - | - | - | 30 | 240 |
|
| DIN 6336-AL-80-M12-E-MT | 80 | M 12 | - | 25 | 50 | 23 | - | - | 28 | - | 210 |
|
| DIN 6336-AL-80-M12-E-PL | 80 | M 12 | - | 25 | 50 | 23 | - | - | 28 | - | 250 |
|
| DIN 6336-AL-80-M16-D-MT | 80 | M 16 | - | 25 | 50 | 23 | - | - | - | 30 | 220 |
|
| DIN 6336-AL-80-M16-D-PL | 80 | M 16 | - | 25 | 50 | 23 | - | - | - | 30 | 199 |
|
| DIN 6336-AL-80-M16-E-MT | 80 | M 16 | - | 25 | 50 | 23 | - | - | 28 | - | 200 |
|
| DIN 6336-AL-80-M16-E-PL | 80 | M 16 | - | 25 | 50 | 23 | - | - | 28 | - | 230 |
|
