DIN 466

Knurled Nuts

Steel / Stainless Steel, High Type

Enquire Now

Description

Specification

Version in Steel

Property class 5

Visible face fine turned

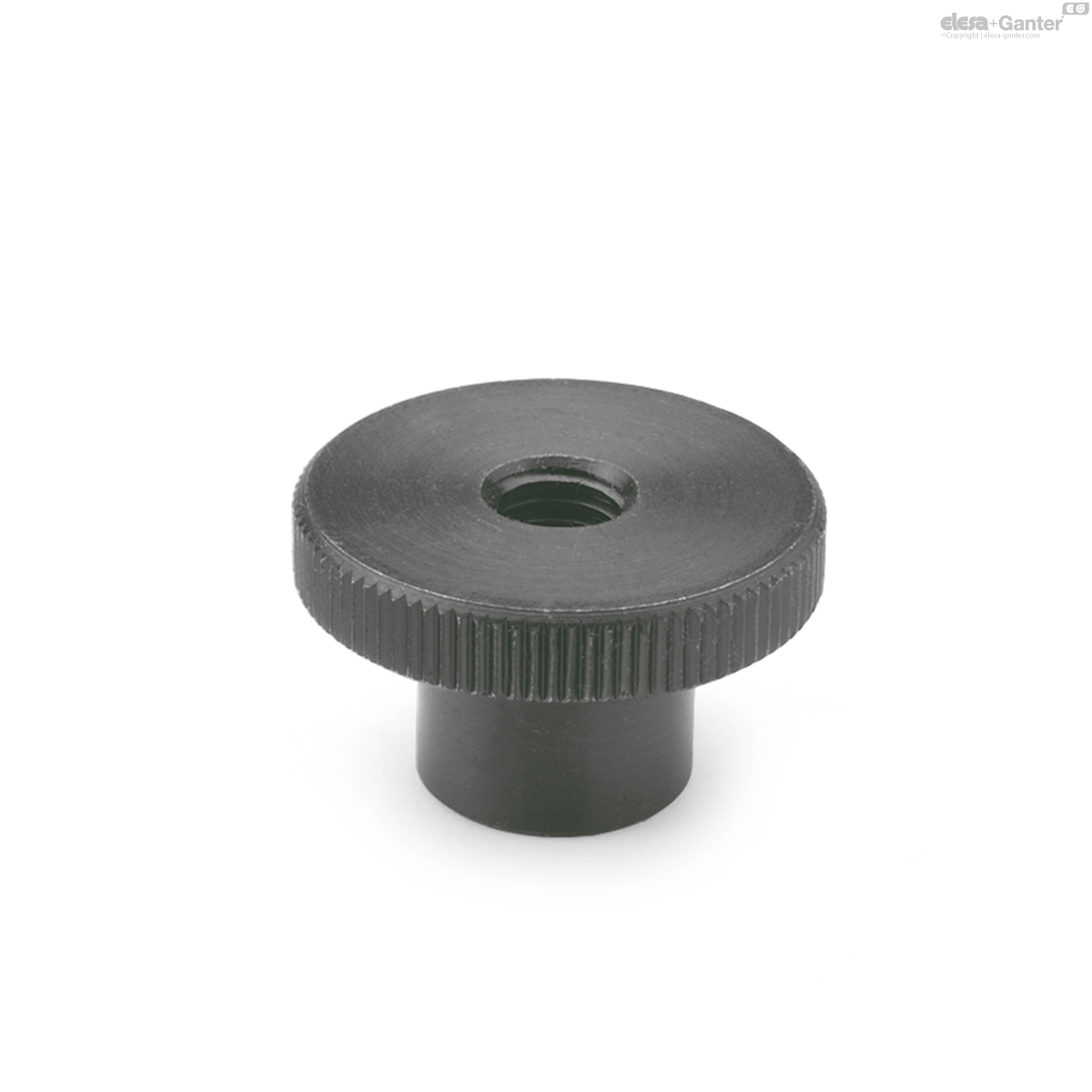

Blackened

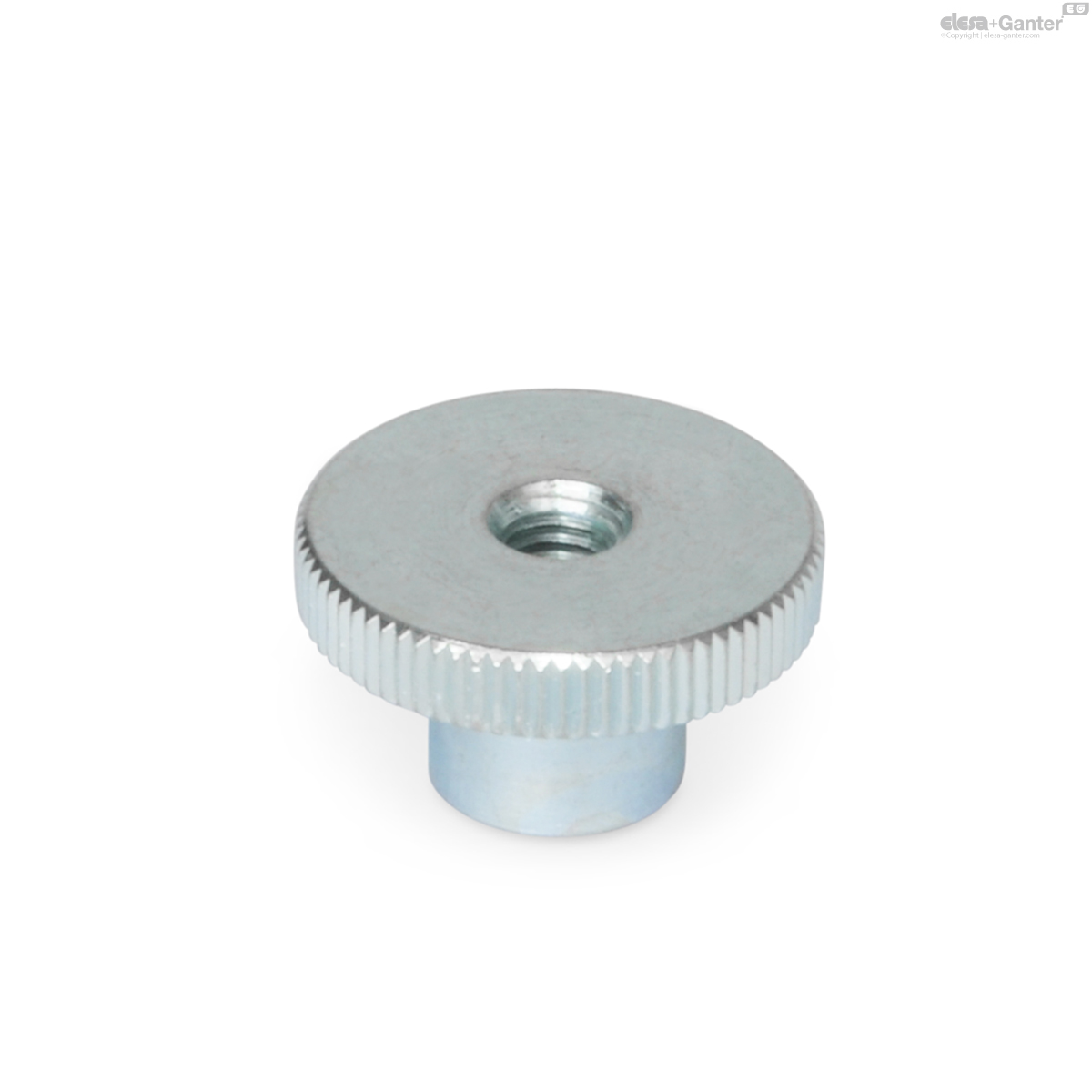

Zinc plated, blue passivated ZB

Version in Stainless Steel

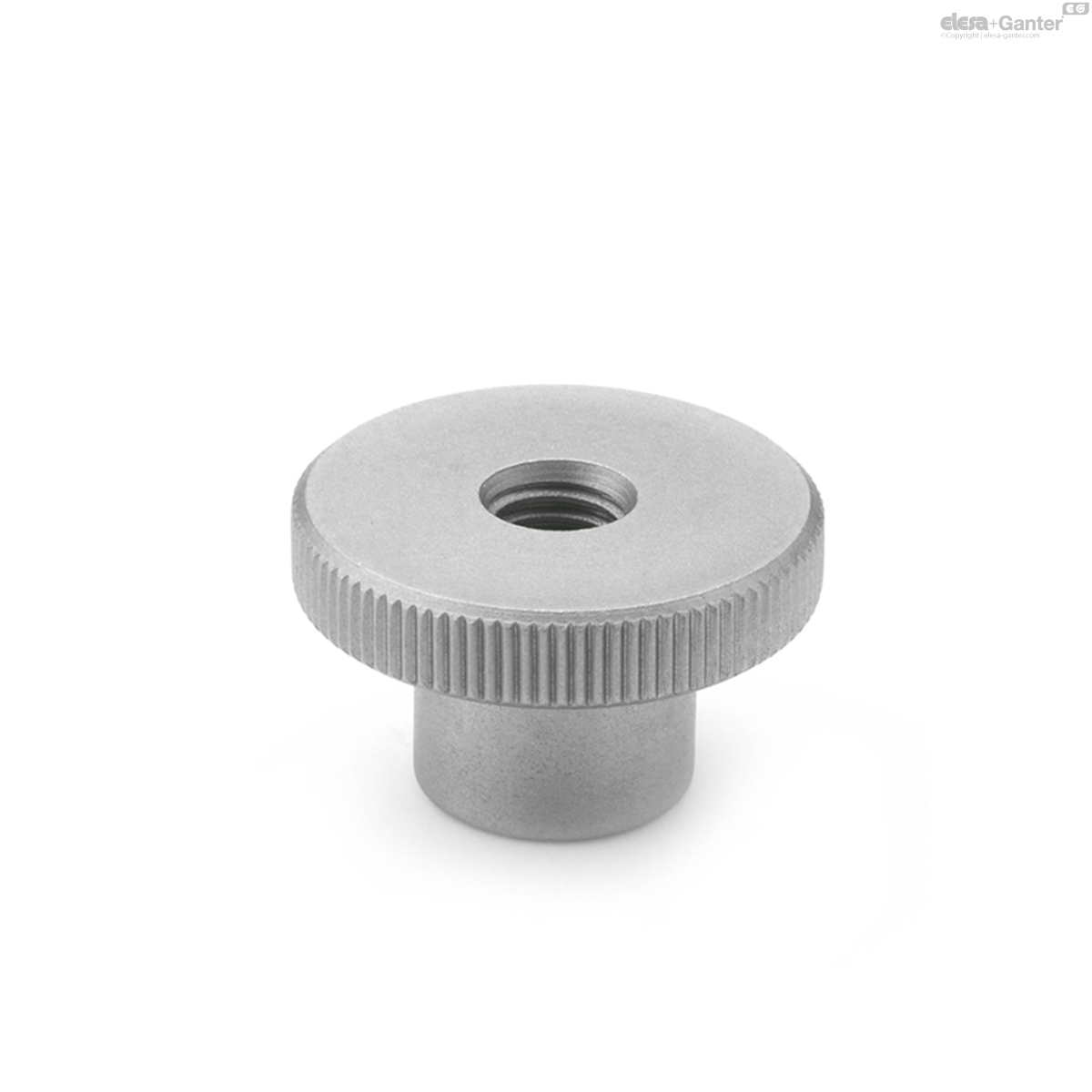

AISI 303 NI
AISI 316L A4
Matte shot-blasted

Information

Knurled nuts DIN 466 are suitable for universal use and can be tightened and loosened easily without tools. A nut with thread M12 is also available in addition to the types defined in the DIN standard.

Technical information

Stainless Steel Characteristics

Strength Values of Screws / Nuts

DIN 466-ST

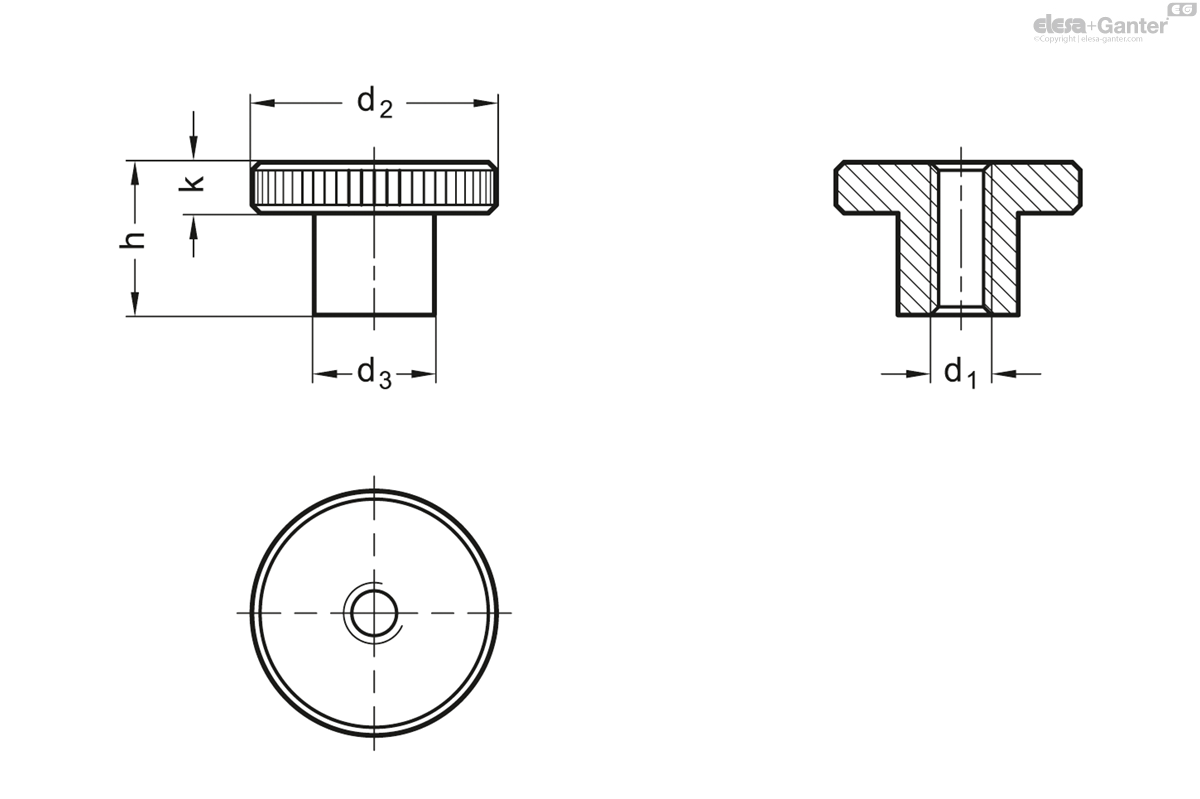

	d₁	d₂	d₃	h	k
Code							Actions
DIN 466-M2	M 2	9	4.5	5.3	2	2
DIN 466-M2,5	M 2.5	11	5	6.5	2.5	2
DIN 466-M3	M 3	12	6	7.5	2.5	3
DIN 466-M4	M 4	16	8	9.5	3.5	7
DIN 466-M5	M 5	20	10	11.5	4	12
DIN 466-M6	M 6	24	12	15	5	22
DIN 466-M8	M 8	30	16	18	6	44
DIN 466-M10	M 10	36	20	23	8	84
DIN 466-M12	M 12	40	22	25	10	120
