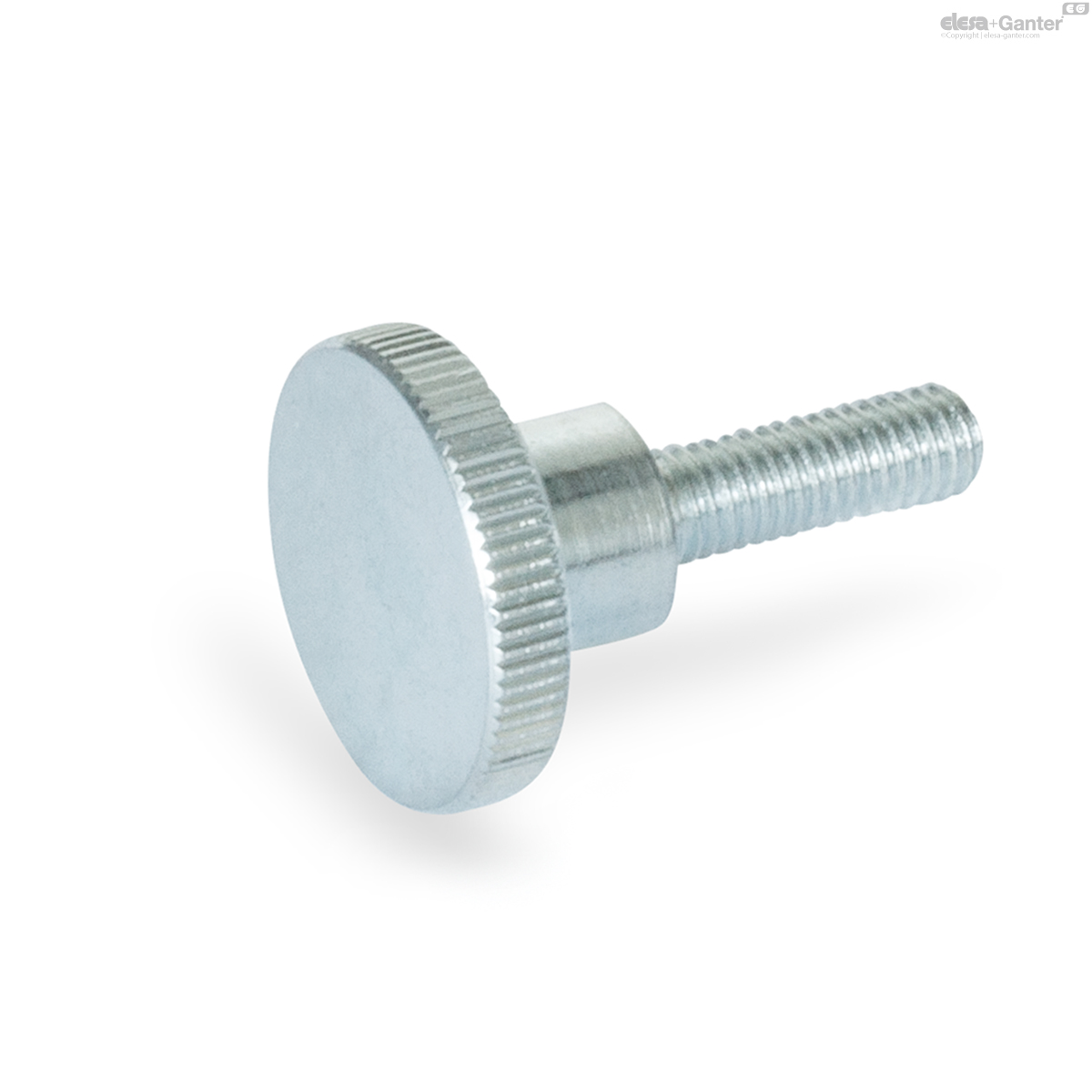

DIN 464

Knurled Screws

Steel / Stainless Steel, High Type

Enquire Now

Description

Specification

Version in Steel

Property class 5

Visible face fine turned

Blackened

Zinc plated, blue passivated ZB

Version in Stainless Steel

AISI 303 NI
AISI 316L A4
Matte shot-blasted

Information

Knurled screws DIN 464 are turned entirely from a single piece. The thread of the screw generally extends up to the shoulder and ends in a runout without recess.

They are suitable for universal use and can be quickly tightened and loosened without tools.

Technical information

Stainless Steel Characteristics

Strength Values of Screws / Nuts

DIN 464-ZB

	d₁	l	d₂	d₃	h	k
Code								Actions
DIN 464-M2,5-4-ZB	M 2.5	4	11	5	6.5	2.5	3
DIN 464-M2,5-6-ZB	M 2.5	6	11	5	6.5	2.5	3
DIN 464-M2,5-8-ZB	M 2.5	8	11	5	6.5	2.5	4
DIN 464-M2,5-10-ZB	M 2.5	10	11	5	6.5	2.5	4
DIN 464-M2,5-12-ZB	M 2.5	12	11	5	6.5	2.5	5
DIN 464-M2-4-ZB	M 2	4	9	4.5	5.3	2	2
DIN 464-M2-6-ZB	M 2	6	9	4.5	5.3	2	2
DIN 464-M2-8-ZB	M 2	8	9	4.5	5.3	2	2
DIN 464-M2-10-ZB	M 2	10	9	4.5	5.3	2	4
DIN 464-M3-6-ZB	M 3	6	12	6	7.5	2.5	4
DIN 464-M3-8-ZB	M 3	8	12	6	7.5	2.5	4
DIN 464-M3-10-ZB	M 3	10	12	6	7.5	2.5	4
DIN 464-M3-12-ZB	M 3	12	12	6	7.5	2.5	4
DIN 464-M3-16-ZB	M 3	16	12	6	7.5	2.5	5
DIN 464-M3-20-ZB	M 3	20	12	6	7.5	2.5	5
DIN 464-M4-5-ZB	M 4	5	16	8	9.5	3.5	9
DIN 464-M4-8-ZB	M 4	8	16	8	9.5	3.5	9
DIN 464-M4-10-ZB	M 4	10	16	8	9.5	3.5	9
DIN 464-M4-12-ZB	M 4	12	16	8	9.5	3.5	9
DIN 464-M4-16-ZB	M 4	16	16	8	9.5	3.5	9
DIN 464-M4-20-ZB	M 4	20	16	8	9.5	3.5	9
DIN 464-M4-25-ZB	M 4	25	16	8	9.5	3.5	9
DIN 464-M5-6-ZB	M 5	6	20	10	11.5	4	15
DIN 464-M5-8-ZB	M 5	8	20	10	11.5	4	15
DIN 464-M5-10-ZB	M 5	10	20	10	11.5	4	16
DIN 464-M5-12-ZB	M 5	12	20	10	11.5	4	14
DIN 464-M5-16-ZB	M 5	16	20	10	11.5	4	16
DIN 464-M5-20-ZB	M 5	20	20	10	11.5	4	17
DIN 464-M5-25-ZB	M 5	25	20	10	11.5	4	17
DIN 464-M5-30-ZB	M 5	30	20	10	11.5	4	18
DIN 464-M6-8-ZB	M 6	8	24	12	15	5	27
DIN 464-M6-10-ZB	M 6	10	24	12	15	5	28
DIN 464-M6-12-ZB	M 6	12	24	12	15	5	28
DIN 464-M6-16-ZB	M 6	16	24	12	15	5	29
DIN 464-M6-20-ZB	M 6	20	24	12	15	5	30
DIN 464-M6-25-ZB	M 6	25	24	12	15	5	30
DIN 464-M6-30-ZB	M 6	30	24	12	15	5	31
DIN 464-M6-35-ZB	M 6	35	24	12	15	5	31
DIN 464-M8-12-ZB	M 8	12	30	16	18	6	55
DIN 464-M8-16-ZB	M 8	16	30	16	18	6	55
DIN 464-M8-20-ZB	M 8	20	30	16	18	6	56
DIN 464-M8-25-ZB	M 8	25	30	16	18	6	17
DIN 464-M8-30-ZB	M 8	30	30	16	18	6	60
DIN 464-M8-35-ZB	M 8	35	30	16	18	6	63
DIN 464-M8-40-ZB	M 8	40	30	16	18	6	62
DIN 464-M10-12-ZB	M 10	12	36	20	23	8	105
DIN 464-M10-15-ZB	M 10	15	36	20	23	8	106
DIN 464-M10-20-ZB	M 10	20	36	20	23	8	107
DIN 464-M10-25-ZB	M 10	25	36	20	23	8	110
DIN 464-M10-30-ZB	M 10	30	36	20	23	8	112
DIN 464-M10-35-ZB	M 10	35	36	20	23	8	115
DIN 464-M10-40-ZB	M 10	40	36	20	23	8	116
