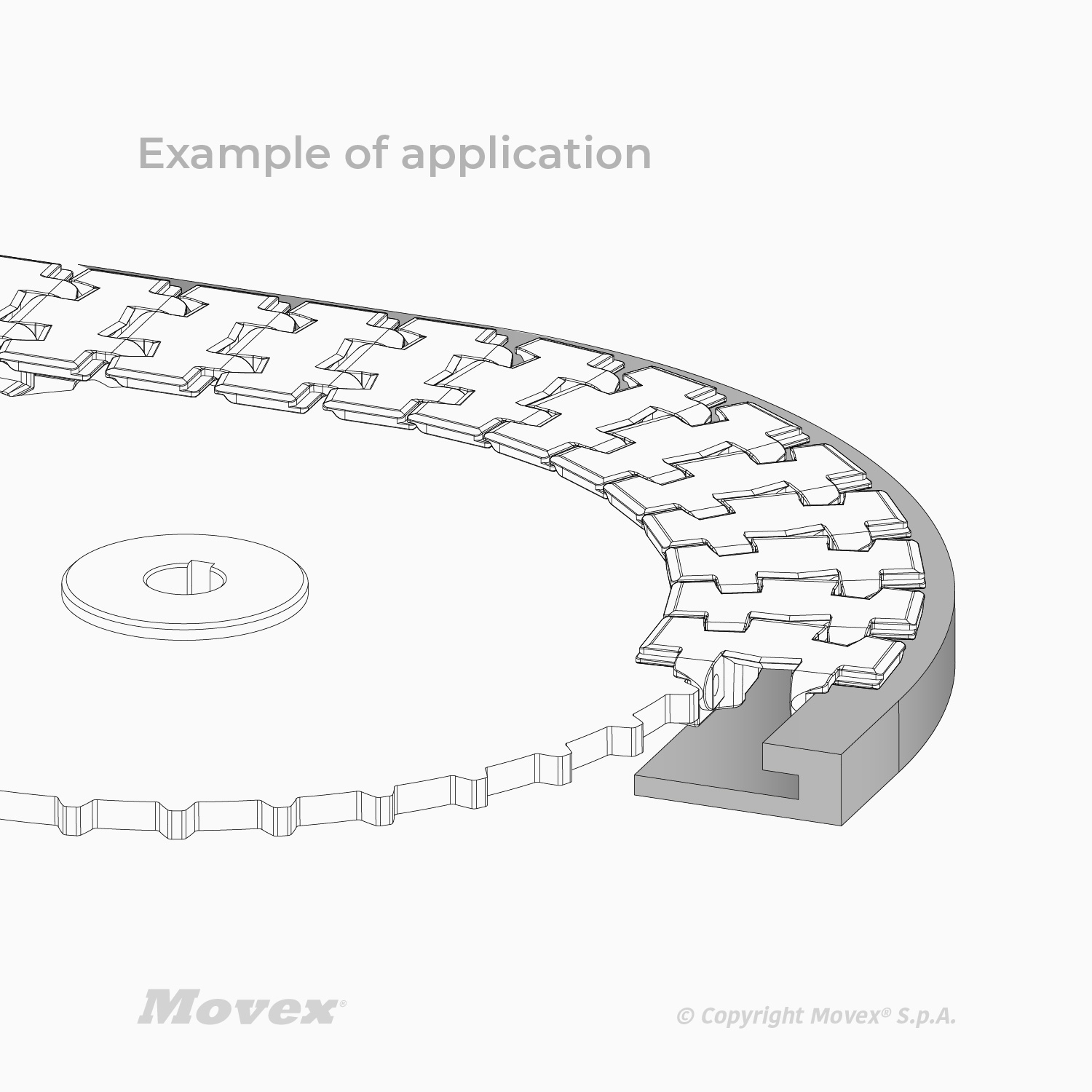

Curve 878 TAB - Turning disk application

Curve

Enquire Now

Description

TAB type corner tracks are a more economical solution compared to magnetic curves. In those applications where cleaning and product support are less important, they can perfectly be used.

Basic features

Series:	878
Type:	Tab
Box:	-

Curve 878 TAB - Turning disk application

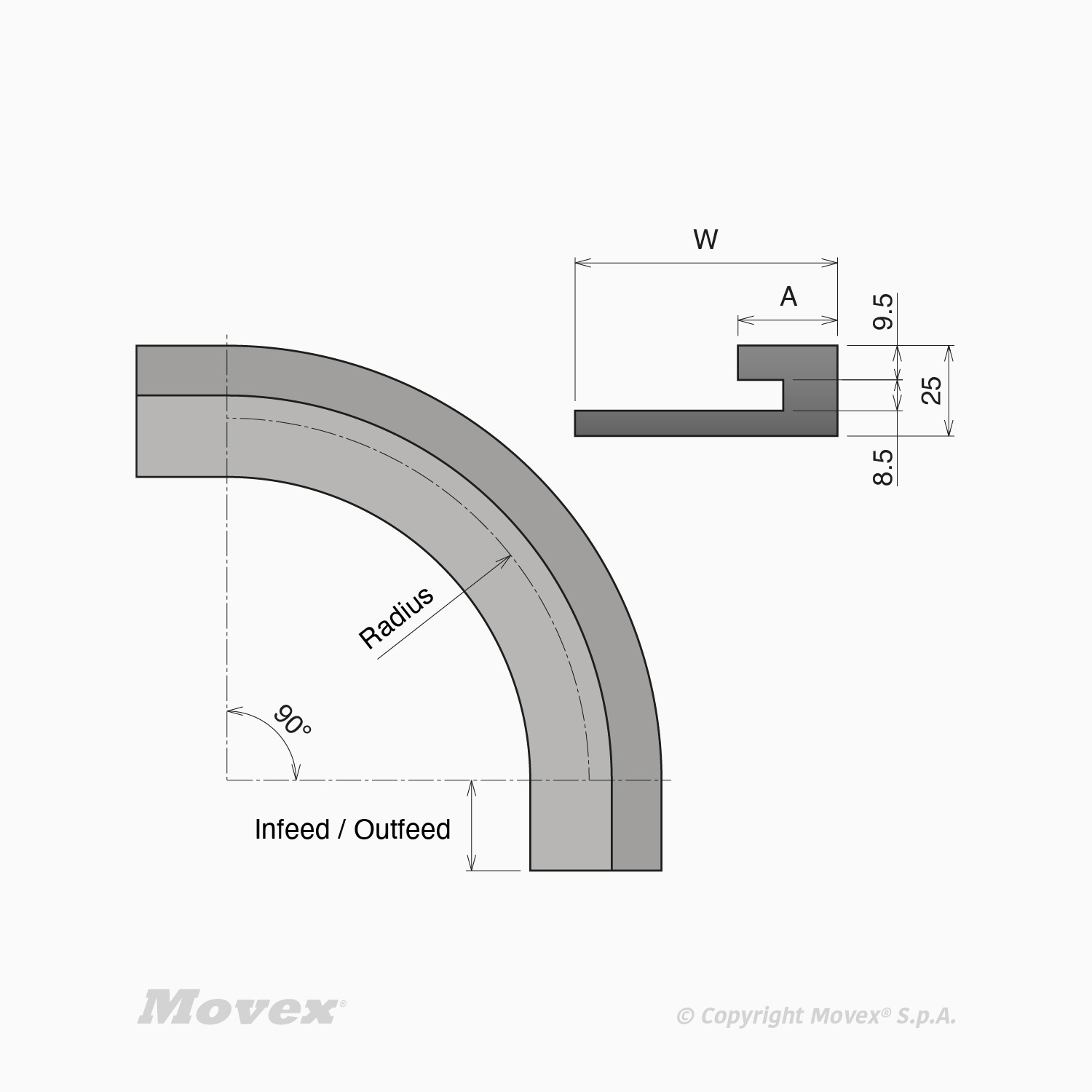

	Chain/Belt Width	Radius	Total Height	Angle	Version	Unit of measure	Tracks	Total width	Infeed / Outfeed	Material UP	UP Height	Shoe	Part	Temperature range dry
Code															Actions
P76411072	K 325 (82,55 mm)	200 mm	25 mm	90°	A - 27,5 mm	Ea	1	72,5 mm	50	UHMW-PE Black	25 mm	Not included	764	-40÷80 °C
P76411087	K 450 (114,30 mm)	200 mm	25 mm	90°	A - 42,5 mm	Ea	1	87,5 mm	50	UHMW-PE Black	25 mm	Not included	764	-40÷80 °C
P76421072	K 325 (82,55 mm)	200 mm	25 mm	180°	A - 27,5 mm	Ea	1	72,5 mm	50	UHMW-PE Black	25 mm	Not included	764	-40÷80 °C
P76421087	K 450 (114,30 mm)	200 mm	25 mm	180°	A - 42,5 mm	Ea	1	87,5 mm	50	UHMW-PE Black	25 mm	Not included	764	-40÷80 °C
